Kenmore
Dishwasher

Model #36314061790 Kenmore dishwasher

Here are the diagrams and repair parts for Kenmore 36314061790 dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 110 parts

Dishwasher Timer

#904

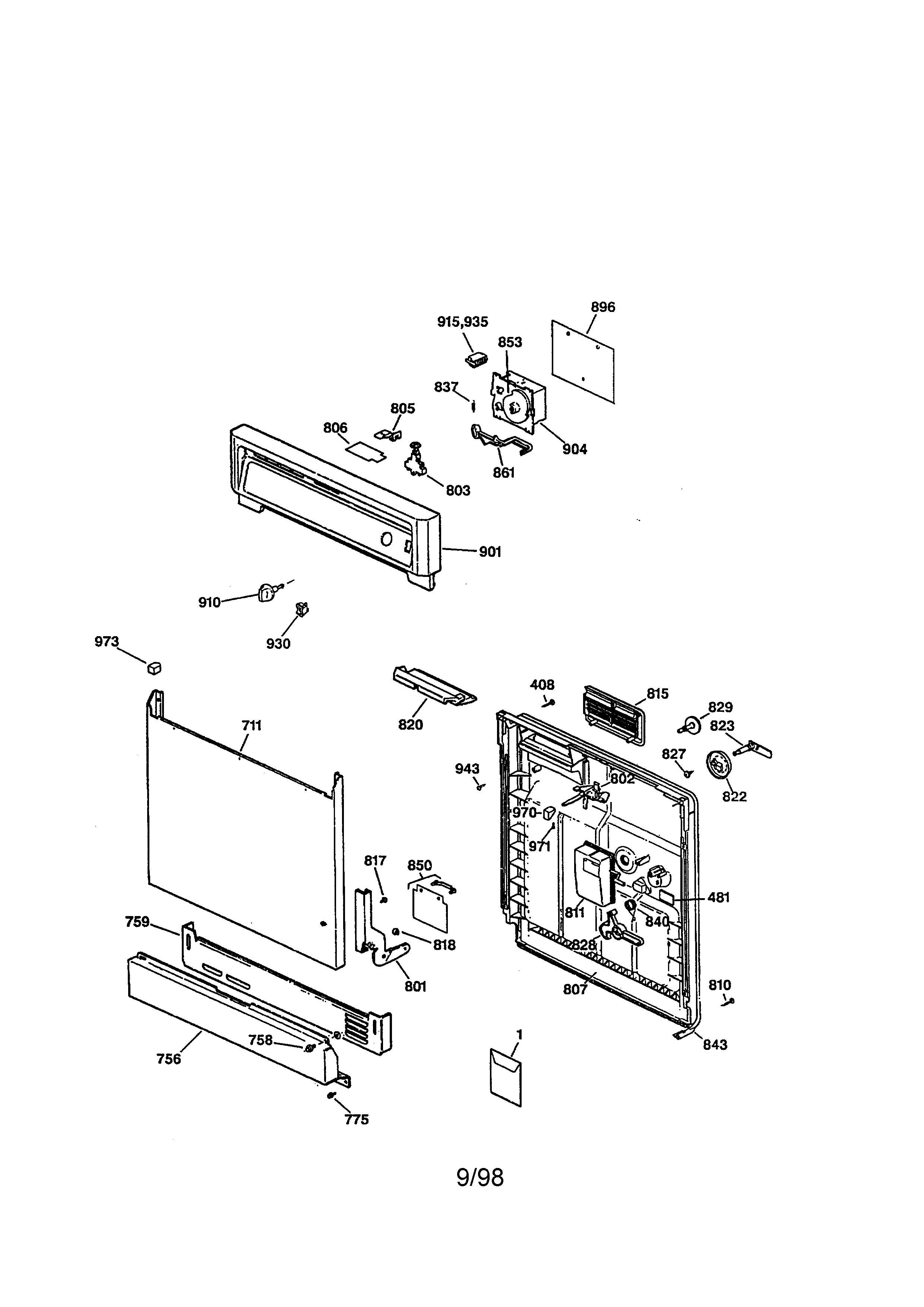

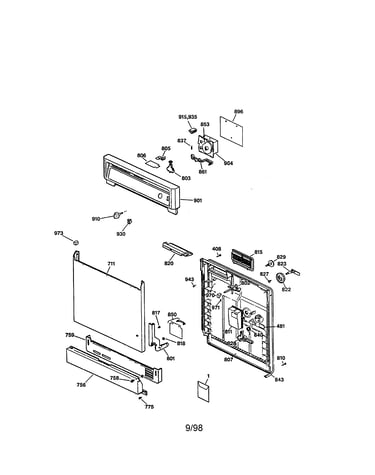

Escutcheon and door assembly Diagram

Dishwasher timer

Part #WD21X10013
$73.81

In Stock

Dishwasher Door Inner Panel

#807

Escutcheon and door assembly Diagram

$61.21

In Stock

Repair Parts List

#1A

Escutcheon and door assembly Diagram

Repair parts list

Part #SR5197
$11.49

In Stock

Dishwasher Timer Cam

#853

Escutcheon and door assembly Diagram

Dishwasher timer cam

Part #WD16X10001
$17.08

In Stock

Technical Sheet

#1

Escutcheon and door assembly Diagram

Technical sheet

Part #31-3084
$21.99

In Stock

Dishwasher Dishrack Slide Rail Stop

#652

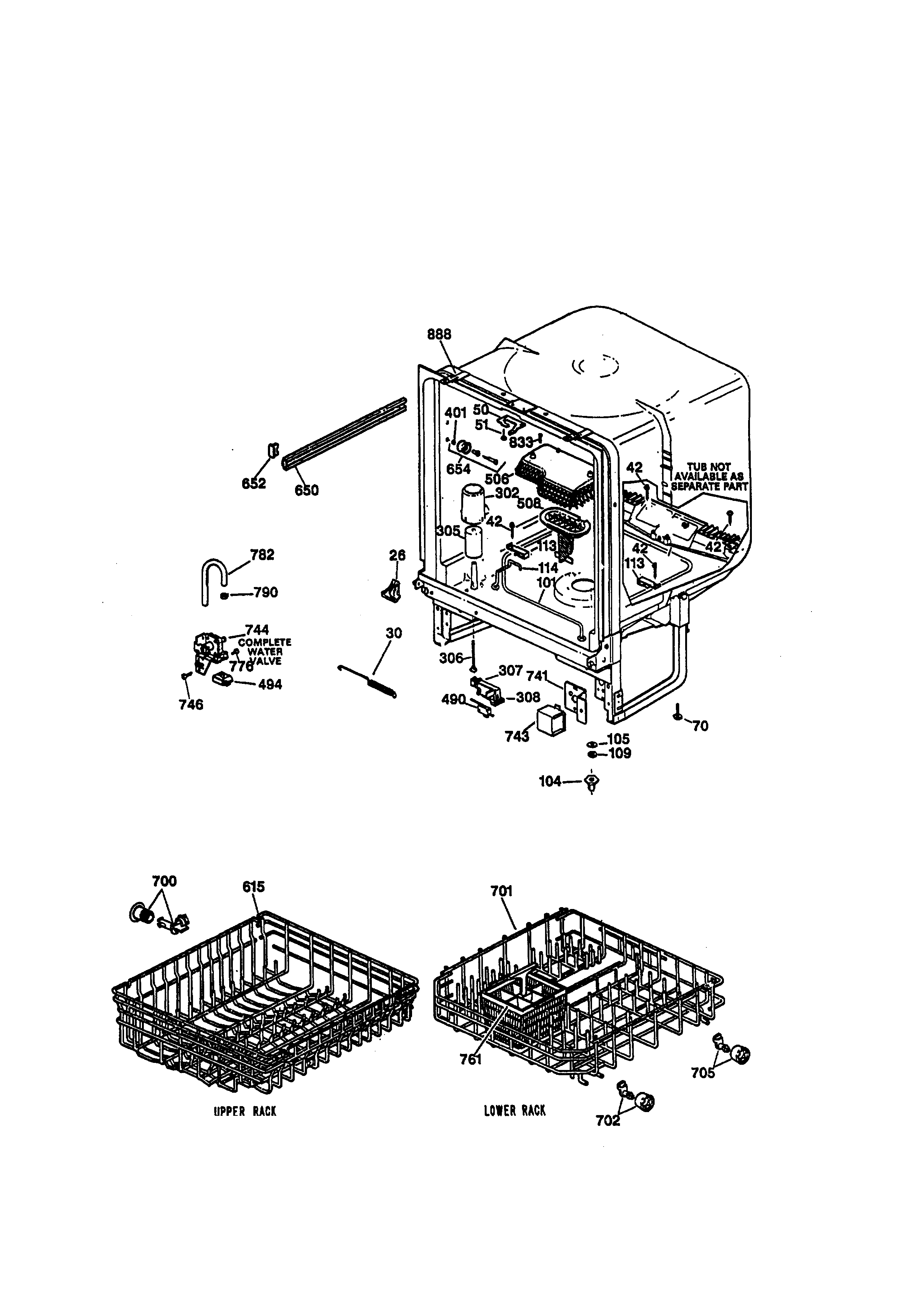

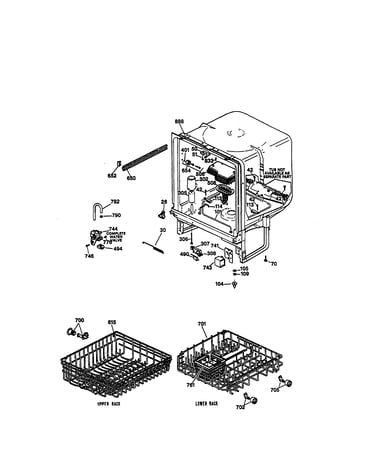

Body parts Diagram

Dishwasher dishrack slide rail stop

Part #WD12X10304
?
Manufacturer substitution
This part replaces WD12X0344. Substitute parts can look different from the original.
This part replaces WD12X0344
This item is not returnable
$2.01

In Stock

Dishwasher Lower Spray Arm Pivot Shaft

#455

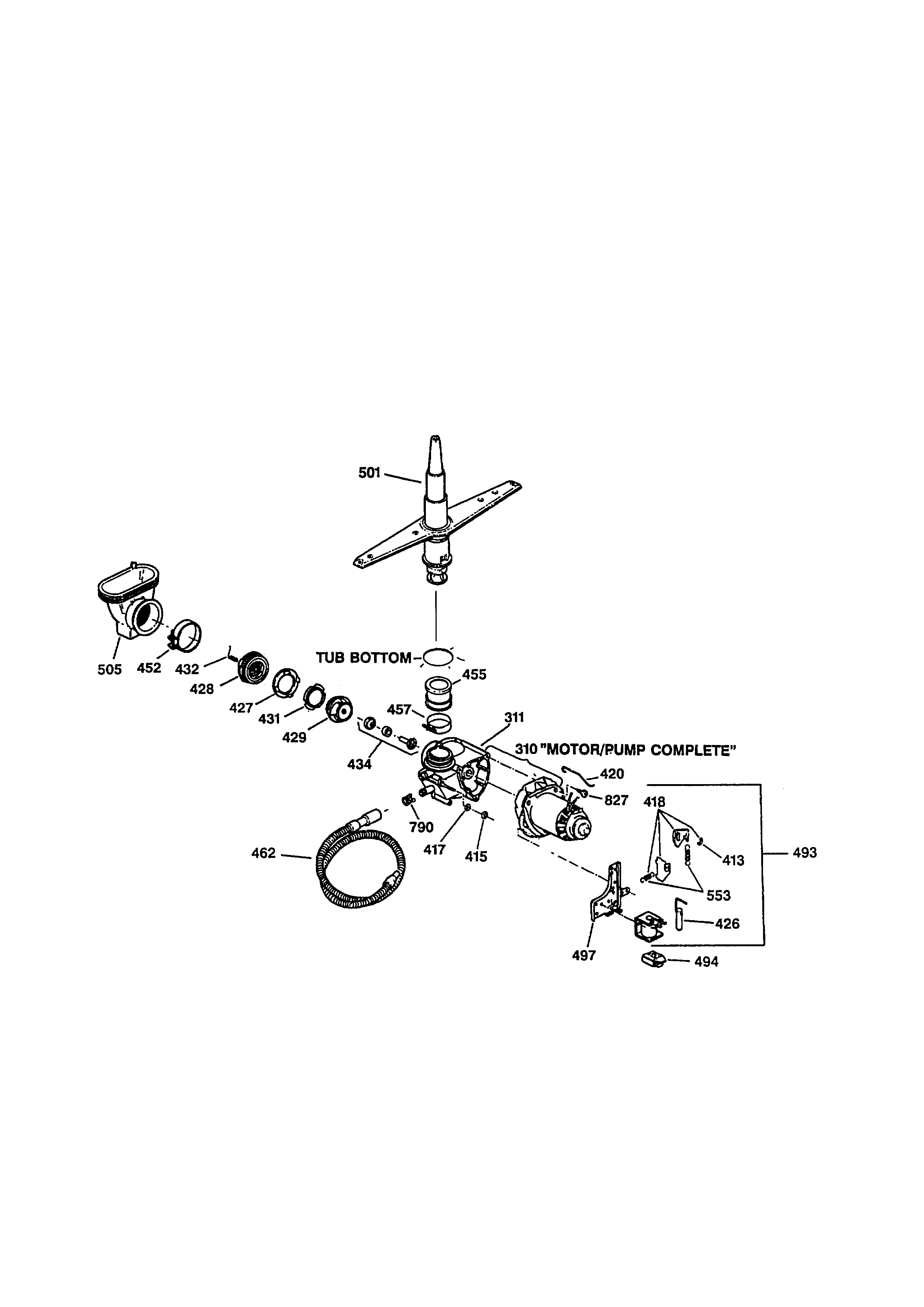

Motor-pump mechanism Diagram

Dishwasher lower spray arm pivot shaft

Part #WD18X214
?
Manufacturer substitution
This part replaces WD18X0214. Substitute parts can look different from the original.
This part replaces WD18X0214
$14.71

In Stock

Dishwasher Mounting Bracket Kit

#888

Body parts Diagram

Dishwasher mounting bracket kit

Part #WD35X200
?
Manufacturer substitution
This part replaces WD35X0200. Substitute parts can look different from the original.
This part replaces WD35X0200
This item is not returnable
$7.26

In Stock

Dishwasher Float Switch Lever

#306

Body parts Diagram

Dishwasher float switch lever

Part #WD12X335
?
Manufacturer substitution
This part replaces WD12X0335. Substitute parts can look different from the original.
This part replaces WD12X0335
$19.55

In Stock

Dishwasher Float Assembly

#305

Body parts Diagram

Dishwasher float assembly

Part #WD12X334
?
Manufacturer substitution
This part replaces WD12X0334. Substitute parts can look different from the original.
This part replaces WD12X0334
This item is not returnable
$5.37

In Stock
