Amana SMCD-2B-AG/P18011-16TG compactor Parts
Here are the diagrams and repair parts for Amana SMCD-2B-AG/P18011-16TG compactor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for SMCD-2B-AG/P18011-16TG Compactor
Chassis assembly diagram
Switch, Unit Compartment
Part #B1606602
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Cable Clip
Part #M0110501
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Wiring Harness
Part #D1801802
The manufacturer no longer makes this part, and there's no substitute part
Ram and drive screw assembly diagram
Pin, Ram Catch
Part #A1502112
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Rod, Lock Hinge
Part #A1506403
The manufacturer no longer makes this part, and there's no substitute part

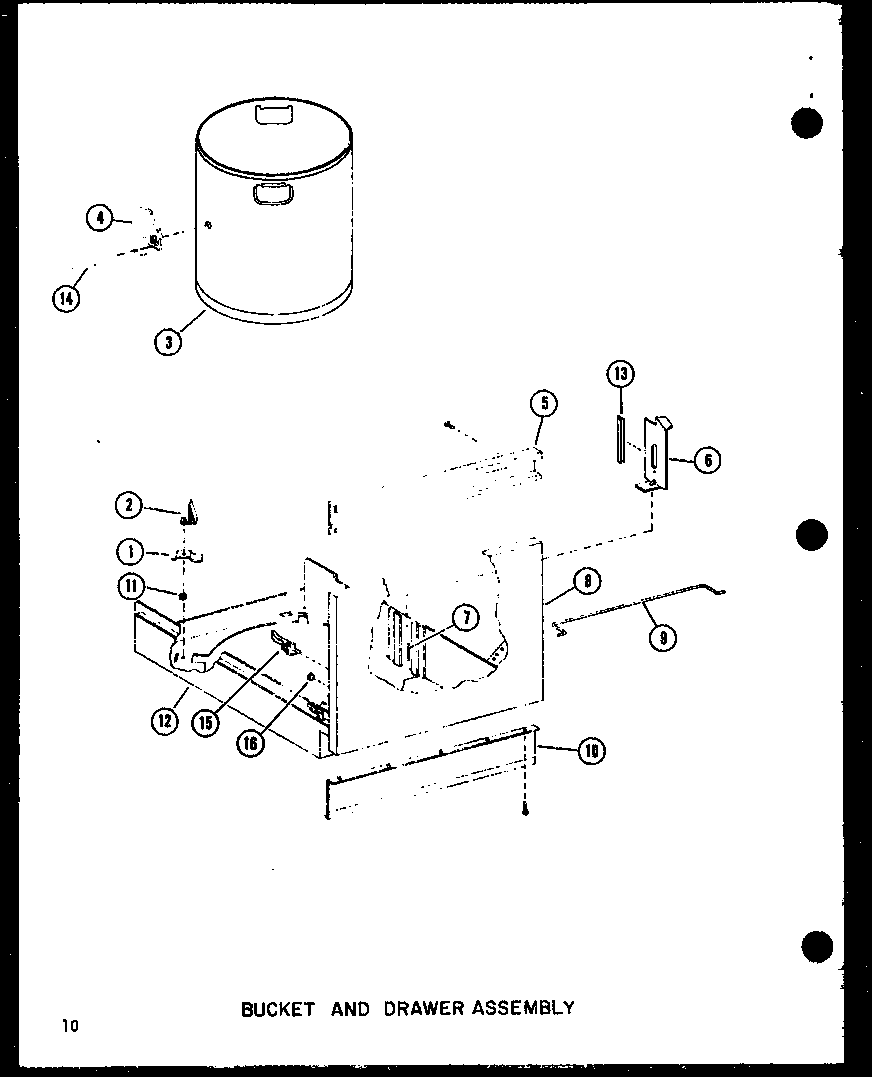

Bucket and drawer assembly diagram
Drawer Handle
Part #C1700902
The manufacturer no longer makes this part, and there's no substitute part

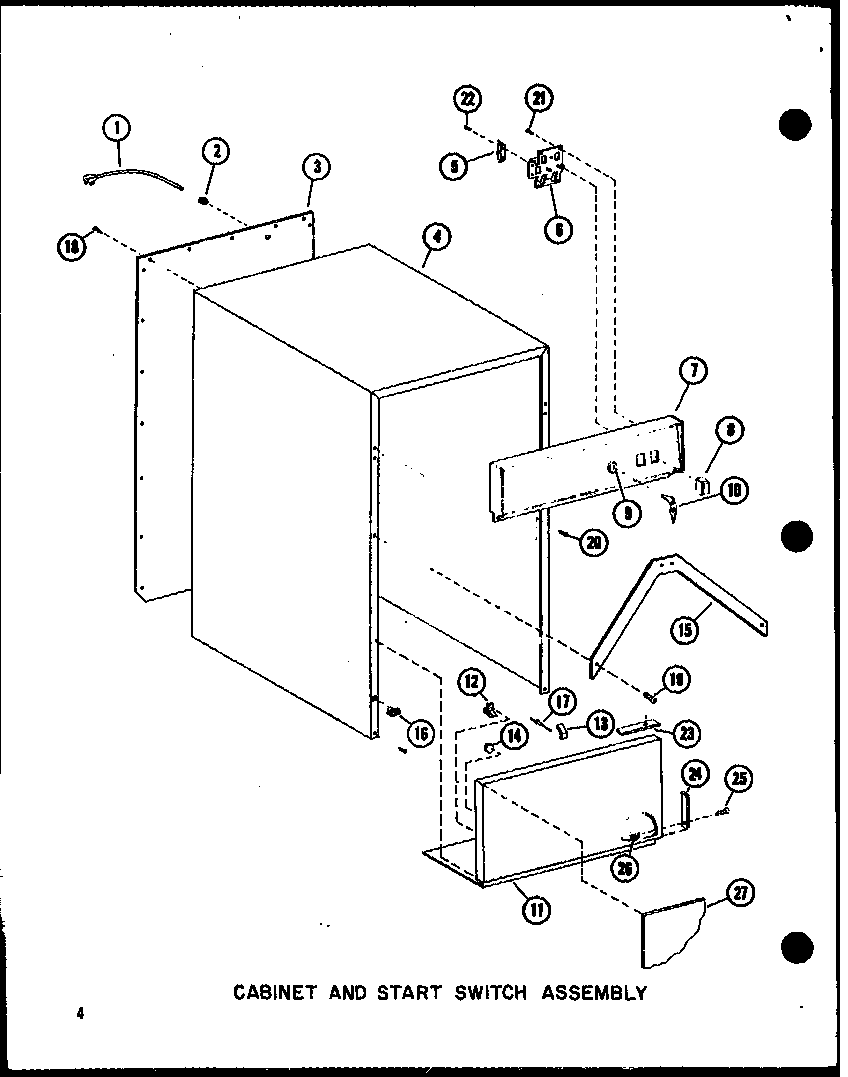

Cabinet and start switch assembly diagram
Outer Case, Almond
Part #C1705728
The manufacturer no longer makes this part, and there's no substitute part
Ram and drive screw assembly diagram
Race .030
Part #B1602603
The manufacturer no longer makes this part, and there's no substitute part
Ram and drive screw assembly diagram
Race .093
Part #B1602602
The manufacturer no longer makes this part, and there's no substitute part
Ram and drive screw assembly diagram
Lockwasher, Double Tab
Part #A1507001
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your trash compactors
Choose a symptom to see related trash compactor repairs.
Main cause: faulty drawer tilt switch …
Main cause: broken top limit and directional switch…
Main causes: bent drawer support rollers, damaged trash container…
Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…
Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
Main causes: stuck foot pedal, bad momentary start switch, power switch failure…
Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…
Most common repair guides to help fix your trash compactors
These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.
How to replace a trash compactor power switch
If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…
Repair time and Difficulty
30 minutes or less
How to replace a trash compactor motor centrifugal switch
If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…
Repair time and Difficulty
45 minutes or less
How to replace a trash compactor momentary start switch
The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your trash compactors
Use the advice and tips in these articles and videos to get the most out of your trash compactor.
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to decipher symbols so you can buy the right part for your problem.…
Learn the proper way to place your trash in your trash compactor.…
