Model # WDP3W Official LG laundry pedestal

Here are the diagrams and repair parts for Official LG WDP3W laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Washer Leveling Leg 4779ER3002A
#A130

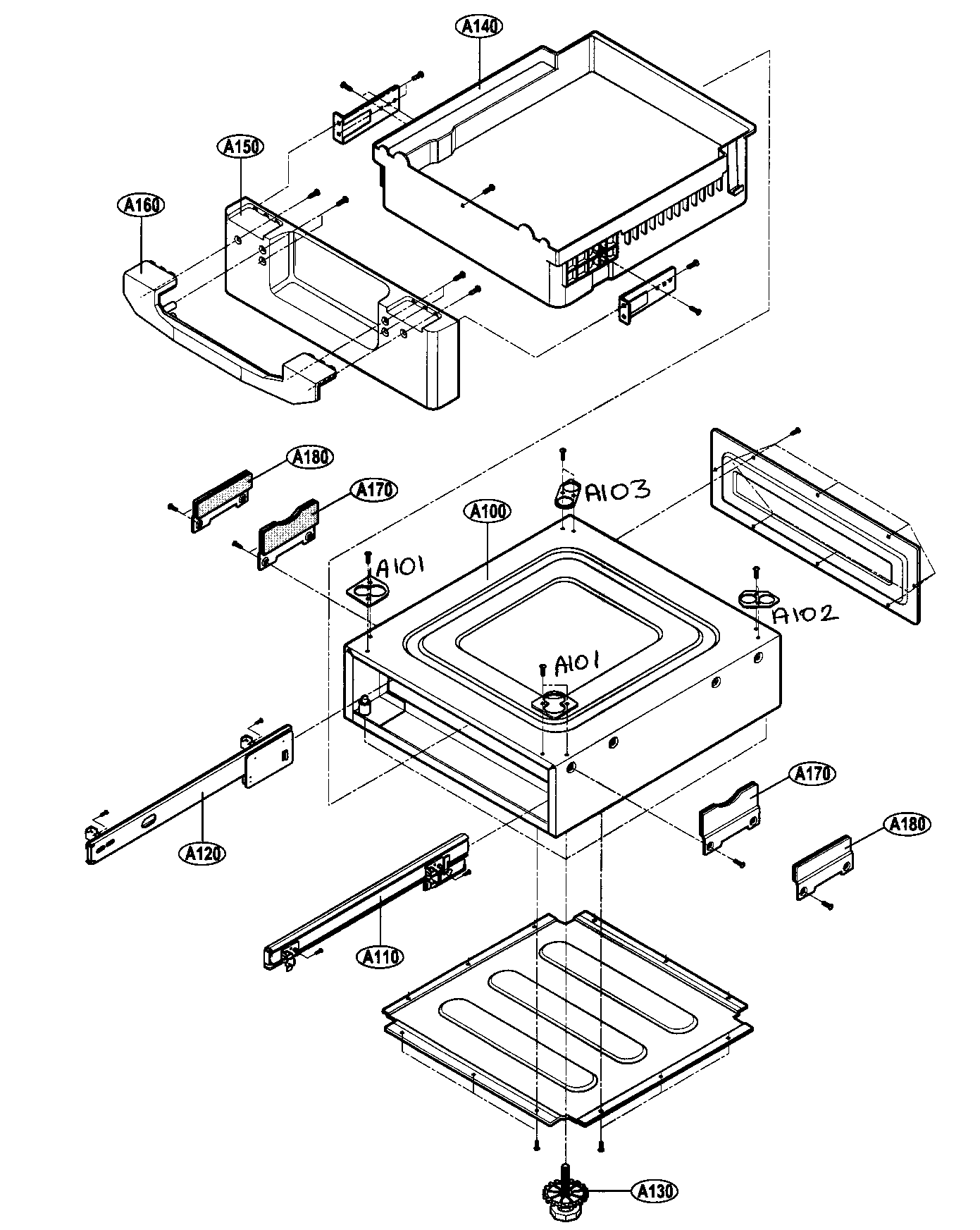

Cabinet parts diagram

Washer leveling leg

Part #4779ER3002A

Replaced by #AFC72755401

?
Manufacturer substitution
This part replaces 4779ER3002A. Substitute parts can look different from the original.
$11.93
14% OFF Phone Price : $13.93
In Stock
Laundry Appliance Pedestal Drawer Slide Rail 4276ER0001A
#A110

Cabinet parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0001A

$87.98
5% OFF Phone Price : $92.98
In Stock
Laundry Appliance Pedestal Drawer Slide Rail 4276ER0002A
#A120

Cabinet parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0002A

$87.98
5% OFF Phone Price : $92.98
In Stock
Laundry Appliance Pedestal Cabinet 3071ER0007A
#A100

Cabinet parts diagram

Laundry appliance pedestal cabinet

Part #3071ER0007A

In Stock
Laundry Appliance Pedestal Drawer 4870ER0004A
#A140

Cabinet parts diagram

Laundry appliance pedestal drawer

Part #4870ER0004A

$114.94
8% OFF Phone Price : $124.94
In Stock
Washer Cover 3551ER0017A
#A150

Cabinet parts diagram

Washer cover

Part #3551ER0017A

In Stock
Handle 3651ER0002A
#A160

Cabinet parts diagram

Handle

Part #3651ER0002A

In Stock
Laundry Appliance Pedestal Mounting Bracket 4933ER3001A
#A170

Cabinet parts diagram

Laundry appliance pedestal mounting bracket

Part #4933ER3001A

Replaced by #AAA30793428

?
Manufacturer substitution
This part replaces 4933ER3001A. Substitute parts can look different from the original.
$92.23
5% OFF Phone Price : $97.23
In Stock
Connector 4933ER3002A
#A180

Cabinet parts diagram

Connector

Part #4933ER3002A

Replaced by #AAA30793428

?
Manufacturer substitution
This part replaces 4933ER3002A. Substitute parts can look different from the original.
$92.23
5% OFF Phone Price : $97.23
In Stock
Laundry Appliance Pedestal Installation Bracket Kit (white) 5001ER9572V
#NI

Cabinet parts diagram

Laundry appliance pedestal installation bracket kit (white)

Part #5001ER9572V

Replaced by #AAA30793428

?
Manufacturer substitution
This part replaces 5001ER9572V. Substitute parts can look different from the original.
$92.23
5% OFF Phone Price : $97.23
In Stock
