Model # JD966SD2SS Official GE electric range

Here are the diagrams and repair parts for Official GE JD966SD2SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

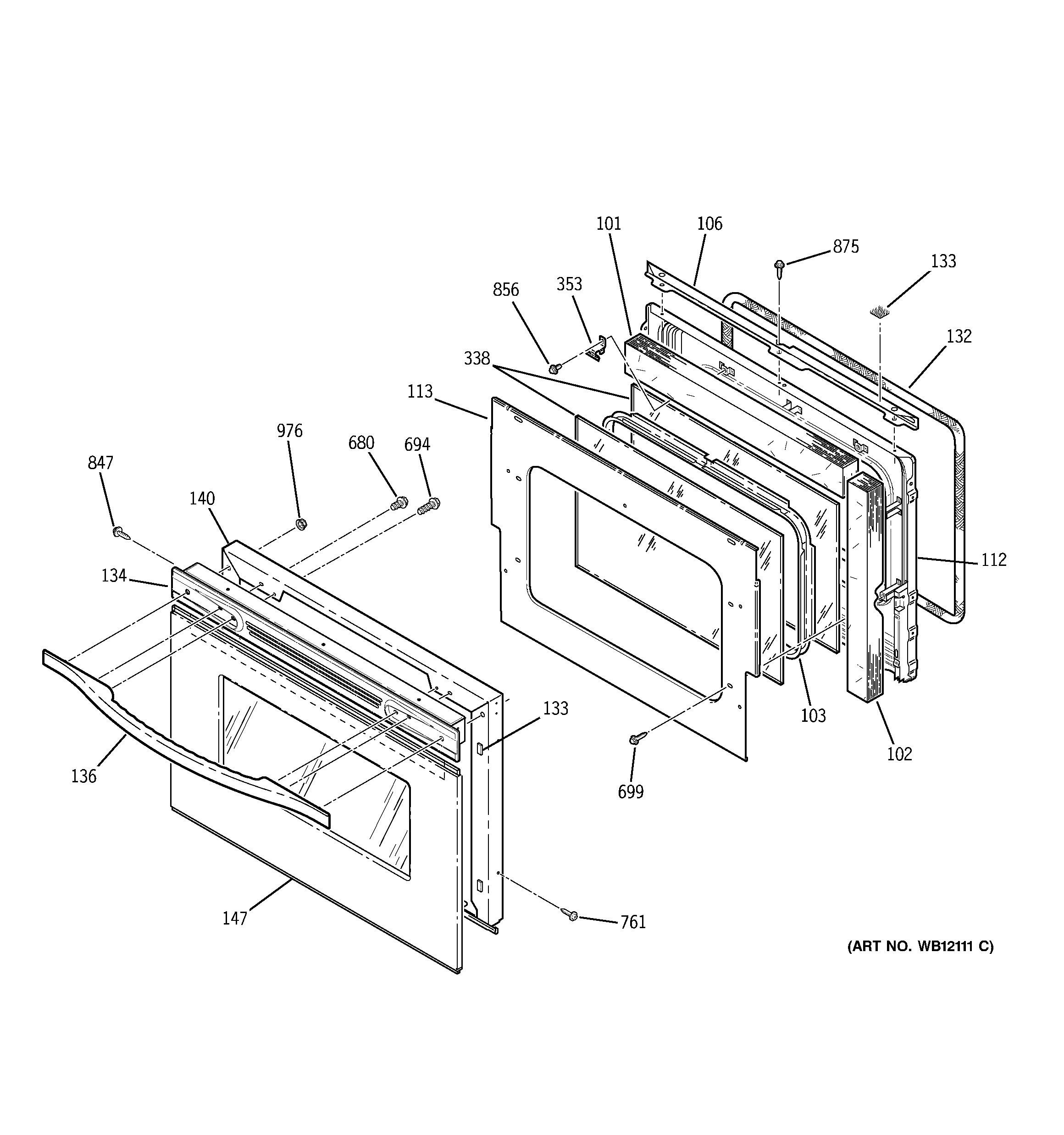

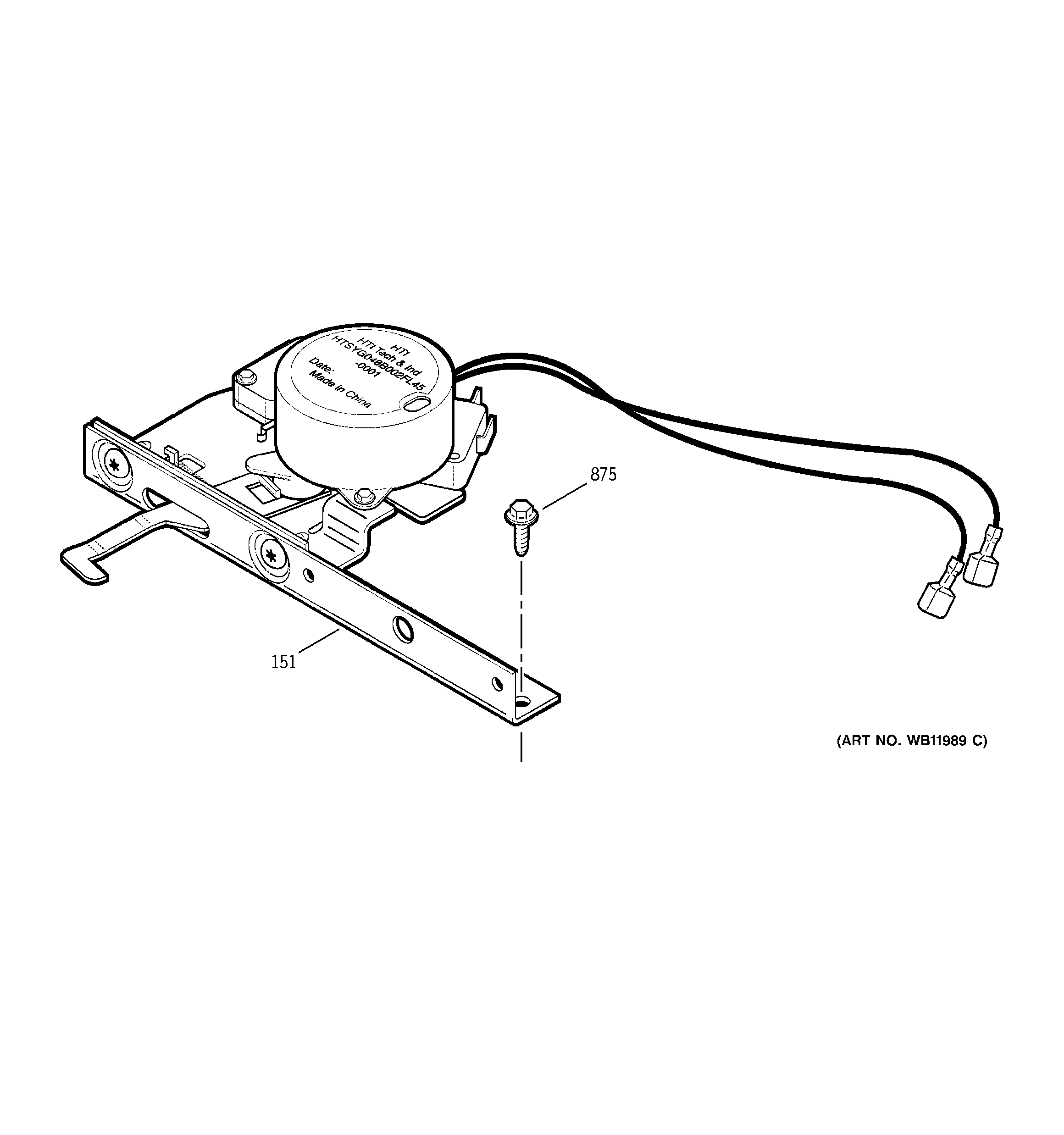

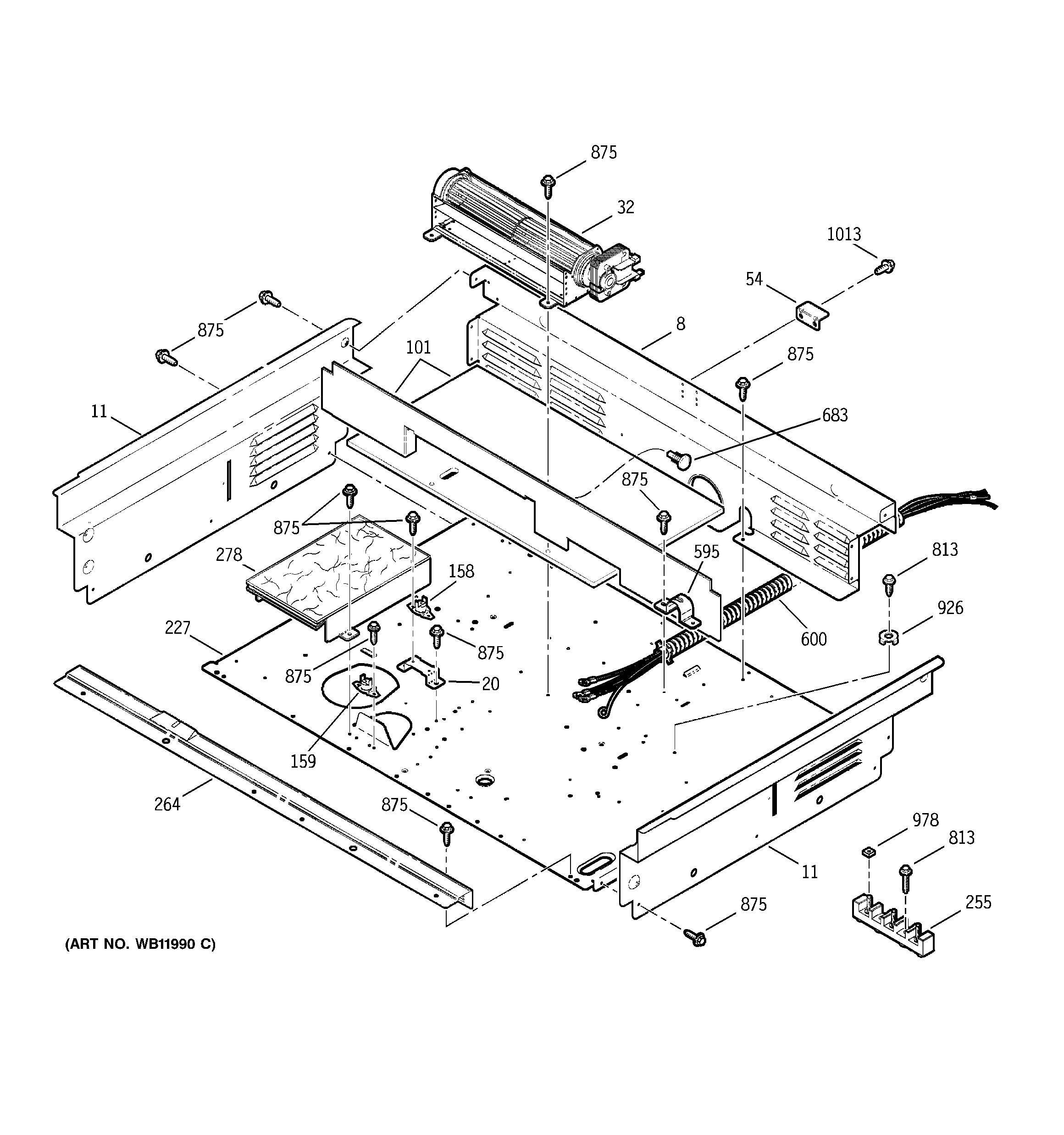

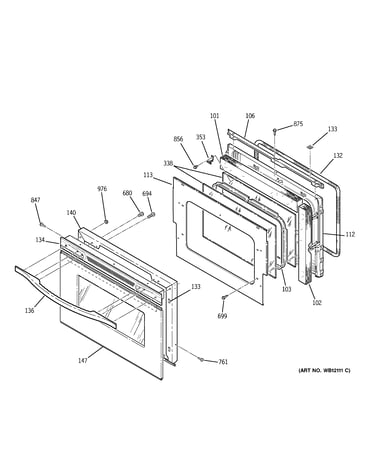

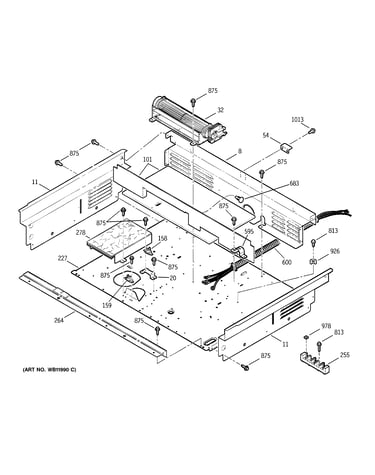

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

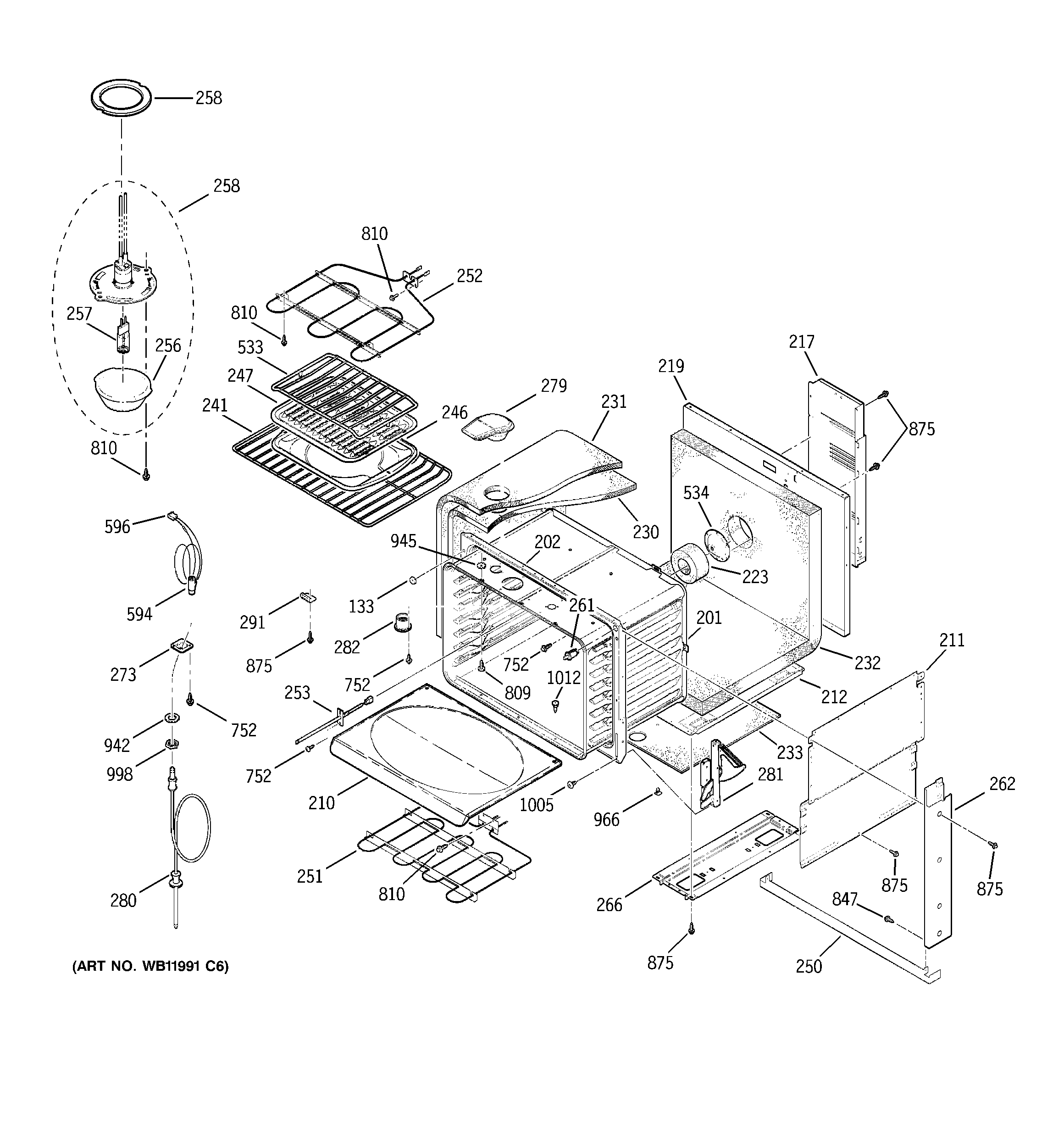

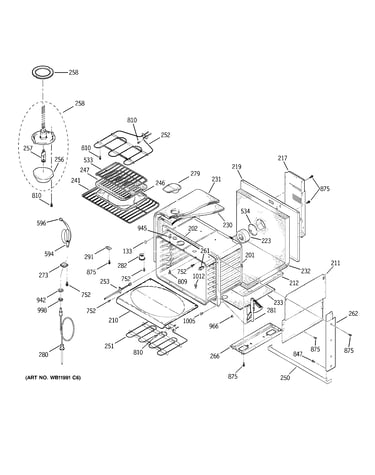

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Halogen Surface Element WB30T10044
#58

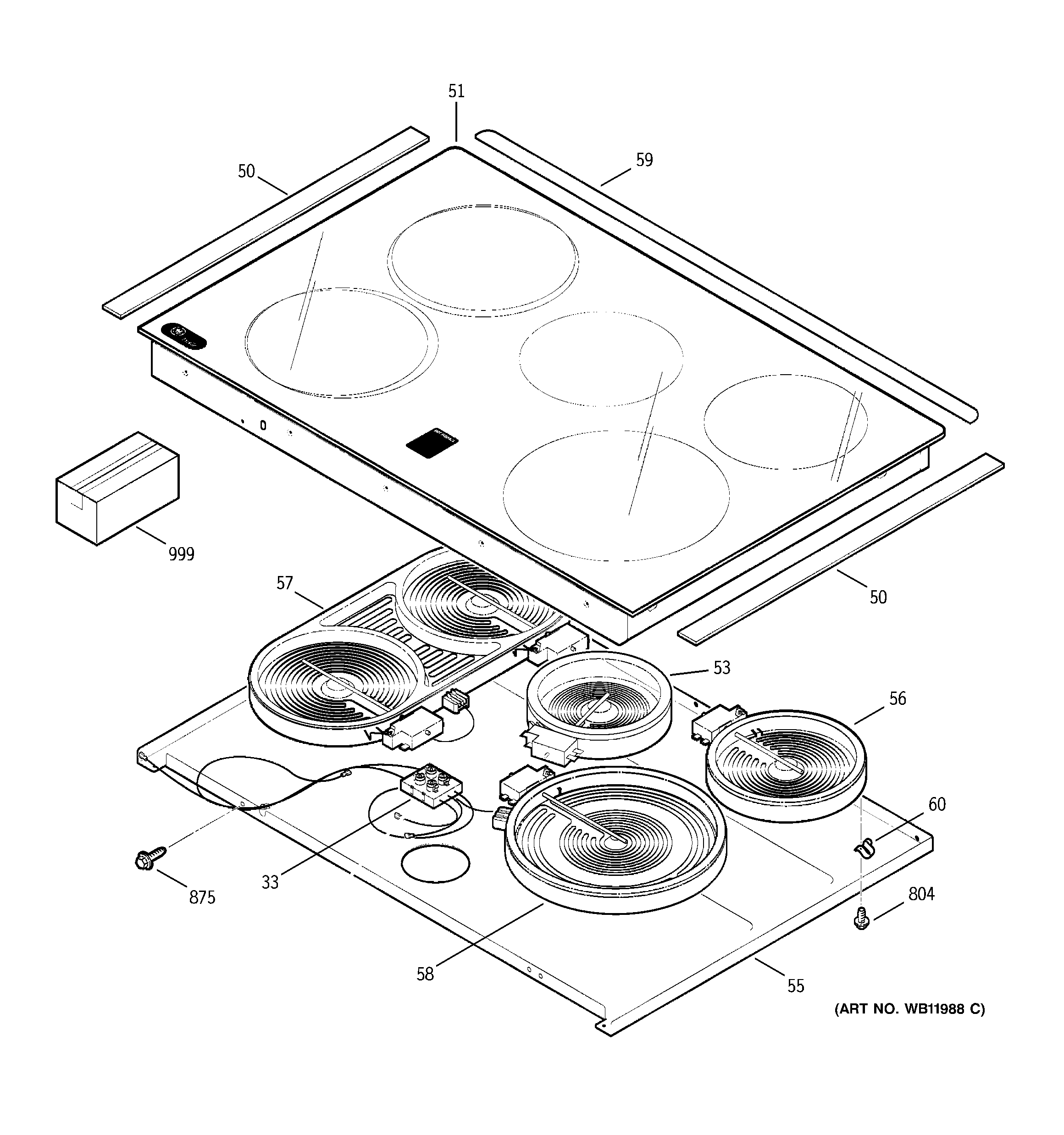

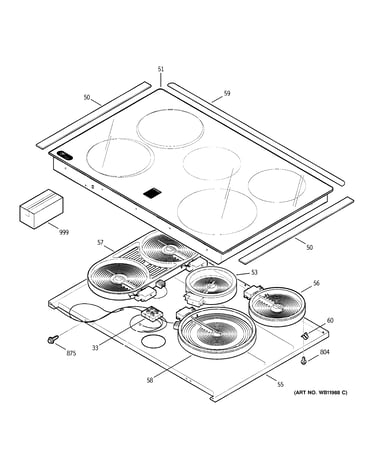

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
BEST SELLER
$102.43 |
10% OFF Phone Price : $114.43
In Stock
Range Surface Element Control Switch (replaces Wb24t10015, Wb24t10056) WB24T10063
#19

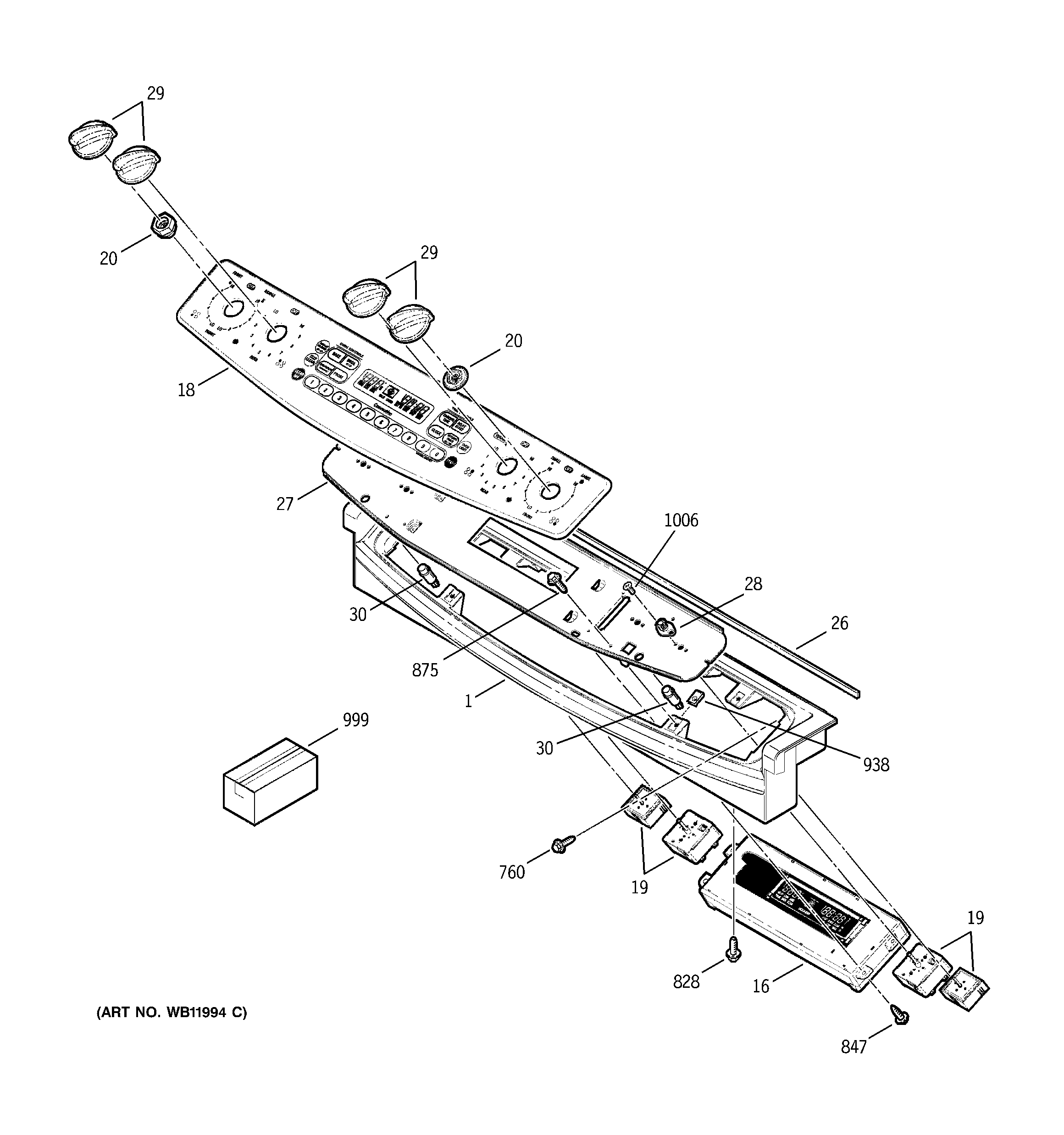

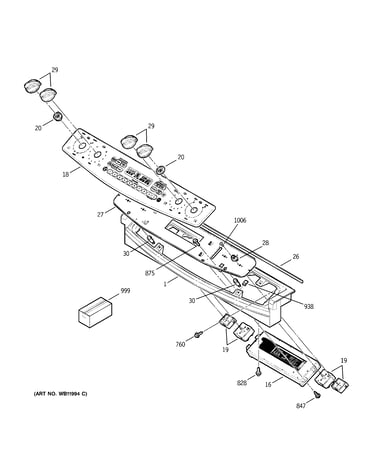

Control panel diagram

Range surface element control switch (replaces wb24t10015, wb24t10056)

Part #WB24T10063

BEST SELLER
$70.83 |
8% OFF Phone Price : $76.83
In Stock
Conversion Element WB44T10020
#298

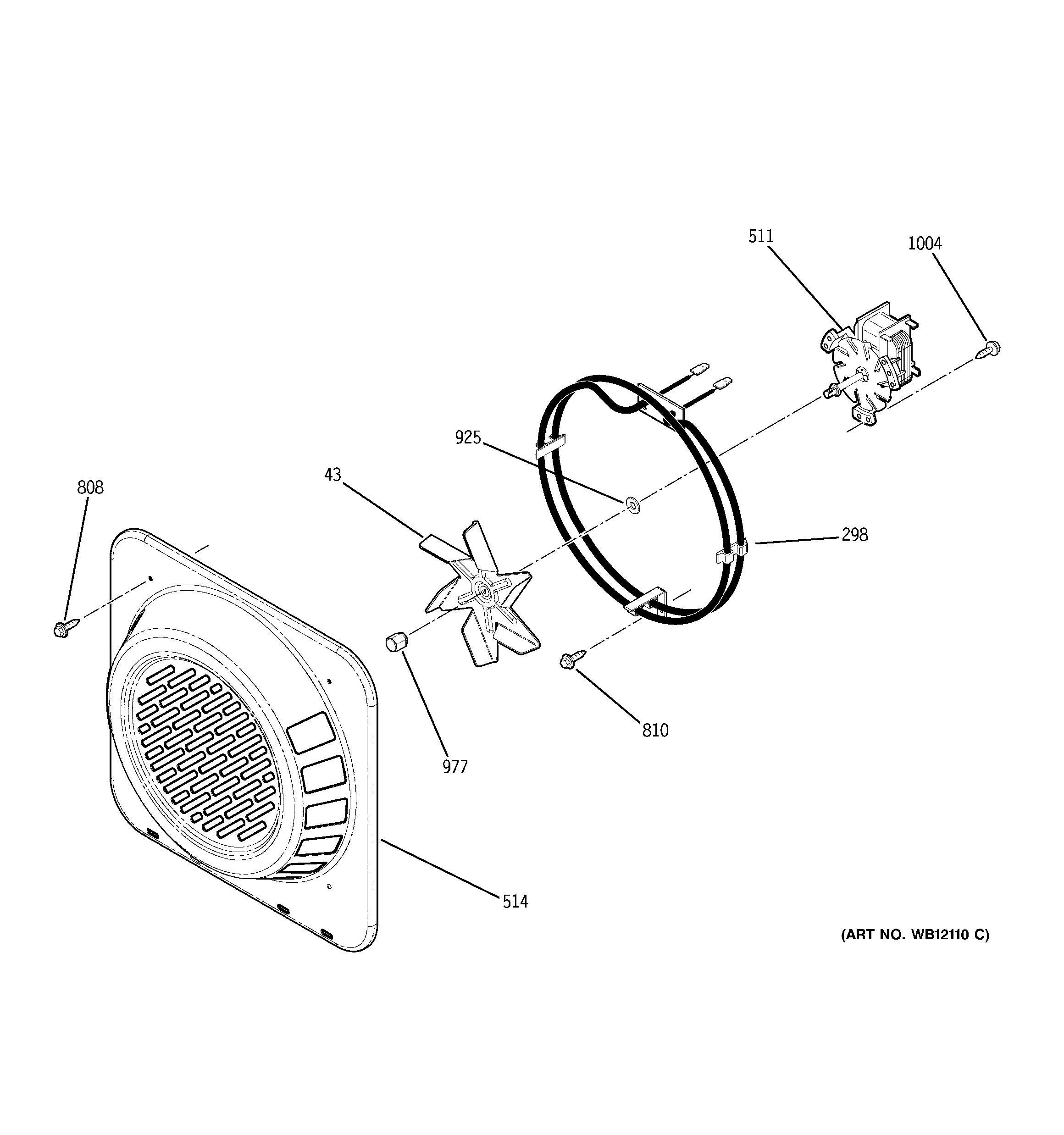

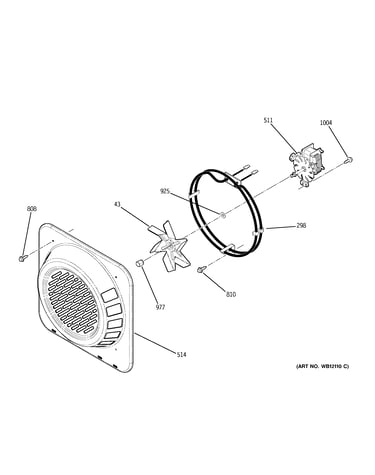

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Surface Element Control Switch WB24T10012
#19

Control panel diagram

Range surface element control switch

Part #WB24T10012

$29.64 |
17% OFF Phone Price : $35.64
In Stock
Glass Main Top WB61T10087
#51

Cooktop diagram

Glass main top

Part #WB61T10087

Replaced by #WB62T10528

?
Manufacturer substitution
This part replaces WB61T10087. Substitute parts can look different from the original.
$932.18 |
$12.00 OFF Phone Price : $944.18
In Stock
Range Surface Element Spring WB09T10002
#60

Cooktop diagram

Range surface element spring

Part #WB09T10002

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5028
#760

Control panel diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
  • Foam Tape WB01T10055
    Foam tape
    $6.06 |
    14% OFF Phone Price : $7.06
