KitchenAid KUDL02IRBS2 dishwasher Parts

On the KitchenAid KUDL02IRBS2 dishwasher, an F2 error is commonly tied to a drain problem (water not leaving the tub). We fix it by clearing the drain path first (filters, hose, air gap/disposal), then checking the drain pump and related components if the error returns.

Quick checks that solve most F2 drain errors

• Cancel the cycle and let the dishwasher attempt to drain.
• Remove standing water (cup or wet/dry vac) so you can inspect the sump area.
• Clear debris from the sump and any screens you can access.
• Check the sink air gap (if installed) and clean it out.
• If connected to a garbage disposal, confirm the disposal inlet knockout plug was removed.
• Inspect the drain hose for kinks, crushing, or a clogged high loop.

Parts to suspect if the drain path is clear

If the hose and plumbing are clear but the unit still will not drain, the most common failed part is the drain pump.

Symptom during “drain”	Most likely cause	What to do next
Hums but no water moves	Jammed or failing pump	Inspect/replace dishwasher drain pump WPW10348269
Drains slowly	Partial clog in hose or pump	Clean hose; check pump inlet
No sound at all	Control or power issue	Check wiring; consider dishwasher electronic control WPW10084141

A simple bucket test (fast way to isolate a clog)

1. Turn off power at the breaker.
2. Disconnect the drain hose from the sink/disposal connection.
3. Place the hose end into a bucket.
4. Restore power and start a drain or cancel/drain.

• Strong flow into the bucket: the dishwasher is draining; the clog is in the sink plumbing/air gap/disposal.
• Weak or no flow: focus on the drain hose, sump area, and drain pump.

Why it matters

A true drain fault can leave dirty water in the tub, trigger repeated error codes, and strain the pump motor over time. Clearing restrictions early often prevents a pump replacement.

Last updated: February 2026

In a KitchenAid dishwasher like model KUDL02IRBS2, the most commonly replaced parts are the ones that handle water flow, heating, sealing, and rack movement. When you see symptoms like poor cleaning, leaks, no drain, or no heat, these components are the first places we check and replace.

Most commonly replaced dishwasher parts

• Drain components: drain pump and drain hose (clogs, wear, or pump failure)

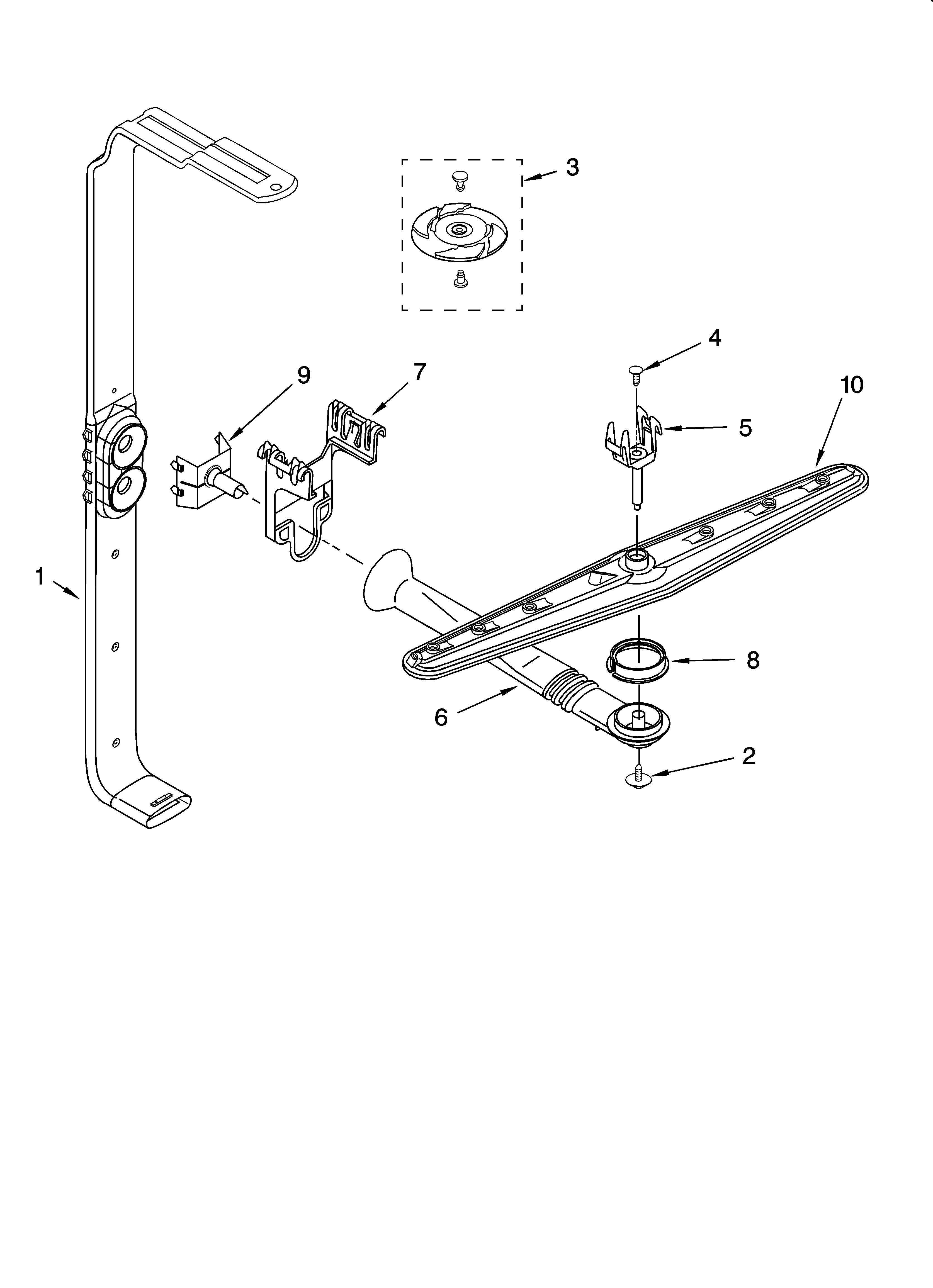

• Wash system components: circulation pump motor and spray arm (weak spray, noisy operation)

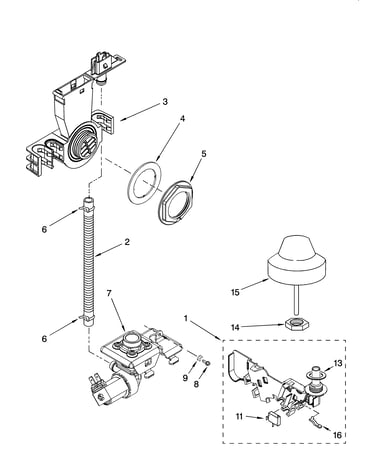

• Fill components: water inlet valve (won’t fill, fills slowly)
• Heating components: heater element (not drying, cool water)

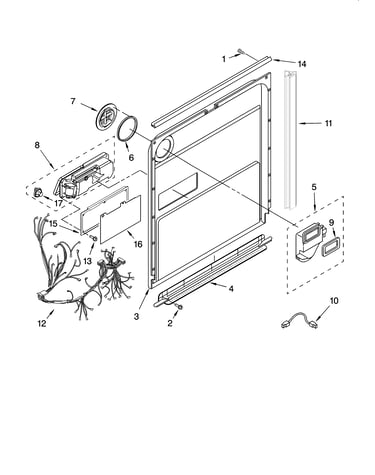

• Sealing components: door seal and vent gasket (leaks, moisture escaping)
• Electrical components: fuse and electronic control (dead unit, erratic cycles)

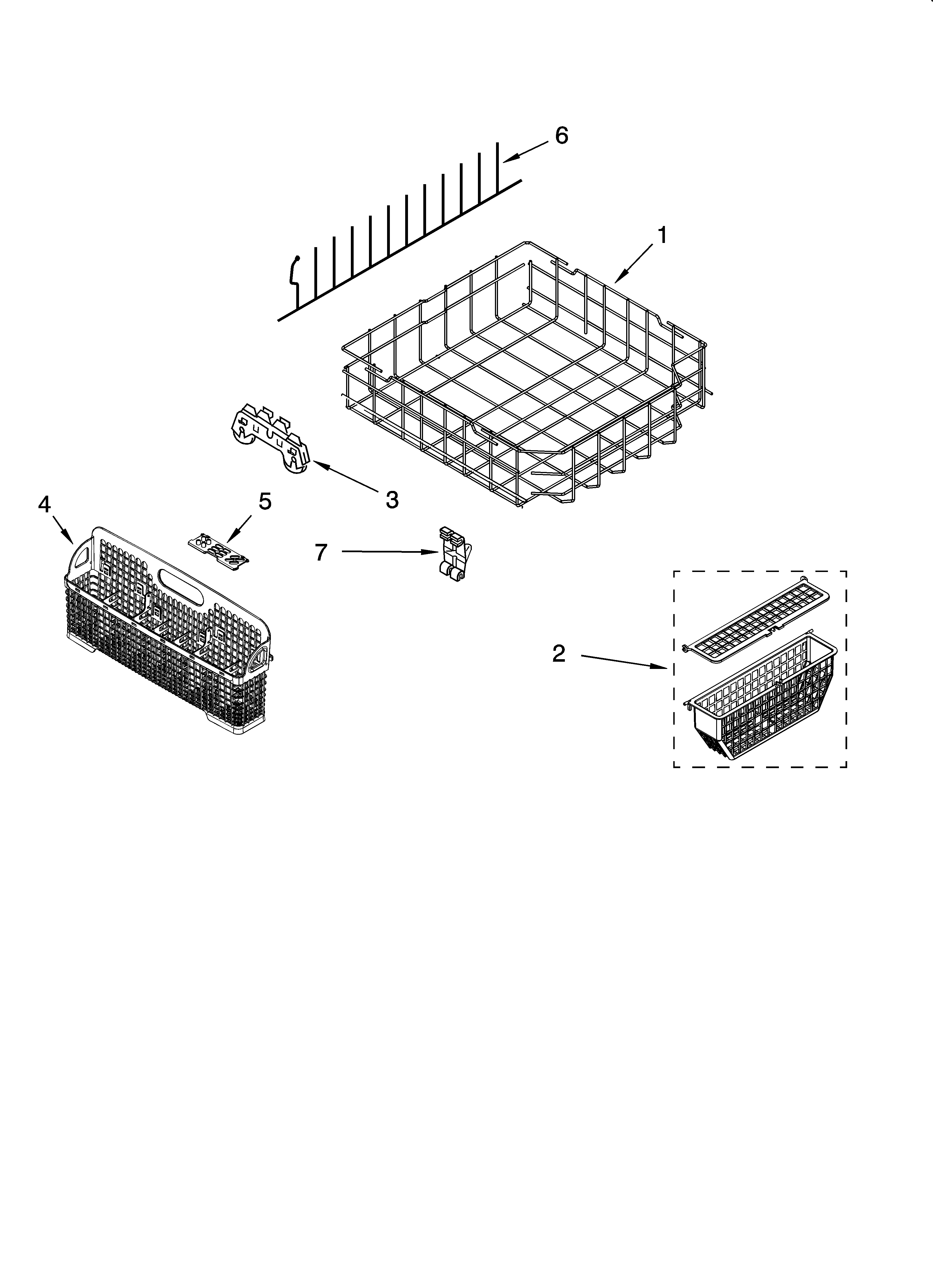

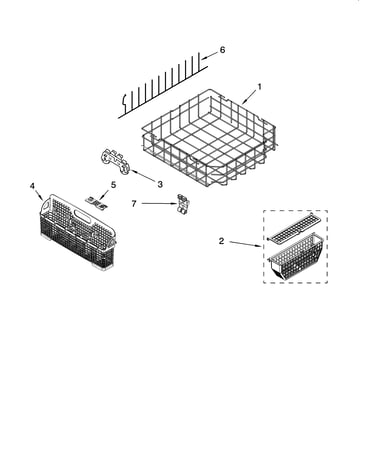

• Rack hardware: rollers and rail stops (rack falls off track, hard to slide)

Quick symptom-to-part guide (KUDL02IRBS2)

Symptom	Most likely part area	Example part for this model
Not draining, water left in tub	Drain system	Dishwasher drain pump WPW10348269 or dishwasher drain hose 8269144A

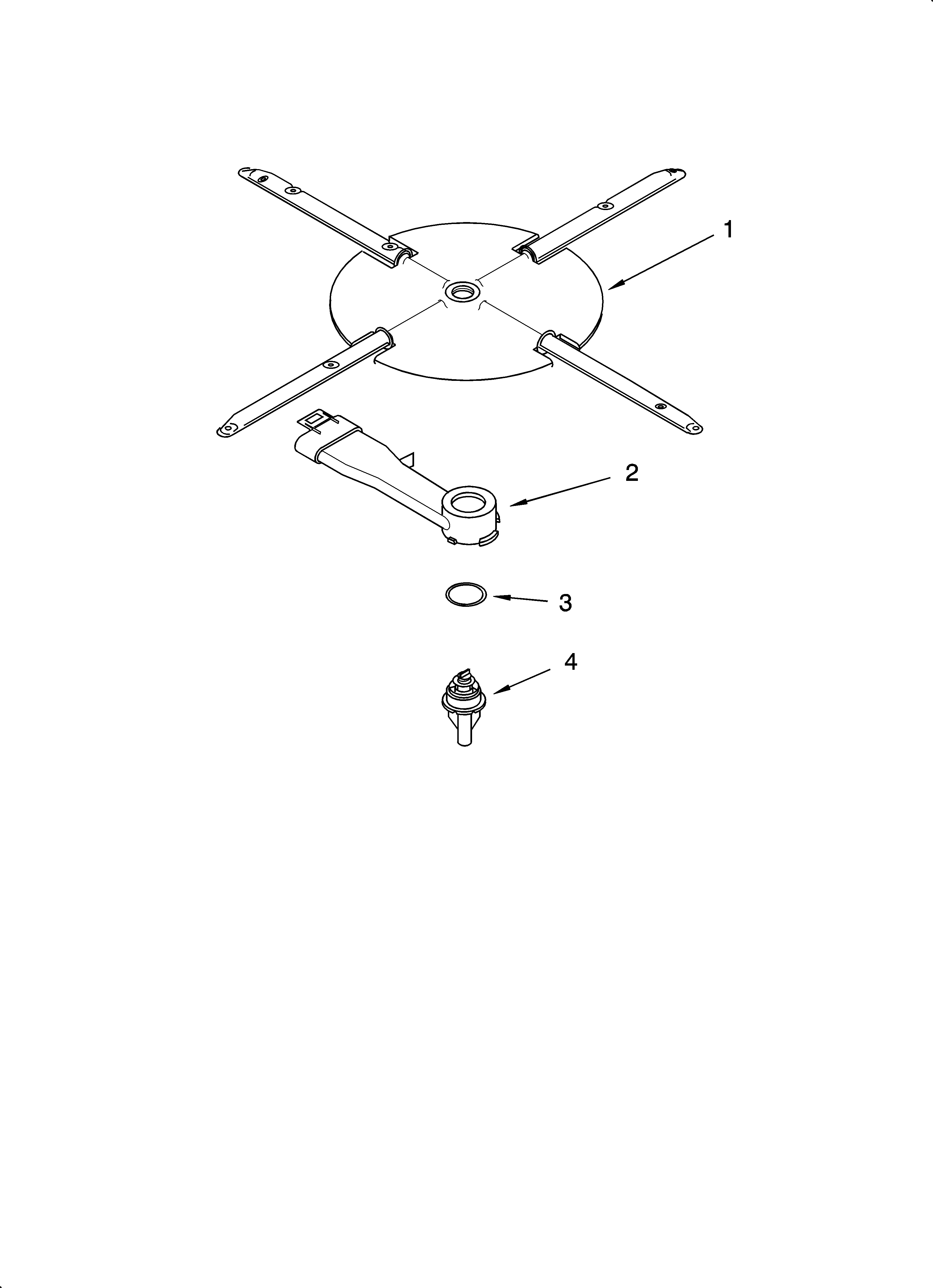

Not cleaning well	Wash system	Dishwasher spray arm WPW10320510

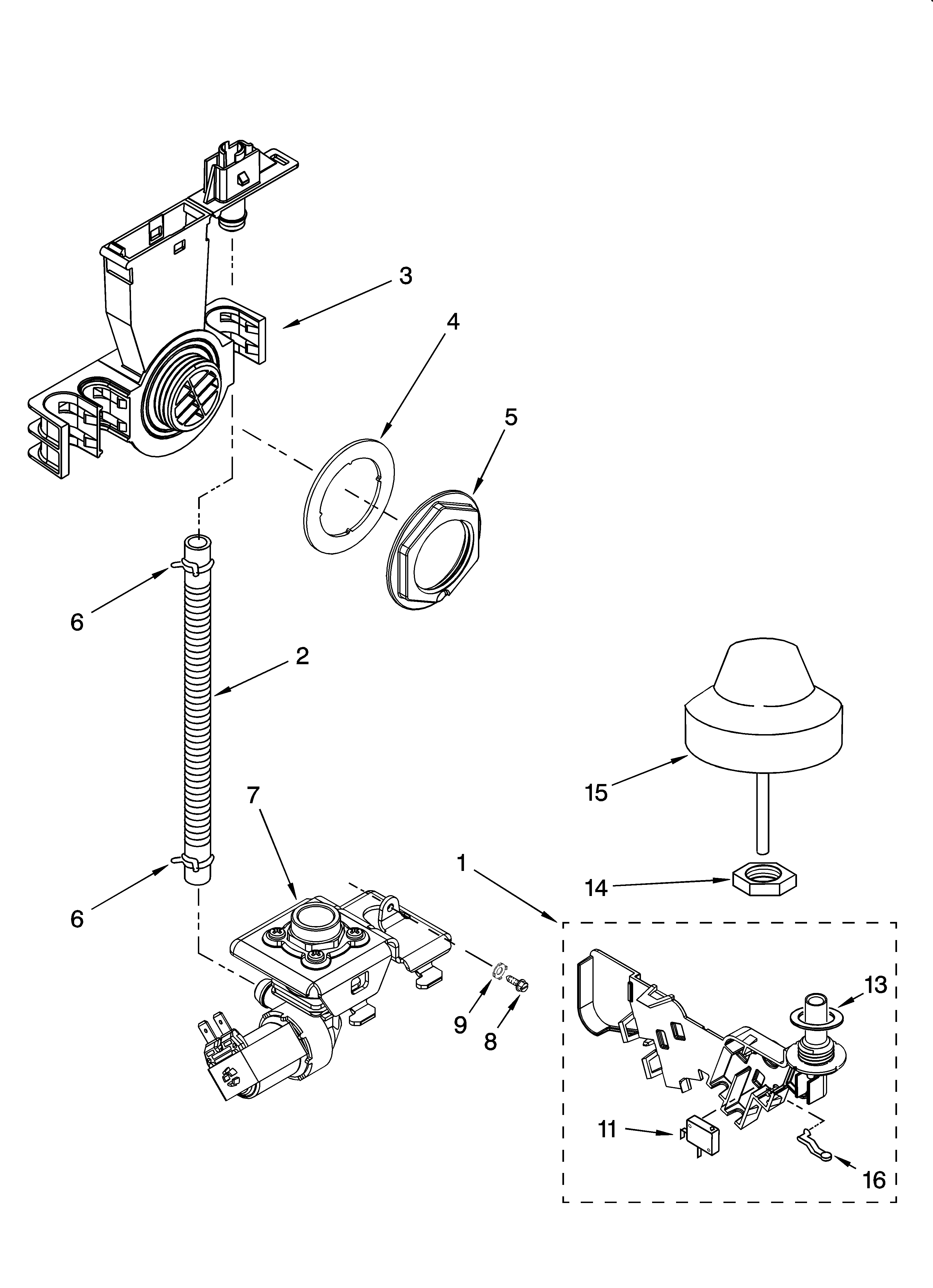

Not filling	Water supply	Dishwasher water inlet valve WPW10158389

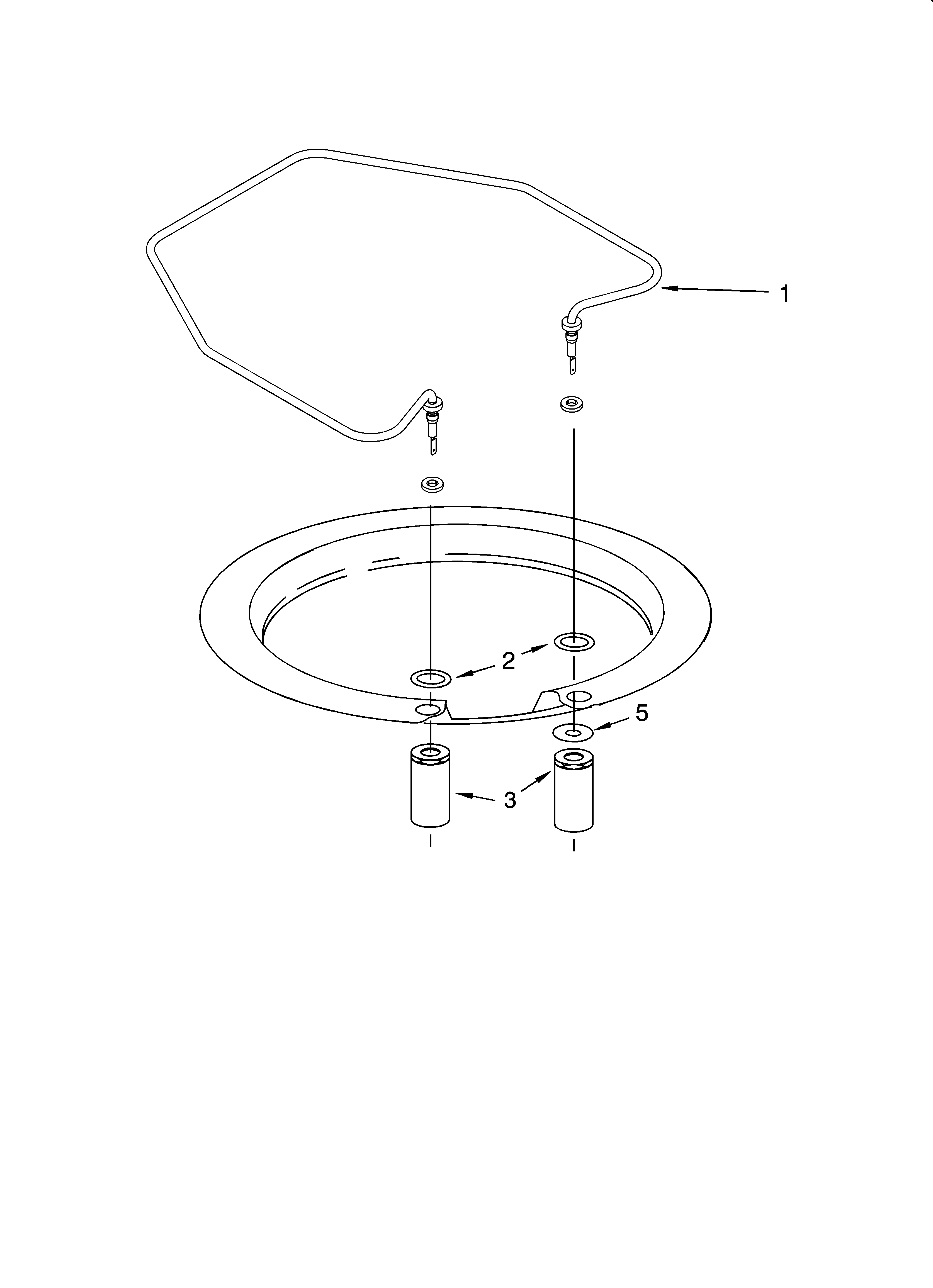

Not drying or no heat	Heating	Heater element WPW10082892
Leaking at door	Door sealing	Gasket W11196317

Why these parts fail most often

These parts do the most work every cycle: they move water, heat it, and keep it contained. Detergent residue, hard-water scale, food debris, and normal wear can cause clogs, leaks, overheating, or electrical interruptions.

What we recommend before replacing parts

• Clean the tub and check for standing water after a cycle
• Inspect spray arm holes for debris and confirm the arm spins freely
• Verify the sink drain and garbage disposal inlet are clear (new disposals often have a knockout plug)
• Check the door seal for tears, flattening, or gaps
• If the dishwasher is completely dead, check the house breaker first, then suspect the fuse/control

For troubleshooting steps tied to fault patterns, use our KitchenAid he dishwasher error codes reference.

Last updated: February 2026

Most KitchenAid dishwashers, including model KUDL02IRBS2, typically last 10 to 14 years with normal household use. Lifespan depends most on water quality, how often you run cycles, and whether you fix small issues early (especially draining, heating, and leaking problems).

What affects lifespan the most

• Hard water and scale buildup can shorten heater and pump life.
• Heavy daily use wears the circulation system and door components faster.
• Poor draining strains the drain pump and can leave standing water.
• Overloading can damage racks, rollers, and spray performance.
• Leaks can damage wiring and controls if left uncorrected.

Quick maintenance habits that add years

• Run hot water at the sink before starting a cycle (helps wash performance).
• Clean the interior and check for debris around the sump area monthly.
• Keep the spray arm holes clear so water pressure stays strong.
• Use the right detergent amount for your water hardness.
• Address slow draining promptly (clogs and pump strain get worse over time).

Common “end-of-life” symptoms and likely culprits

Symptom	What it often points to	Example part for KUDL02IRBS2
Won’t drain or drains slowly	Drain restriction or failing pump	Dishwasher drain pump WPW10348269
Poor drying	Heating circuit issue	Heater element WPW10082892
Not filling	Water supply or inlet valve issue	Dishwasher water inlet valve WPW10158389
Dead or erratic controls	Control or power protection issue	Dishwasher electronic control WPW10084141

Why it matters

A dishwasher that is maintained and repaired early usually reaches the full 10 to 14 year range. Once problems like leaking, weak heating, or chronic draining are ignored, the extra stress can cascade into higher-cost failures (motor, control, wiring).

For troubleshooting that helps you catch problems early, use our KitchenAid he dishwasher error codes.

Last updated: February 2026

For the KitchenAid KUDL02IRBS2 dishwasher, the most common issues we see are poor cleaning (often from restricted water flow through spray arms or the wash system) and drain problems (standing water from a blockage or a failing drain component). Electrical no-start symptoms also happen, especially after a power interruption.

Most common symptoms and what usually causes them

• Dishes come out dirty: clogged spray arm holes, heavy soil buildup in the sump area, low water fill, or weak wash circulation.
• Won’t drain or leaves water: kinked/blocked drain hose, clogged air gap (if used), or a failing drain pump.
• Won’t start or seems dead: door not latching fully, blown thermal fuse, or a control issue.
• Not drying well: heater circuit problem, rinse aid empty, or cycle selection.
• Leaks: worn door seal, loose hose connections, or a damaged gasket.

Quick checks we recommend before replacing parts

1. Reset power: turn the breaker off for 1 minute, then back on.
2. Confirm the door closes firmly: a weak latch feel often points to hinge or alignment issues.
3. Check the drain path: look for a kinked hose and clear the sink/disposer inlet.
4. Inspect spray arms: remove and rinse; clear holes with a toothpick if needed.
5. Run hot water at the sink first: improves wash performance on the first fill.

Parts that commonly solve these problems on KUDL02IRBS2

Symptom	Common fix	Example part for this model
Standing water, won’t drain	Replace drain pump or clear drain restriction	Dishwasher drain pump WPW10348269
No power or intermittent power	Replace thermal fuse	Fuse W10258275
Not filling or fills slowly	Replace inlet valve, verify water supply	Dishwasher water inlet valve WPW10158389

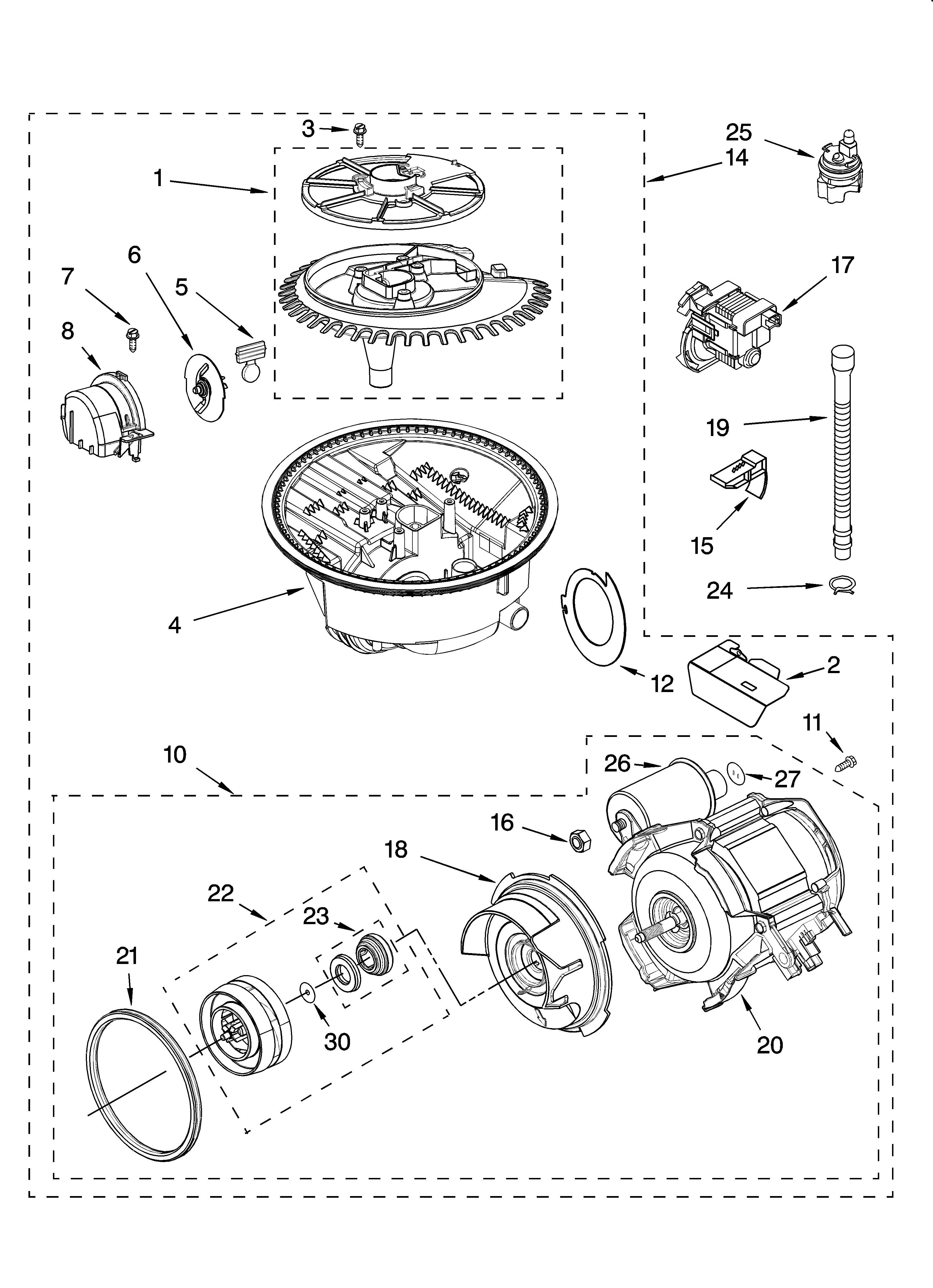

Poor cleaning, weak wash	Check circulation motor/sump for wear or blockage	Pump motor WPW10757217

Why it matters

Poor cleaning and draining problems usually get worse over time; they can lead to odors, repeated cycle failures, and extra strain on the wash motor and electronic control. Catching the root cause early helps protect the sump, pump motor, and control system.

Related troubleshooting help: KitchenAid he dishwasher error codes, dishwasher not cleaning dishes video, dishwasher not draining video.

Last updated: February 2026

Yes. For KitchenAid dishwasher model KUDL02IRBS2, we see many DIYers successfully replace common wear parts (like a drain hose, spray arm, or door seal) with basic hand tools and careful shutoff of power and water. More involved repairs (control, pumps, wiring) take more time and comfort with electrical checks.

Good DIY repairs vs. better-for-a-pro repairs

Typically DIY-friendly

• Replacing a leaking or kinked dishwasher drain hose 8269144A
• Swapping a clogged or failed dishwasher drain pump WPW10348269
• Replacing a worn door seal (often stops small drips)

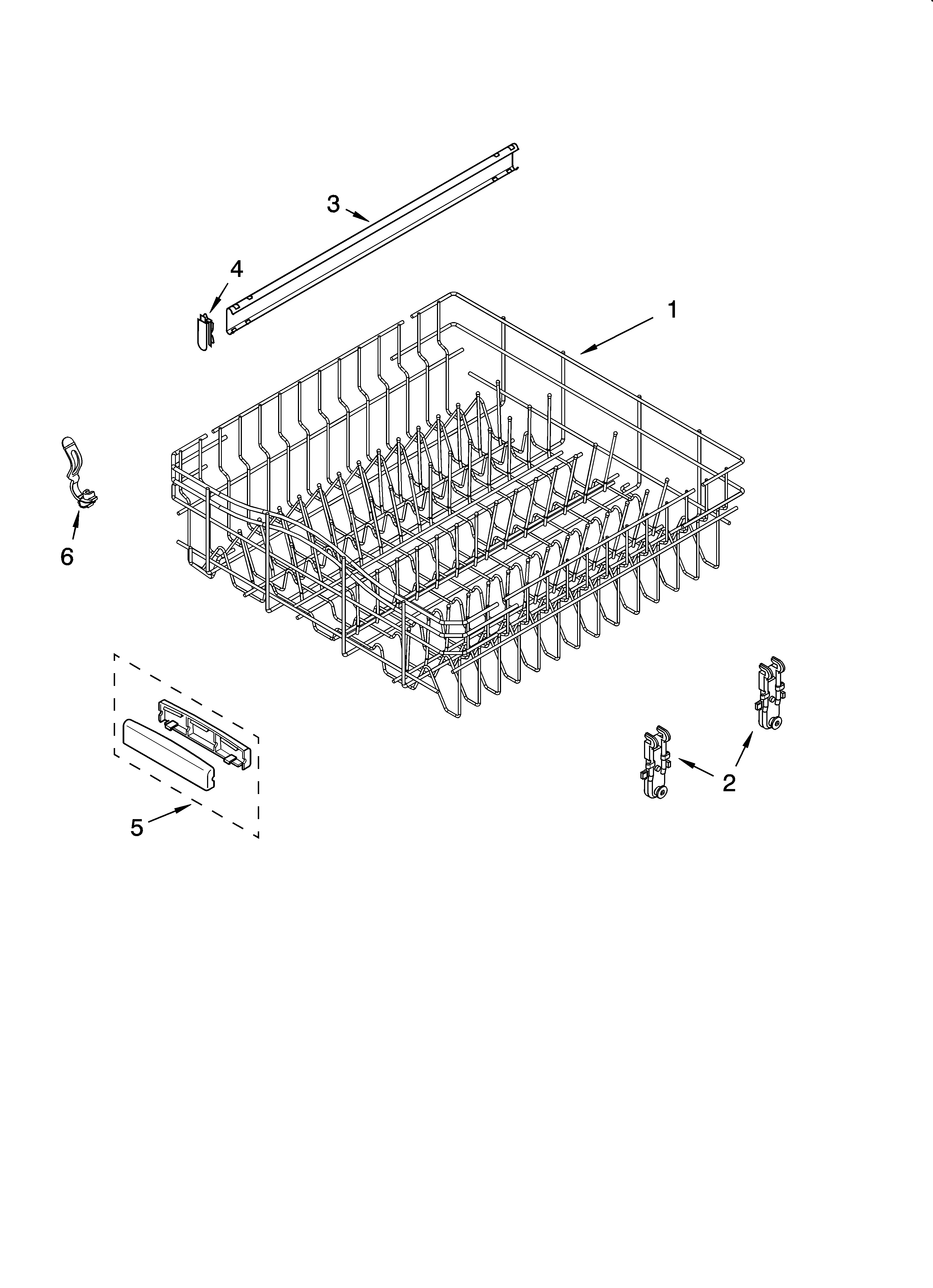

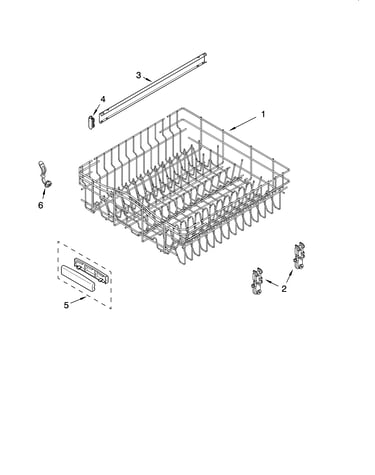

• Replacing rack hardware such as dishwasher dishrack roller assembly, upper WP8268655
• Replacing a damaged dishwasher dishrack slide rail stop, upper WP8565925

Often better for a technician

• Diagnosing no-heat or drying issues tied to wiring and controls
• Control board troubleshooting and electrical testing
• Leak diagnosis when the source is unclear (multiple seals, sump, or motor area)

Safety and prep checklist (do these every time)

• Turn off power at the breaker (dishwashers are hard-wired in many homes).
• Shut off the water supply valve under the sink.
• Protect the floor with towels; keep a shallow pan ready for residual water.
• Take photos of wire and hose routing before disconnecting anything.
• Use the correct clamps and routing to prevent future leaks.

Quick “symptom to part” guide

Symptom	Common DIY checks	Parts that may be involved
Won’t drain	Check drain loop, disposer plug, hose blockage	Dishwasher drain hose 8269144A, dishwasher drain pump WPW10348269
Not cleaning well	Check spray arm holes, loading, water temp	Dishwasher spray arm WPW10320510
No power / dead panel	Check breaker, door latch, wiring	Fuse W10258275, dishwasher electronic control WPW10084141

Why it matters

DIY replacement can restore washing, draining, and sealing performance quickly and cost-effectively, but misrouted hoses, loose clamps, or incorrect wiring can create leaks or repeat failures. Using model-matched parts for KUDL02IRBS2 helps the repair fit and function correctly.

Related troubleshooting: dishwasher not draining video, KitchenAid he dishwasher error codes

Last updated: February 2026
