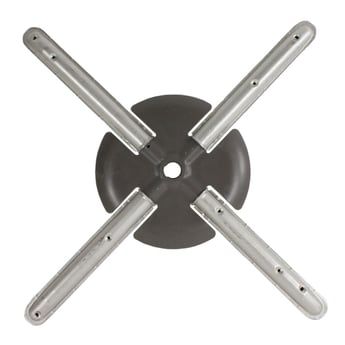

Dishwasher Spray Arm WPW10320510

5★
3
4★
1
3★
0
2★
0
1★
0

Part #WPW10320510

Online Only Price
$98.59 |
9% OFF
Phone Price: $108.59
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

This spray arm (part number WPW10320510) is for dishwashers.

Spray arm WPW10320510 rotates and sprays water to clean the dishes inside the dishwasher tub.

Wear work gloves to protect your hands during this repair.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #KUDP01DLBS5 KitchenAid dishwasherKUDP01DLBS5
Lower washarm and strainer parts
Shop Parts
Model #KUDJ01TJBT0 KitchenAid dishwasherKUDJ01TJBT0
Lower washarm and strainer parts
Shop Parts
Model #KUDM01FKSS0 KitchenAid dishwasherKUDM01FKSS0
Lower washarm and strainer parts
Shop Parts
Model #KUDP01DLBL0 KitchenAid dishwasherKUDP01DLBL0
Lower washarm and strainer parts
Shop Parts
Model #KUDI01FKWH0 KitchenAid dishwasherKUDI01FKWH0
Lower washarm and strainer parts
Shop Parts
Model #KUDP01ILBS6 KitchenAid dishwasherKUDP01ILBS6
Lower washarm and strainer parts
Shop Parts
Model #KUDI01FKSS1 KitchenAid dishwasherKUDI01FKSS1
Lower washarm and strainer parts
Shop Parts
Model #KUDS01DJWH1 KitchenAid dishwasherKUDS01DJWH1
Lower washarm and strainer parts
Shop Parts
Model #KUDI01ILWH5 KitchenAid dishwasherKUDI01ILWH5
Lower washarm and strainer parts
Shop Parts
Model #KUDS01DLBT2 KitchenAid dishwasherKUDS01DLBT2
Lower washarm and strainer parts
Shop Parts

Reviews

Rating snapshot

5★
3
4★
1
3★
0
2★
0
1★
0

Average customer ratings

Overall
 4.8
1-4 of 4 reviews

TNTBanks

Marietta GA

  2 years ago

TNTBanks

Marietta GA

Easy Replacement

Easy Replacement Did not solve the leak during the wash cycle.

Nickname

Michigan

  2 years ago

Nickname

Michigan

Perfect Match

The thread was stripped. I replaced the arm and hub both, I did not trust the old hub not to be fatigued. The OEM design IMO is lacking. The limited amount of thread engagement is a weak spot and this is where my original failed.

Cathouse

Edmonds

  2 years ago

Cathouse

Edmonds

Easy to install, works great

I needed to replace this because I accidentally stripped the threads when I turned the screw clockwise instead of counter clockwise to tighten. I was so happy to find a replacement so I could keep my dishwasher running.

Ken R

So. MD.

  5 years ago

Ken R

So. MD.

Exact replacement - easy installation

I replaced the spray arm, it's support, the bearing and the supply pipe. Everything went well and the replacement was fairly simple

1-4 of 4 reviews
