KitchenAid KUIX305ESS1 ice maker Parts
Here are the diagrams and repair parts for KitchenAid KUIX305ESS1 ice maker, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

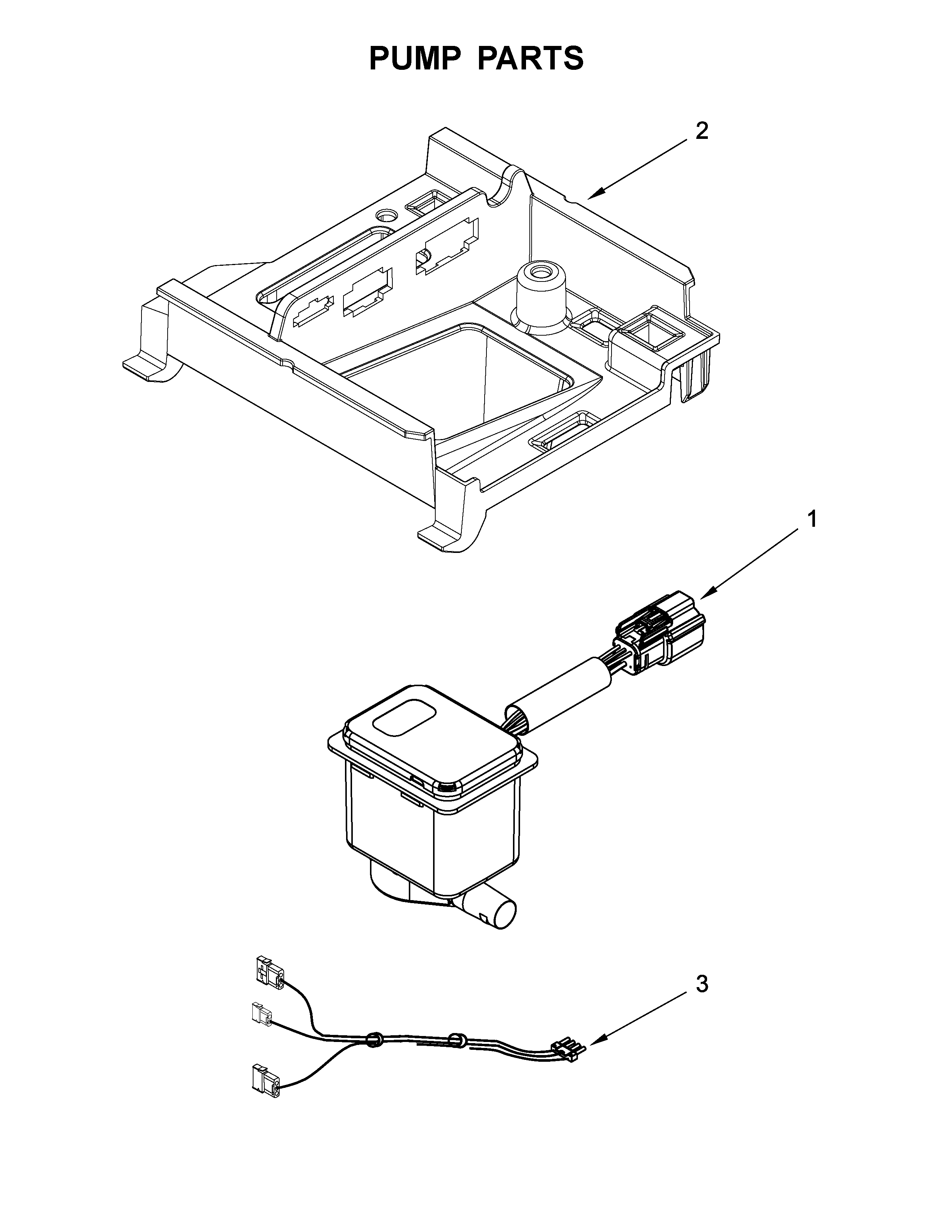

SELECT DIAGRAM
Browse Parts for KUIX305ESS1 Ice Maker

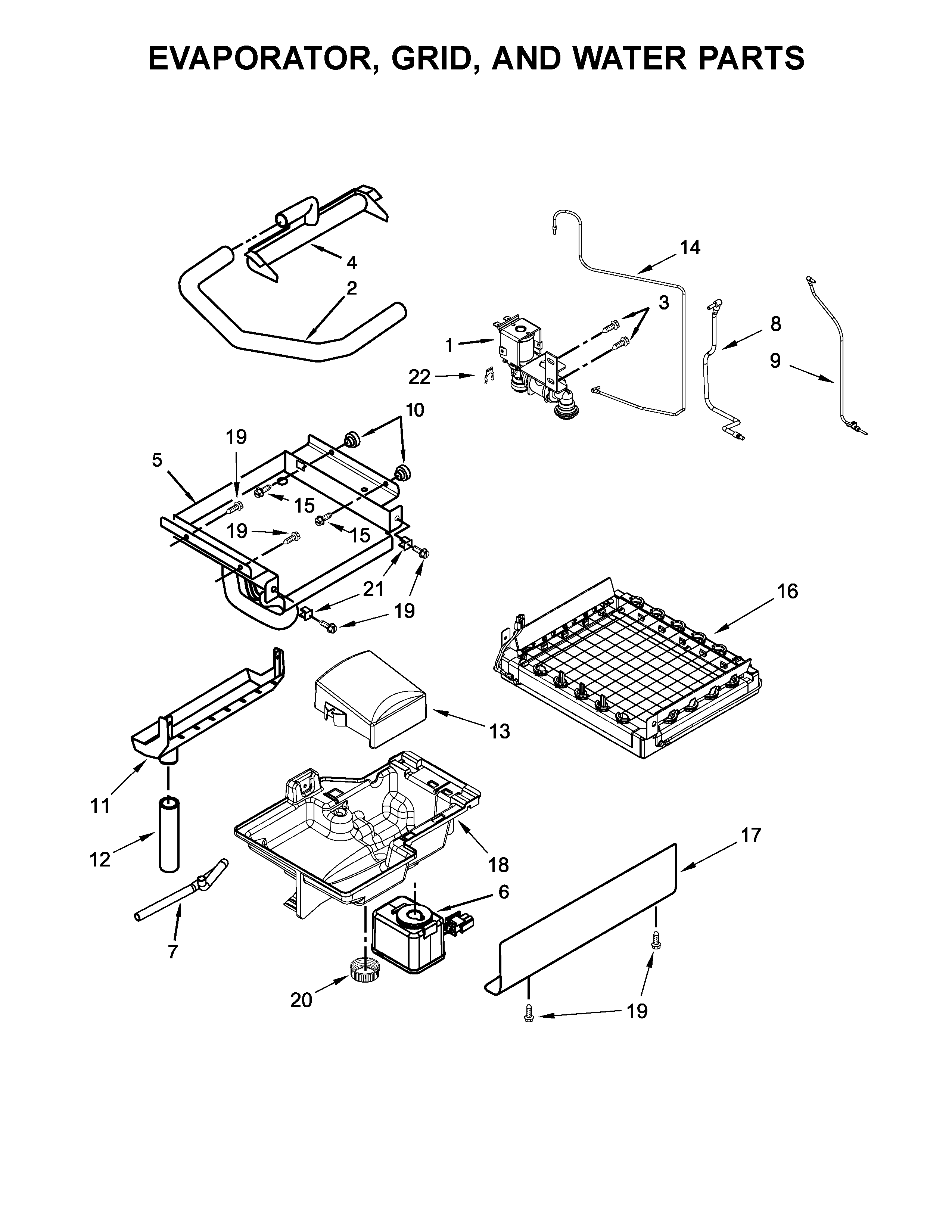

Evaporator, grid, and water parts diagram
Cap Drain Assembly
Part #W10555398Replaced by #W11023835
Manufacturer substitutionThis part replaces W10555398. Substitute parts can look different from the original.This item is not returnableIn Stock$24.6020% OFF Phone Price : $30.60
Qty
Ice Maker Screw
Part #3400884Replaced by #WP3400884
Manufacturer substitutionThis part replaces 3400884. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyCabinet, door and liner parts diagram
Scoop
Part #W10493422Replaced by #W11420408

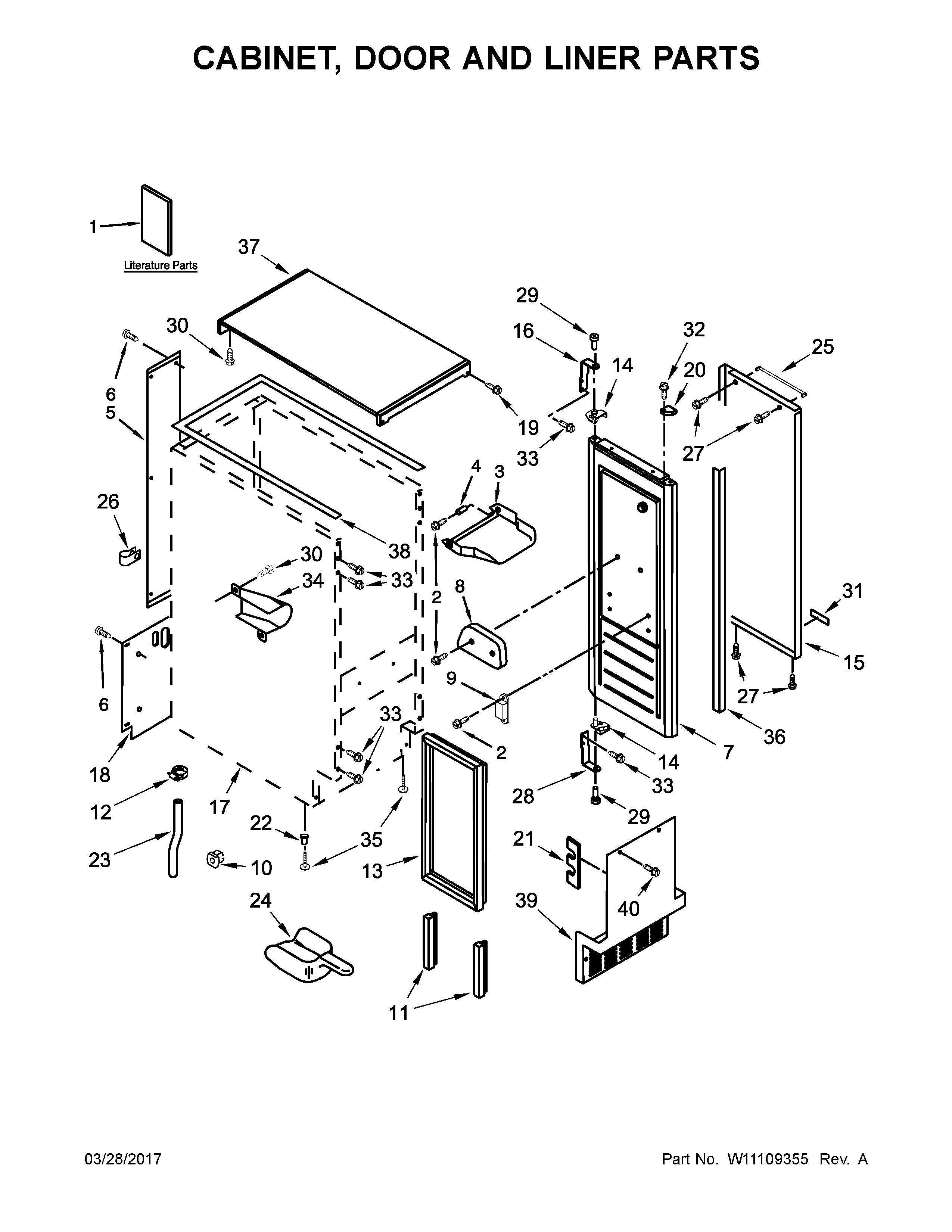

Manufacturer substitutionThis part replaces W10493422. Substitute parts can look different from the original.This item is not returnableIn Stock$15.0812% OFF Phone Price : $17.08QtyCabinet, door and liner parts diagram
Nut

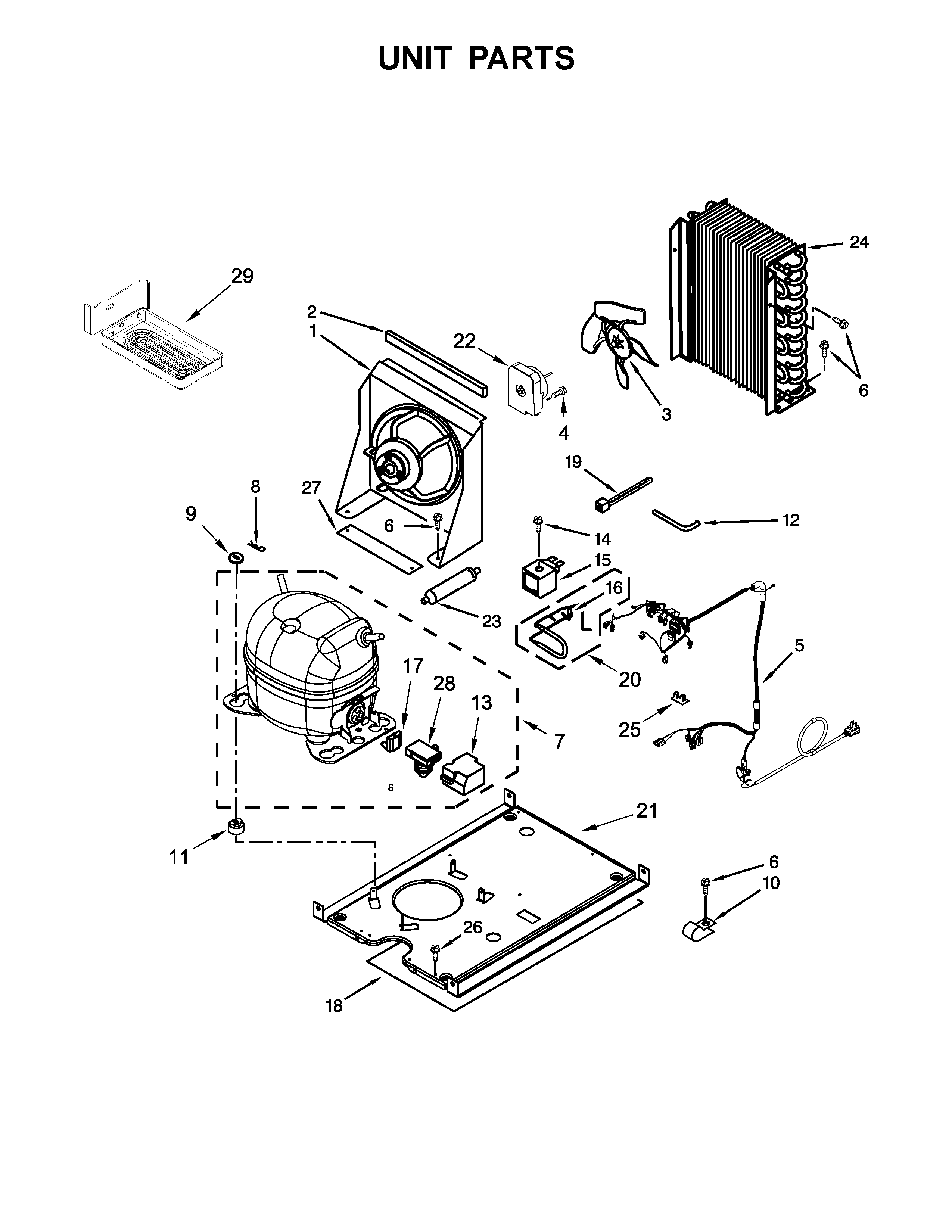

In Stock$26.69QtyUnit parts diagram
Clip
In Stock$10.8416% OFF Phone Price : $12.84QtyCabinet, door and liner parts diagram
Door Stop
In Stock$33.14QtyCabinet, door and liner parts diagram
Door-wrap,wh
In Stock$530.63$12.00 OFF Phone Price : $542.63QtyCabinet, door and liner parts diagram
Grommet - Ed
In Stock$37.23QtyOptional parts (not included) diagram
Spray Paint

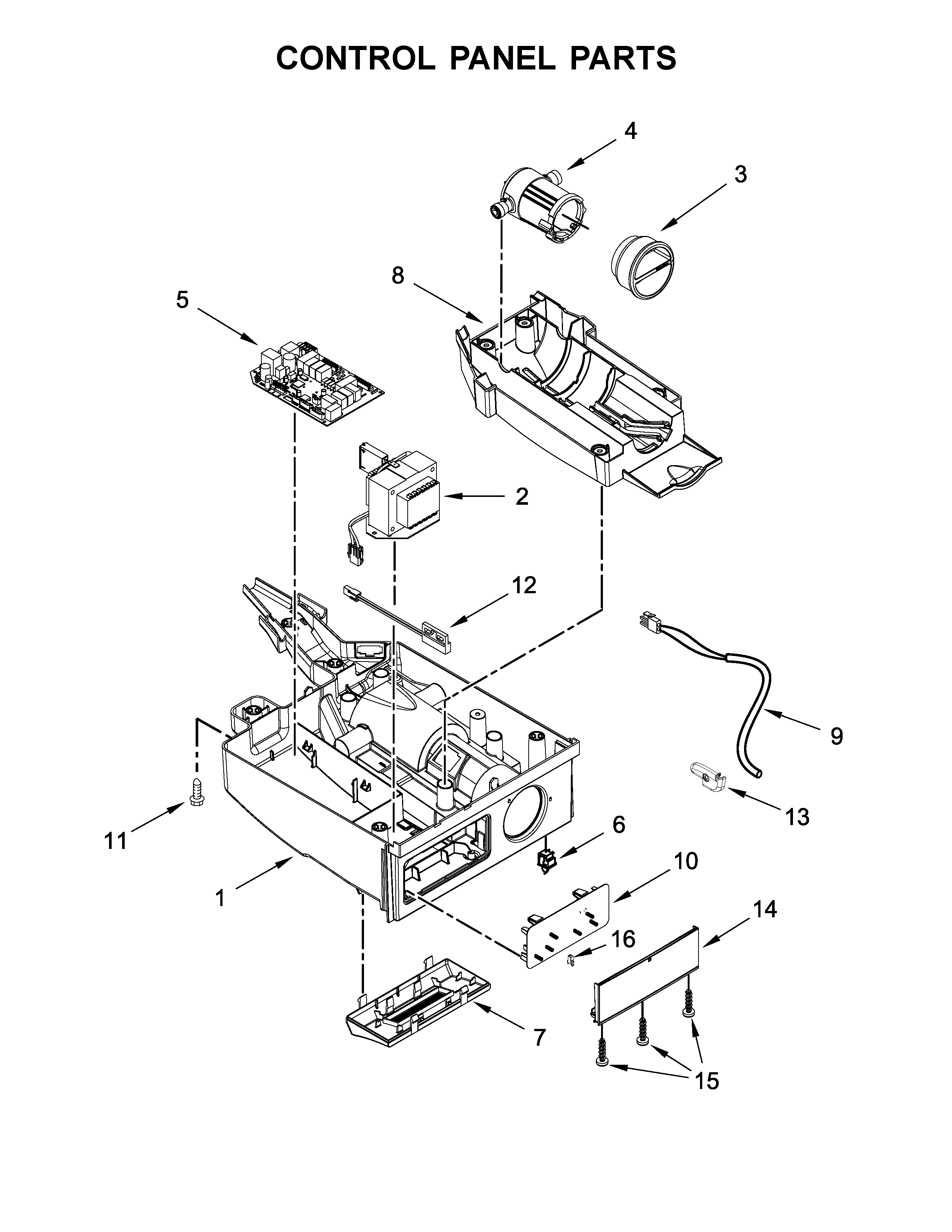

In Stock$110.16QtyControl panel parts diagram
Escutcheon
In Stock$120.70Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Whirlpool Refrigerator Water Filter
In Stock
$65.46
8% OFF Phone Price : $71.46
Qty
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Appliance Touch-up Paint, 2-oz (white)
In Stock
$31.02
16% OFF Phone Price : $37.02
Qty
Appliance Spray Paint (black)
Part #285006
This item is not returnable
In Stock
$45.09
12% OFF Phone Price : $51.09
Qty
Foam Pad
In Stock
$7.70
11% OFF Phone Price : $8.70
Qty
Shim
In Stock
$32.63
Qty
