Bottom-Mount Refrigerator

Model # RFG298AAPN/XAA-00 Official Samsung bottom-mount refrigerator

Here are the diagrams and repair parts for Official Samsung RFG298AAPN/XAA-00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

Owner's Manual Icon

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forRFG298AAPN/XAA-00 Refrigerators

#29

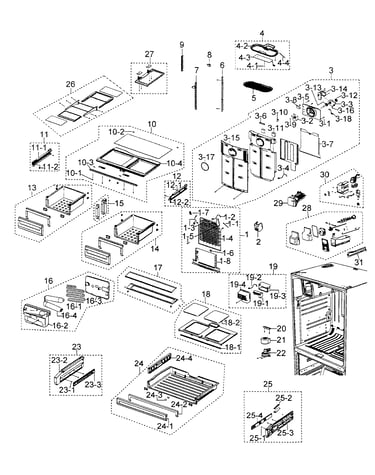

Refrigerator diagram
Refrigerator ice maker assembly
Part #DA97-07365A
Replaced by #DA97-07365G
?
Manufacturer substitution
This part replaces DA97-07365A. Substitute parts can look different from the original.
$141.94 |
8% OFF Phone Price : $153.94
In Stock
Qty
#19

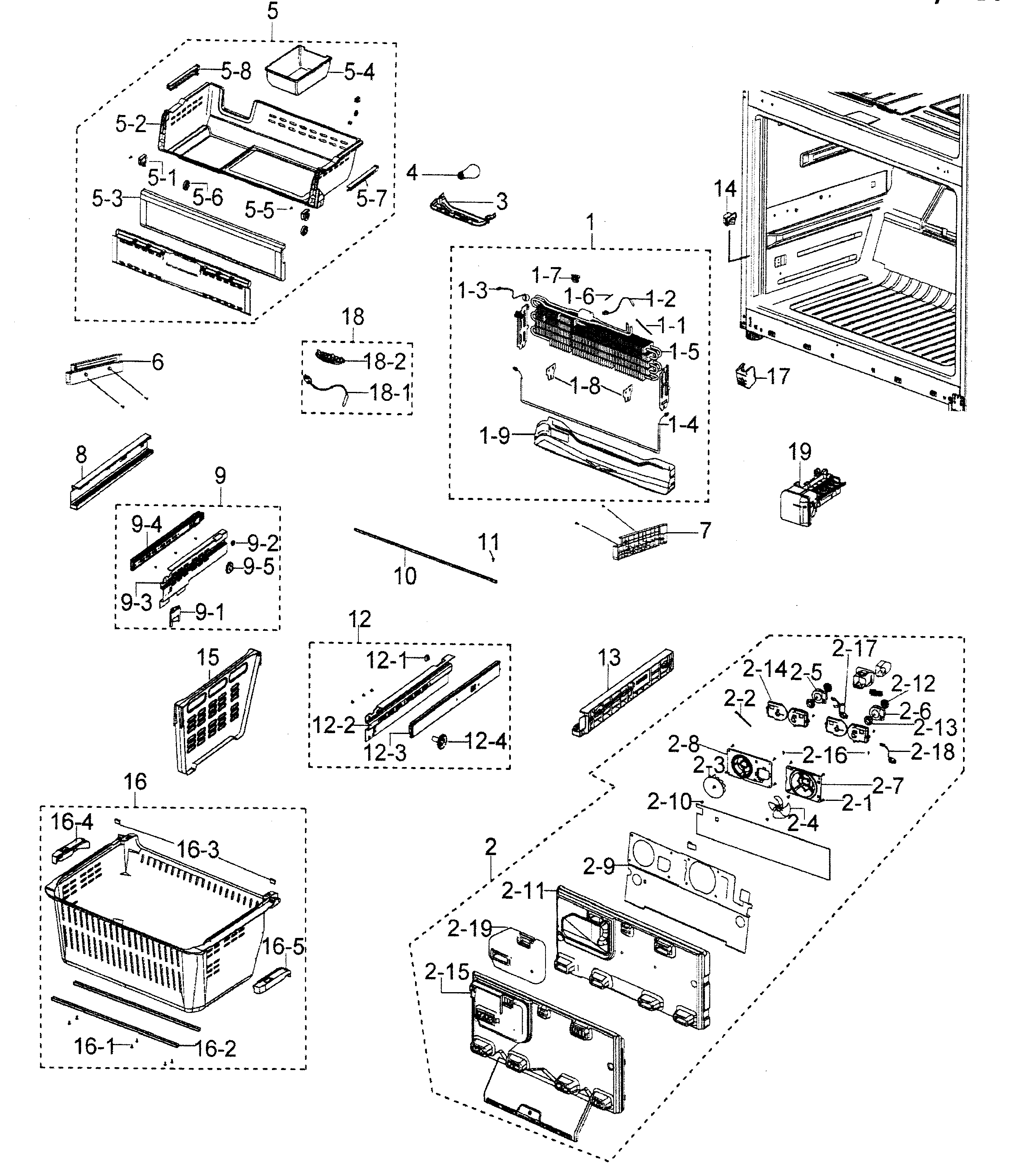

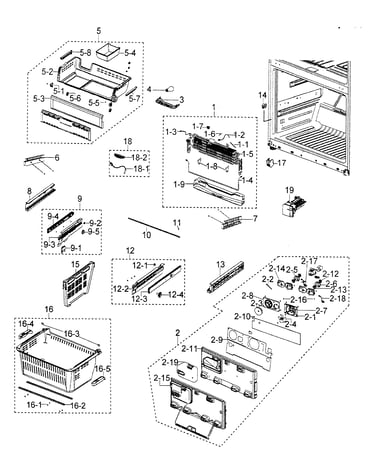

Freezer diagram
Refrigerator ice maker
Part #DA97-07362A
Replaced by #DA97-07365G
?
Manufacturer substitution
This part replaces DA97-07362A. Substitute parts can look different from the original.
$141.94 |
8% OFF Phone Price : $153.94
In Stock
Qty
Refrigerator protector
Part #DA47-00243C
Replaced by #DA47-00243K
?
Manufacturer substitution
This part replaces DA47-00243C. Substitute parts can look different from the original.
$43.58 |
12% OFF Phone Price : $49.58
In Stock
Qty
#23

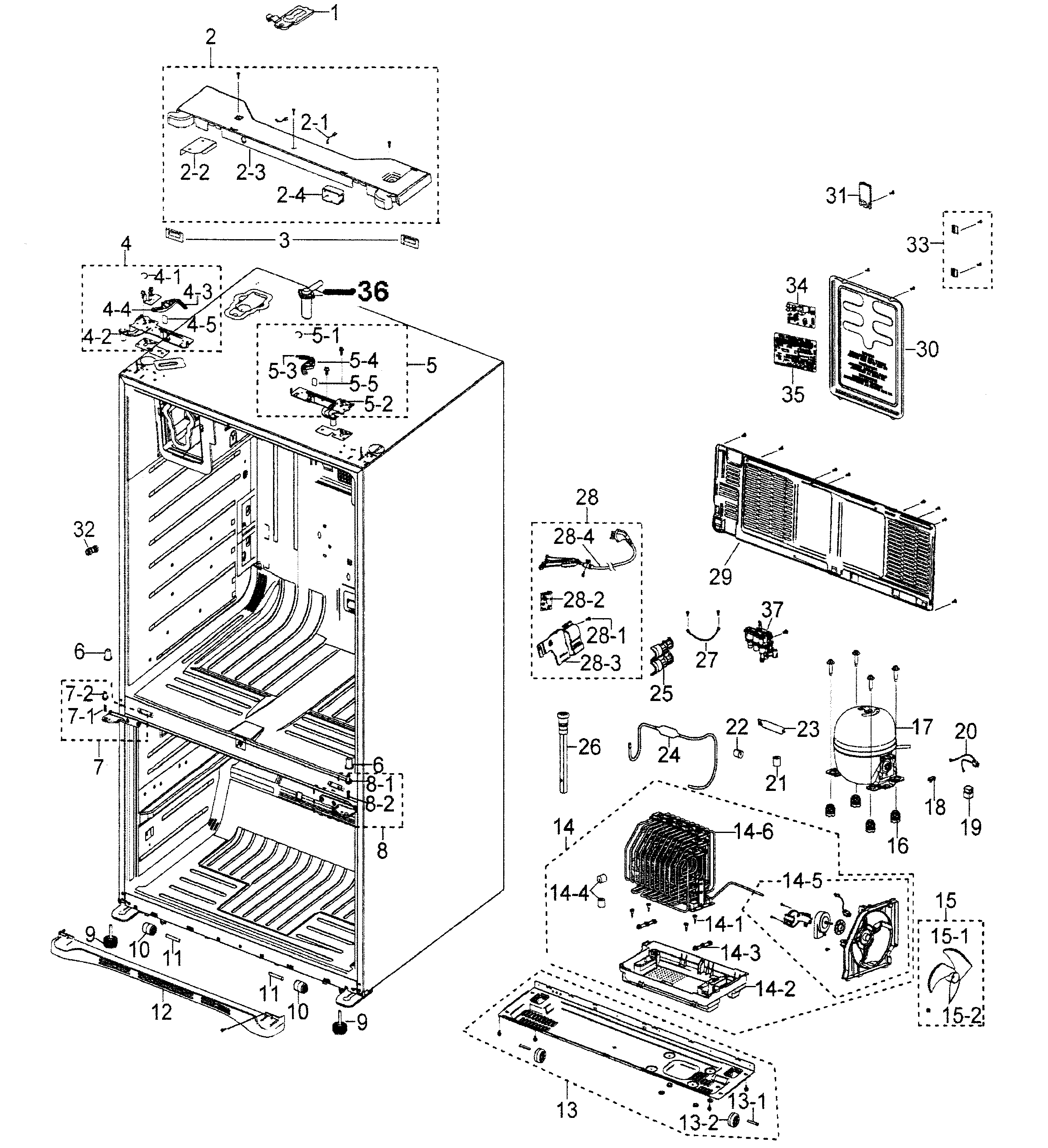

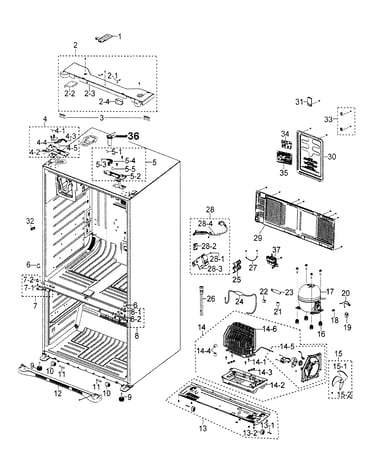

Cabinet diagram
Refrigerator dryer
Part #DA62-01514B
Replaced by #DA81-06007A
?
Manufacturer substitution
This part replaces DA62-01514B. Substitute parts can look different from the original.
$82.37 |
7% OFF Phone Price : $88.37
In Stock
Qty
#30
Refrigerator diagram
Refrigerator auger motor
Part #DA97-05246G
$207.90 |
5% OFF Phone Price : $219.90
In Stock
Qty
#7

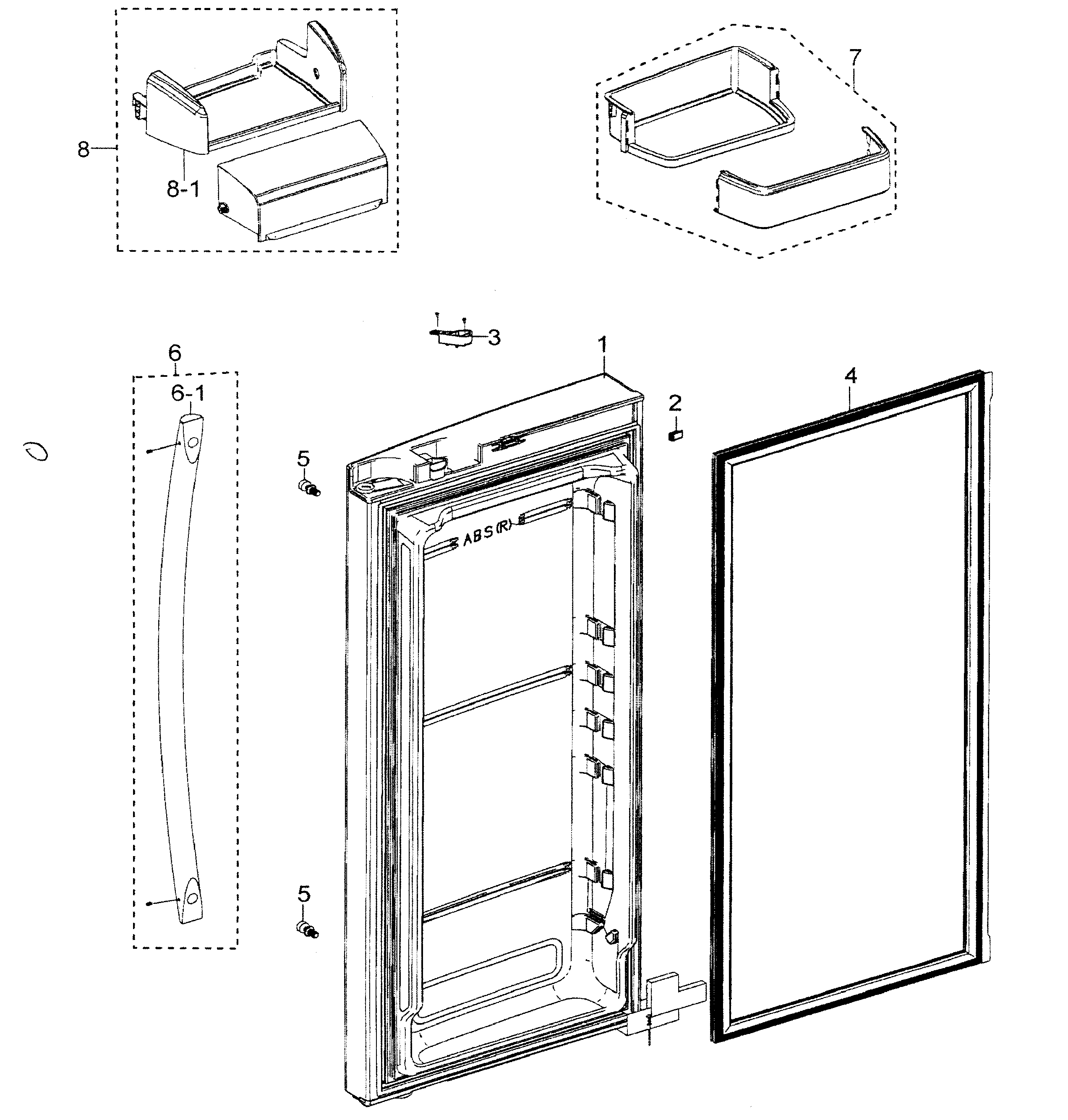

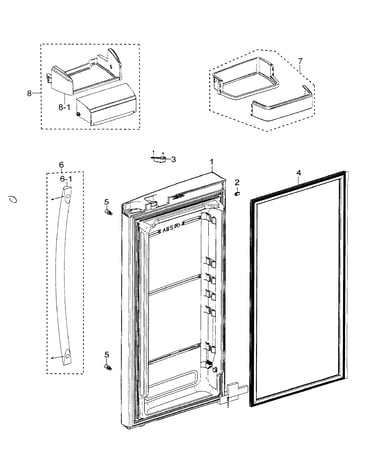

Right door diagram
Refrigerator door bin, right
Part #DA97-06419C
$72.59 |
8% OFF Phone Price : $78.59
In Stock
Qty
#2

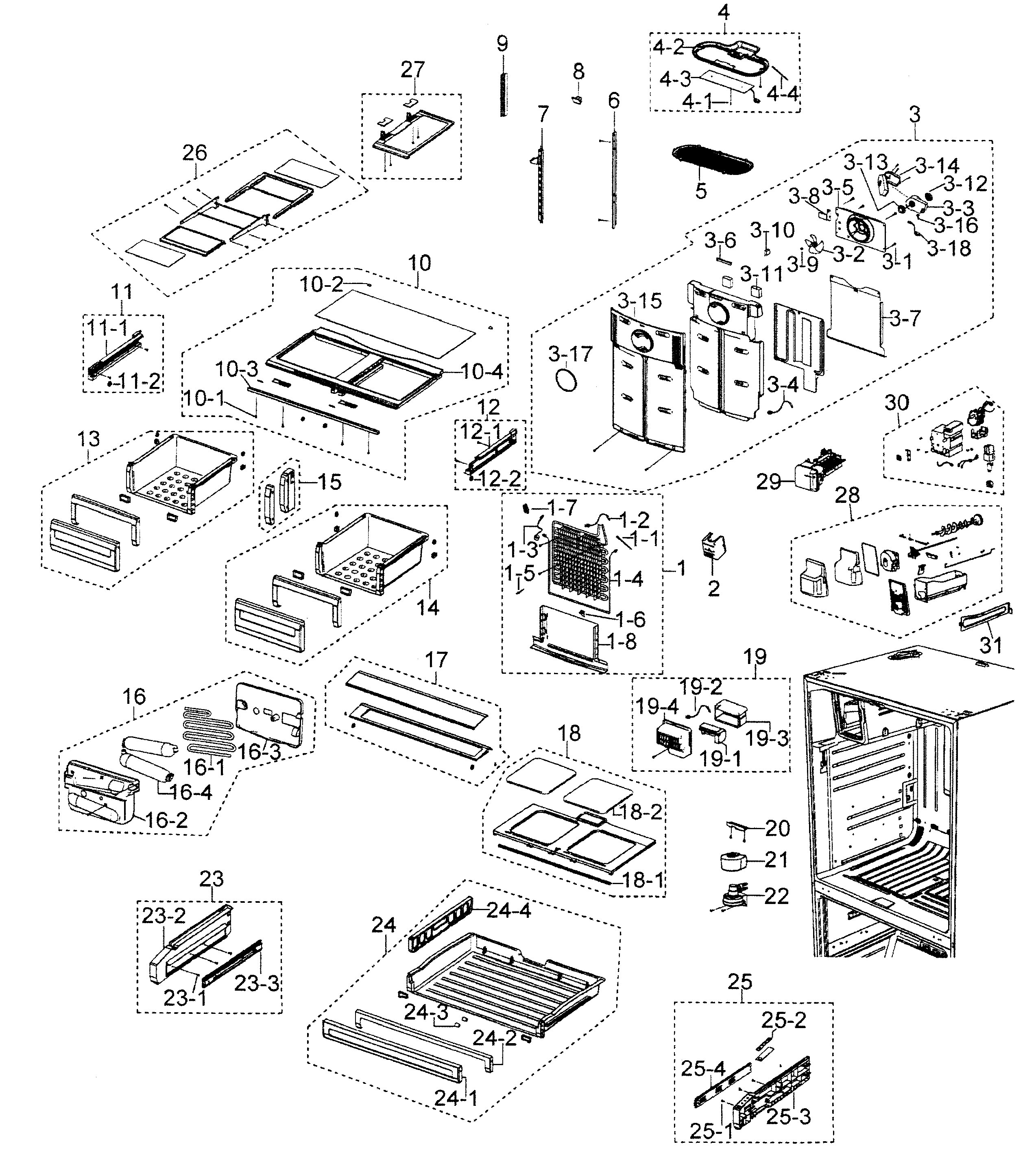

Freezer diagram
Refrigerator evaporator cover
Part #DA97-07656A
$225.26 |
5% OFF Phone Price : $237.26
In Stock
Qty
#8-10

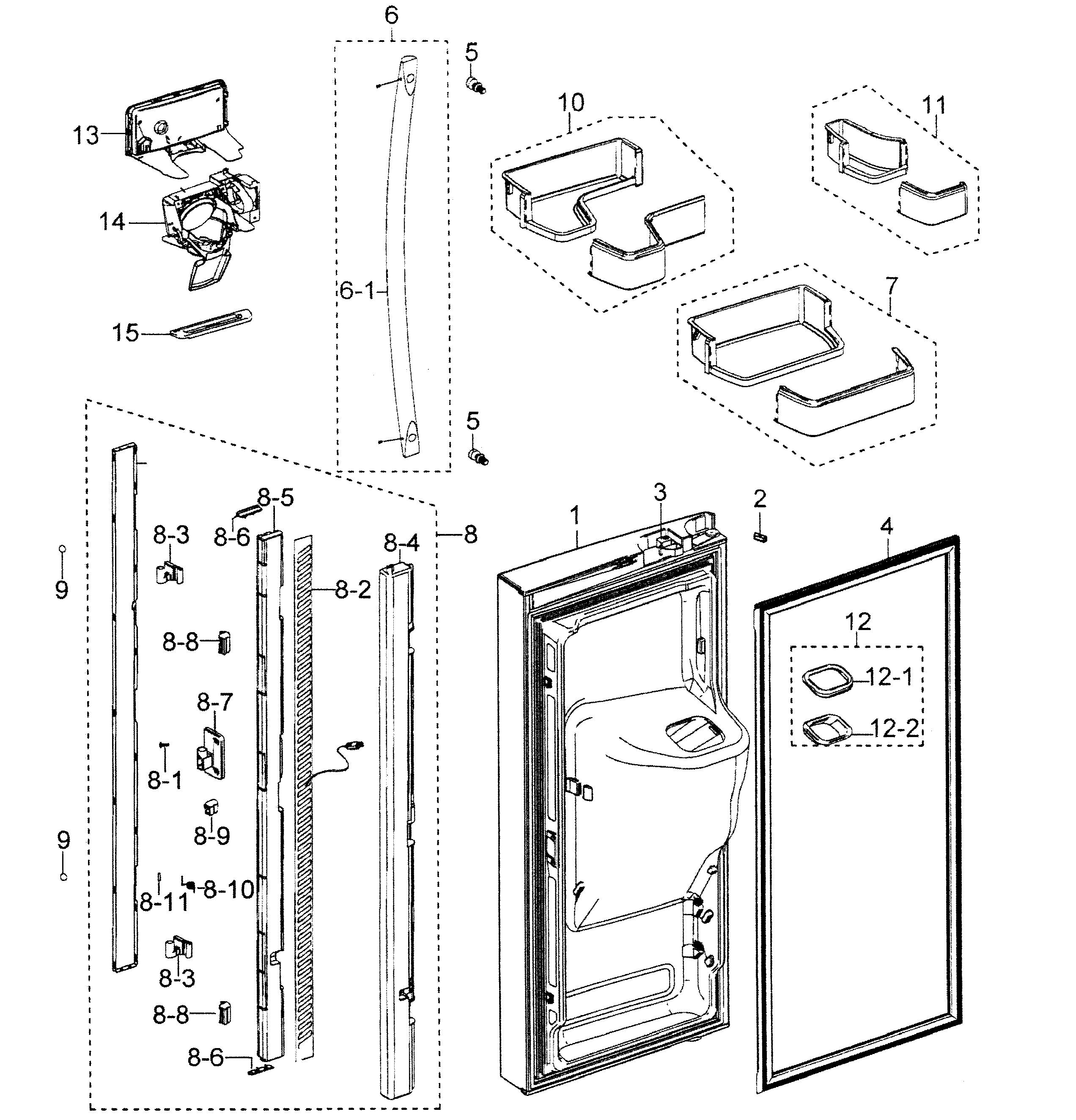

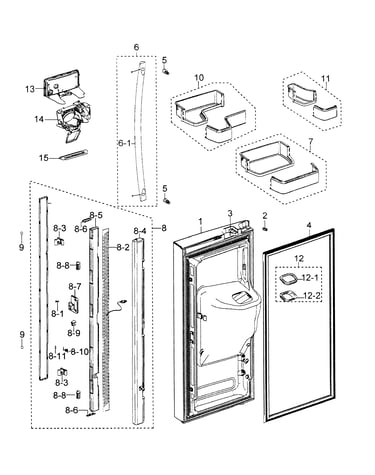

Left door diagram
Refrigerator spring
Part #DA81-01345B
This item is not returnable
$5.40 |
24% OFF Was : $7.13
Back Order
Qty
#22
Refrigerator diagram
Refrigerator case assembly
Part #DA97-06317E
Replaced by #DA97-06317A
?
Manufacturer substitution
This part replaces DA97-06317E. Substitute parts can look different from the original.
$90.50 |
6% OFF Phone Price : $96.50
In Stock
Qty
#2

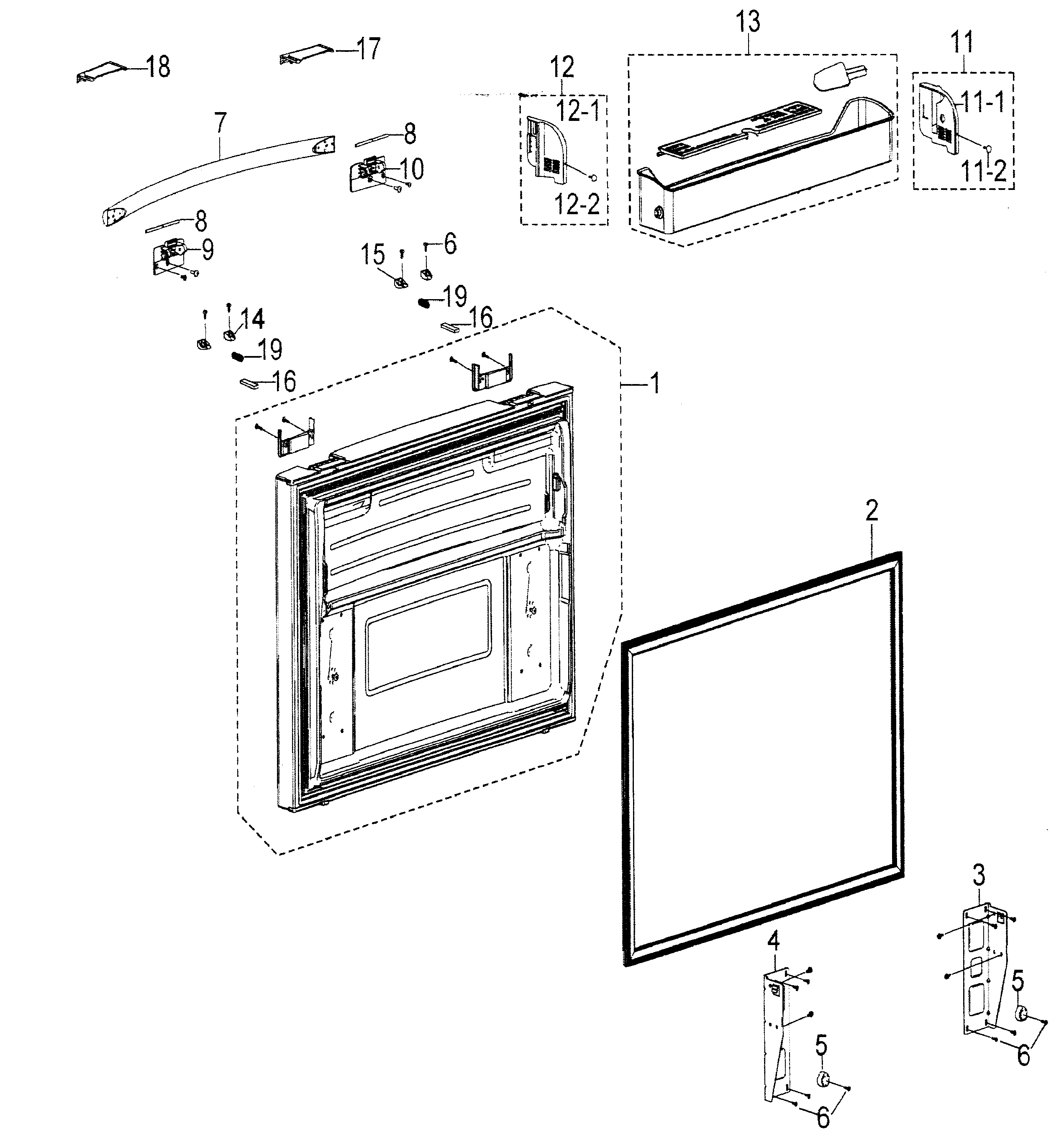

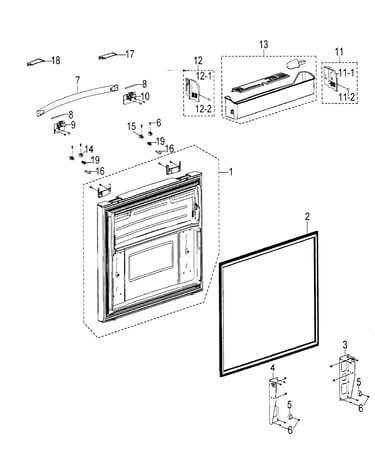

Freezer door diagram
Refrigerator door gasket
Part #DA97-05557B
Replaced by #DA97-05557Y
?
Manufacturer substitution
This part replaces DA97-05557B. Substitute parts can look different from the original.
$190.40 |
6% OFF Phone Price : $202.40
Back Order
Qty
