Whirlpool WRF532SMHZ06 refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRF532SMHZ06 refrigerator, as well as links to manuals and error code tables, if available.

Whirlpool WRF532SMHZ06 refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRF532SMHZ06 Refrigerators

  • Whirlpool Refrigerator Crisper Drawer Center Rail for Whirlpool WRF532SMHZ06 - Part WPW10671238

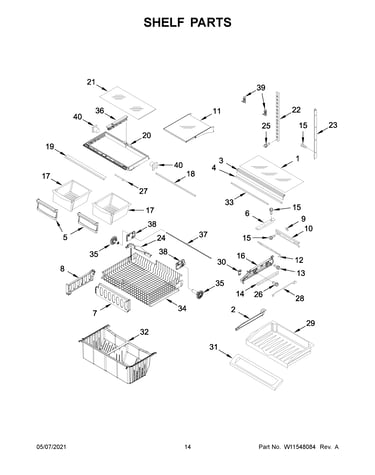

    Shelf parts diagram

    Refrigerator Crisper Drawer Support Rail, Center

    Part #W10671238

    Replaced by #WPW10671238

    Info Icon
    Manufacturer substitution
    This part replaces W10671238. Substitute parts can look different from the original.
    In Stock
    $48.55
    11% OFF Phone Price : $54.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Gasket, Right (gray) for Whirlpool WRF532SMHZ06 - Part W10830162

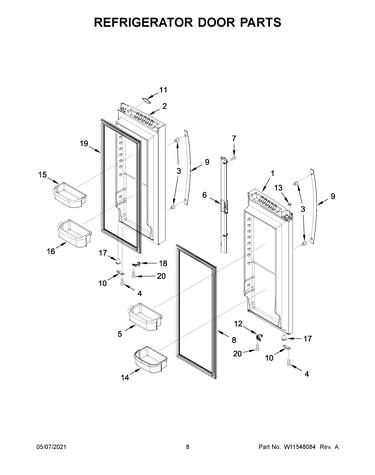

    Refrigerator door parts diagram

    Whirlpool Refrigerator Door Gasket, Right (gray)

    In Stock
    $183.43
    6% OFF Phone Price : $195.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool WRF532SMHZ06 - Part W11024089

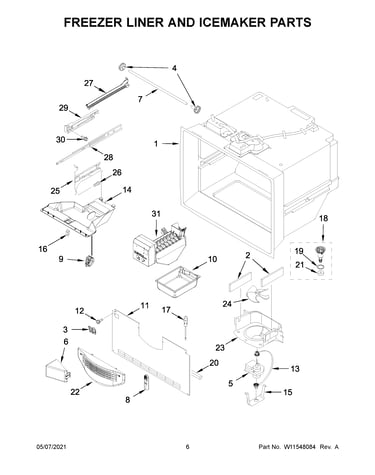

    Freezer liner and icemaker parts diagram

    Refrigerator Evaporator Motor

    Part #13062901

    Replaced by #W11024089

    Info Icon
    Manufacturer substitution
    This part replaces 13062901. Substitute parts can look different from the original.
    In Stock
    $54.35
    10% OFF Phone Price : $60.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for Whirlpool WRF532SMHZ06 - Part WPW10350564

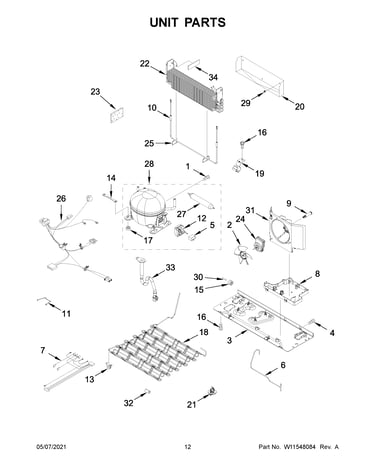

    Unit parts diagram

    Refrigerator Run Capacitor

    Part #W10350564

    Replaced by #WPW10350564

    Info Icon
    Manufacturer substitution
    This part replaces W10350564. Substitute parts can look different from the original.
    In Stock
    $59.30
    9% OFF Phone Price : $65.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer Door for Whirlpool WRF532SMHZ06 - Part W10827914

    Shelf parts diagram

    Refrigerator Drawer Cover

    Part #12656823

    Replaced by #W10827914

    Info Icon
    Manufacturer substitution
    This part replaces 12656823. Substitute parts can look different from the original.
    In Stock
    $119.86
    9% OFF Phone Price : $131.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Drain Tube for Whirlpool WRF532SMHZ06 - Part W10619951

    Unit parts diagram

    Extension-dr

    Part #W10622099

    Replaced by #W10619951

    Info Icon
    Manufacturer substitution
    This part replaces W10622099. Substitute parts can look different from the original.
    In Stock
    $22.71
    27% OFF Was : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • 6 Mm Chargin for Whirlpool WRF532SMHZ06 - Part W11506635

    Unit parts diagram

  • Slide for Whirlpool WRF532SMHZ06 - Part W11658402

    Freezer liner and icemaker parts diagram

    Refrigerator Freezer Slide Rail

    Part #W10120018

    Replaced by #W11658402

    Info Icon
    Manufacturer substitution
    This part replaces W10120018. Substitute parts can look different from the original.
    In Stock
    $198.70
    Minus Item
    Qty
    Plus Item
  • Refrigerator Crisper Drawer Cover Support for Whirlpool WRF532SMHZ06 - Part WP67001716

    Shelf parts diagram

    Hook- Ladd

    Part #12531802

    Replaced by #WP67001716

    Info Icon
    Manufacturer substitution
    This part replaces 12531802. Substitute parts can look different from the original.
    In Stock
    $8.96
    10% OFF Phone Price : $9.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Whirlpool WRF532SMHZ06 - Part 350930

    Optional parts diagram

    Spray Paint (white)

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool REFRIGERATOR WRF532SMHZ06 FAQs

Yes, you can often use a generic water filter in a Whirlpool refrigerator like model WRF532SMHZ06 as long as it is the correct fit and is certified for drinking-water filtration. For best taste, flow, and leak prevention, match the exact filter type and replace it on schedule.

What to check before buying a generic filter

  • Exact fit and locking style: The filter must seat fully and lock without forcing.
  • Certification: Look for NSF/ANSI certification (commonly 42 for taste/odor, 53 for health-related contaminants, and 401 for emerging compounds).
  • Bypass plug compatibility: Some models require a filter or bypass plug to maintain proper water flow.
  • Flow rate: Low-cost generics sometimes reduce dispenser flow or slow ice maker fill.
  • Change interval: Most refrigerator water filters are replaced about every 6 months (sooner with heavy use or poor water quality).

Quick comparison: generic vs OEM-style filters

Feature Generic filter OEM-style filter
Upfront cost Usually lower Usually higher
Fit consistency Varies by brand/batch Typically more consistent
Certifications Must be verified on the box Usually easier to confirm
Common issues Leaks, poor flow, taste Fewer fit-related issues

If you notice problems after installing a generic filter

  • Remove and reinstall the filter to confirm it is fully seated.
  • Dispense and discard several gallons of water to flush carbon fines and purge air.
  • Check for drips at the filter head and inside the compartment.
  • If flow stays weak, replace the filter with a different brand or an OEM-style equivalent.

Why it matters

A water filter that does not seal correctly can cause leaks, and a filter that is not properly certified can leave taste, odor, or contaminants in your drinking water. Choosing the correct type helps protect the dispenser and ice maker performance over time.

For step-by-step guidance, use our how to replace the water filter in a Whirlpool refrigerator.

Last updated: January 2026

The biggest problem we see in Whirlpool refrigerators like model WRF532SMHZ06 is a cooling failure caused by restricted airflow or a failing evaporator fan system. When airflow drops, temperatures rise, frost builds up, and food spoils faster.

Most common “big” problems (and what they look like)

  • Evaporator fan not moving air: warm fresh food section, freezer may still feel cold
  • Frost or ice blocking airflow: weak cooling, vents look frosted over
  • Door not sealing: moisture, heavy frost, longer run times, temperature swings
  • Bad temperature sensing: inconsistent temps, compressor cycling oddly
  • Ice maker or water system issues: no ice, slow fill, leaks (secondary but common)

Quick checks we recommend first

  1. Confirm the refrigerator and freezer controls are set to normal (not “warm”).
  2. Make sure vents are not blocked by food packages.
  3. Listen for the evaporator fan: it should run when the unit is cooling (door closed).
  4. Inspect door gaskets for gaps, tears, or areas that do not grip paper.
  5. Look for frost buildup on the freezer back panel (a strong clue of airflow/defrost trouble).

Parts that commonly relate to the “big problem”

Symptom Likely area Example part for WRF532SMHZ06
Warm fridge, freezer OK Evaporator fan system Refrigerator evaporator motor W11024089
Fan noisy or weak airflow Fan blade Refrigerator evaporator fan blade WP2169142
Moisture, frost, poor cooling Door seal Whirlpool refrigerator door gasket (gray) W10443316
Temps swing up and down Temperature sensing Refrigerator thermistor 12002355

Why it matters

A bottom-mount refrigerator depends on steady airflow from the freezer evaporator to cool the fresh food section. When airflow is reduced (fan, frost, or a door leak), the refrigerator can run longer, waste energy, and still not hold safe food temperatures.

Helpful DIY references

Last updated: January 2026

A Whirlpool refrigerator like model WRF532SMHZ06 typically lasts about 10 to 15 years with normal household use. Real-world lifespan depends most on condenser airflow, door seal condition, and how quickly cooling or ice-maker issues are corrected.

Typical lifespan and what affects it

Most Whirlpool refrigerators fall into the same general life range, but these factors move the needle:

  • Door seal quality: air leaks force longer run times and can shorten compressor life
  • Condenser cleanliness and airflow: dust buildup raises operating temperatures
  • Ice maker and water system health: slow fills and leaks can create secondary damage
  • Temperature settings and loading: overpacking blocks vents and stresses the evaporator fan
  • Repair timing: fixing small issues early prevents major sealed-system wear

Quick “is it worth repairing?” guide

Use this as a practical rule of thumb for WRF532SMHZ06.

Refrigerator age Typical recommendation Why
0 to 5 years Repair is usually the best value Parts restore full service life
6 to 10 years Repair if the issue is isolated Many repairs are still cost-effective
11 to 15 years Repair only if it is minor Major cooling repairs often do not pencil out
16+ years Plan to replace Efficiency and reliability drop

Parts that commonly extend service life

If you are chasing warm temps, frost buildup, or noisy operation, these model-relevant parts often matter:

Why it matters

A refrigerator that is running longer than normal (warm cabinet, sweating doors, frequent cycling) can still cool, but it wears out faster. Keeping seals tight, airflow clear, and cooling controls accurate is the simplest way to reach the full 10 to 15 year lifespan.

Last updated: January 2026

Ice forming on the bottom of the freezer in your Whirlpool WRF532SMHZ06 almost always happens when defrost water cannot drain away. The water refreezes on the freezer floor, then builds into a sheet of ice and can also cause leaks or puddles.

Most common causes

  • Clogged or frozen defrost drain (food debris, ice plug)
  • Drain tube restricted, kinked, or not seated correctly at the drain pan
  • Door not sealing well, causing excess frost that overwhelms the drain
  • Heavy frost from frequent door openings or warm, humid air entering
  • Freezer drawer not closing fully (items blocking the rails or basket)

What to do first (safe DIY checks)

  1. Unplug the refrigerator.
  2. Remove the freezer drawer/baskets and look for a solid ice sheet on the freezer floor.
  3. Melt the ice with a hair dryer on low (keep heat moving) or use hot towels.
  4. Find the drain opening under/behind the evaporator cover area and flush it with hot water using a turkey baster.
  5. Confirm water flows freely to the drain pan underneath.

If the drain tube is damaged or not draining consistently, replacing the drain tube can restore proper defrost drainage: extension-dr W10619951.

Quick symptom guide

What you notice Most likely issue Best next step
Ice sheet on freezer floor Frozen/clogged defrost drain Thaw and flush drain with hot water
Water leaking after defrost Partial drain restriction Clear tube and confirm strong flow
Frost buildup plus ice floor Air leak at door Inspect gasket and door alignment

Why it matters

When defrost water cannot drain, it refreezes and can push the freezer temperature warmer, reduce airflow, and lead to recurring leaks. Fixing the drain and sealing issues prevents repeat ice buildup and helps the evaporator fan move cold air correctly.

When to consider parts

For prevention tips that reduce ice maker and water system freeze-ups that can add moisture load, use: how to prevent water dispenser and ice maker problems.

Last updated: January 2026
