Kenmore 11629916 vacuum cleaner Parts
Here are the diagrams and repair parts for Kenmore 11629916 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11629916 Vacuum Cleaners

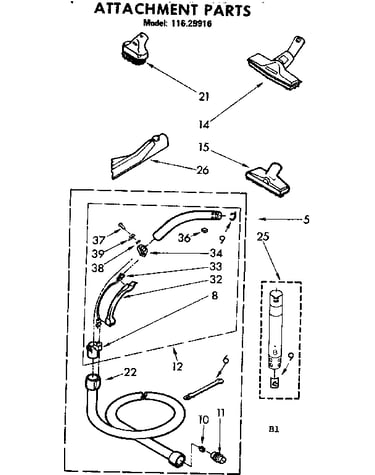

Attachment parts diagram
Hose
Part #741141
The manufacturer no longer makes this part, and there's no substitute part

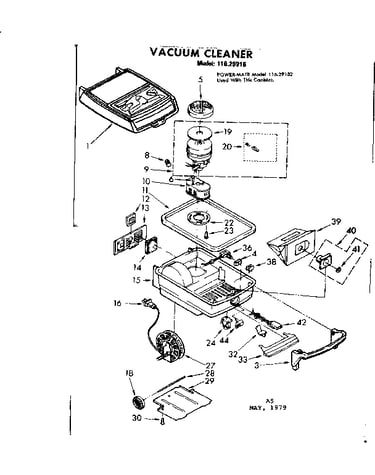

Base assembly diagram
Motor
Part #700518
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Switch
Part #764545
The manufacturer no longer makes this part, and there's no substitute part
Attachment parts diagram
Vacuum Crevice Tool (white)
Part #722375
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Nut
Part #596564
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Pedal
Part #764173
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Cap
Part #703272
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Wheel
Part #703889
The manufacturer no longer makes this part, and there's no substitute part
Attachment parts diagram
Screw
Part #595294
The manufacturer no longer makes this part, and there's no substitute part
Attachment parts diagram
Brush
Part #741122
The manufacturer no longer makes this part, and there's no substitute part
