Southern States 96012002200 tractor Parts

For your Southern States lawn tractor model 96012002200, the year is determined from the model and serial number tag on the tractor. Use the tag’s serial/date code first; then use the 96012002200 owner's manual as a supporting reference for the tractor family and documentation timeframe.

Check these common locations on front-engine lawn tractors:

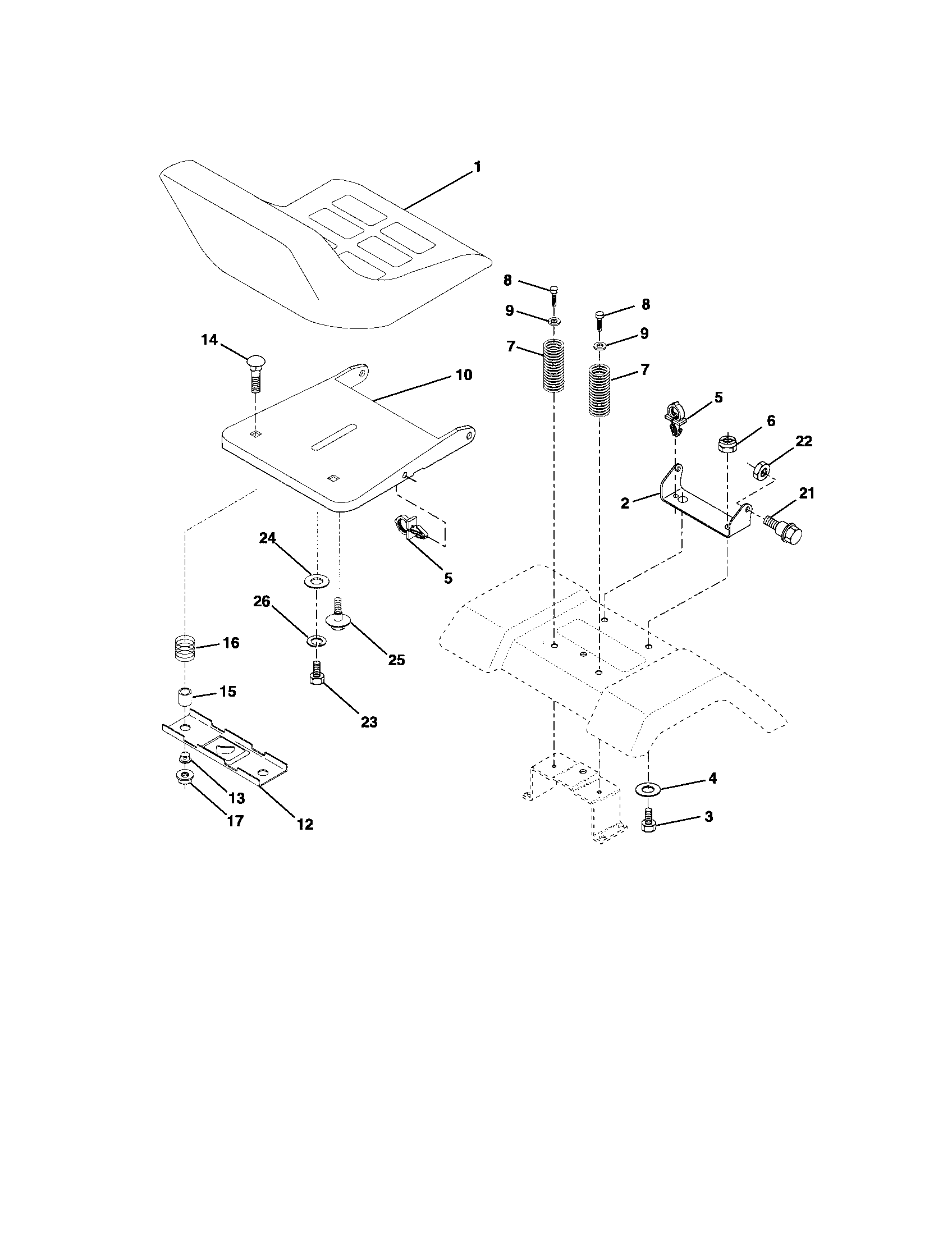

• Under the seat pan or on the seat support
• Rear fender pan near the seat

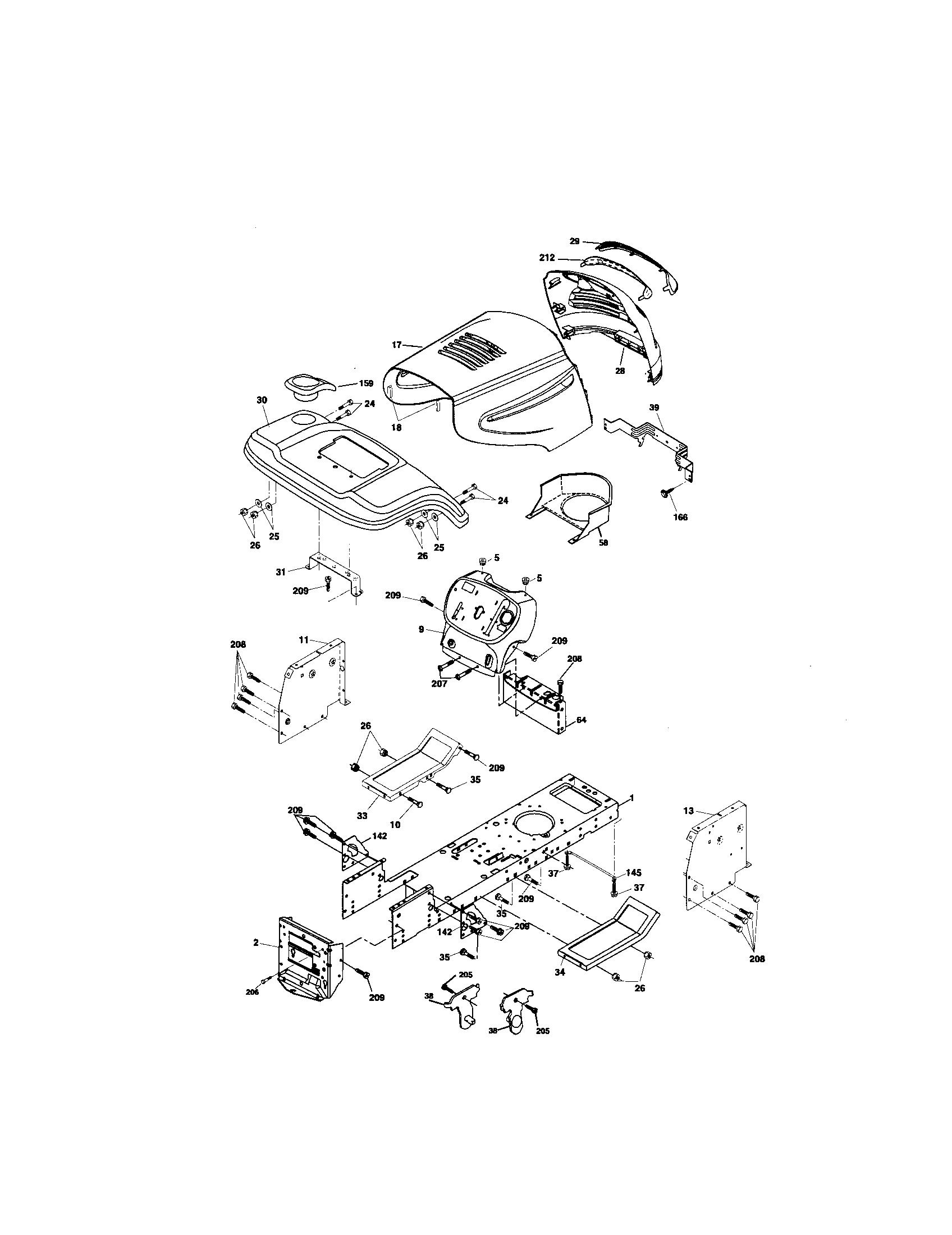

• Frame rail (left or right side)
• Engine compartment area on the chassis
• Near the transaxle (less common)

Once you find the tag, follow this process:

• Confirm the model number matches 96012002200
• Copy the serial number exactly (letters and numbers)
• Look for a date code segment (often year and week or year and day)
• Use that date code to identify the build year

The operator’s manual for this tractor family shows a revision/print date of 08.11.05. That date helps confirm the era of the documentation, but the tractor’s actual build year comes from the serial/date code on the tag.

Knowing the build year (or production range) helps us match the correct deck and chassis configuration so you get the right belts, blades, and hardware for your exact tractor.

While you’re inspecting the tractor, these manual specs are useful for maintenance:

• Tire pressure: 14 PSI front, 12 PSI rear
• Blade bolt torque: 27 to 35 ft. lbs.
• Inspect the ground drive belt for cracking (example: v-belt 532138255)

Last updated: February 2026

Yes; repairing the engine on your Southern States 96012002200 front-engine lawn tractor is worth it when the fix is external or maintenance-related and the tractor is otherwise in good shape. Major internal engine damage makes engine or tractor replacement the better value.

We use these checkpoints to decide repair vs replace:

• Repair when the issue is tune-up related (fuel, spark, carburetion) or a bolt-on external part.
• Repair when the deck, steering, and chassis are solid and you want to keep the tractor.
• Replace when the engine is seized, has loud knocking, heavy smoke, or very low compression.
• Replace when multiple big-ticket systems are failing at once (engine plus transaxle plus deck rebuild).

On this model, blade and deck issues can overload the engine or make it seem weak. The troubleshooting chart calls out belt and mandrel problems when blades will not rotate.

• Blades will not rotate: check for obstruction, worn belt, frozen idler pulley, or frozen blade mandrel.
• Poor cut or discharge: mow at full throttle, slow ground speed, level the deck, and clean buildup under the deck.

Parts that commonly fix deck-load symptoms:

• V-belt 532138255
• Husqvarna lawn tractor mandrel assembly 532130794

A deck or belt problem is far cheaper than an engine swap; diagnosing load-related issues first prevents unnecessary engine work and keeps operation safer.

For service precautions and model-specific guidance, use the owner's manual.

Last updated: February 2026

For the Southern States 96012002200 front-engine lawn tractor, “tractor parts” usually means the major assemblies (engine, mower deck, steering, drive, and controls) plus the service parts that wear out (belts, blades, pulleys, bearings, and hardware). The owner's manual also lists key controls and common assembly components.

These are the parts and systems we see referenced most often for this model type:

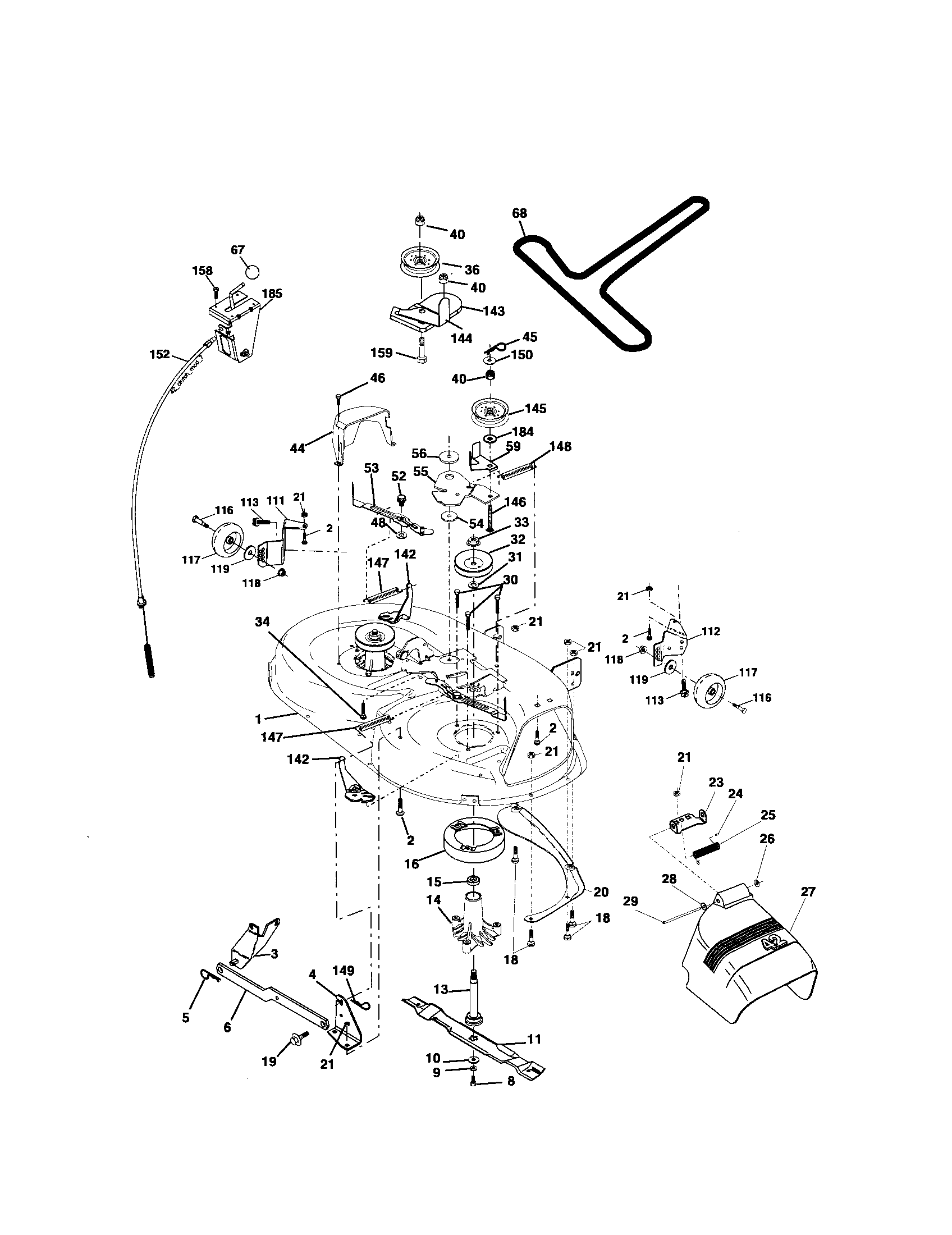

• Mower deck (mower housing): the cutting assembly under the tractor
• Blades: cutting blades mounted under the deck
• Mandrel (spindle) assembly: holds the blade shaft and bearings

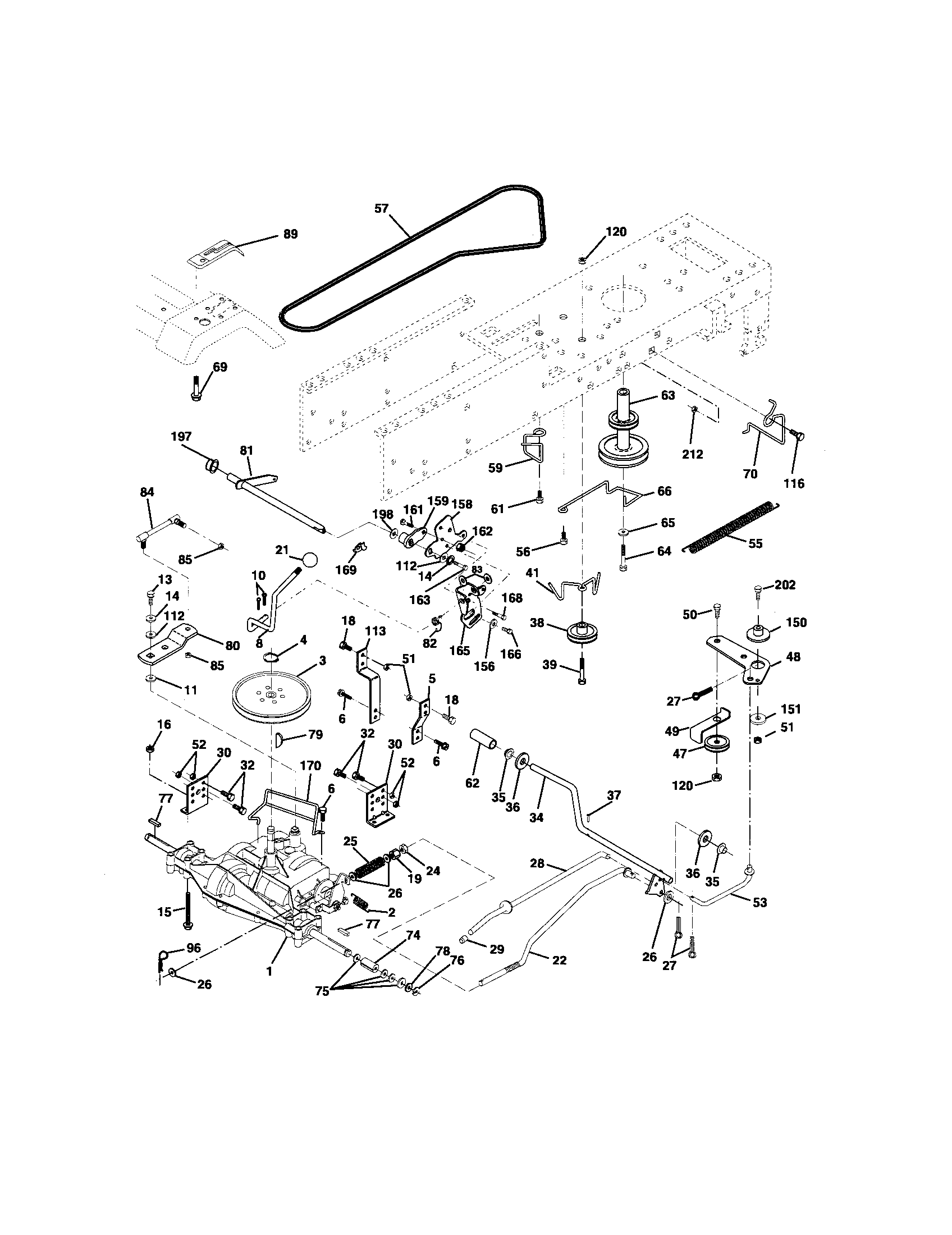

• Drive belt (ground drive belt): transfers power to move the tractor

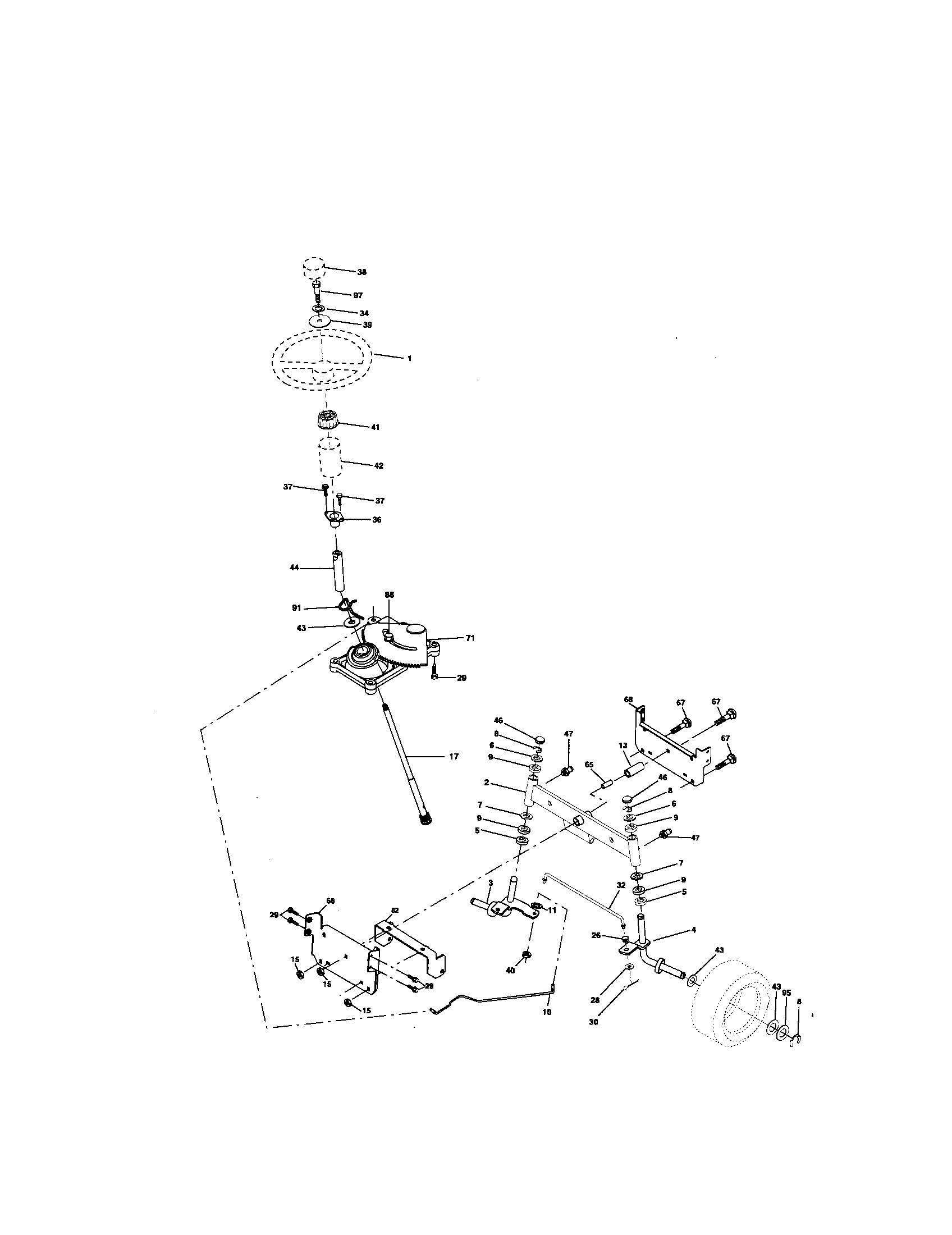

• Steering system: steering wheel, steering shaft, gears, drag link
• Transaxle: drive axle and transmission unit

Your operator controls are also “parts” and are commonly named this way:

• Attachment clutch lever (engages mower blades)

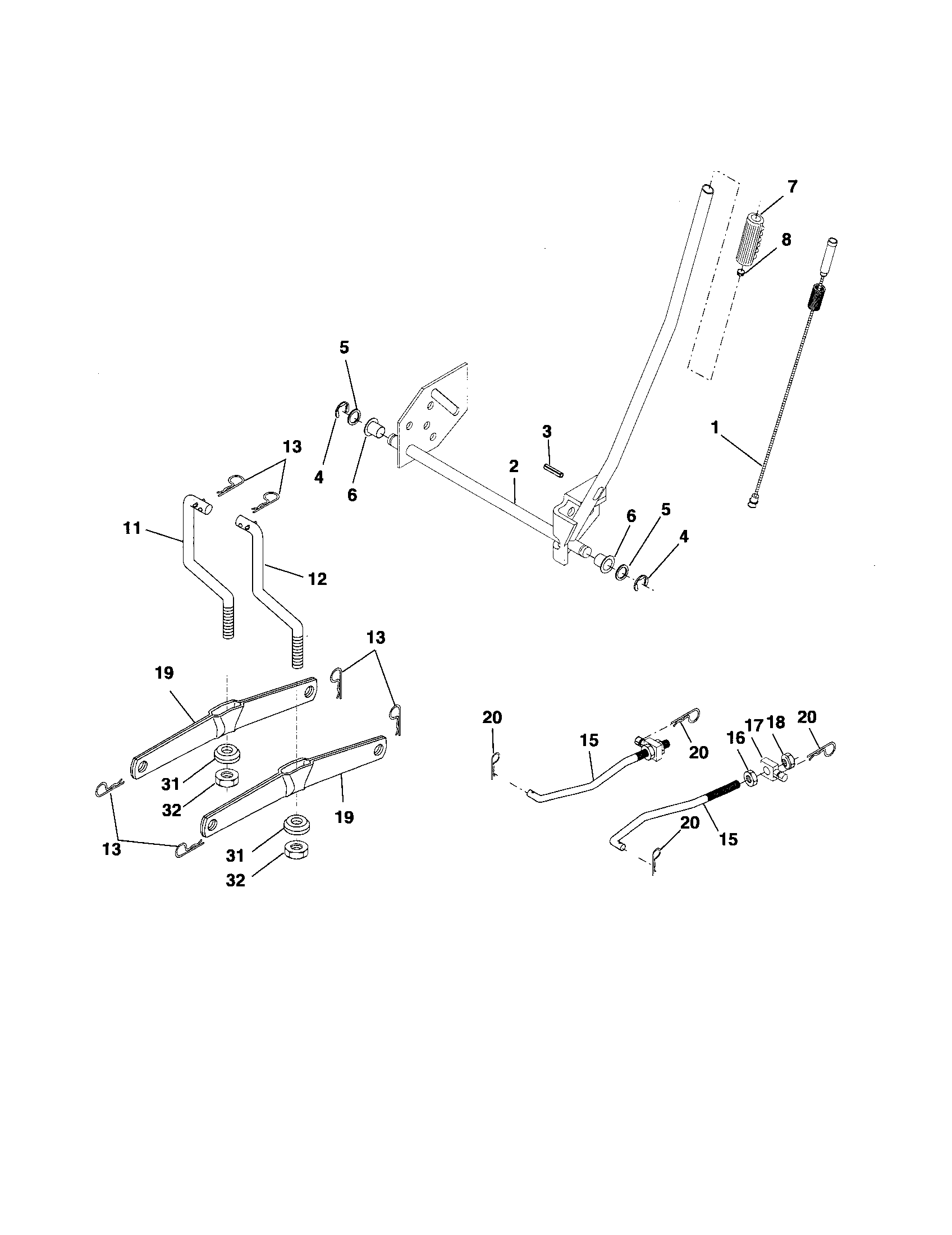

• Attachment lift lever and lift lever plunger (raises and lowers the deck)
• Clutch/brake pedal and parking brake lever
• Gearshift lever
• Ignition switch and throttle/choke control

Here are a few part names exactly as they appear for the 96012002200 parts list:

• Husqvarna lawn tractor mulching blade, 21-in 532134149
• Lawn tractor 42-in deck high-lift blade 532138971
• V-belt 532138255
• Husqvarna lawn tractor mandrel assembly 532130794
• Vented mandrel shaft assembly 532137646

Using the correct part name helps you match the right diagram and order the right replacement. It also speeds up troubleshooting because symptoms often point to a specific system (deck, drive, steering, or transaxle).

Last updated: February 2026

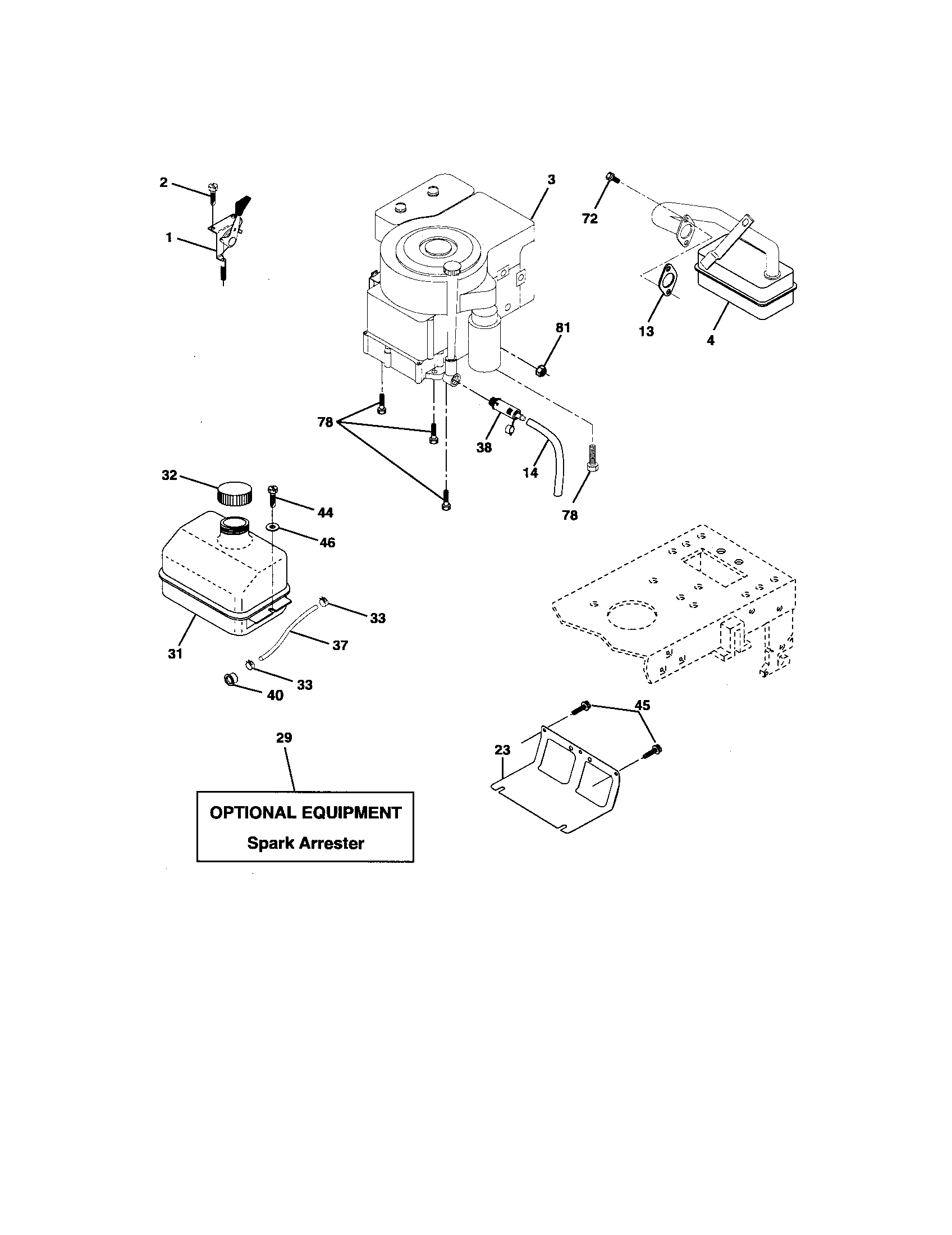

On your Southern States tractor model 96012002200, the engine model number is printed on the engine itself, usually on the top of the engine cover (shroud) or on a label stamped into the blower housing. Use the engine model number when ordering engine-specific parts and tune-up items. See the owner's manual for your tractor’s identification and service guidance.

Check these common locations first (wipe dirt and grass off before reading):

• Top of the engine cover/shroud (often the easiest to see)
• Side of the blower housing near the recoil or air intake area
• Valve cover area or nearby flat metal surfaces
• Near the spark plug area on the engine tin/shielding
• On a sticker or stamped pad close to the muffler heat shield (use a flashlight)

For most lawn tractor engines, you will see multiple identifiers. Record all of them exactly as shown.

The tractor model number (96012002200) identifies the chassis and mower deck parts, but the engine model number identifies engine-specific items like the air filter, spark plug, fuel filter, and carburetor parts. Having both numbers prevents ordering the wrong part.

• Clean the area with a rag; avoid pressure washing directly at labels.
• Use your phone camera and zoom to capture small print.
• If the label is missing, look for a stamped metal pad on the engine.

Last updated: February 2026
