Model # 11320621 Official Craftsman jointer/planer

Here are the diagrams and repair parts for Official Craftsman 11320621 jointer/planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 78 parts |

#15

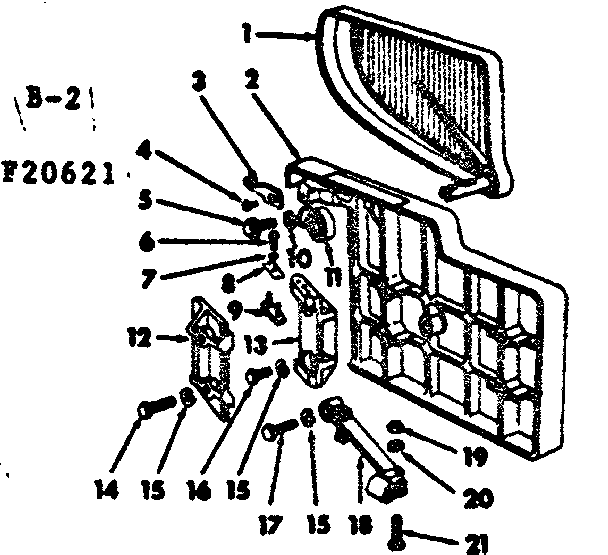

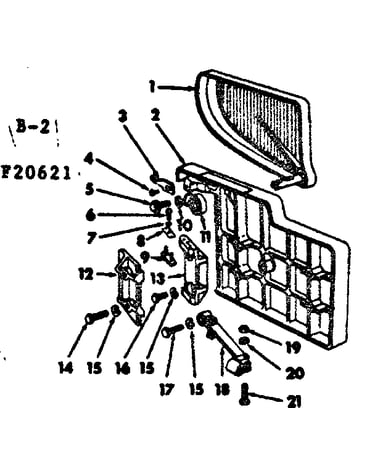

Guard and infeed table diagram

Lock washer

Part #116120

The manufacturer no longer makes this part, and there's no substitute part

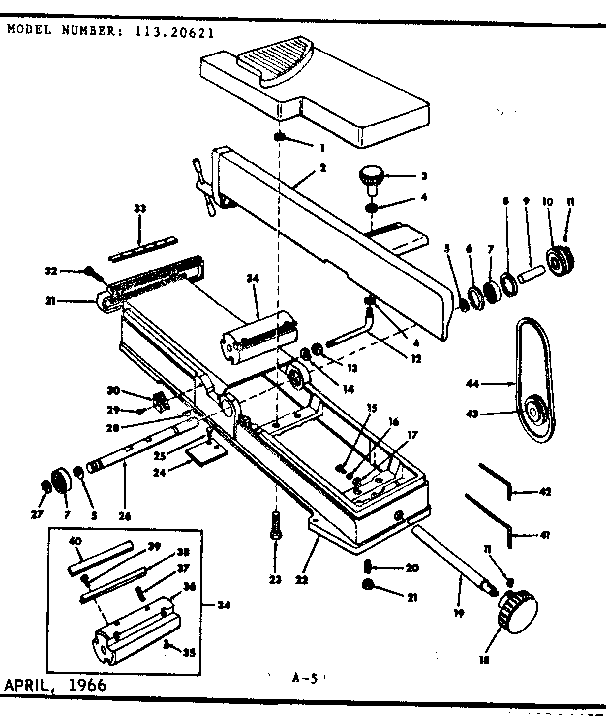

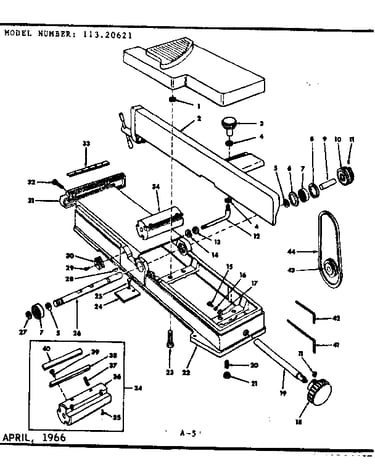

Bed assembly diagram

Jointer/planer retainer clip

Part #18441

The manufacturer no longer makes this part, and there's no substitute part

#39

Bed assembly diagram

Jointer/planer screw

Part #60116

The manufacturer no longer makes this part, and there's no substitute part

#20

Bed assembly diagram

Set screw

Part #102832

The manufacturer no longer makes this part, and there's no substitute part

#35

Bed assembly diagram

Power tool screw

Part #60118

The manufacturer no longer makes this part, and there's no substitute part

Bed assembly diagram

Power tool retainer ring

Part #38879

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Set Screw, 5/16-24 X 7/8-in 60117

#37

Bed assembly diagram

Power tool set screw, 5/16-24 x 7/8-in

Part #60117

The manufacturer no longer makes this part, and there's no substitute part

#15

Fence assembly diagram

Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

#13

Fence assembly diagram

Carriage bolt

Part #120422

The manufacturer no longer makes this part, and there's no substitute part

Guard and infeed table diagram

Washer

Part #60119

The manufacturer no longer makes this part, and there's no substitute part
