Where is the defrost timer on Whirlpool side by side?
On the Whirlpool ED25TEXHW02 side-by-side refrigerator, the defrost timer is typically mounted in the control area (often behind the temperature control housing) or near the compressor compartment, secured to a small bracket with mounting screws. You can match the replacement by using refrigerator defrost timer W10822278.
We most often see the defrost timer in one of these spots:

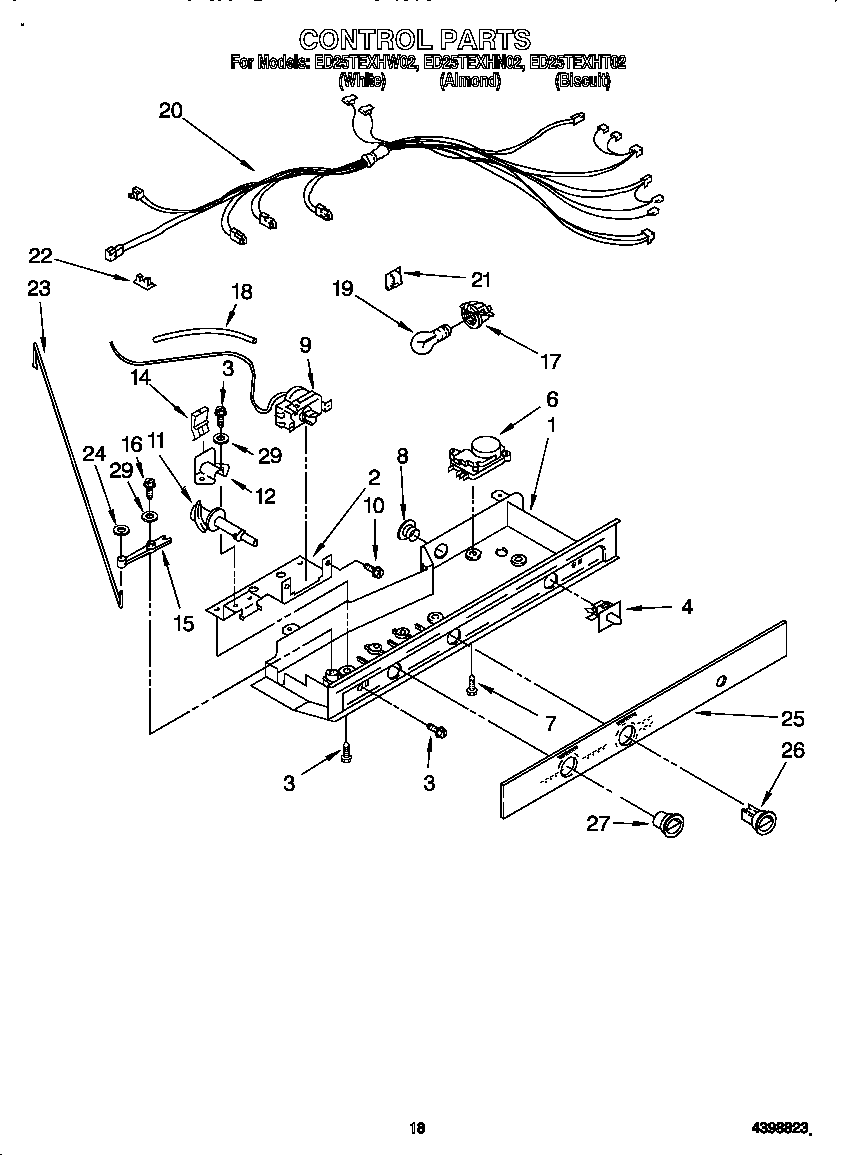

- Inside the fresh food control console at the top of the refrigerator section (behind the temperature controls)
- Behind the toe grille or lower front kickplate area

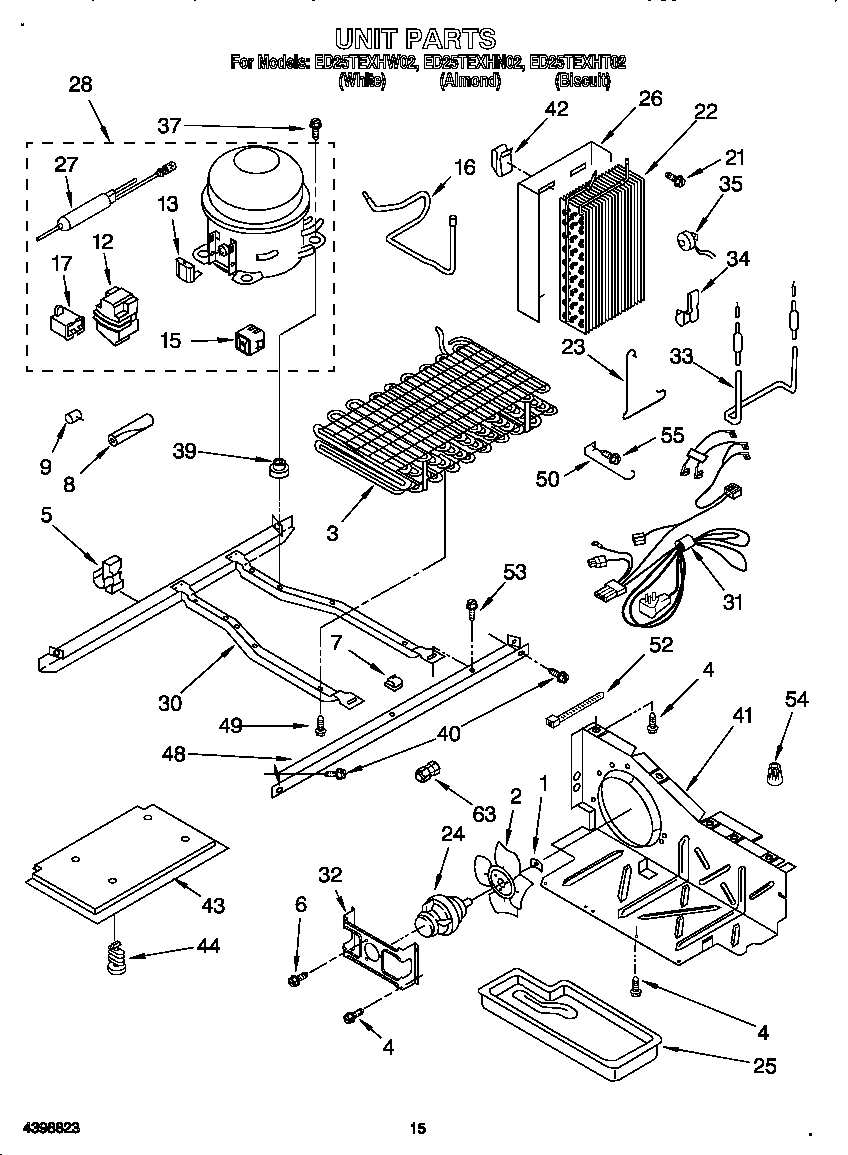

- In the rear machine compartment near the compressor and condenser fan
- Mounted to a small metal plate or bracket with 2 screws
Before you remove panels or touch wiring, use these steps:
- Unplug the refrigerator (or switch off the breaker)
- Empty items that block access to the control housing or lower panels
- Remove the screws holding the cover or console, then lower the panel carefully
- Take a quick photo of wire positions before disconnecting anything
- Reinstall covers and screws tightly to prevent vibration noise
A mechanical defrost timer is usually a small box with a dial/advance shaft.
| What you see | What it usually means | What to do next |
|---|---|---|
| Small square/rectangular module on a bracket | Mechanical defrost timer | Locate the dial/shaft and confirm wiring matches |
| Dial/shaft you can turn with a flat blade | Manual advance point | Advance slowly until it clicks, then monitor cooling |
| Burn marks or loose terminals | Overheating/poor connection | Replace the timer and repair any damaged connectors |
If the defrost timer sticks, the refrigerator can frost up (warm fridge, weak airflow) or get stuck in defrost (no cooling). Finding the timer location quickly helps you confirm whether the defrost system is the cause before replacing other parts.
If you confirm the timer is the issue, use the model-matched part listed for this refrigerator: refrigerator defrost timer W10822278. For broader parts lookup by model number, use Sears PartsDirect.
Last updated: February 2026
How wide is a 24.5 cu ft refrigerator?
Most 24.5 cu ft refrigerators are built for a standard 36-inch opening; the cabinet width is typically about 35 1/2 to 36 inches. For a Whirlpool side-by-side like model ED25TEXHW02, plan on a 36-inch space and confirm the exact cutout and door-swing clearance before installation.
Most brands keep this capacity in the “36-inch class,” but the exact case width varies by design.
- Typical cabinet width: 35 1/2 to 36 inches
- Common “fits in” opening: 36 inches
- Allow extra space for: door swing, handles, and airflow
- Measure at the widest point (often the hinges or handles)
- Verify your opening is square (older cabinets can be out of plumb)
Use this as a practical planning guide for a side-by-side refrigerator installation.
| What you are measuring | What to allow | Why |
|---|---|---|
| Cabinet opening width | 36 in | Matches the standard width class |
| Side clearance | 1/8 to 1/4 in each side | Prevents rubbing and vibration noise |
| Top clearance | 1/2 to 1 in | Helps ventilation and easier leveling |
| Door swing space | As needed for full open | Lets bins and shelves slide out |
If the opening is tight, the doors can bind, the door gaskets may not seal well, and airflow around the cabinet can be restricted. That can lead to temperature swings, frost buildup, and higher run time.

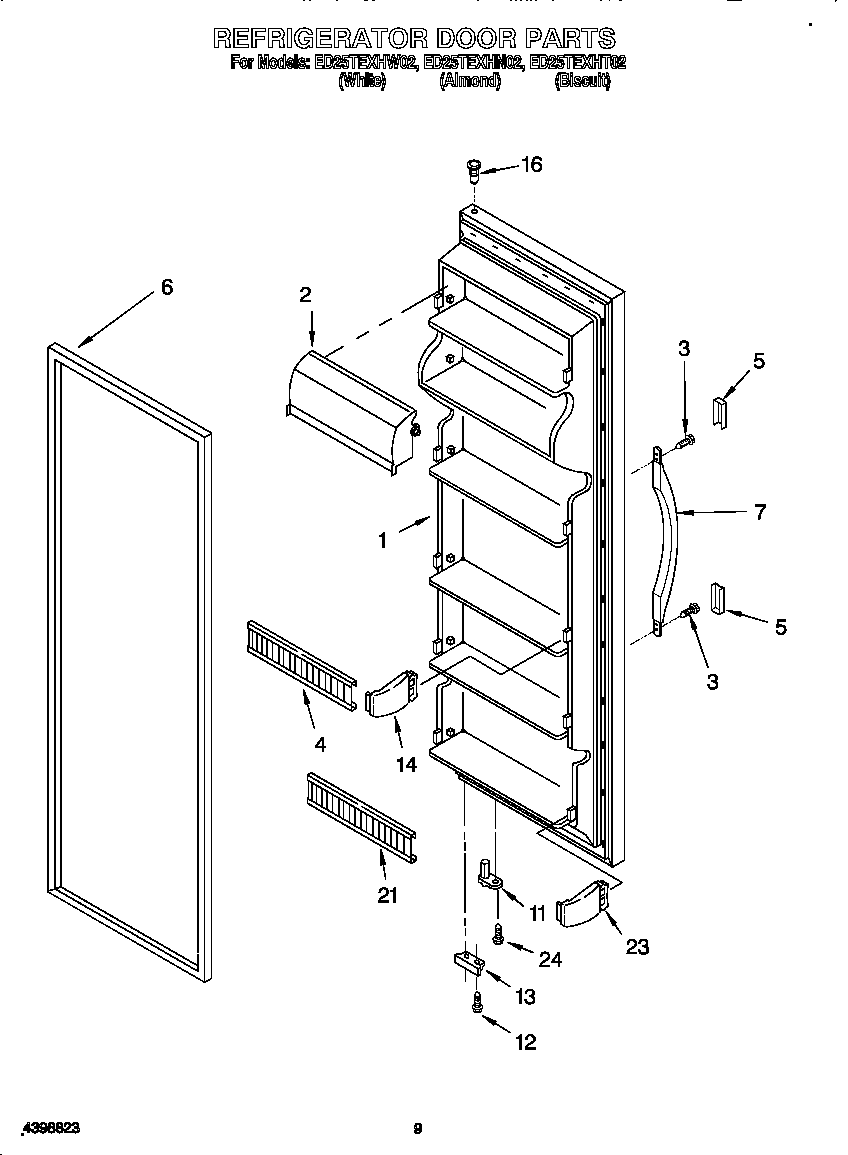

If your refrigerator fits but the doors do not close smoothly or seal well, these model-matched parts are commonly involved:
- Refrigerator door closer cam WPW10329686 (helps the door self-close and align)
- Whirlpool refrigerator door gasket, almond 2159075 (fresh food door sealing)

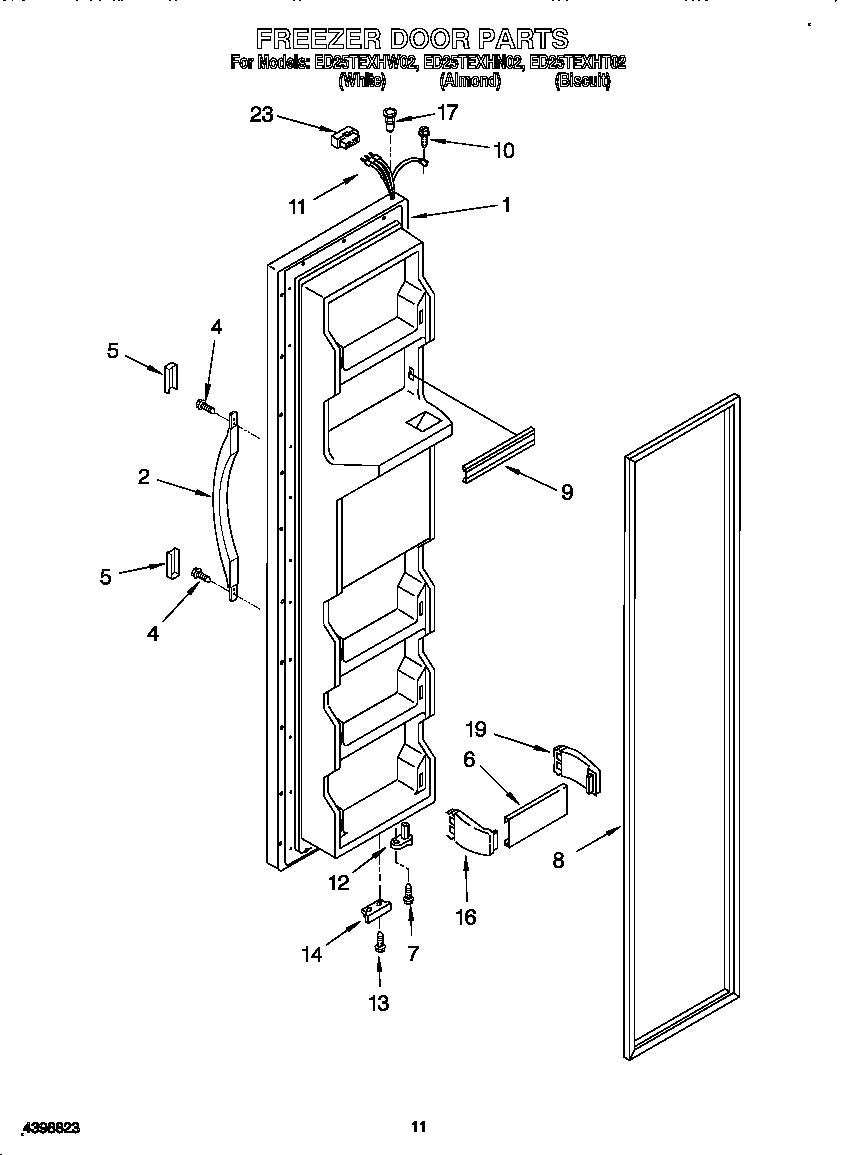

- Whirlpool refrigerator freezer door gasket (mist beige) 2159074 (freezer door sealing)
For broader DIY help and troubleshooting, we also recommend how to fix a fridge door seal. If you need to look up additional parts by model number, start with the parts list for ED25TEXHW02 or search on Sears PartsDirect.
Last updated: February 2026
What is the price of Whirlpool refrigerator double door 305 ltr?
Whirlpool double-door 305-liter refrigerator pricing varies widely by country, finish, energy rating, and features; it is not tied to the Whirlpool ED25TEXHW02 side-by-side model. For ED25TEXHW02, we list replacement parts pricing (not a full refrigerator purchase price) and you can shop by model on Sears PartsDirect.
A 305 L Whirlpool double-door refrigerator is usually priced based on capacity class, star/energy rating, and whether it has inverter cooling or a dispenser.
- Entry models: lower price, fewer features
- Mid-range: better efficiency, quieter operation
- Premium: inverter compressor, advanced cooling controls, premium finish
- Local taxes and delivery can change the out-the-door total
ED25TEXHW02 is a side-by-side refrigerator, so the most accurate “price” we can provide on this page is for replacement parts commonly needed for cooling, ice, and door sealing.
| What you’re pricing | Example on this model | What it affects |
|---|---|---|
| Ice maker parts | Ice maker assembly - refrigerator ice maker by Whirlpool 4317943 | Ice production and harvesting |
| Temperature control | Refrigerator thermostat WP2198202 | Fresh food temperature regulation |
| Door closing/sealing | Refrigerator door closer cam WPW10329686 | Door alignment and closing force |
Comparing a “305 L double door” price to ED25TEXHW02 can be misleading because capacity format (double-door top freezer vs side-by-side) changes the feature set, footprint, and typical pricing.
If you’re shopping because of cooling or ice issues, use our DIY guide common refrigerator ice maker problems and solutions to decide whether a repair (ice maker, thermostat, defrost parts) makes more sense than replacement.
Last updated: February 2026
What is the most common problem with Whirlpool refrigerators?
The most common Whirlpool refrigerator problem is a cooling issue: the fresh food section gets warm, the freezer ices up, or temperatures swing. On Whirlpool ED25TEXHW02, the usual causes are restricted airflow, a defrost system problem, or a fan or control component that is not running when it should.
- Dirty condenser coils causing poor heat release and weak cooling
- Frost buildup on the evaporator from a defrost failure

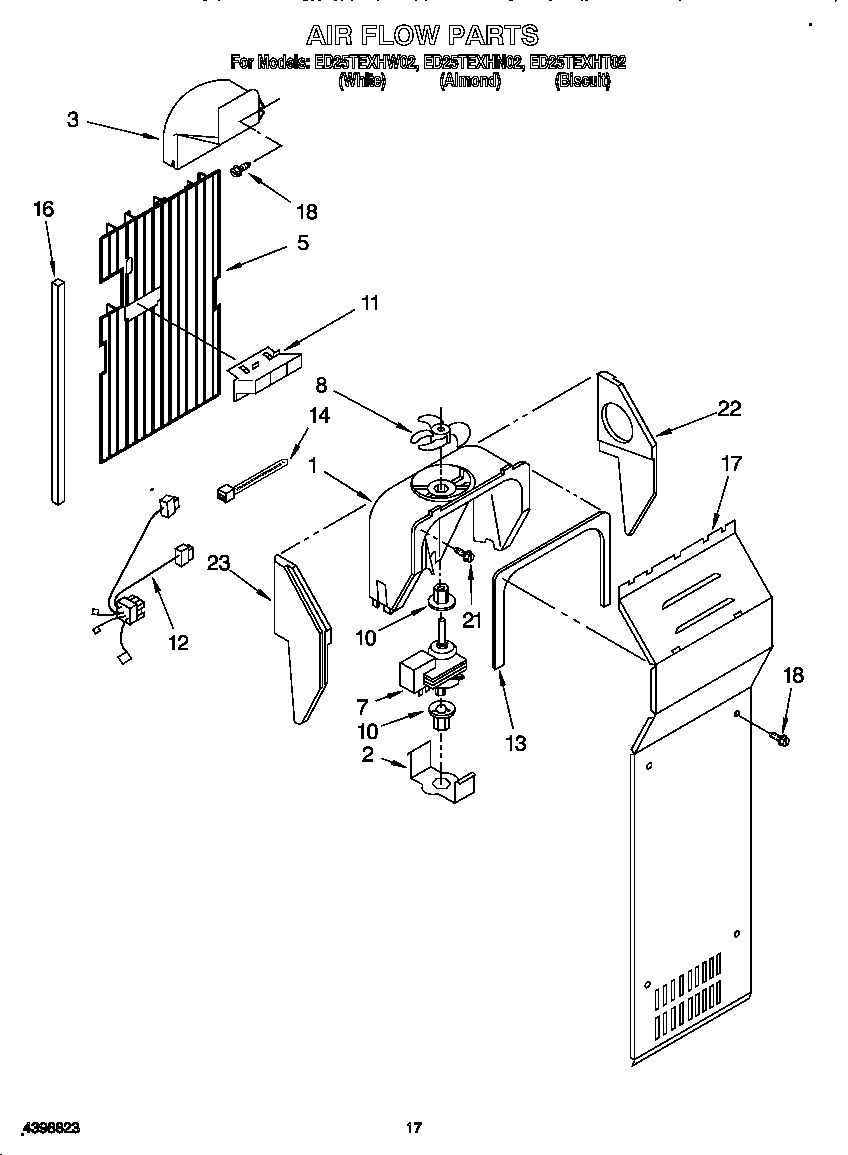

- Evaporator fan not moving air through the freezer and into the refrigerator
- Door not sealing, letting warm air in and creating excess frost
- Ice maker and dispenser complaints tied to water supply, freezing, or bin issues
- Confirm temps: set freezer near 0°F and refrigerator near 37°F; allow 24 hours to stabilize.
- Listen for fans: you should hear airflow in the freezer when the compressor is running.
- Check for frost: heavy frost on the freezer back panel points to a defrost problem.
- Inspect door closing: if the door does not self-close smoothly, warm air leaks and frost follow.
- If ice is the issue: verify the ice bin seats correctly and the ice maker is cycling.
| Symptom | Most likely cause | Parts that often relate |
|---|---|---|
| Fridge warm, freezer cold | Airflow restriction or evaporator fan issue | Refrigerator evaporator fan blade WP2169142 |
| Freezer packed with frost | Defrost heater, bi-metal, or timer issue | Refrigerator heater WP2323198, refrigerator defrost bi-metal WPW10225581, refrigerator defrost timer W10822278 |
| Door pops open or will not stay shut | Worn closer cam or alignment issue | Refrigerator door closer cam WPW10329686 |

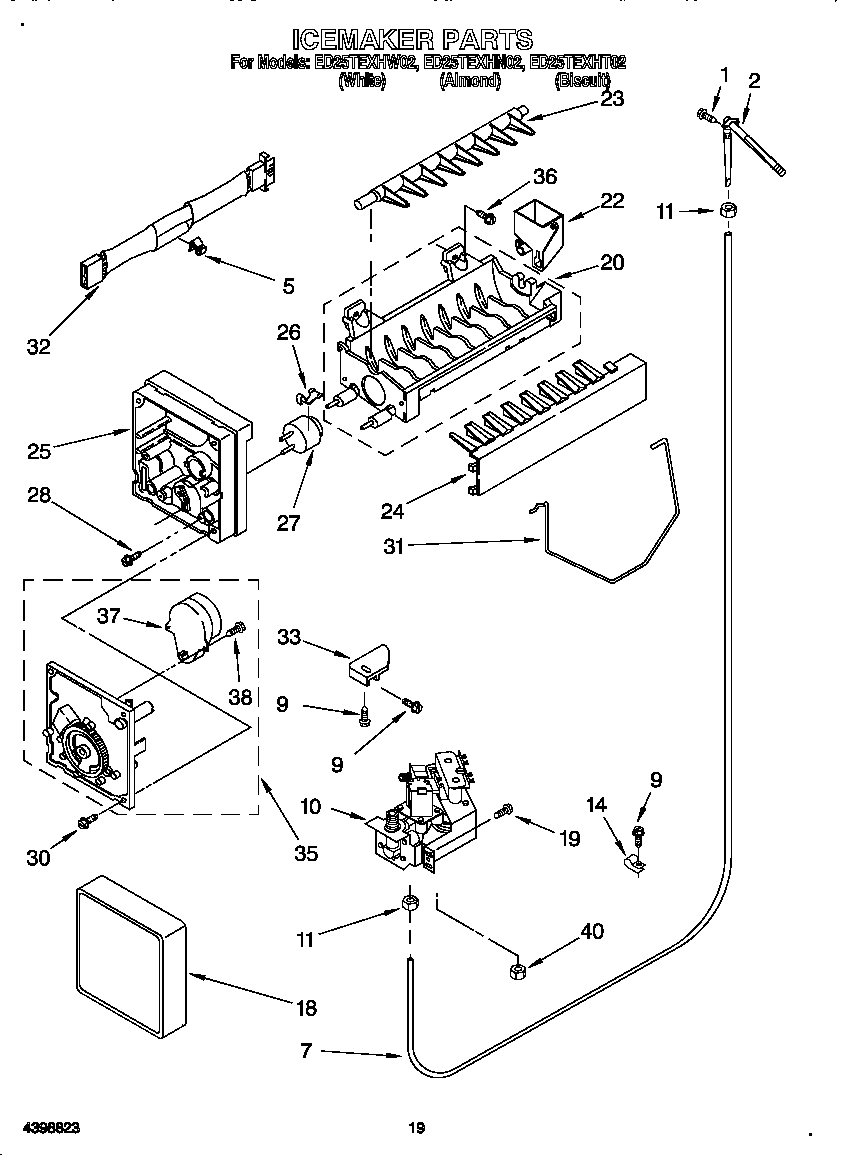

| No ice or small cubes | Ice maker problem or bin issue | Ice maker assembly - refrigerator ice maker by Whirlpool 4317943, refrigerator ice bin WPW10670845 |
Cooling and airflow problems make the compressor run longer, increase frost, and can spoil food. Catching a weak fan, defrost failure, or door-seal issue early usually prevents bigger repairs.
For model-specific parts and diagrams for Whirlpool ED25TEXHW02, order from the parts list for this model or search by model number on Sears PartsDirect.
