Frigidaire FGHF2367TF1 bottom-mount refrigerator Parts

On a Frigidaire FGHF2367TF1 bottom-mount refrigerator, the “bottom part” most people mean is the toe grille area at the lower front (the vented kickplate). Behind and below that area is the machine compartment, where the compressor and other cooling components are located; keeping that grille unblocked helps the refrigerator run properly. See the FGHF2367TF1 owner's manual.

Common names you might hear (and what they mean)

• Toe grille (kickplate): The vented panel at the lower front; it lets air flow for proper operation.

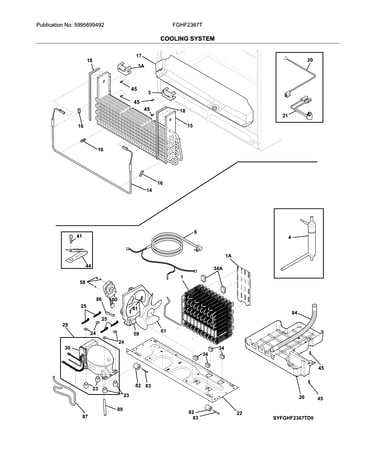

• Machine compartment: The lower rear or lower base area that houses cooling-system parts.
• Compressor area: The section where the compressor sits; it often runs most of the time except during defrost.

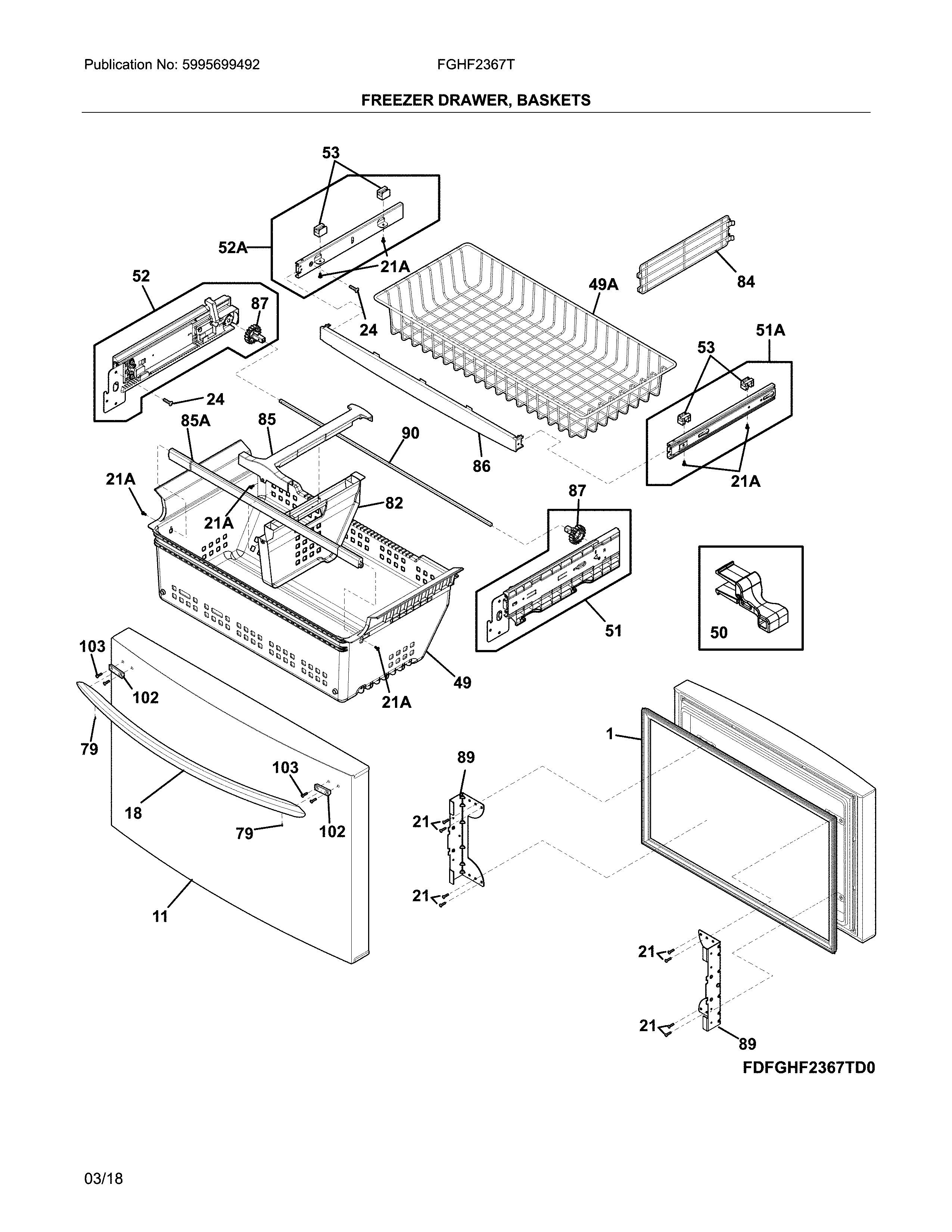

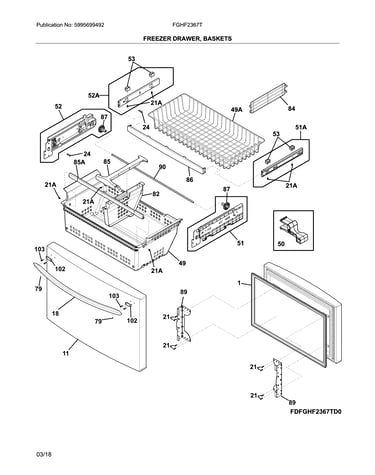

• Bottom freezer drawer: The freezer compartment itself on a bottom-mount design.

Quick guide: which “bottom part” are you asking about?

If you mean this…	Common name	What it does
Vented panel at the lower front	Toe grille	Provides airflow for efficient cooling
Noisy/humming component underneath	Compressor	Pumps refrigerant to create cooling
The pull-out lower compartment	Freezer drawer	Stores frozen food

Why it matters

Airflow at the lower front is essential. If the toe grille is blocked by rugs, pet hair, or boxes, the compressor can run longer and temperatures can become harder to maintain.

Helpful tips for this model

• Keep the toe grille clear and clean so air can circulate.
• Avoid installing the refrigerator where room temperature drops below 55°F or rises above 110°F.
• If you see an error on the digital temperature display, follow the guidance in the FGHF2367TF1 owner's manual.
• For code meanings and common fixes, use Frigidaire refrigerator error codes.

Last updated: January 2026

A bottom-mount refrigerator like the Frigidaire FGHF2367TF1 is usually better for everyday convenience because fresh-food items sit at eye level and the freezer is in a pull-out drawer. A top-mount is often simpler and can be a good value, but it typically puts the most-used items lower.

Quick comparison (what most homeowners notice)

Feature	Bottom-mount (like FGHF2367TF1)	Top-mount
Fresh-food access	Easier; less bending	More bending
Freezer access	Drawer style; good organization	Shelf style; quick grab
Organization	Strong; baskets and drawers	Basic; fewer zones
Installation needs	Needs full door and drawer swing clearance	Usually needs less clearance

When a bottom-mount is the better choice

• You use the refrigerator section more than the freezer.
• You want better organization (drawers, baskets, wide shelves).
• You want easier access to produce, drinks, and leftovers.
• You have space for doors and the freezer drawer to fully open (important for baskets).

For model-specific placement and clearance guidance, follow the FGHF2367TF1 installation guide.

When a top-mount is the better choice

• You want a simpler layout and typically a lower purchase cost.
• You do not need a lot of freezer organization.
• You have a tighter kitchen layout where a large freezer drawer swing could be inconvenient.

Installation and kitchen-fit tips (applies directly to FGHF2367TF1)

Even the “better” style can feel frustrating if it is installed too tight or out of level.

• Plan for full door and freezer basket access; the doors must fully open for best use.
• Keep required airflow clearances: 3/8 inch at sides and top, 1 inch at the rear.
• Place the refrigerator near a grounded outlet; do not use an extension cord or adapter.
• Level the cabinet so it sits solid on all corners; leveling helps doors close correctly.

For operating expectations and normal sounds after install, use the FGHF2367TF1 owner’s manual.

Why it matters

Choosing the right mount style affects daily comfort (bending and reaching), food organization, and how well the refrigerator fits your kitchen. For French door bottom-mount models, proper clearance and leveling also help prevent door-closing issues and drawer drag.

Last updated: January 2026

The most common Frigidaire refrigerator complaint is not cooling properly, and on the FGHF2367TF1 that often ties back to airflow issues (evaporator fan), frost buildup from a defrost problem, or temperature sensing and control problems. We recommend starting with the quick checks in the FGHF2367TF1 owner’s manual.

Most common issues we see (and what to check first)

• Not cooling or weak cooling: listen for the evaporator fan, confirm vents are not blocked by food, and check for heavy frost on the back freezer panel.
• Frost buildup in the freezer: points to a defrost system issue (defrost thermostat, heater circuit, airflow restriction).

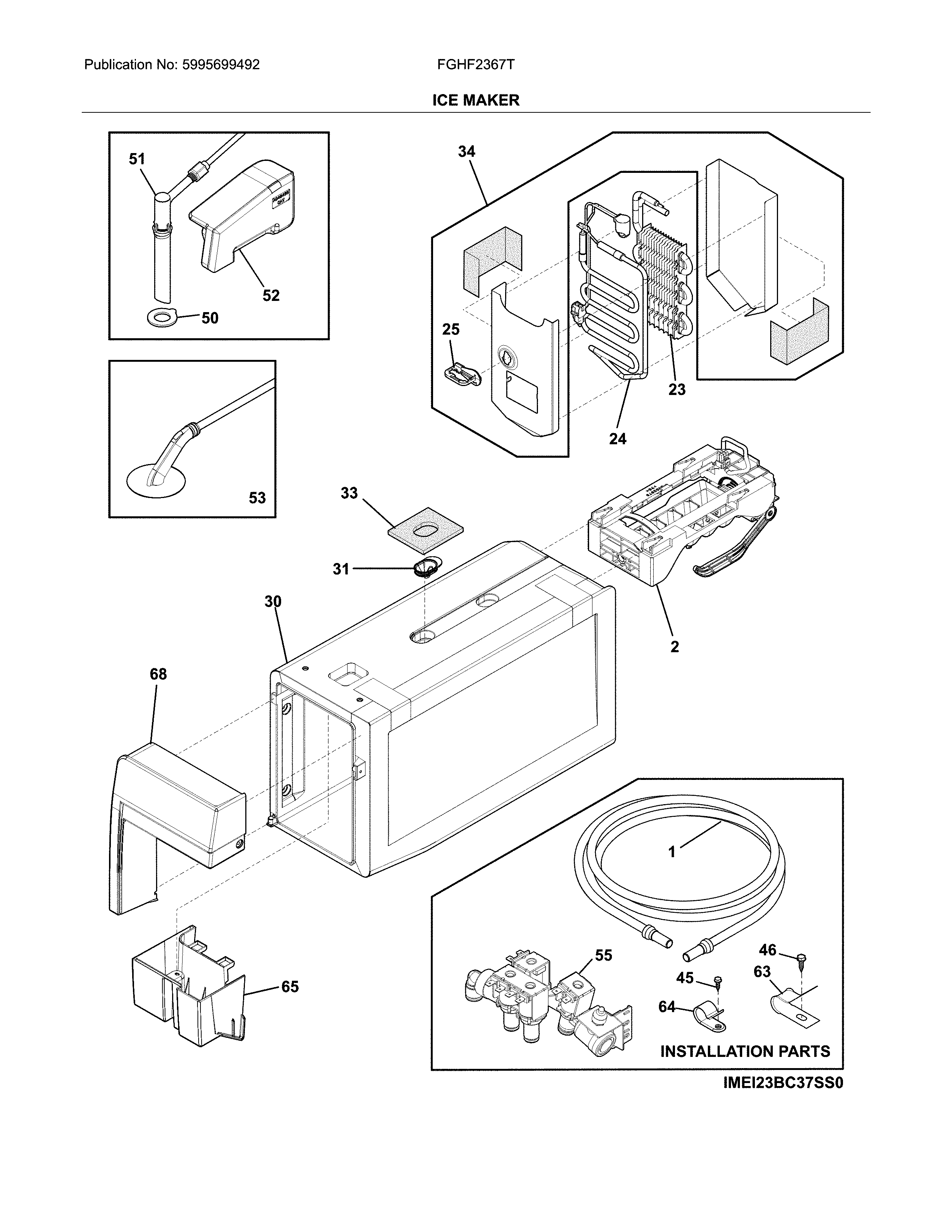

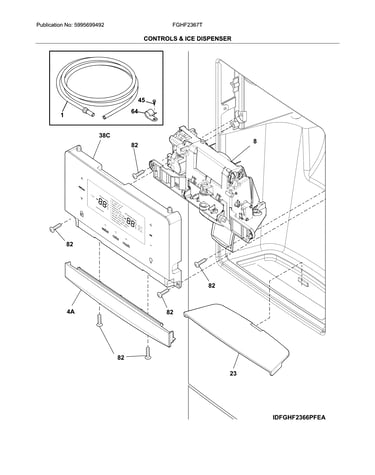

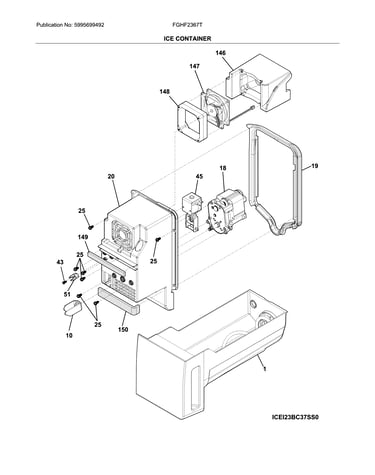

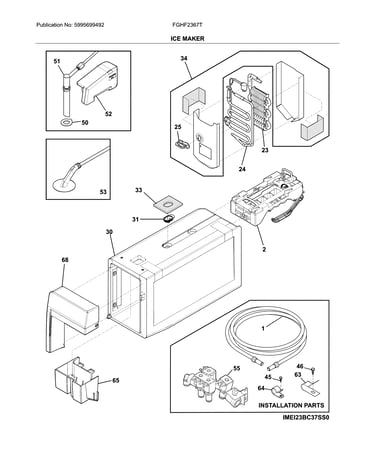

• Ice maker or dispenser problems: verify the water valve is open, the supply line is not kinked, and the filter is seated correctly.
• Runs constantly: often caused by warm air leaks (door not sealing), dirty condenser area, or frequent door openings.
• Odd taste or odor in water: flush the dispenser and replace the water filter on schedule.

Quick troubleshooting steps for FGHF2367TF1

1. Confirm temperatures: set fresh food near 37°F and freezer near 0°F (typical targets).
2. Check door closing and sealing: the cabinet should be level and doors should align so they seal consistently.
3. Inspect airflow: make sure return vents are not packed with food; poor circulation can mimic a cooling failure.
4. Check common parts tied to symptoms (examples below).

Symptom	Most likely system	Common part to inspect on this model
Warm fridge, freezer OK	Airflow from freezer	Frigidaire refrigerator evaporator fan motor 809069206
Temps swing, food freezing or warm spots	Temperature sensing	Refrigerator temperature sensor 5303918775 or refrigerator temperature sensor 240597220
No ice, slow ice, dispenser issues	Water supply and filtration	Refrigerator water filter ULTRAWF and water inlet valve

Why it matters

Cooling, ice production, and run-time problems usually share the same root causes: airflow, sealing, and water supply. Catching a weak fan, a misaligned door, or a clogged filter early helps prevent food spoilage and reduces compressor run time.

Helpful DIY references

• Use Frigidaire refrigerator error codes if the display shows an error.
• Follow how to replace the water filter in a Frigidaire refrigerator for correct filter seating and flushing.

Last updated: January 2026
