Frigidaire FFGS3025LSE gas range Parts

Yes. For your Frigidaire gas range model FFGS3025LSE, using the full model number is the fastest way to pull up the correct parts list and diagrams so you can match the exact replacement part to your range’s configuration.

Where to find the model number on the range

Your model and serial information is printed on the serial plate. On many Frigidaire ranges, it’s located on the oven front frame behind the oven door or on the drawer side frame.

• Open the oven door and check the front frame around the opening
• If you have a storage drawer, pull it out and check the side frame
• Write down the model number, serial number, and any lot number/letter
• Use the full model number when ordering parts to avoid mismatches

For a visual reference and additional details, use the FFGS3025LSE owner’s manual.

How we recommend looking up parts by model number

Once you have FFGS3025LSE, you can narrow parts down by the system you’re repairing (ignition, oven heat, surface burners, controls).

• Start with the symptom (no bake, no broil, won’t ignite, weak flame)
• Identify the section (oven burner, surface burner, control panel, lighting)
• Match the part by description and your range’s diagram callouts
• Confirm compatibility before ordering (especially for burner caps and igniters)

Common examples for this model

Symptom	Part type to check	Example part on this model page
Oven won’t ignite or takes too long to light	Oven burner igniter	Frigidaire range oven burner igniter 5303935066
Oven light out	Light bulb or socket	Appliance light bulb, 40-watt 316538904
Oven temperature seems off	Temperature sensor	Range oven temperature sensor 5304504897

Why it matters

Frigidaire ranges can have multiple versions that look similar. Using the exact model number (and the serial plate details) helps ensure you get the right gas range parts the first time, which saves time and prevents repeat repairs.

Last updated: February 2026

On your Frigidaire FFGS3025LSE gas range, the model number is printed on the serial plate (rating tag). You’ll typically find it on the oven front frame behind the oven door, or on the drawer side frame; write it down exactly as shown before ordering parts.

Where to look on the range

Check these common serial plate locations:

• Open the oven door and look along the front frame (around the door opening)
• Pull out the storage/warming drawer and check the drawer side frame
• Look for a label that lists Model, Serial, and sometimes lot information
• Snap a clear photo so you have it for future parts lookups
• Record the model and serial number exactly (letters, numbers, and dashes)

What the serial plate tells you (and why it matters)

Besides the model number, the serial plate often includes burner ratings, fuel type, and the gas pressure setting the range was adjusted for at the factory. That information helps match the correct Frigidaire parts and prevents ordering the wrong component.

You need this	Why you need it
Model number (FFGS3025LSE)	Ensures diagrams and parts lists match your exact range
Serial number	Helps identify production variations
Lot number/letter (if shown)	Useful when parts change mid-production

Tips for ordering the right parts

• Use the model number from the serial plate, not the number on a sales receipt
• If a part looks similar, still match by model first (ranges often have mid-series changes)
• Keep the photo handy when searching for items like an igniter, temperature sensor, or burner parts

For the exact label location details and how to record it, use the FFGS3025LSE owner’s manual.

Last updated: February 2026

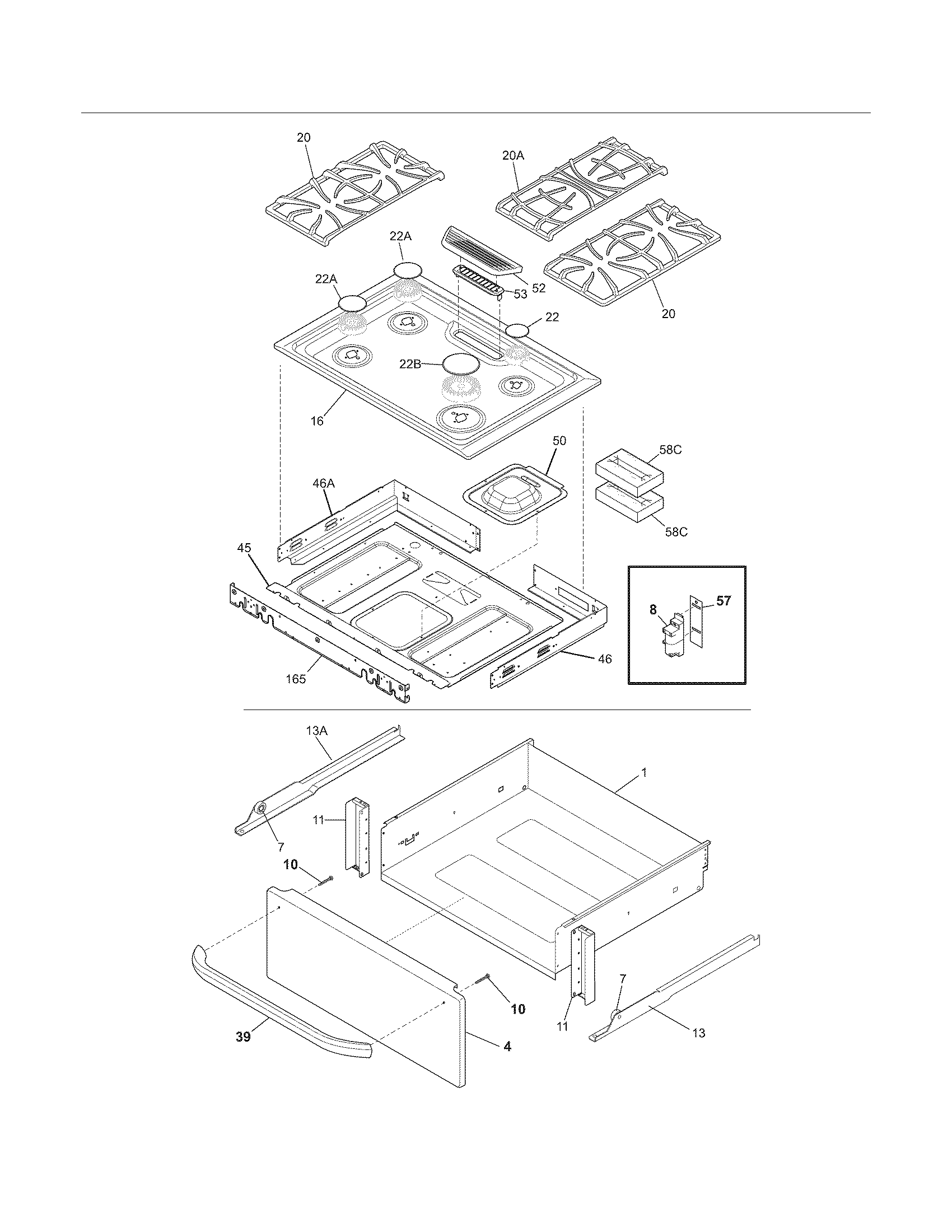

To remove the cooktop (main top) on a Frigidaire gas range like model FFGS3025LSE, we start by shutting off power and the manual gas shut-off valve, then remove the grates, burner caps, and burner bases so the top can be lifted or released from its mounting points.

Safety first (before you touch the cooktop)

• Turn off the manual gas shut-off valve.
• Unplug the range or switch off the circuit breaker.
• Let all surfaces cool completely.
• Pull the range forward only as needed; avoid kinking the flexible gas line.
• Keep a flashlight handy so you can see burner screws and clips clearly.

Basic cooktop removal steps (sealed burner style)

1. Remove all surface burner grates.
2. Lift off the burner caps.
3. Remove the burner bases (some models use screws at the bases).
4. Look for fasteners at the front lip or under the burner areas; remove them.
5. Lift the cooktop from the front and support it (or remove it fully if wiring and gas components allow clearance).

If you need the exact fastener locations and the correct lift points for your configuration, follow the FFGS3025LSE installation guide.

What you may need

Item	Why it helps
Phillips screwdriver	Common for burner base and top fasteners
Nut driver (1/4 in.)	Common for sheet-metal screws
Small container	Keeps screws from getting lost
Work gloves	Protects hands from sharp metal edges

Why it matters

Removing the top the right way prevents cracked burner caps, stripped screws, and pinched igniter wiring. It also helps avoid stressing the flexible gas conduit when you slide the range out for service.
