Kenmore
Chest Freezer

Model #25314932101 Official Kenmore freezer

Here are the diagrams and repair parts for Kenmore 25314932101 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 52 parts

Freezer Door Key (replaces 216702900, 7297147700)#5

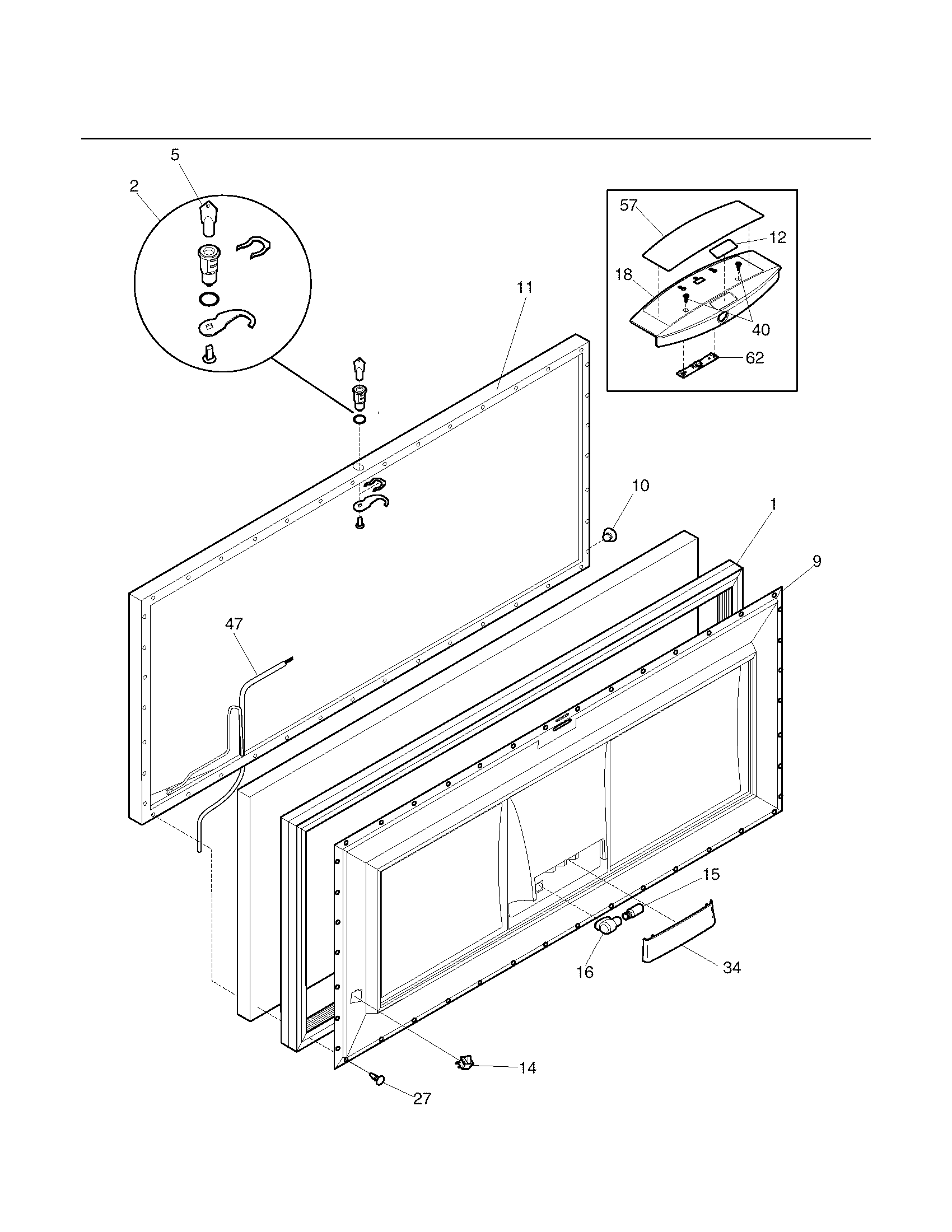

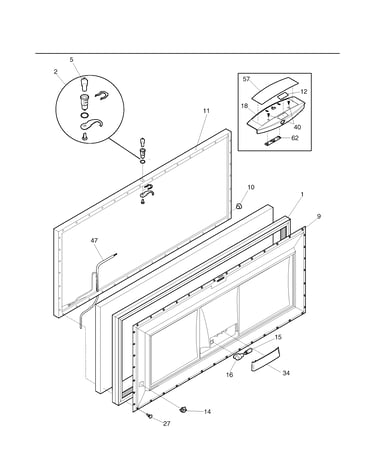

Door Diagram

Freezer door key

Part #216702900
Replaced by #297147700
?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.55 |
13% OFF
Phone Price: $7.55
Freezer Basket (replaces 216848202, 216848205)#59

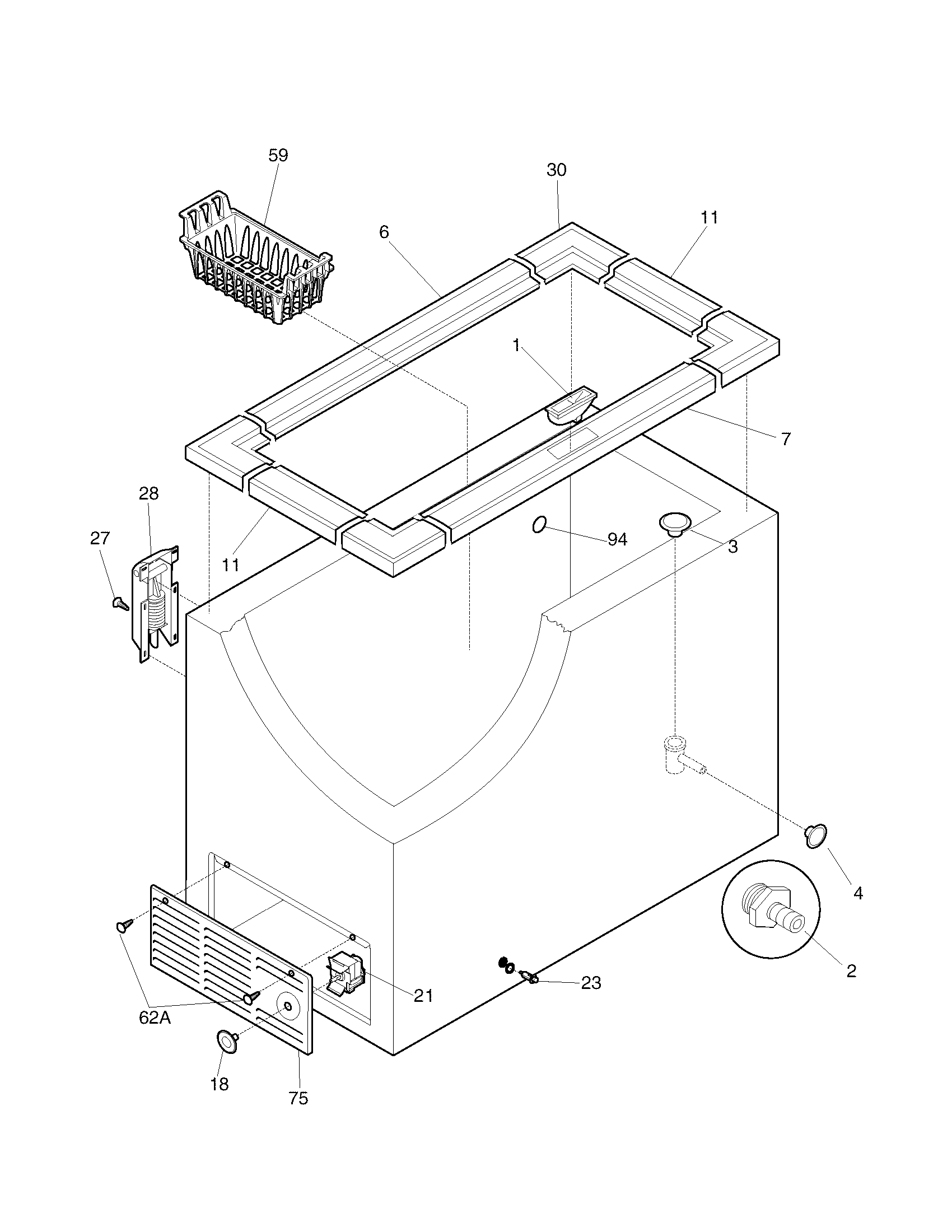

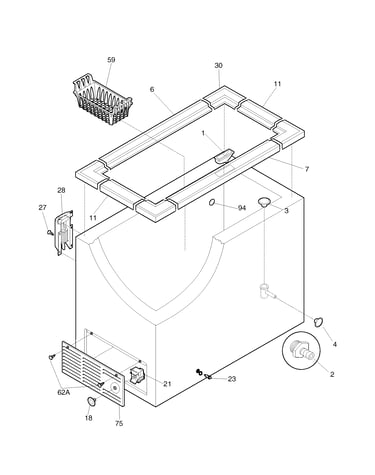

Cabinet Diagram

In Stock
$31.00 |
14% OFF
Phone Price: $36.00
Freezer Door Switch (replaces 216998000, 7216822900)#14

Door Diagram

In Stock
$59.56 |
8% OFF
Phone Price: $64.56
Freezer Light Bulb (replaces 216222700, 240588001)#15

Door Diagram

In Stock
$34.03 |
13% OFF
Phone Price: $39.03
Laundry Appliance Screw, #8-18 x 31/100-in#62A

Cabinet Diagram

Grille screw

Part #131168200
Replaced by #131168200
?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
In Stock
$9.78 |
30% OFF
MSRP: $14.00
Refrigerator Filter Dryer#4

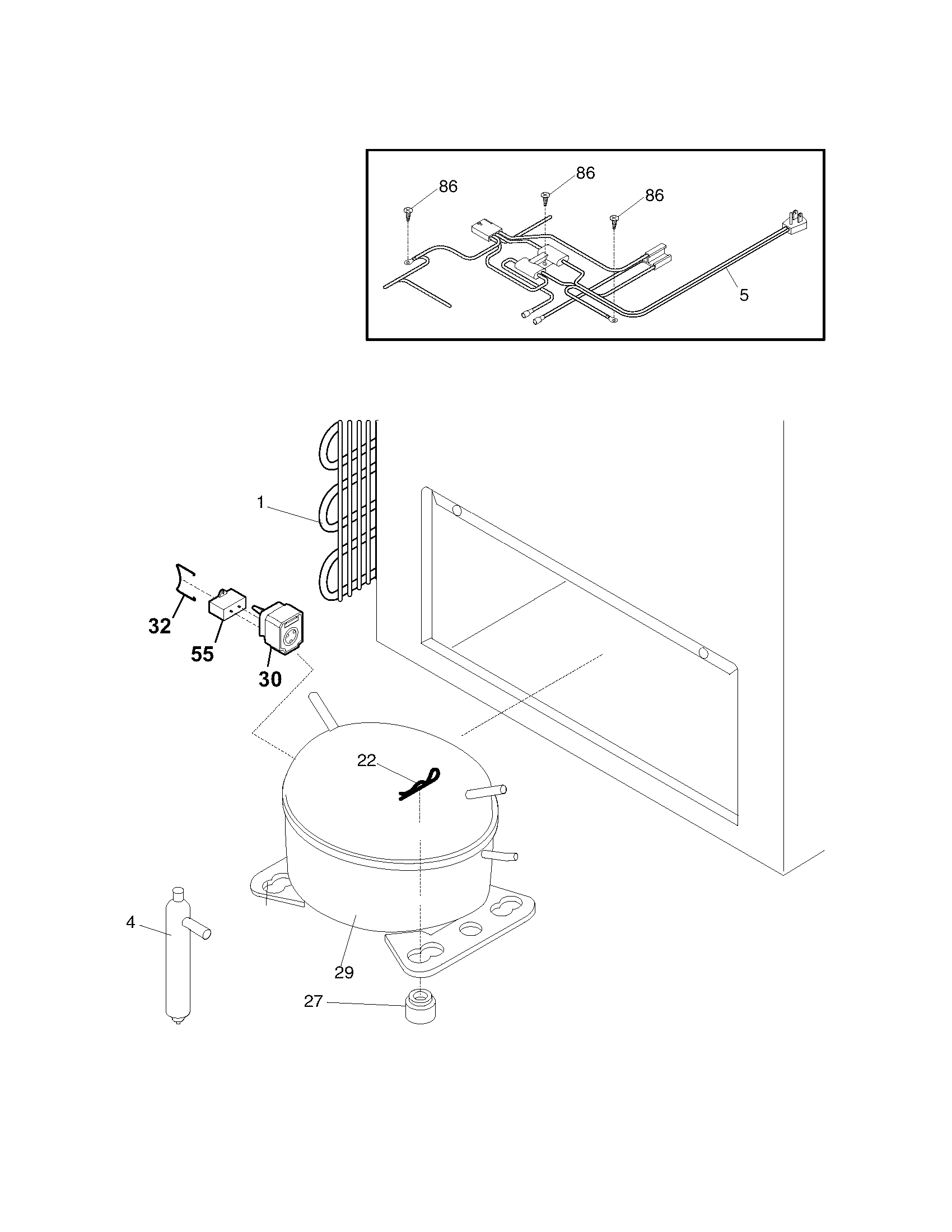

System Diagram

Filter drier

Part #216938600
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
In Stock
$11.44 |
30% OFF
MSRP: $16.34
Freezer Door Hinge (replaces 216478800, 3201160)#28

Cabinet Diagram

Hinge assembly

Part #216478800
Replaced by #297313200
?
Manufacturer substitution
This part replaces 216478800. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.99 |
9% OFF
Phone Price: $56.99
Freezer Inner Door Panel Rivet#27

Door Diagram

In Stock
$19.49 |
9% OFF
Phone Price: $21.49
Freezer Light Socket (replaces 216688600, 216817600, 7297139501)#16

Door Diagram

Light socket

Part #216817600
Replaced by #297139501
?
Manufacturer substitution
This part replaces 216817600. Substitute parts can look different from the original.
This item is not returnable
In Stock
$19.99 |
9% OFF
Phone Price: $21.99
