KitchenAid KUIS15NNZB0 ice cube maker Parts
Here are the diagrams and repair parts for KitchenAid KUIS15NNZB0 ice cube maker, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM

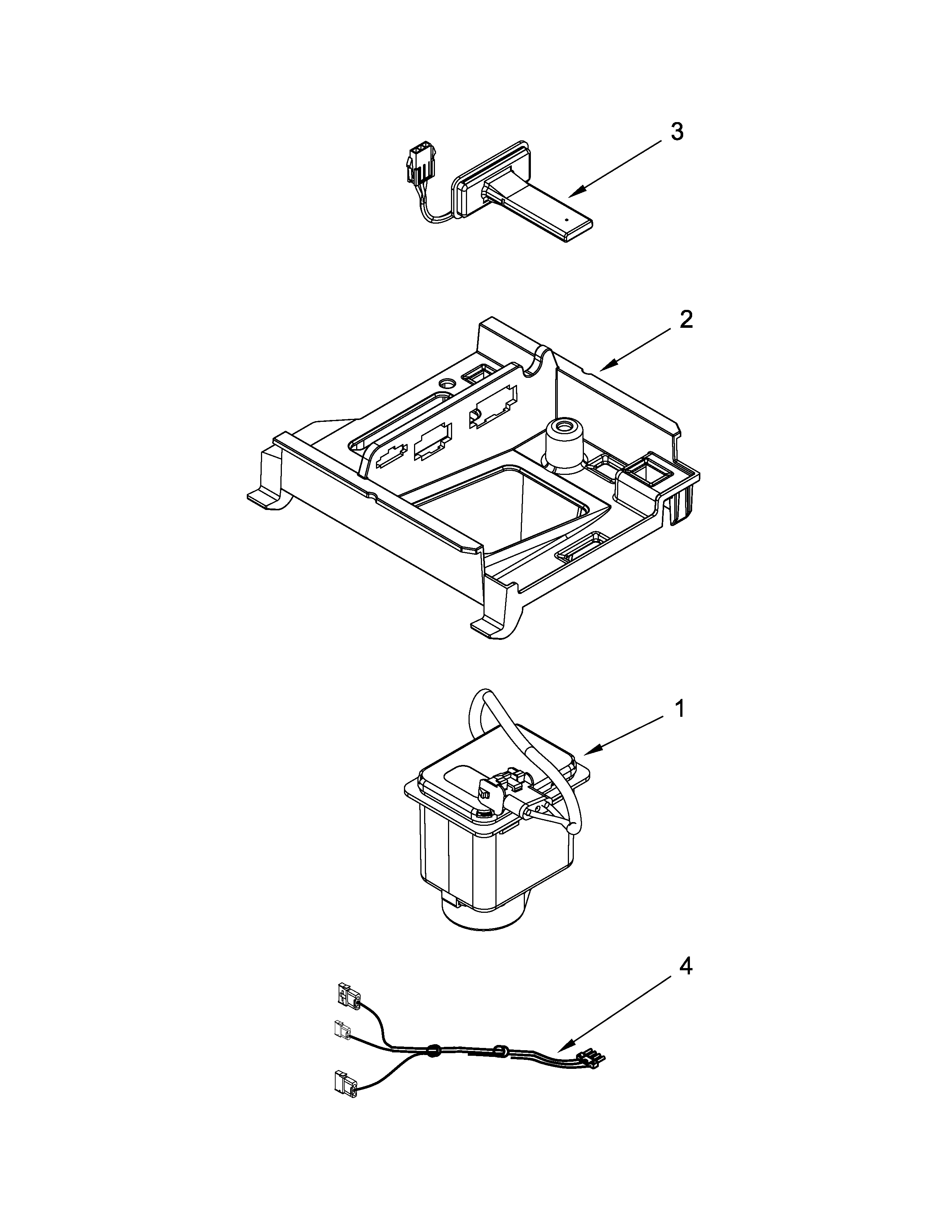

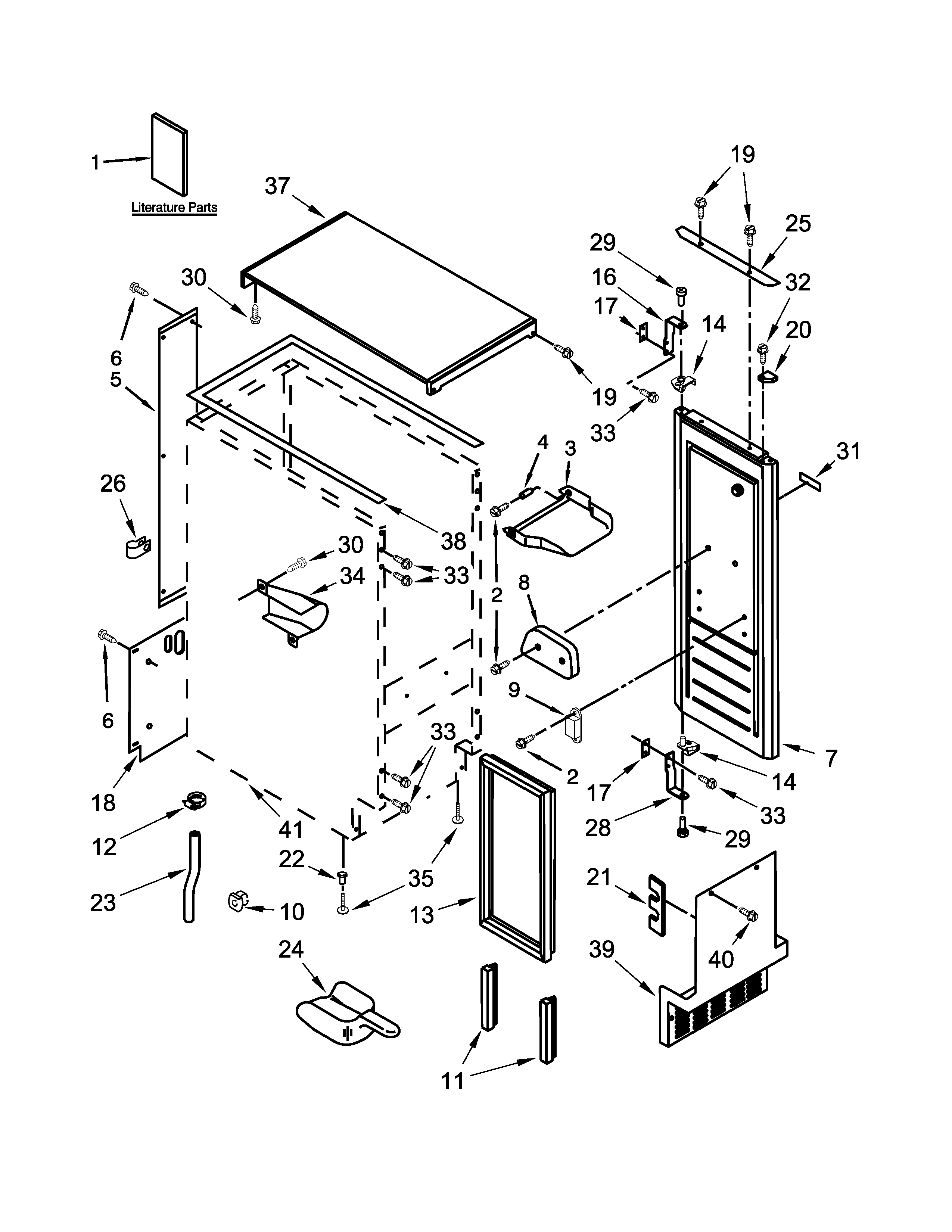

Browse Parts for KUIS15NNZB0 Ice Cube Maker

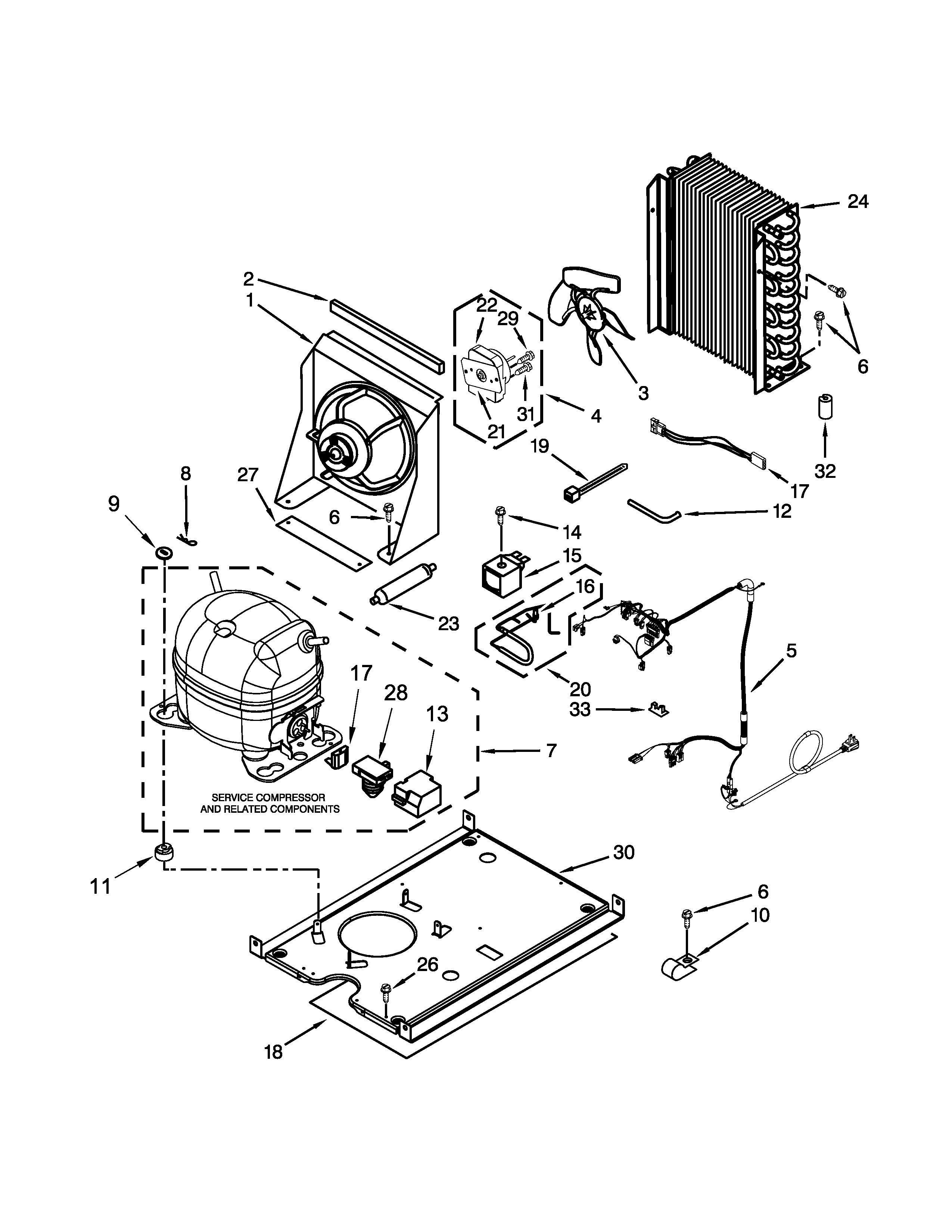

Unit parts diagram
Drier Tube
Part #W10200037Replaced by #W10843121
Manufacturer substitutionThis part replaces W10200037. Substitute parts can look different from the original.In Stock$34.5715% OFF Phone Price : $40.57
Qty

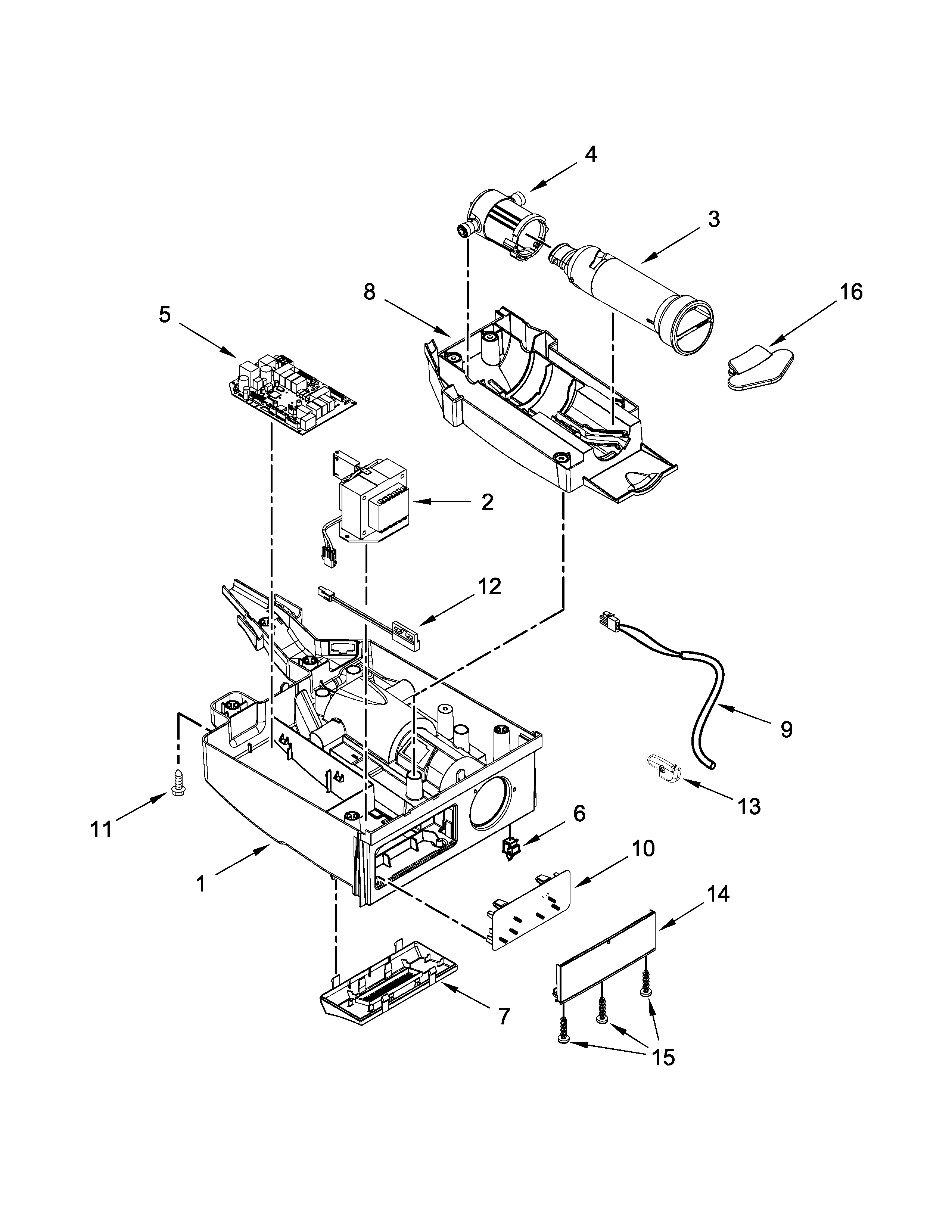

Control panel parts diagram
Cartridge Hood
Part #W10480323Get free shipping with Automatic ReorderReplaced by #F2WC9I1
Manufacturer substitutionThis part replaces W10480323. Substitute parts can look different from the original.In Stock$65.468% OFF Phone Price : $71.46QtyUnit parts diagram
Condenser Motor
Part #2315558Replaced by #W10124096
Manufacturer substitutionThis part replaces 2315558. Substitute parts can look different from the original.In Stock$83.727% OFF Phone Price : $89.72QtyUnit parts diagram
Condenser Motor
Part #W10509333Replaced by #W10124096
Manufacturer substitutionThis part replaces W10509333. Substitute parts can look different from the original.In Stock$83.727% OFF Phone Price : $89.72QtyEvaporator, grid, and water parts diagram

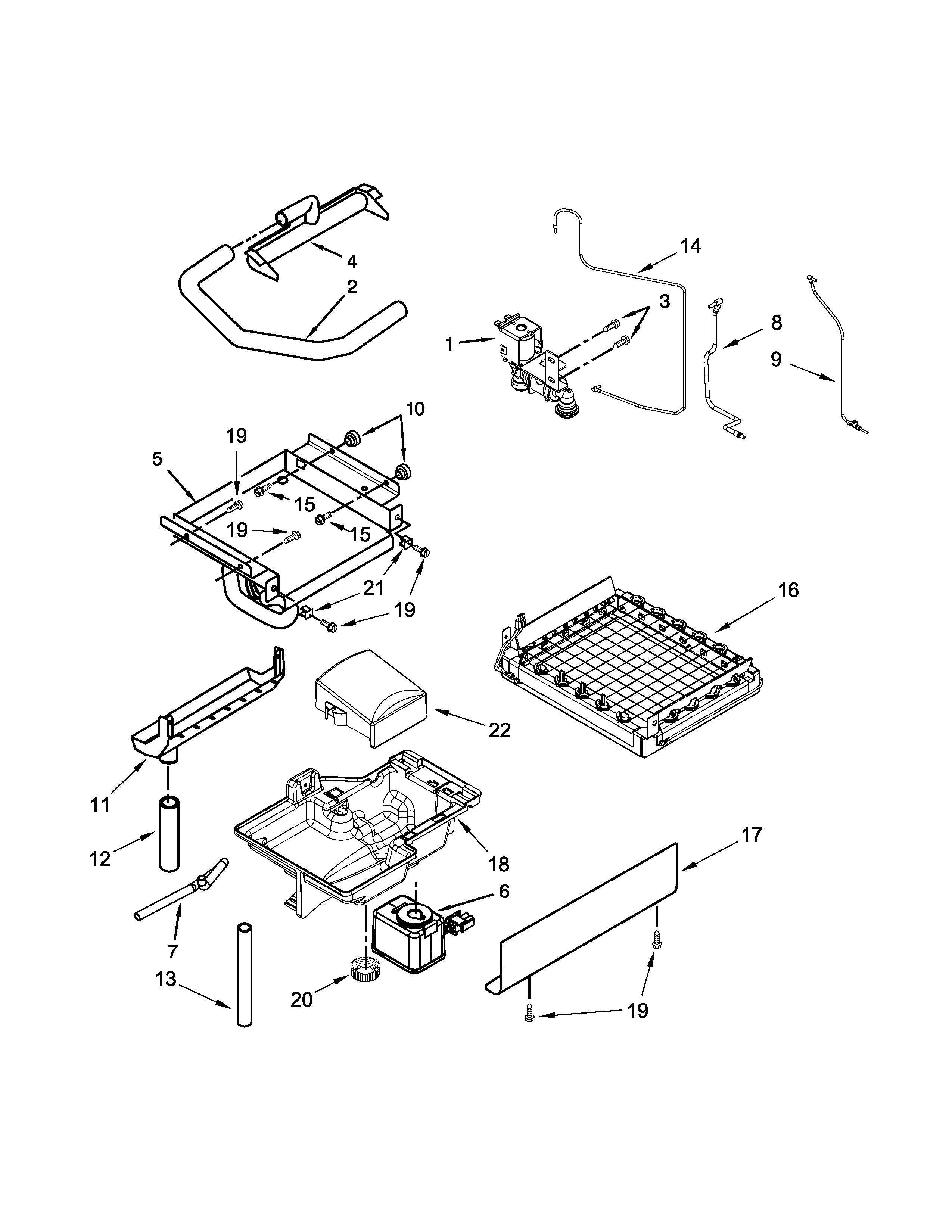

Cutter Grid
Part #W10485968Replaced by #W10919199
Manufacturer substitutionThis part replaces W10485968. Substitute parts can look different from the original.In Stock$156.617% OFF Phone Price : $168.61QtyOptional parts (not included) diagram
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock$8.4611% OFF Phone Price : $9.46QtyControl panel parts diagram
Refrigerator Light Switch
Part #12466104Replaced by #W11291138
Manufacturer substitutionThis part replaces 12466104. Substitute parts can look different from the original.In Stock$29.5917% OFF Phone Price : $35.59QtyOptional parts (not included) diagram
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08QtyOptional parts (not included) diagram
Appliance Touch-up Paint, 0.6-oz (biscuit)
Part #4392899This item is not returnableIn Stock$15.1112% OFF Phone Price : $17.11QtyControl panel parts diagram
Housing Assembly
Part #W10555394Get free shipping with Automatic ReorderReplaced by #W11266112
Manufacturer substitutionThis part replaces W10555394. Substitute parts can look different from the original.In Stock$103.6310% OFF Phone Price : $115.63Qty
