Model # CCD-TRV328 Official Sony video camera recorder

Here are the diagrams and repair parts for Official Sony CCD-TRV328 video camera recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Key Block 147841611
#201

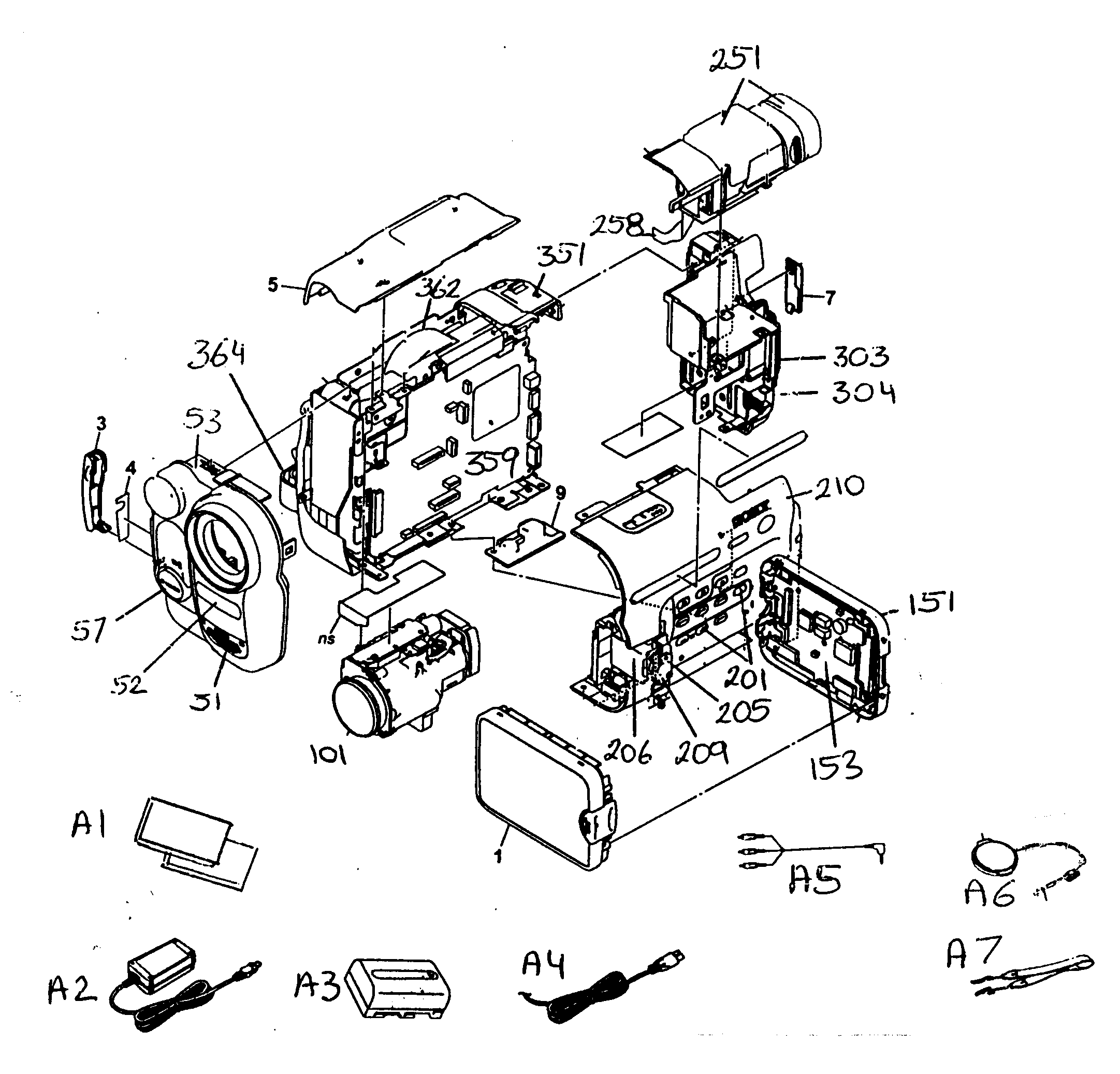

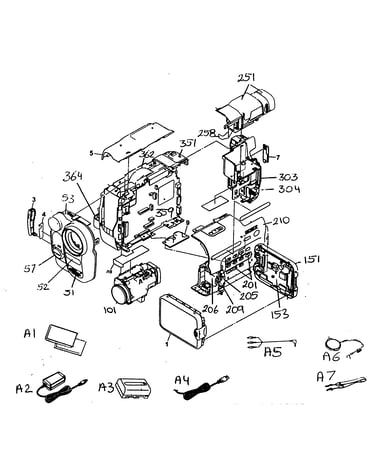

Cabinet parts diagram

Key block

Part #147841611

The manufacturer no longer makes this part, and there's no substitute part

Damper Assembly X39513021
#NI

Cabinet parts diagram

Damper assembly

Part #X39513021

Replaced by #X39513021

?
Manufacturer substitution
This part replaces X39513021. Substitute parts can look different from the original.
$35.26
In Stock
Flex Board 186092811
#NI

Cabinet parts diagram

Flex board

Part #186092811

The manufacturer no longer makes this part, and there's no substitute part

Cass Holder X39512981
#NI

Cabinet parts diagram

Cass holder

Part #X39512981

The manufacturer no longer makes this part, and there's no substitute part

Transistor 872990725
#NI

Cabinet parts diagram

Transistor

Part #872990725

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 179054212
#A4

Cabinet parts diagram

Ac cord

Part #179054212

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Block A7013219A
#NI

Cabinet parts diagram

Camcorder block

Part #A7013219A

The manufacturer no longer makes this part, and there's no substitute part

Term Board 169477211
#NI

Cabinet parts diagram

Term board

Part #169477211

The manufacturer no longer makes this part, and there's no substitute part

Transformer 143578631
#NI

Cabinet parts diagram

Transformer

Part #143578631

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly A7096420A
#NI

Cabinet parts diagram

Motor assembly

Part #A7096420A

The manufacturer no longer makes this part, and there's no substitute part
