Frigidaire
Electric Wall Oven

Model # PLEB27S9FCC Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire PLEB27S9FCC electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

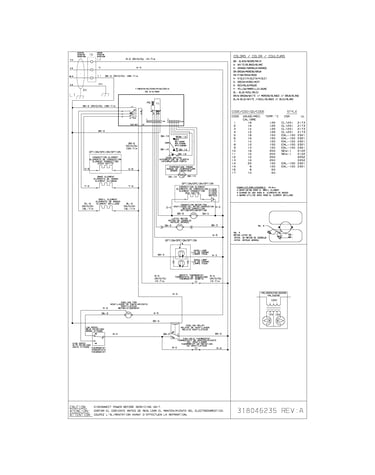

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

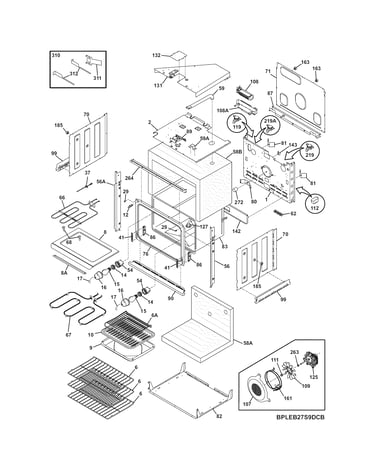

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$45.69 |
10% OFF Phone Price : $50.69
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Range Bake Element (replaces 318254908) 318254902
#67

Body diagram

Range bake element (replaces 318254908)

Part #318254902

BEST SELLER
$160.73 |
6% OFF Phone Price : $170.73
In Stock
Wall Oven Thermal Fuse 318004900
#119

Body diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$41.30 |
11% OFF Phone Price : $46.30
In Stock
Wall Oven Door Inner Glass (replaces 7318212200) 318212200
#8

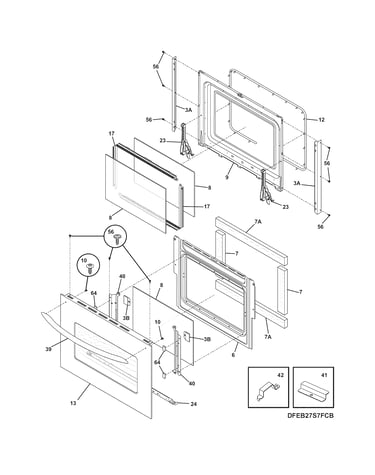

Door diagram

Wall oven door inner glass (replaces 7318212200)

Part #318212200

BEST SELLER
$74.50 |
6% OFF Phone Price : $79.50
In Stock
Range Convection Fan Blade 316136400
#109

Body diagram

Range convection fan blade

Part #316136400

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Removal Tool, Left (replaces 318246701, 7318246703) 318246703
#312

Body diagram

Wall oven removal tool, left (replaces 318246701, 7318246703)

Part #318246703

BEST SELLER
This item is not returnable
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Range Broil Element 318255601
#66

Body diagram

Range broil element

Part #318255601

Replaced by #318255606

?
Manufacturer substitution
This part replaces 318255601. Substitute parts can look different from the original.
$158.01 |
6% OFF Phone Price : $168.01
In Stock
Range Roasting Rack (replaces 318219500, 7318219500, 7318365800) 318365800
#6A

Body diagram

Range roasting rack (replaces 318219500, 7318219500, 7318365800)

Part #318365800

$42.69 |
10% OFF Phone Price : $47.69
In Stock
Oven Handle 318219805
#39

Door diagram

Oven handle

Part #318219805

Replaced by #316246105

?
Manufacturer substitution
This part replaces 318219805. Substitute parts can look different from the original.
$86.87 |
5% OFF Phone Price : $91.87
In Stock
