Top-Mount Refrigerator

Model # GTS22ISSARSS Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTS22ISSARSS refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

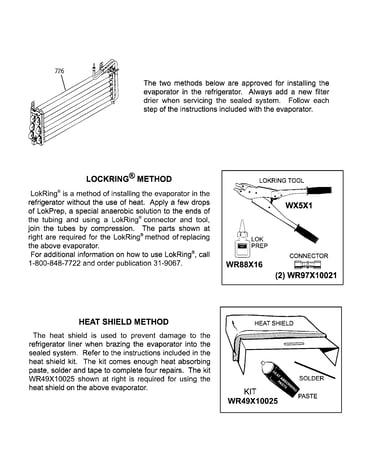

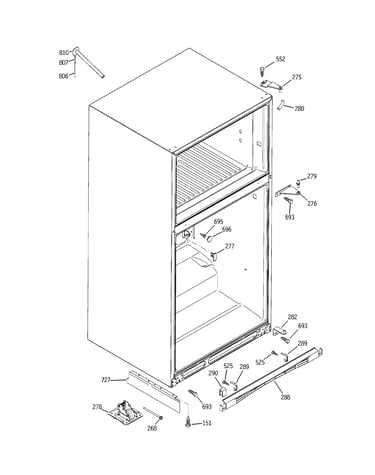

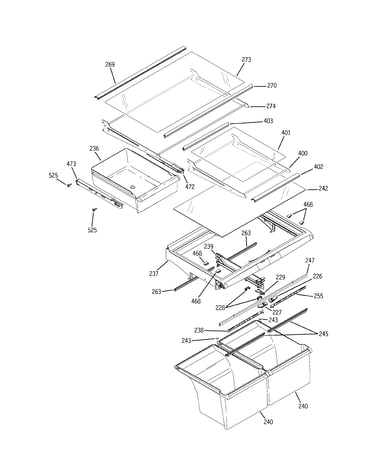

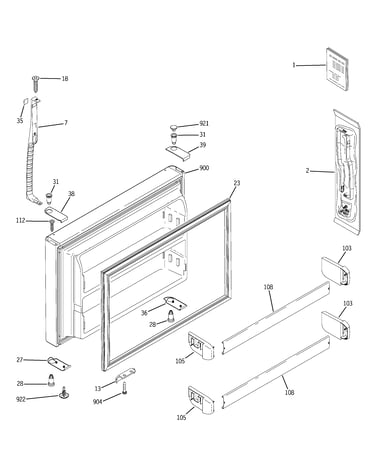

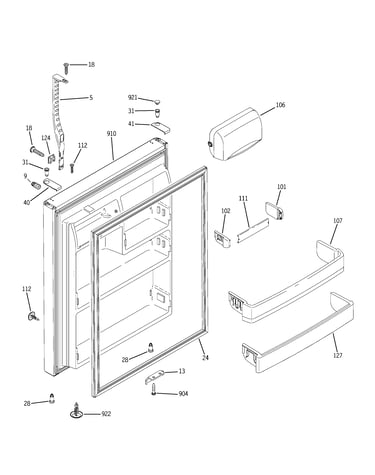

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |

Refrigerator Temperature Sensor WR55X10089
#605

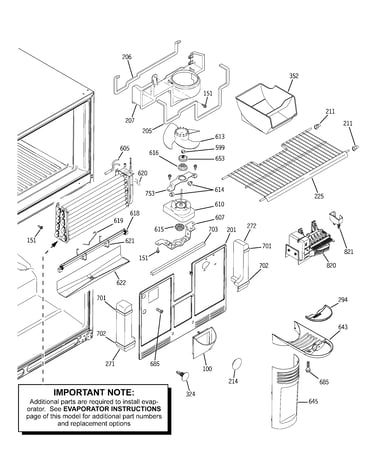

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10089

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10089. Substitute parts can look different from the original.
BEST SELLER
$21.10
19% OFF Phone Price : $26.10
In Stock
Refrigerator Ice Maker WR30X10043
#820

Freezer section diagram

Refrigerator ice maker

Part #WR30X10043

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10043. Substitute parts can look different from the original.
BEST SELLER
$206.31
5% OFF Phone Price : $216.31
In Stock
Refrigerator Light Bulb 60A
#435

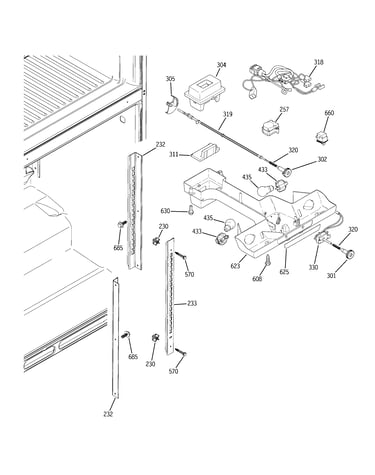

Fresh food section diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Dryer Filter WR86X0096
#740

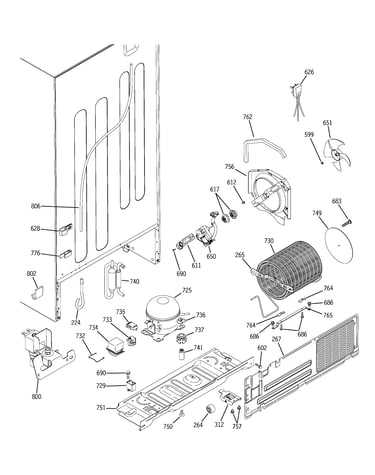

Unit parts diagram
