Frigidaire
Gas Range

Model # FGGS3065PBU Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGGS3065PBU gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

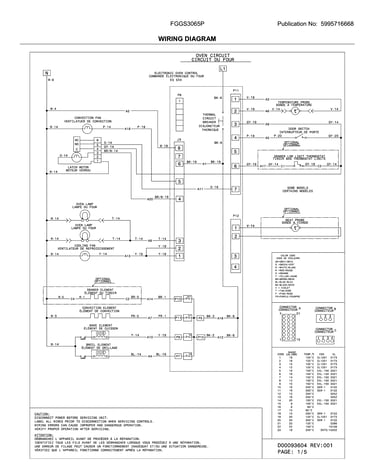

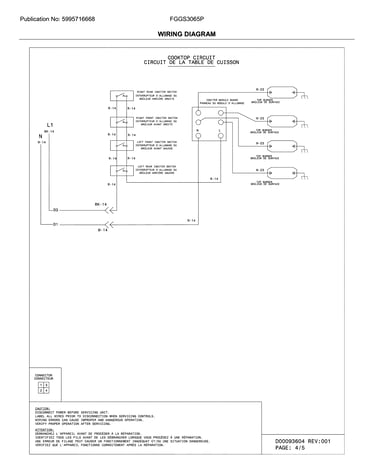

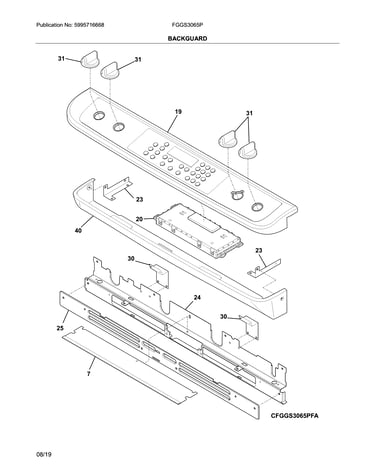

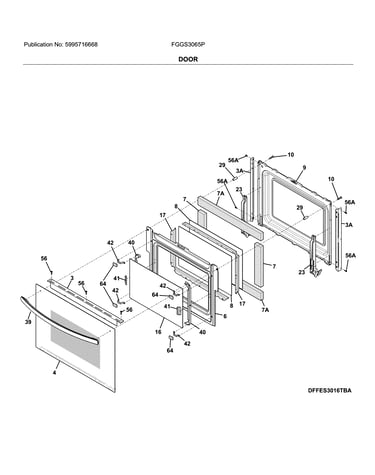

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |

Range Screw 5304472956
#4

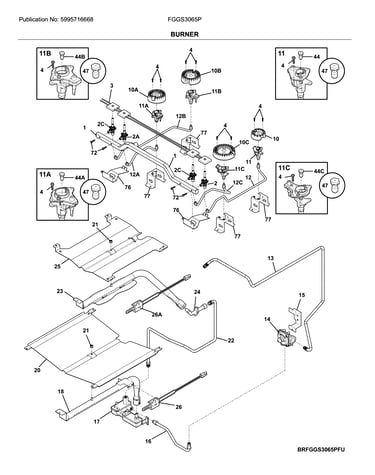

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87
22% OFF MSRP : $14.00
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

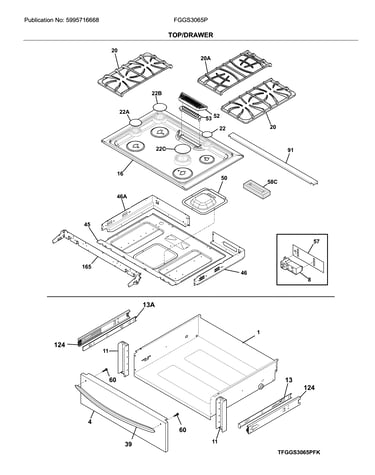

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$27.07
16% OFF Phone Price : $32.07
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

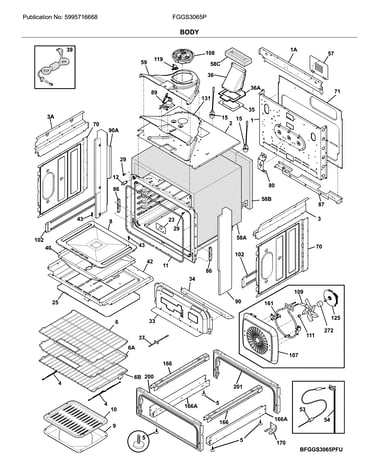

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$33.62
16% OFF MSRP : $40.00
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.43
16% OFF Phone Price : $30.43
In Stock
Range Surface Burner Cap 316262104
#22C

Top/drawer diagram

Range surface burner cap

Part #316262104

Replaced by #5304508468

?
Manufacturer substitution
This part replaces 316262104. Substitute parts can look different from the original.
BEST SELLER
$41.67
11% OFF Phone Price : $46.67
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#10C

Burner diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89
8% OFF Phone Price : $64.89
In Stock
Range Surface Burner Head (replaces 7316438200) 316438200
#10

Burner diagram

Range surface burner head (replaces 7316438200)

Part #316438200

BEST SELLER
$48.17
9% OFF Phone Price : $53.17
In Stock
Range Surface Burner Head (replaces 7316438600) 316438600
#10B

Burner diagram

Range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51
7% OFF Phone Price : $71.51
In Stock
Range Surface Burner Cap 316262004
#22B

Top/drawer diagram

Range surface burner cap

Part #316262004

Replaced by #5304508443

?
Manufacturer substitution
This part replaces 316262004. Substitute parts can look different from the original.
BEST SELLER
$34.37
13% OFF Phone Price : $39.37
In Stock
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80
9% OFF Phone Price : $110.80
In Stock
