Amana
Bottom-Mount Refrigerator

Model #BB20V1PS-P1321315WS Amana bottom-mount refrigerator

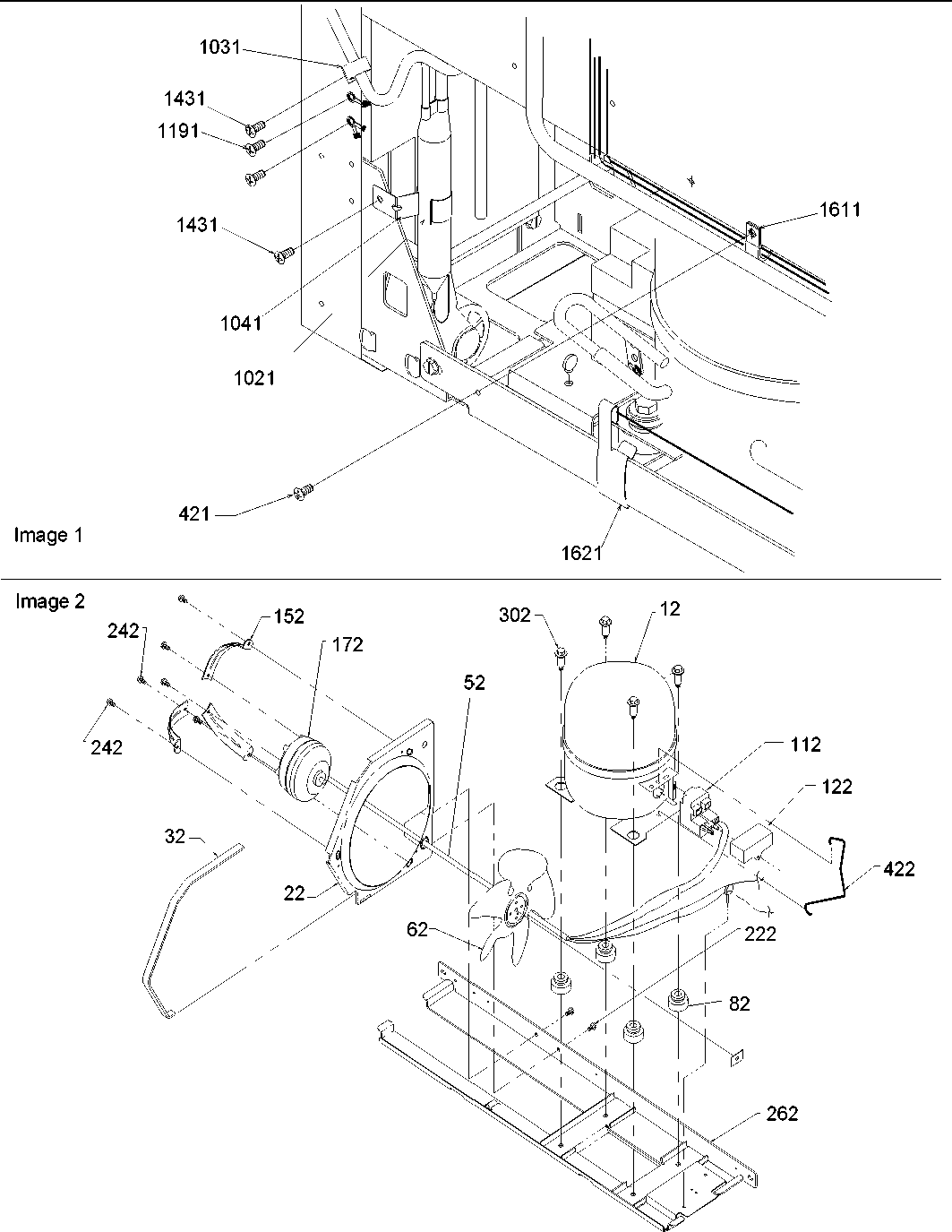

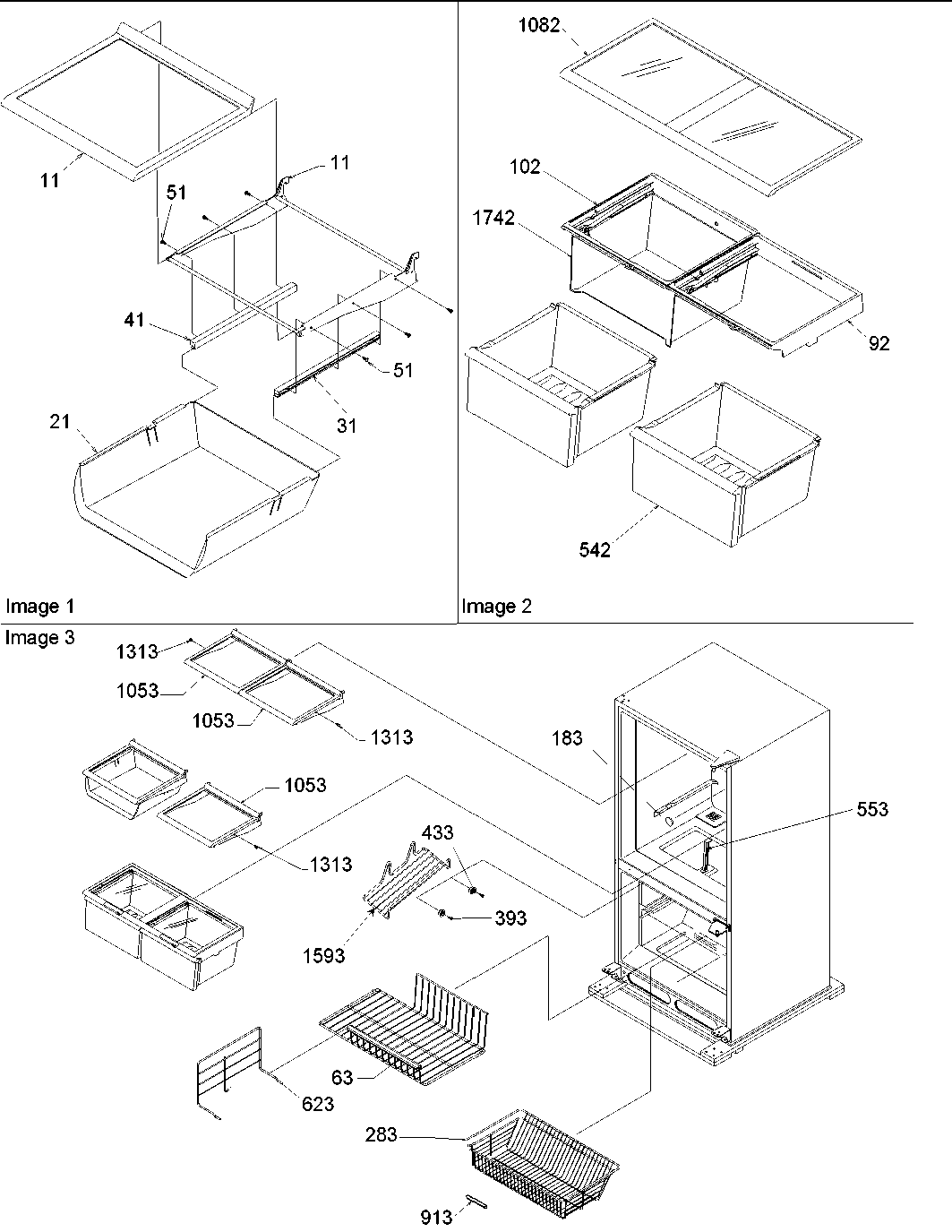

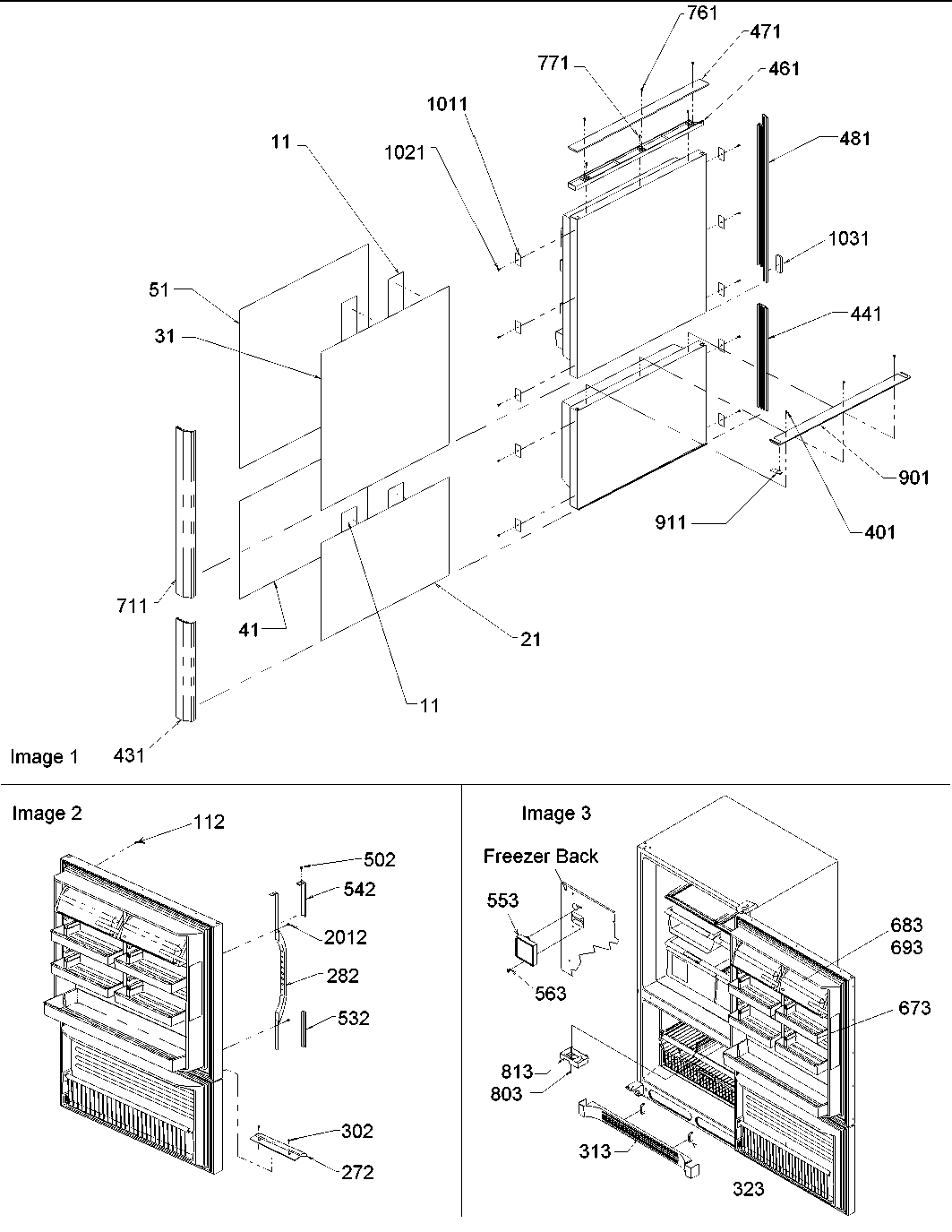

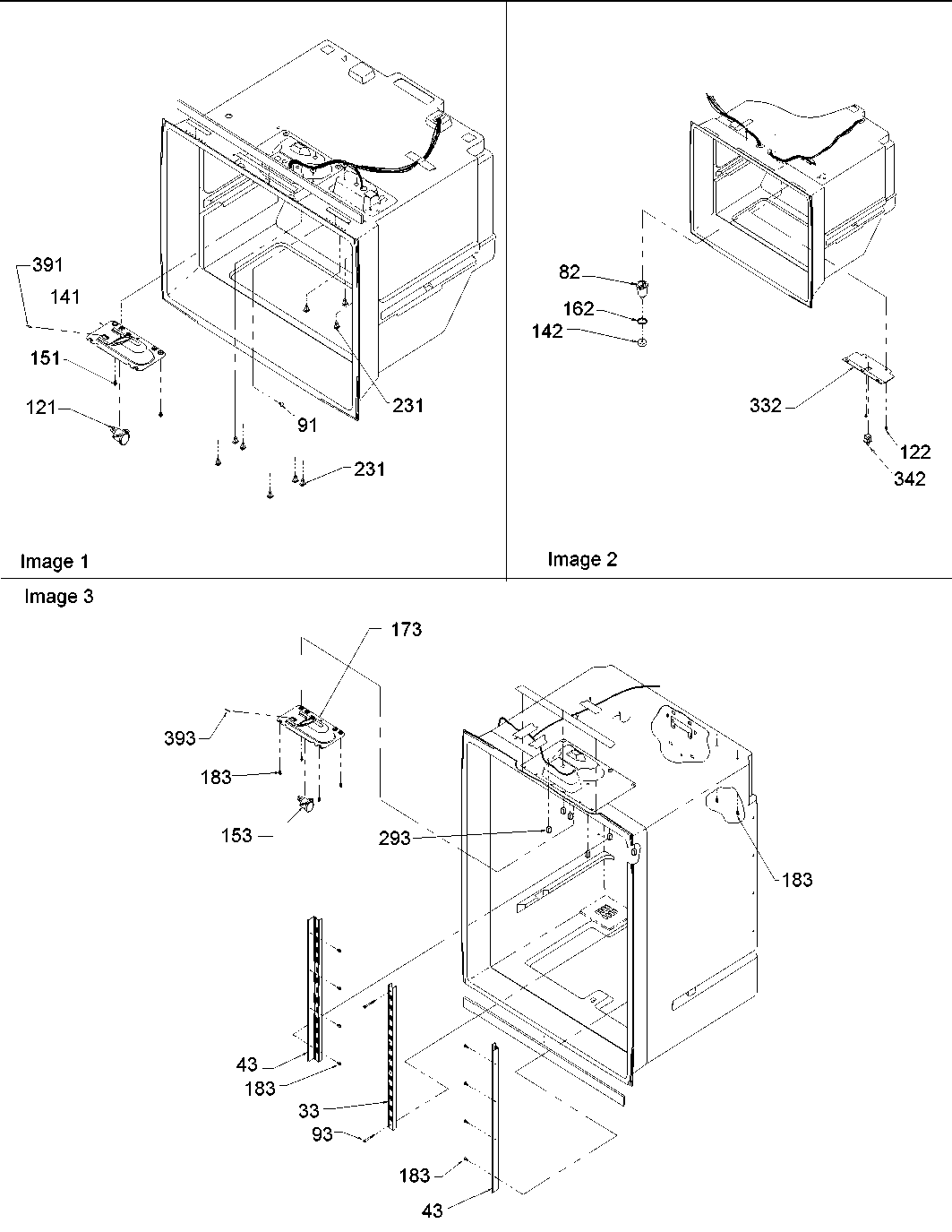

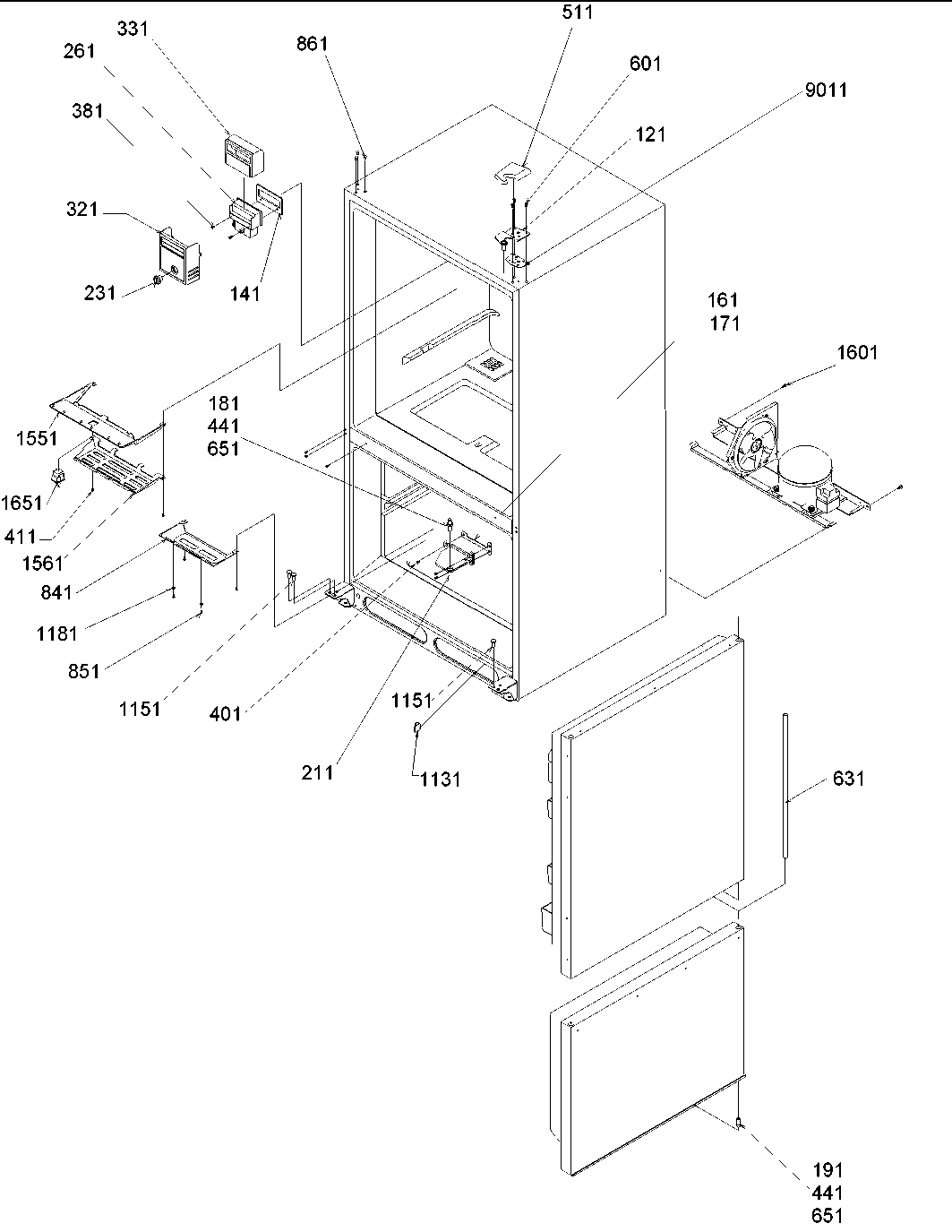

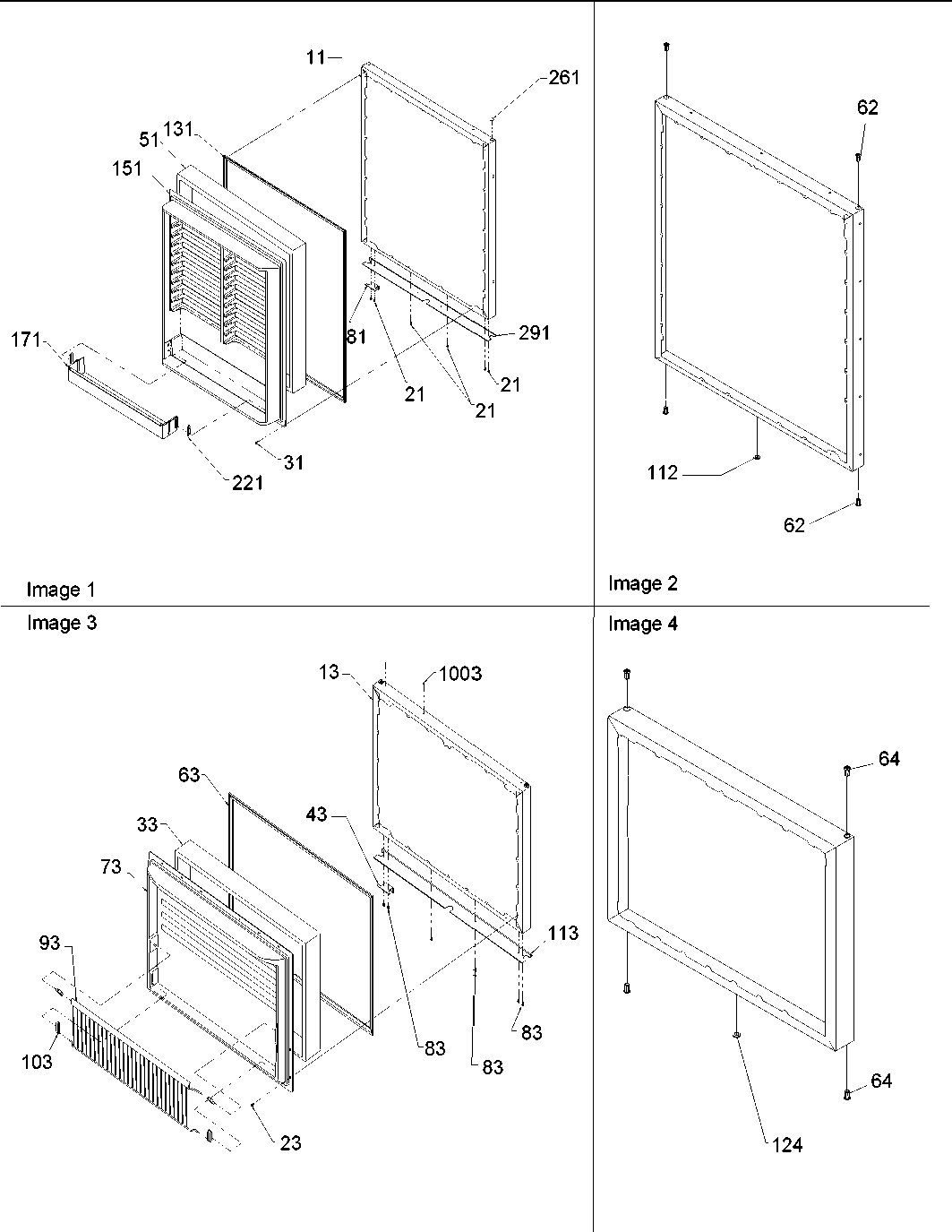

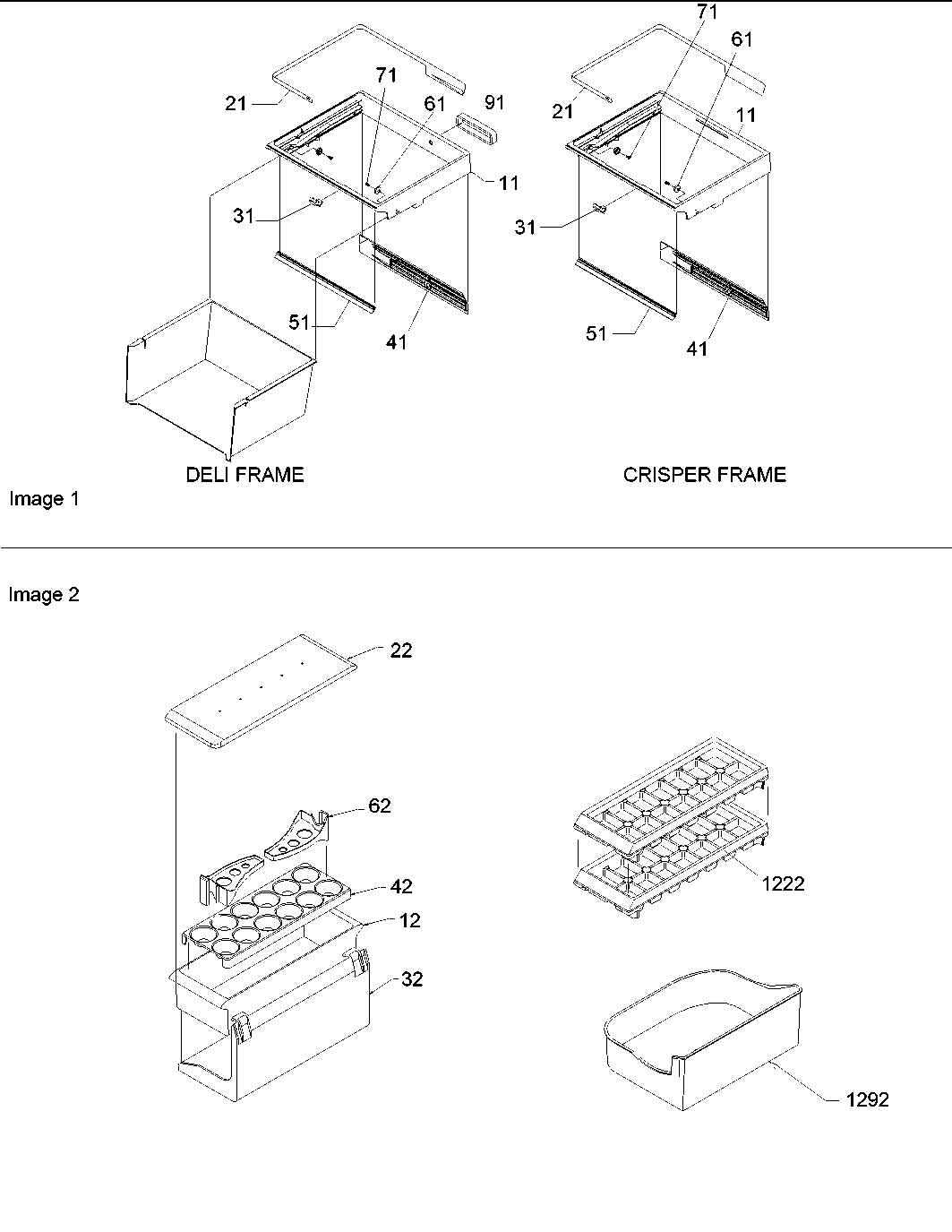

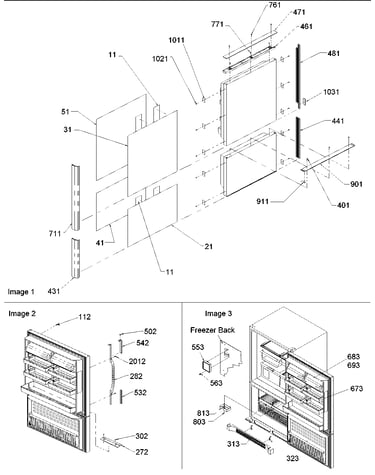

Here are the diagrams and repair parts for Amana BB20V1PS-P1321315WS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

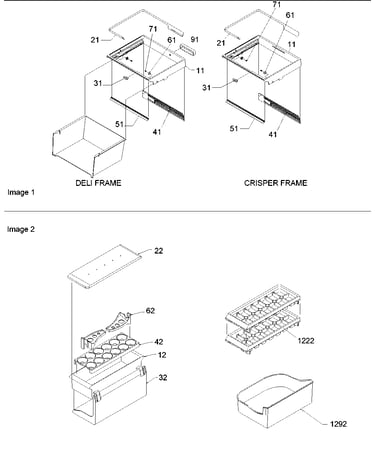

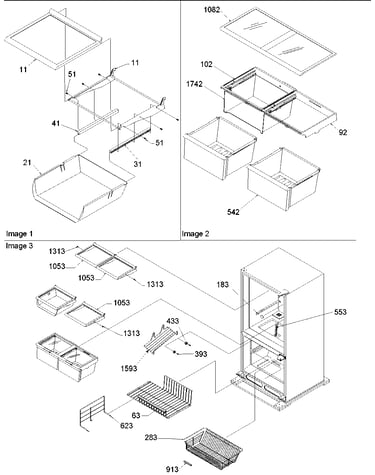

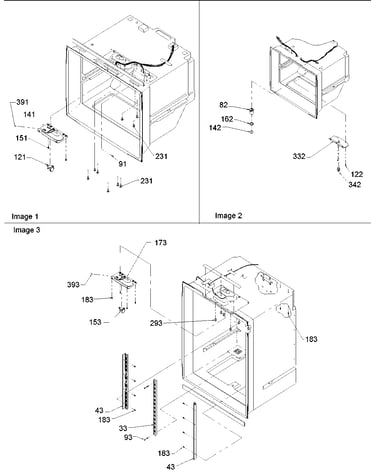

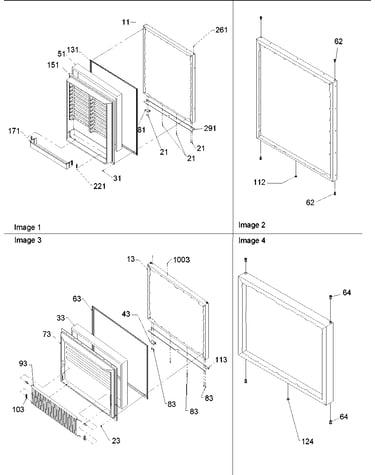

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 262 parts

    Refrigerator Ice Maker#122

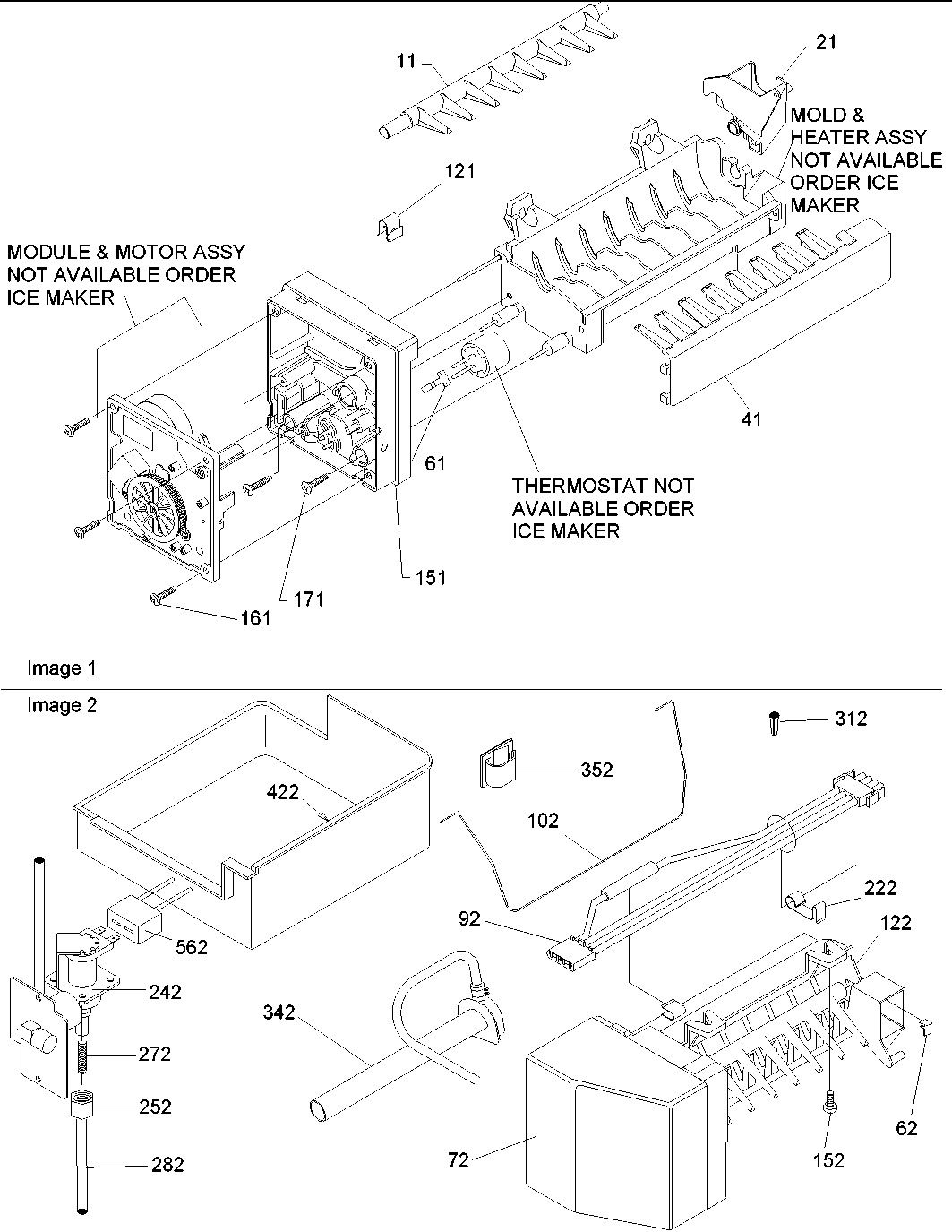

    Ice maker assy & parts Diagram

    Refrigerator ice maker

    Part #D7824705
    Replaced by #D7824706Q
    ?
    Manufacturer substitution
    This part replaces D7824705. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $138.99 |
    10% OFF
    Was: $154.49
    Refrigerator Switch

    See All Related Diagrams

    Refrigerator switch

    Part #C3680310

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Evaporator Fan Blade#22

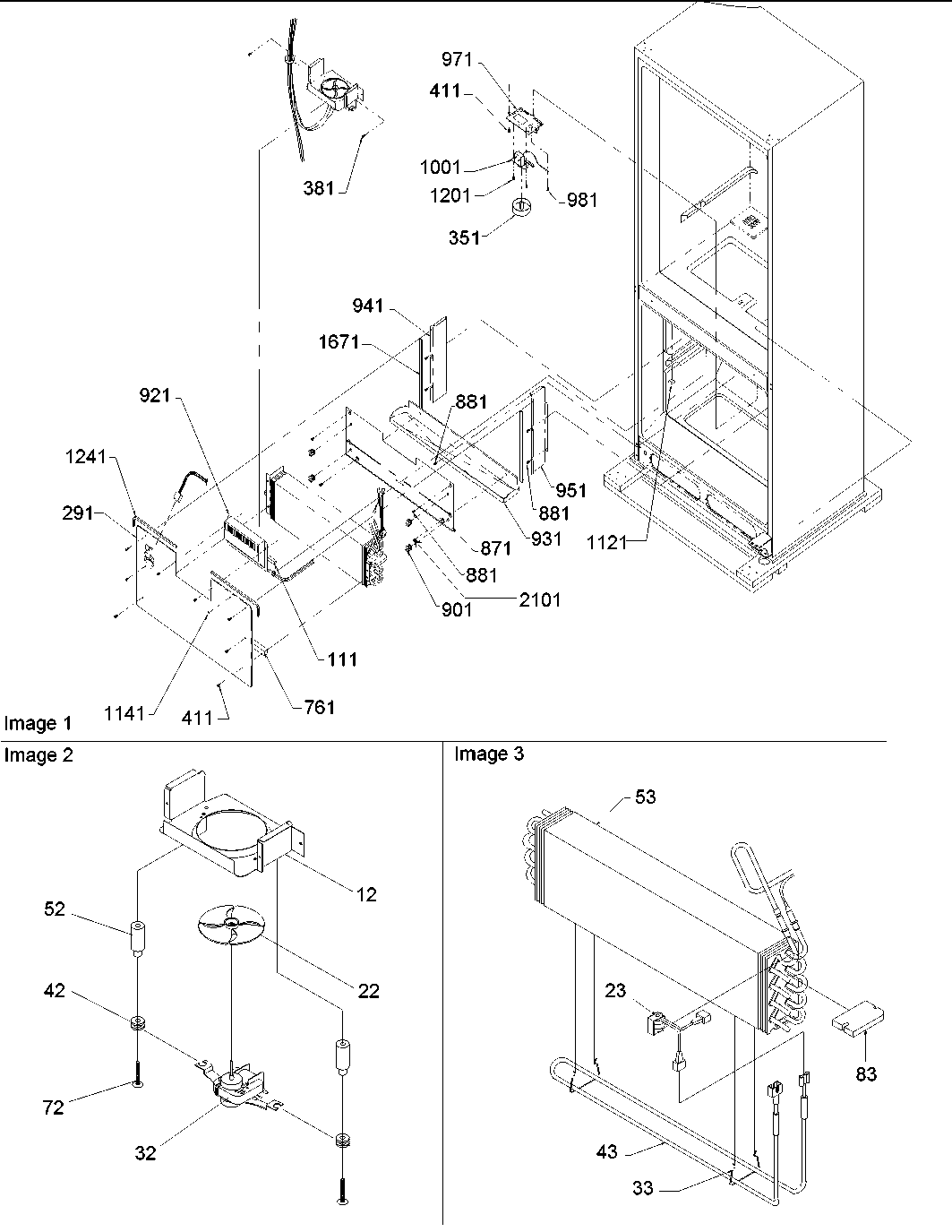

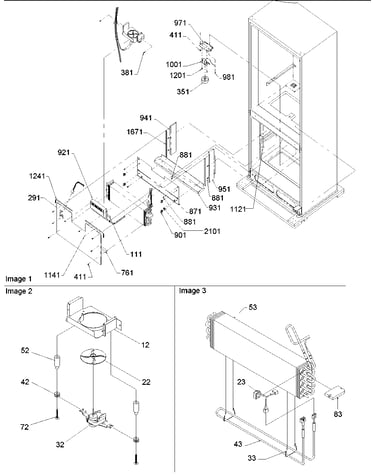

    Evaporator area Diagram

    Refrigerator blade

    Part #12217201
    Replaced by #WP2169142
    ?
    Manufacturer substitution
    This part replaces 12217201. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.39
    Refrigerator Ice Maker Shut-Off Arm#102

    Ice maker assy & parts Diagram

    Arm shut o

    Part #10884401
    Replaced by #WP67004028
    ?
    Manufacturer substitution
    This part replaces 10884401. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.89
    Refrigerator Ice Maker Fill Tube#342

    Ice maker assy & parts Diagram

    Refrigerator elbow

    Part #10463201
    Replaced by #W11176463
    ?
    Manufacturer substitution
    This part replaces 10463201. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $47.79
    Refrigerator Leveling Leg#271

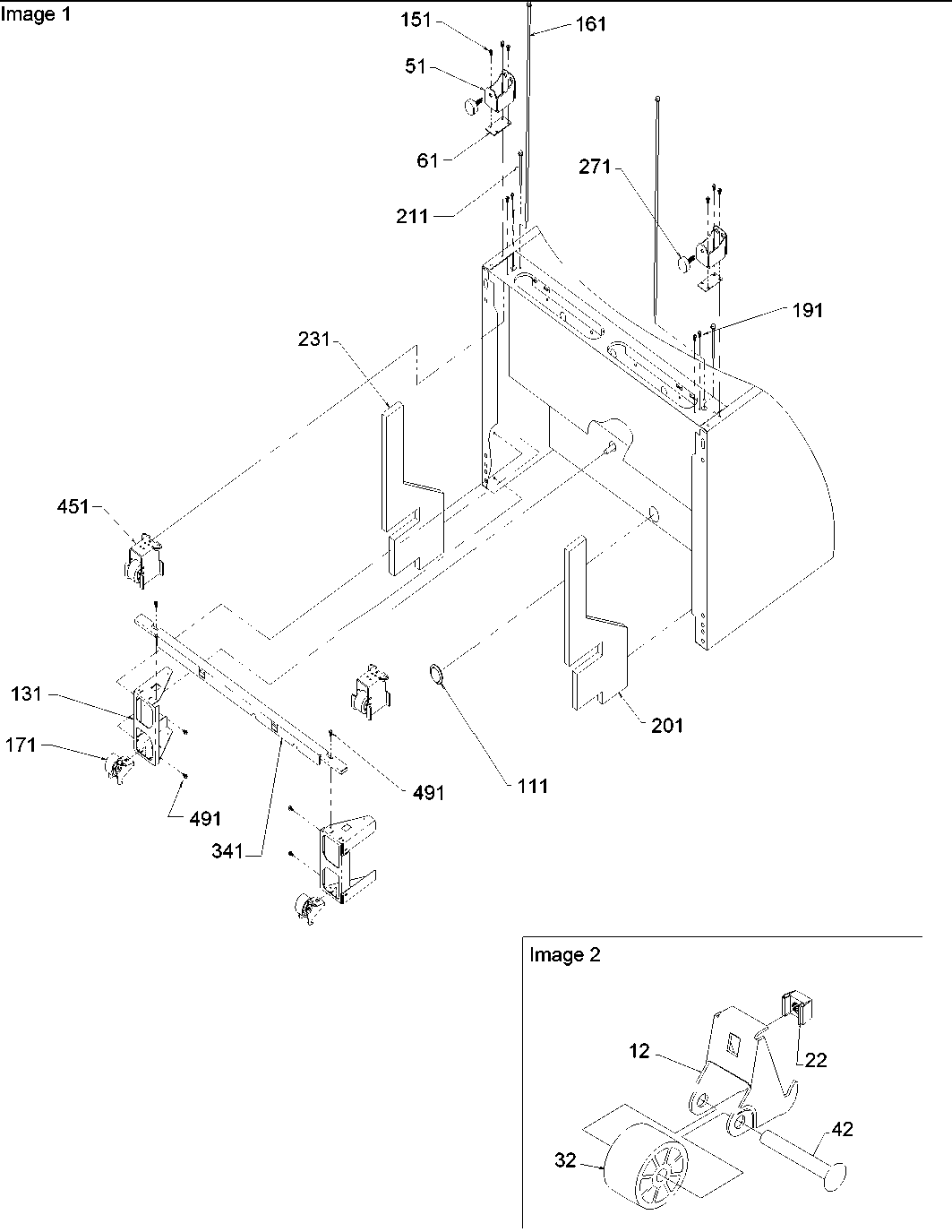

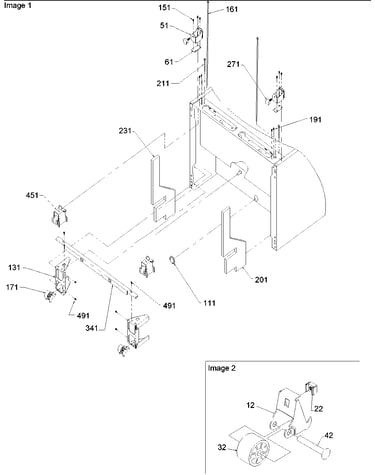

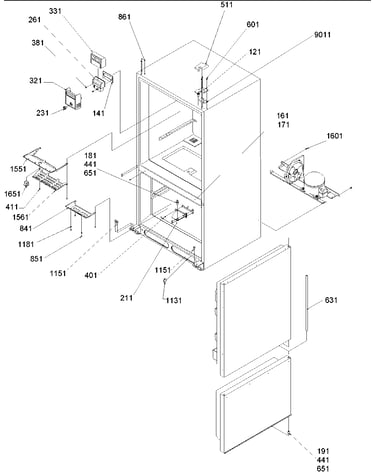

    Bottom hinges & rollers Diagram

    Brake foot

    Part #10354001
    Replaced by #W11177593
    ?
    Manufacturer substitution
    This part replaces 10354001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.39
    Refrigerator Screw#147

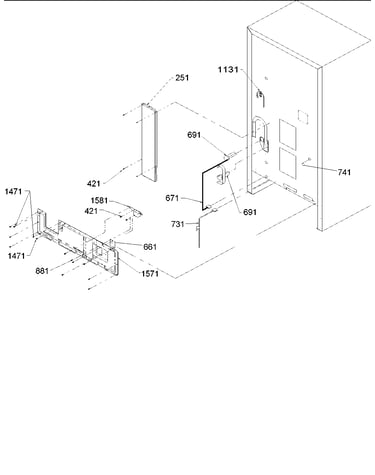

    Cabinet back Diagram

    Refrigerator screw

    Part #M0219704
    Replaced by #WP489464
    ?
    Manufacturer substitution
    This part replaces M0219704. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.19
    Refrigerator Water Tubing#282

    Ice maker assy & parts Diagram

    Refrigerator dispenser water tube

    Part #B5705308
    Replaced by #WPB5705307
    ?
    Manufacturer substitution
    This part replaces B5705308. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.59
    Refrigerator Ice Maker Module Housing#151

    Ice maker assy & parts Diagram

    Refrigerator support

    Part #R0183121
    Replaced by #WP2195914
    ?
    Manufacturer substitution
    This part replaces R0183121. Substitute parts can look different from the original.
    In Stock
    $39.59 |
    6% OFF
    MSRP: $42.00
    Refrigerator Screw#72

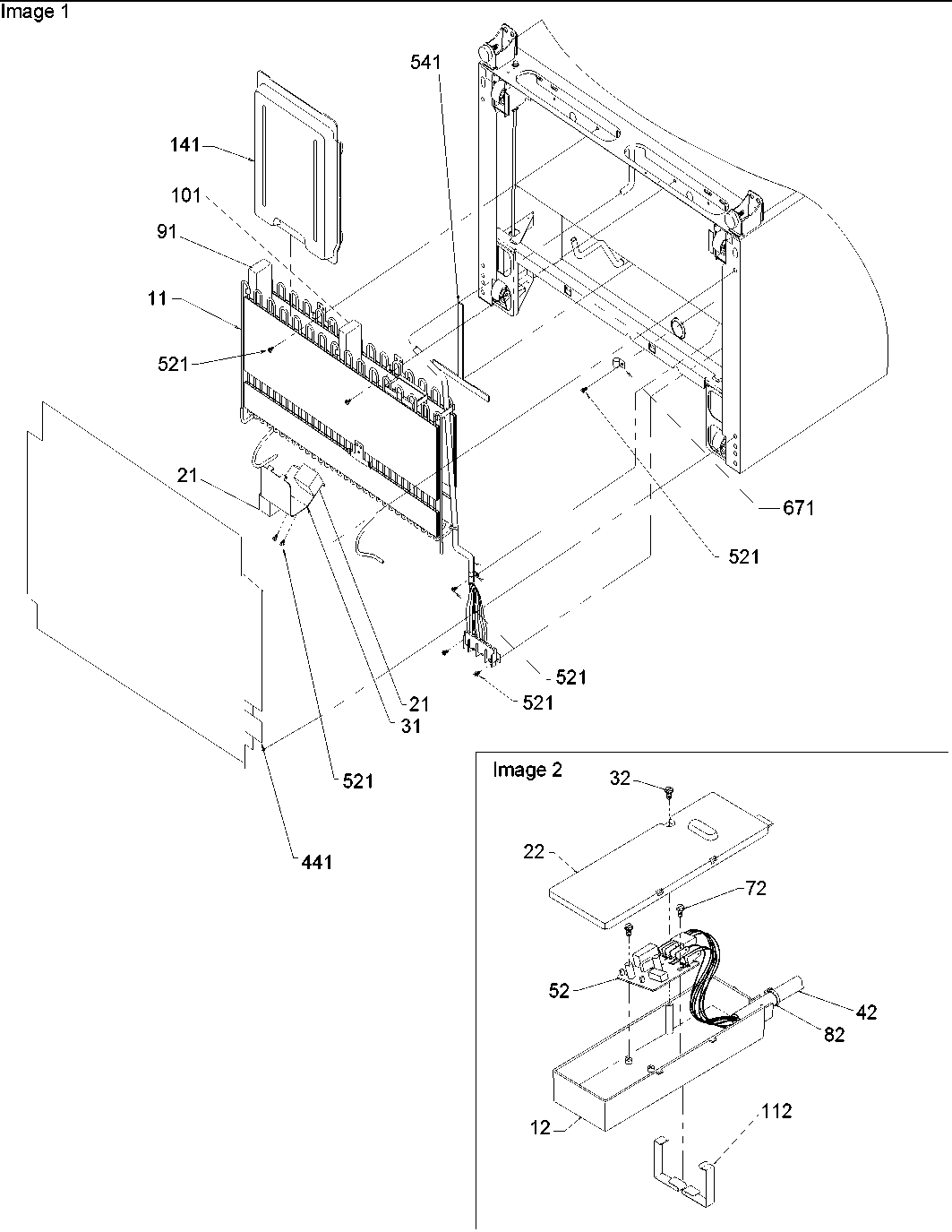

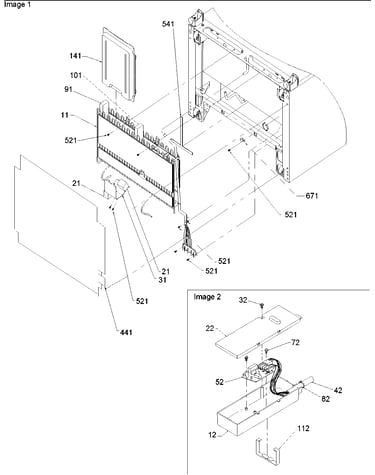

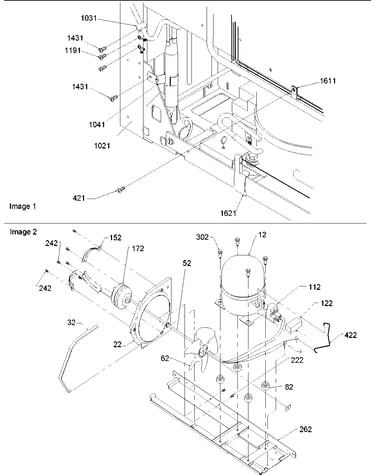

    Condenser & timer box assy Diagram

    Refrigerator screw

    Part #M0216515
    Replaced by #WP489349
    ?
    Manufacturer substitution
    This part replaces M0216515. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39
