Kenmore
Bottom-Mount Refrigerator

Model # 79575094400 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79575094400 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

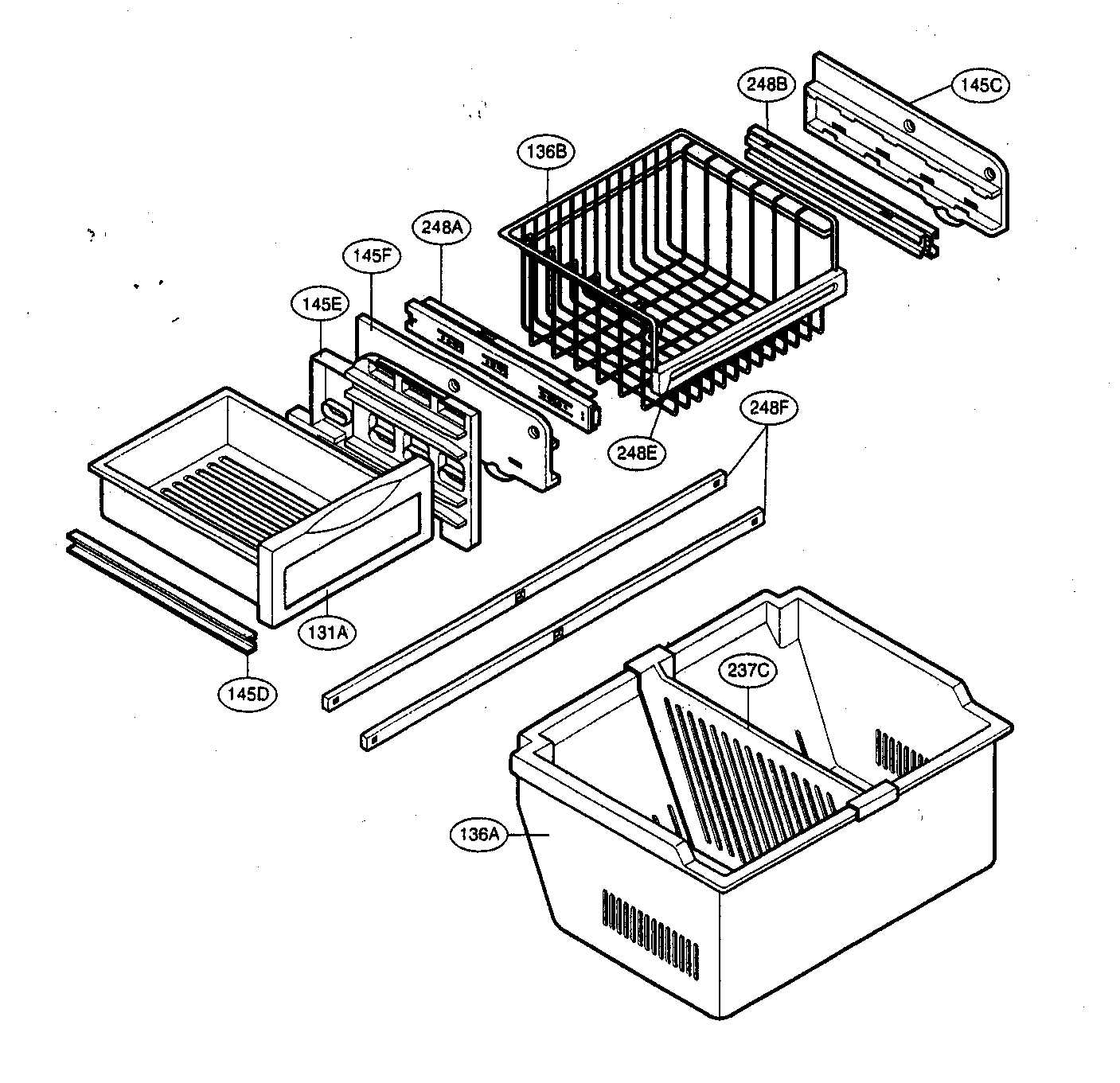

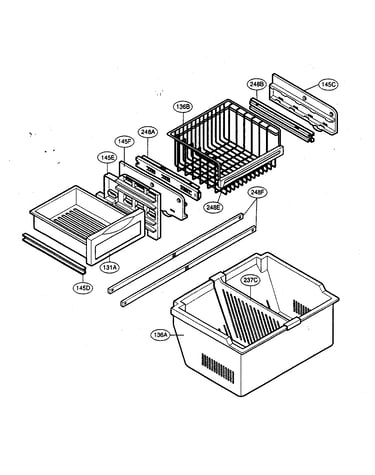

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Refrigerator Drier Assembly 5851JJ2002B
#317A

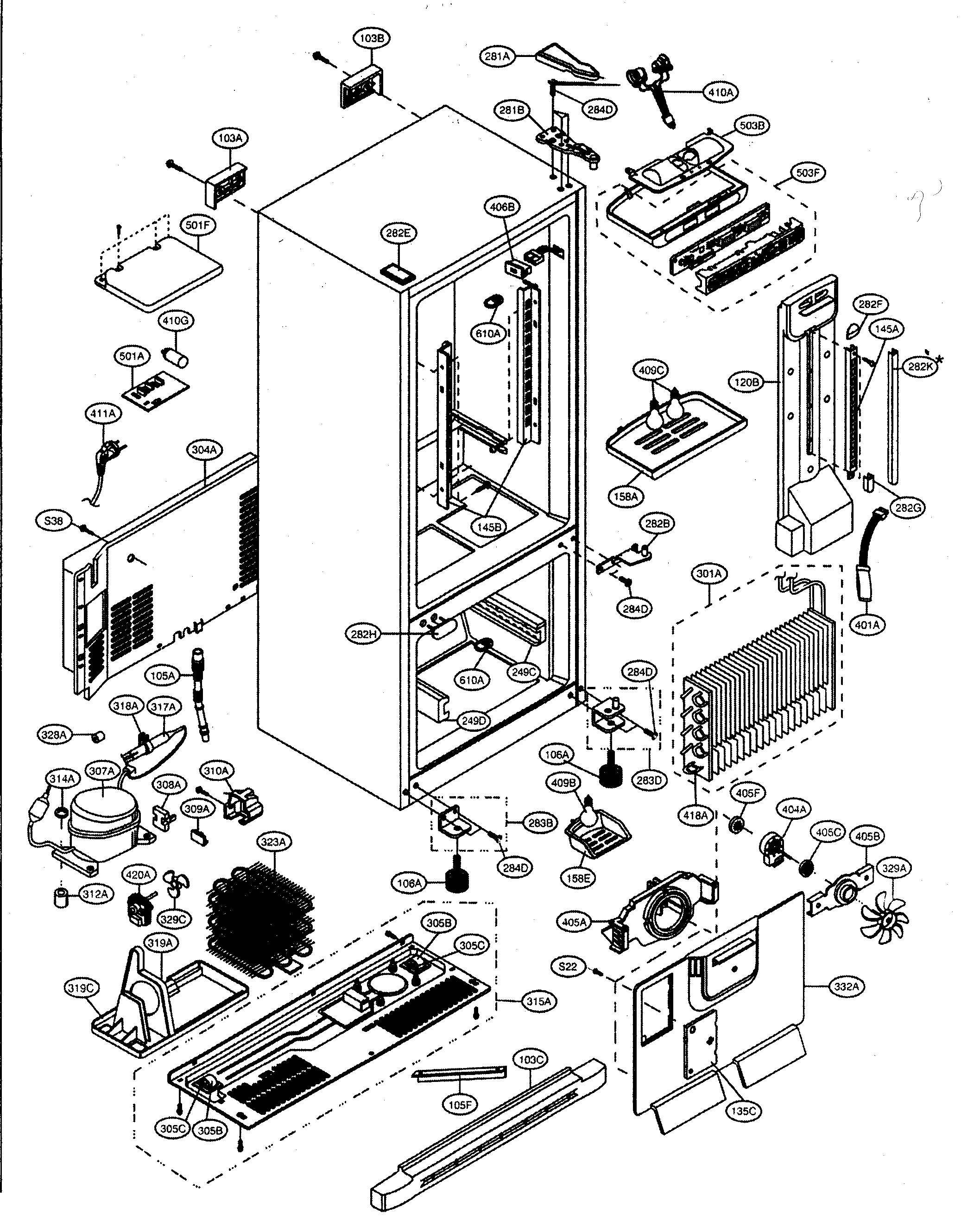

Case parts diagram

Refrigerator drier assembly

Part #5851JJ2002B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002B. Substitute parts can look different from the original.
BEST SELLER
$69.19
7% OFF Phone Price : $74.19
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#406B

Case parts diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$21.71
19% OFF Phone Price : $26.71
In Stock
Refrigerator Drain Assembly 5251JJ2003A
#105A

Case parts diagram

Refrigerator drain assembly

Part #5251JJ2003A

Replaced by #5251JA3003D

?
Manufacturer substitution
This part replaces 5251JJ2003A. Substitute parts can look different from the original.
BEST SELLER
$10.58
16% OFF Phone Price : $12.58
In Stock
Refrigerator Gasket Assembly 4987JJ1004C
#203A

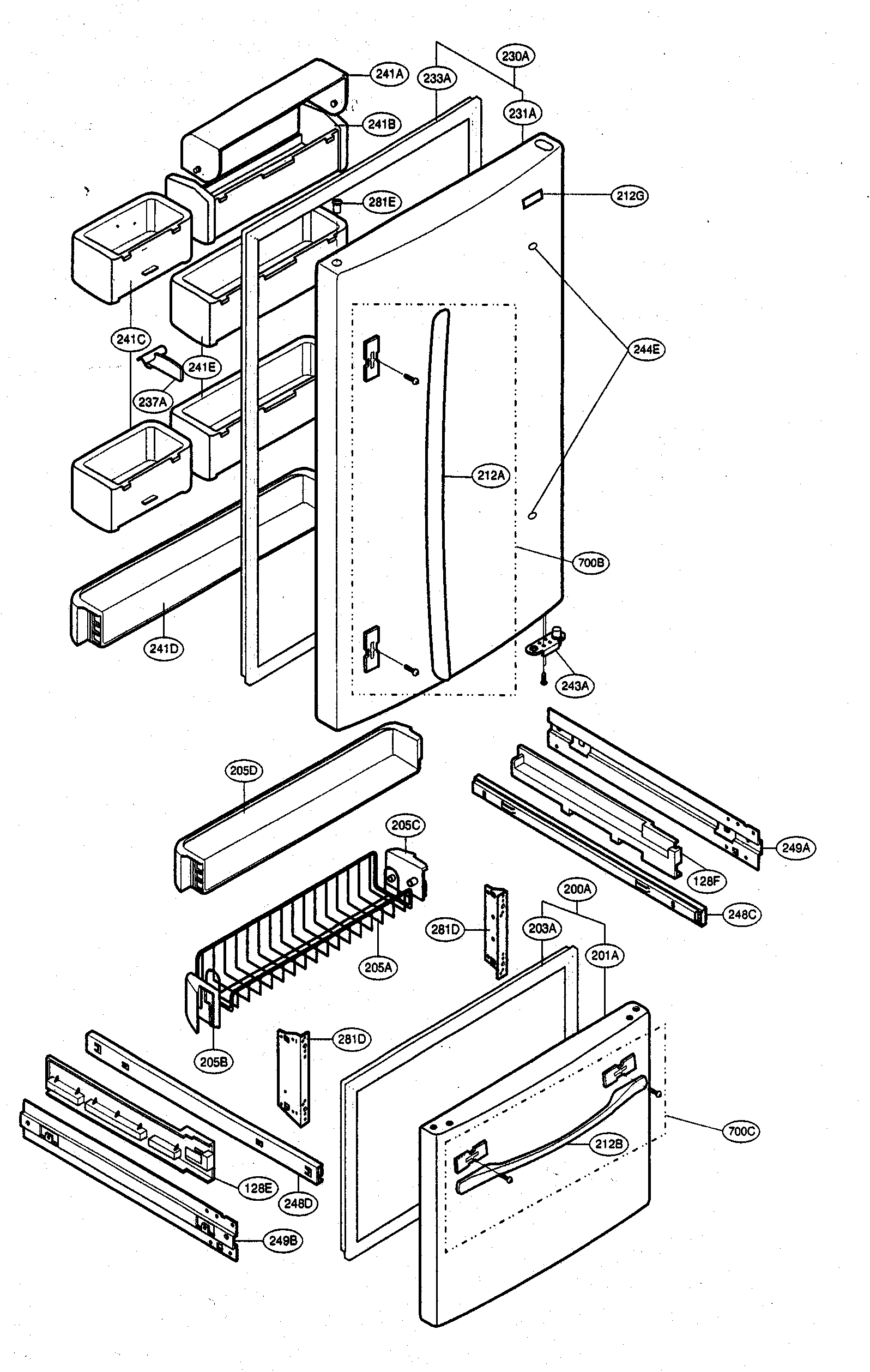

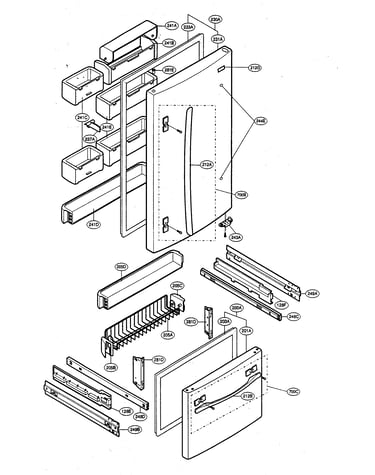

Door parts diagram

Refrigerator gasket assembly

Part #4987JJ1004C

Replaced by #ADX73350901

?
Manufacturer substitution
This part replaces 4987JJ1004C. Substitute parts can look different from the original.
BEST SELLER
$85.88
6% OFF Phone Price : $90.88
In Stock
Refrigerator Defrost Sensor Assembly 6615JB2005C
#401A

Case parts diagram

Refrigerator defrost sensor assembly

Part #6615JB2005C

BEST SELLER
$32.15
13% OFF Phone Price : $37.15
In Stock
Refrigerator Light Socket 6621JK2002D
#410A

Case parts diagram

Refrigerator light socket

Part #6621JK2002D

Replaced by #EAG62831801

?
Manufacturer substitution
This part replaces 6621JK2002D. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Deli Drawer Slide Rail 4975JJ2002A
#128A

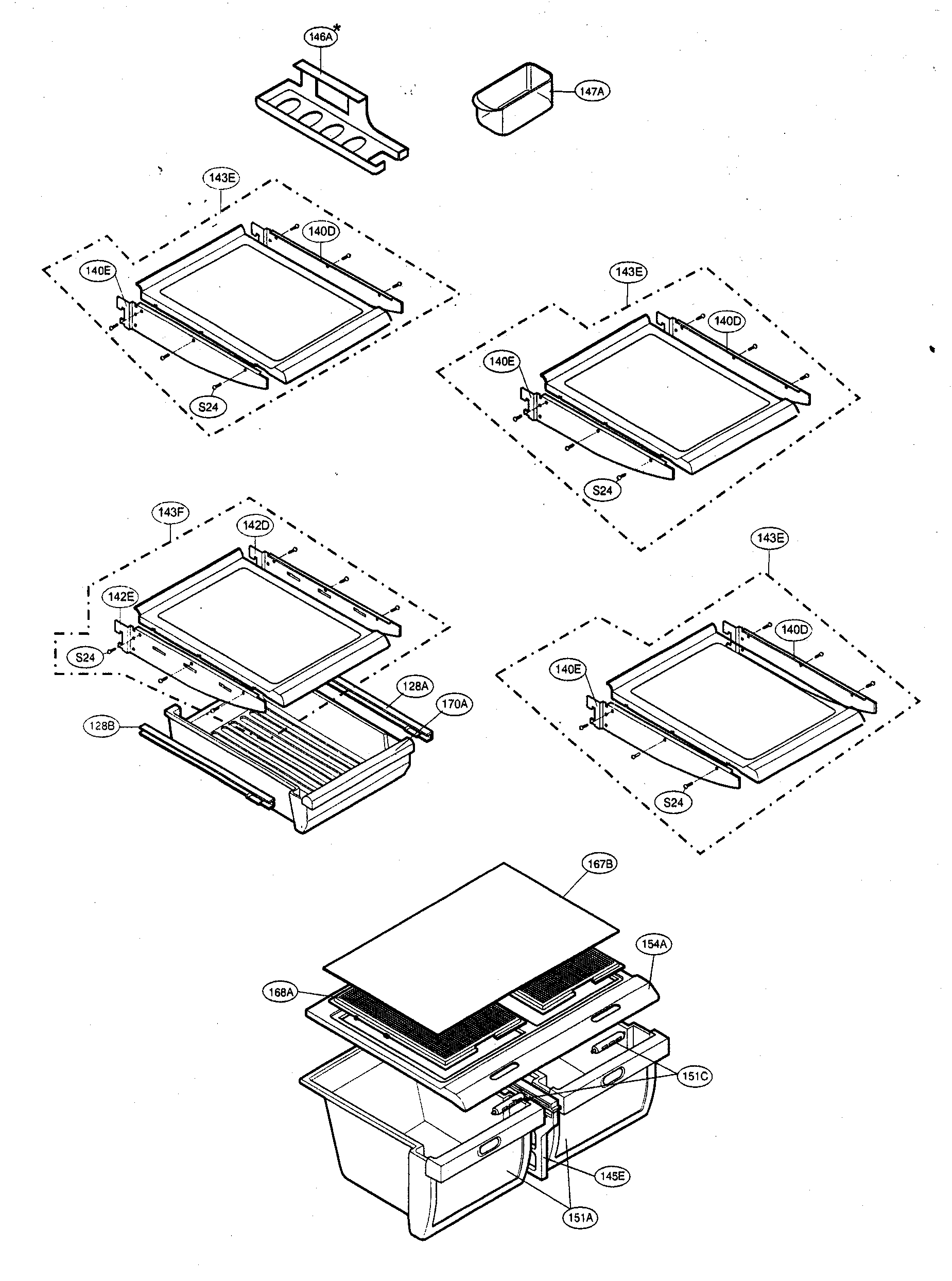

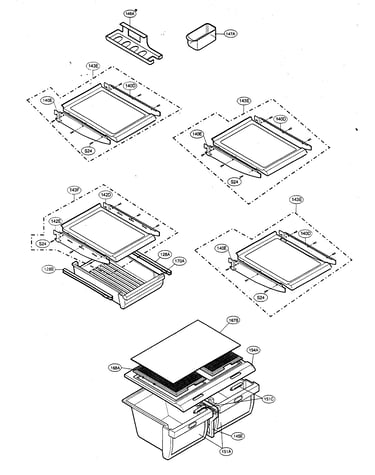

Refrigerator parts diagram

Refrigerator deli drawer slide rail

Part #4975JJ2002A

This item is not returnable
$25.61
16% OFF Phone Price : $30.61
In Stock
Refrigerator Door Hinge Screw (replaces 1stzja3004g, 1stzja3004k) 1STZJA3004F
#284D

Case parts diagram

Refrigerator door hinge screw (replaces 1stzja3004g, 1stzja3004k)

Part #1STZJA3004F

This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Refrigerator Condenser Fan (replaces 4681jk1001b) 4680JK1001B
#420A

Case parts diagram

Refrigerator condenser fan (replaces 4681jk1001b)

Part #4680JK1001B

$98.27
9% OFF Phone Price : $108.27
In Stock
Refrigerator Inlet Tube (white) 5210JJ3002A
#616E

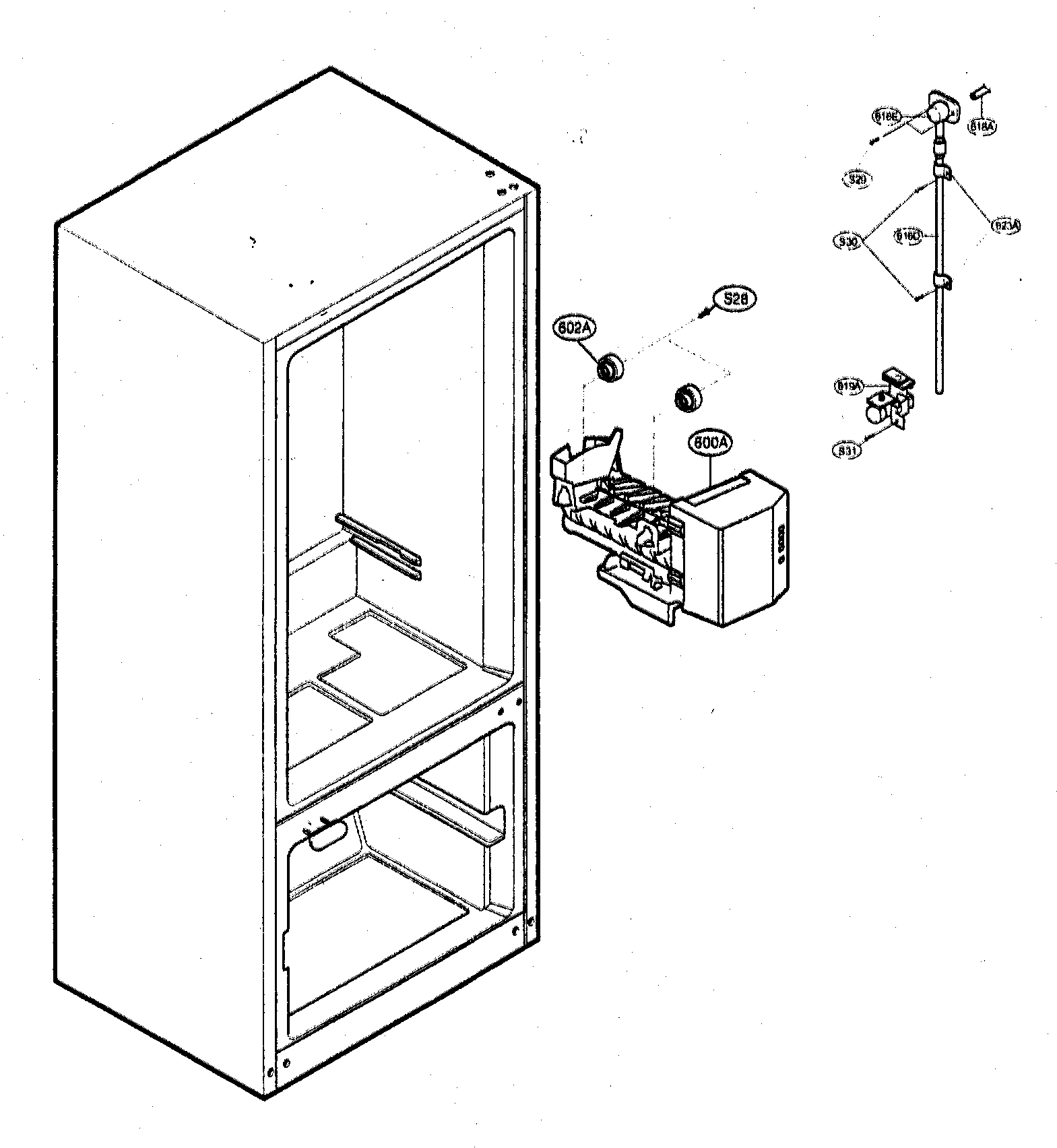

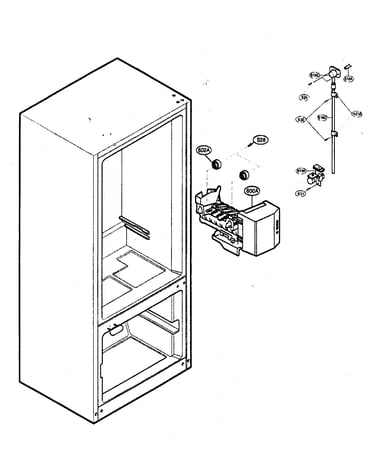

Ice maker parts diagram
