Model # GLD6660N10SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLD6660N10SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

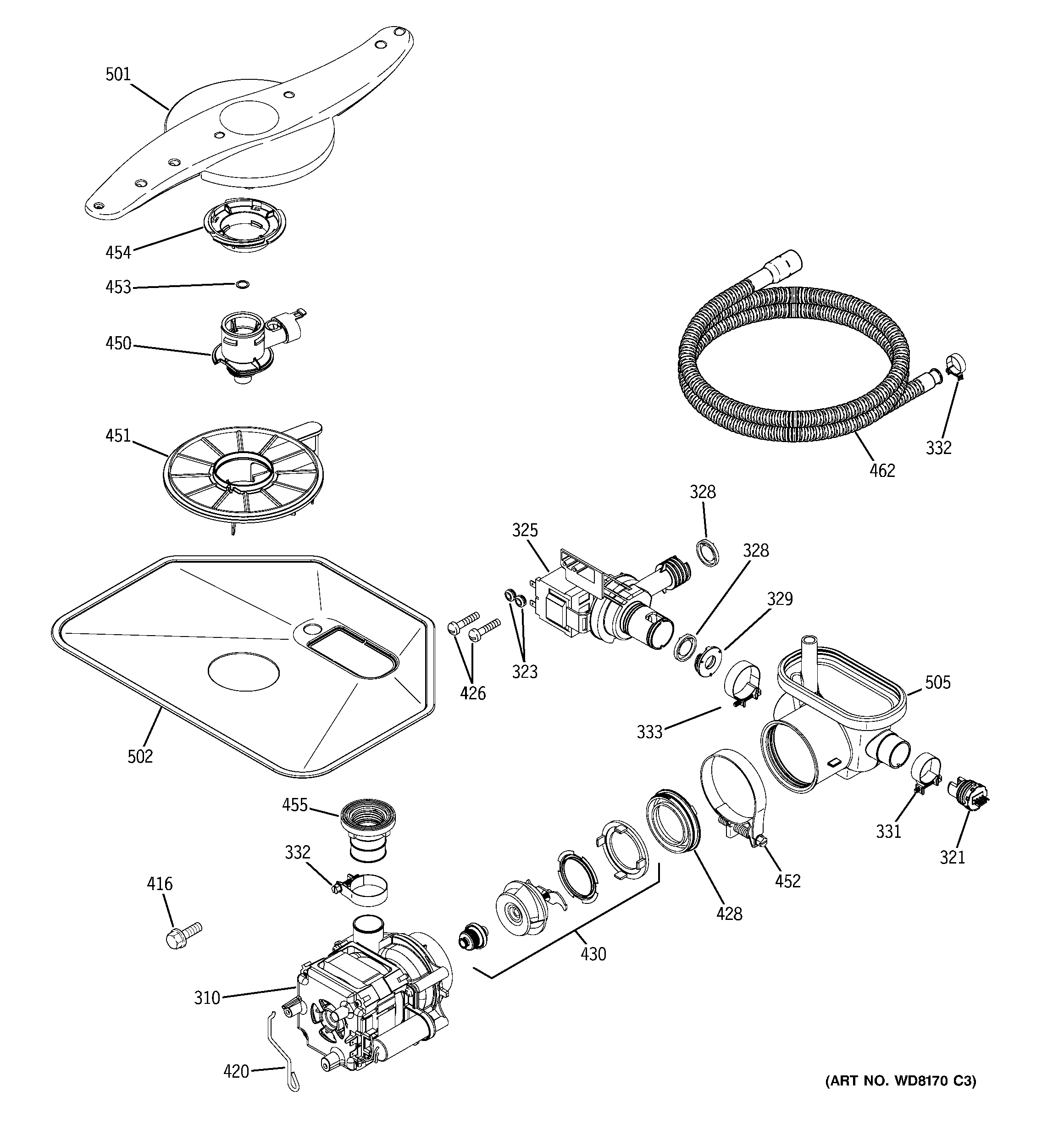

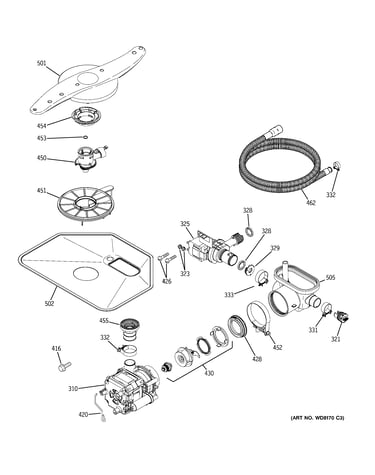

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

Cap WD12X0344
#652

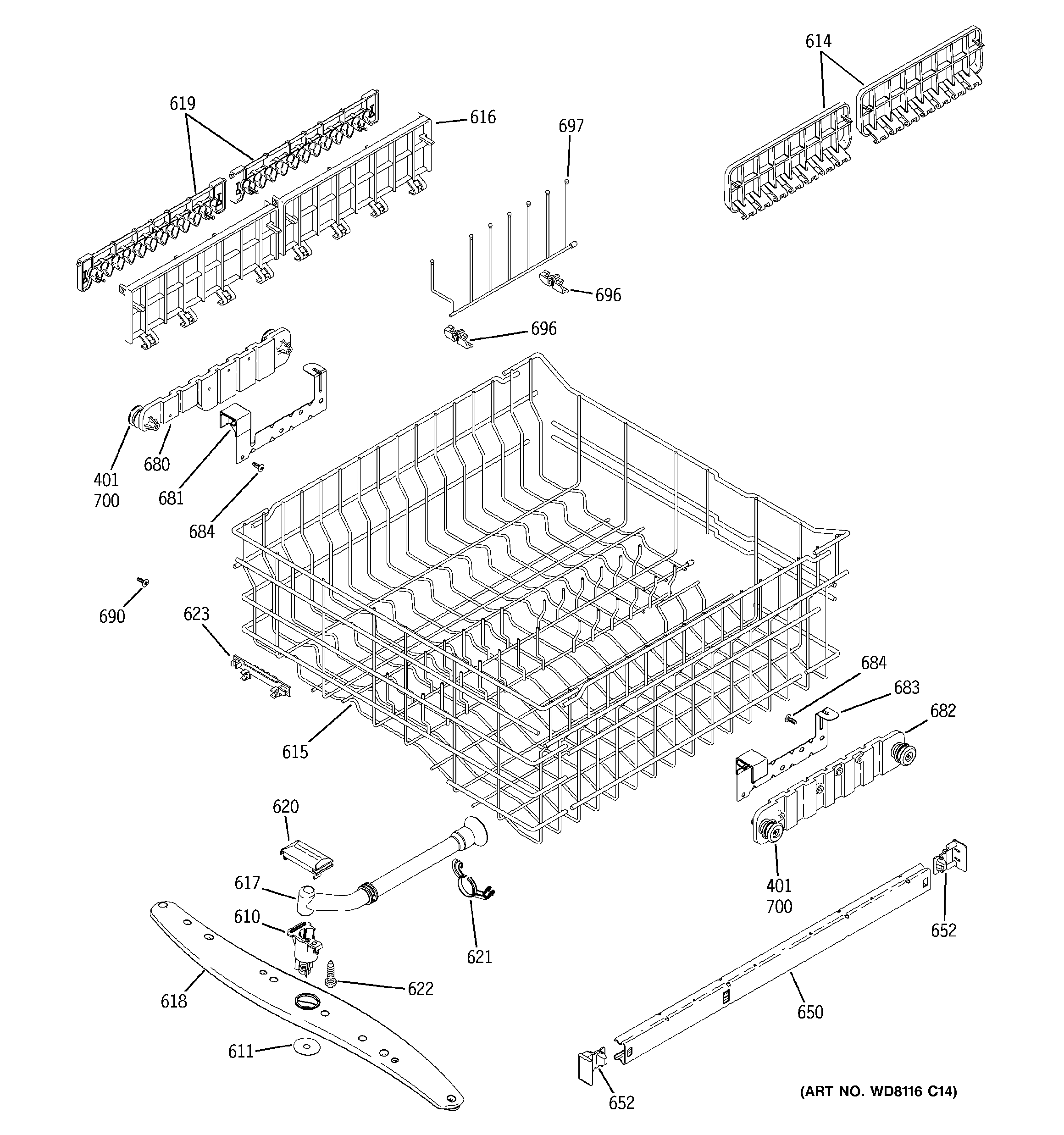

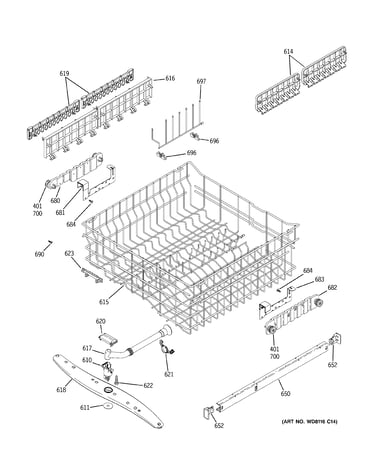

Upper rack assembly diagram

Cap

Part #WD12X0344

Replaced by #WD12X10304

?
Manufacturer substitution
This part replaces WD12X0344. Substitute parts can look different from the original.
BEST SELLER
$13.29
13% OFF Phone Price : $15.29
In Stock
Dishwasher Silverware Basket WD28X10182
#761

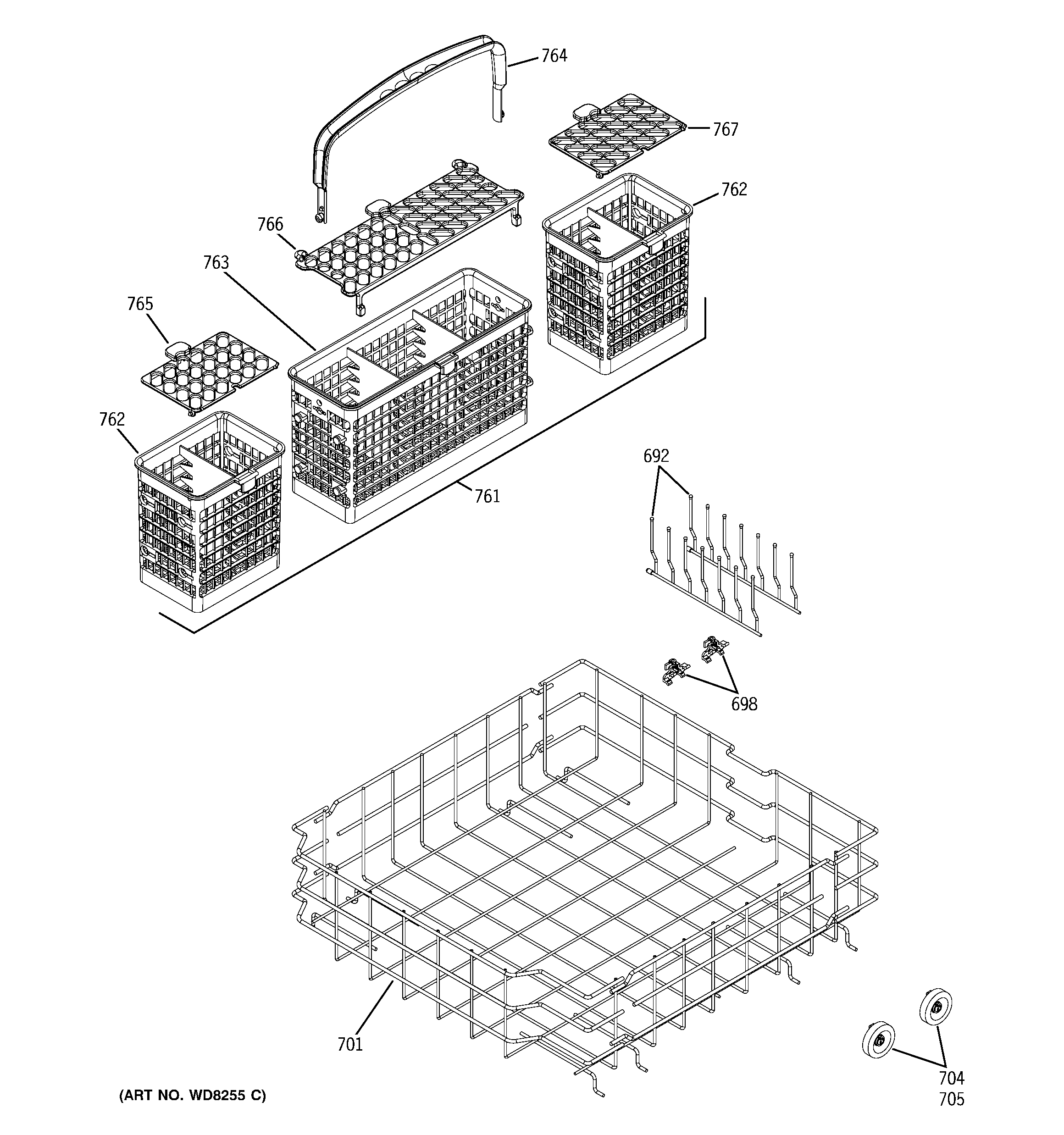

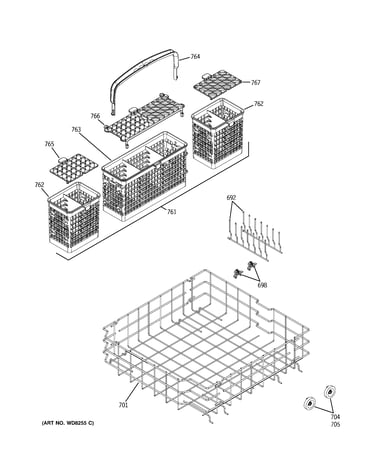

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10182

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10182. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Dishwasher Silverware Basket WD28X10153
#762

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10153

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10153. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Dishwasher Silverware Basket WD28X10037
#763

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10037

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Basket Lid WD28X10184
#766

Lower rack assembly diagram

Basket lid

Part #WD28X10184

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10184. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Actuator Handle WD13X10008
#804

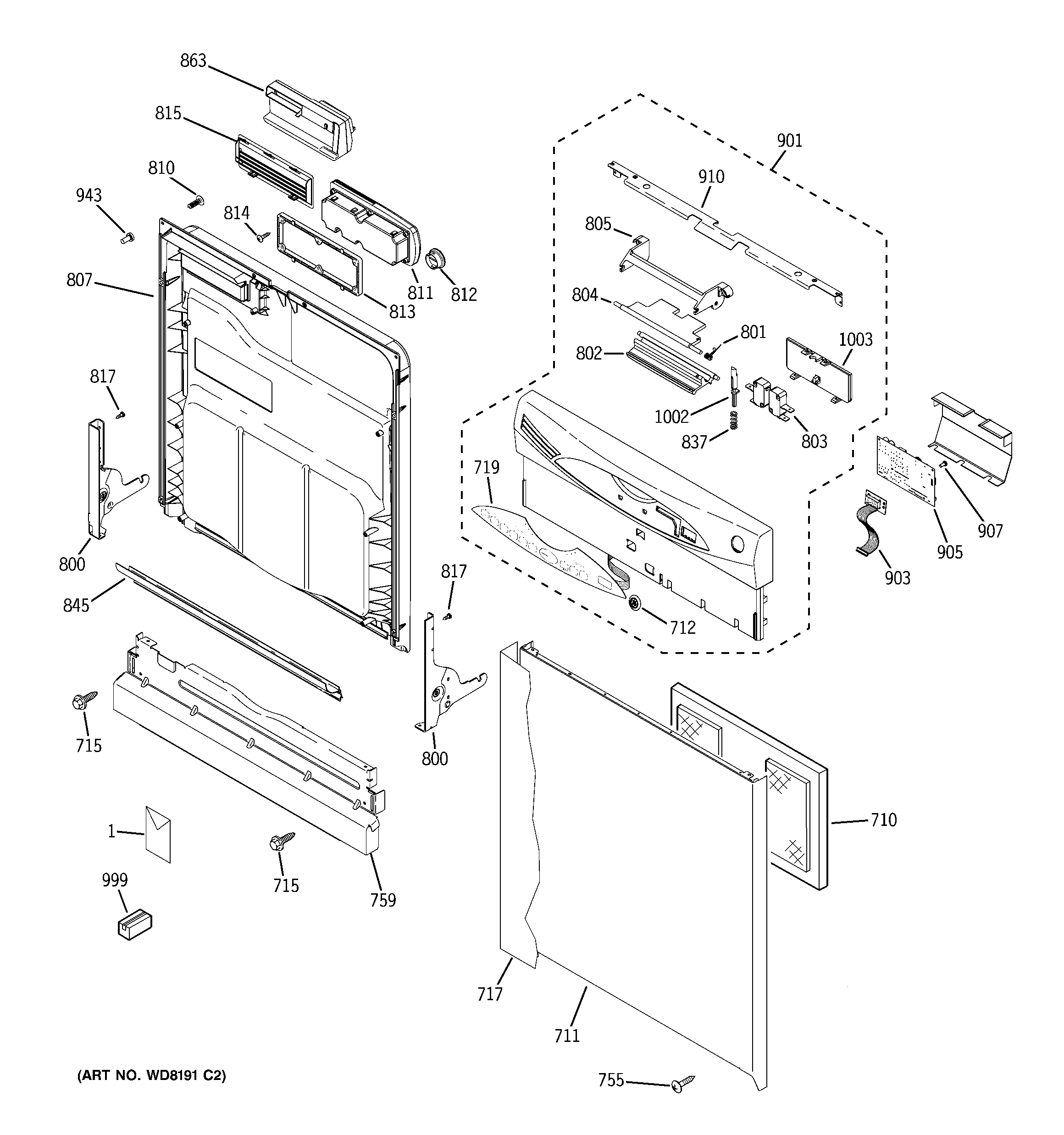

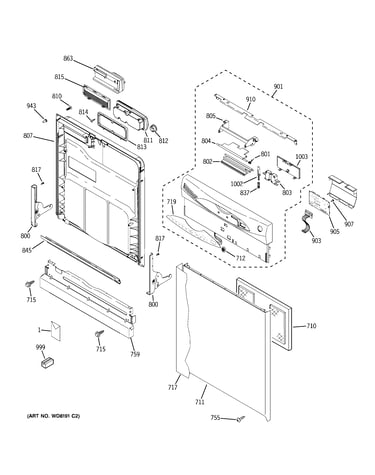

Escutcheon & door assembly diagram

Actuator handle

Part #WD13X10008

Replaced by #WD13X10045

?
Manufacturer substitution
This part replaces WD13X10008. Substitute parts can look different from the original.
This item is not returnable
$22.54
18% OFF Phone Price : $27.54
In Stock
Recess Sprng WR02X10585
#801

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
$7.91
11% OFF Phone Price : $8.91
In Stock
Slide WD30X0098
#650

Upper rack assembly diagram

Slide

Part #WD30X0098

Replaced by #WD30X98

?
Manufacturer substitution
This part replaces WD30X0098. Substitute parts can look different from the original.
$23.15
18% OFF Phone Price : $28.15
In Stock
Dishwasher Screw WD02X10067
Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Dishwasher Spray Arm WD22X10045
#570

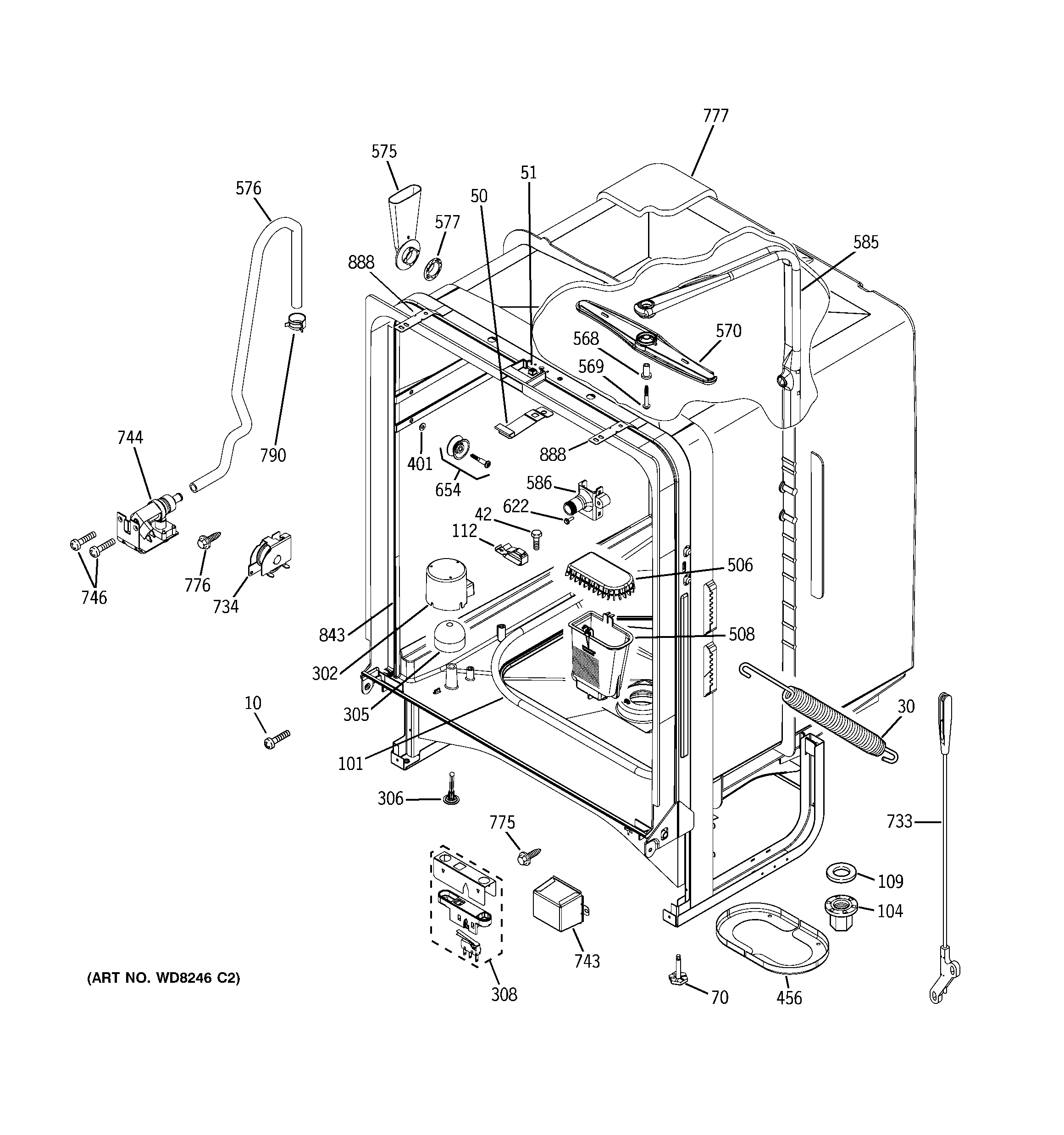

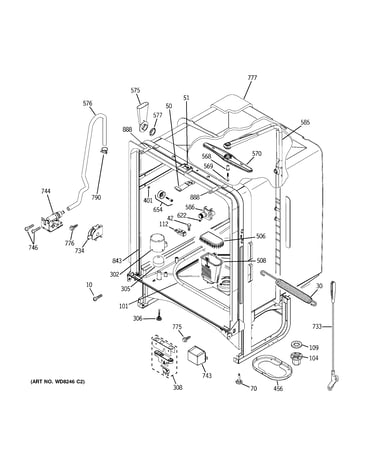

Body parts diagram

Dishwasher spray arm

Part #WD22X10045

Replaced by #WD22X10084

?
Manufacturer substitution
This part replaces WD22X10045. Substitute parts can look different from the original.
This item is not returnable
$7.08
12% OFF Phone Price : $8.08
In Stock
