Model # 631.002 Official Amana electric range/microwave combo

Here are the diagrams and repair parts for Official Amana 631002 electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Lock Nut, Terminal Block And Cord Clamp Mtg. M1D528
#47B

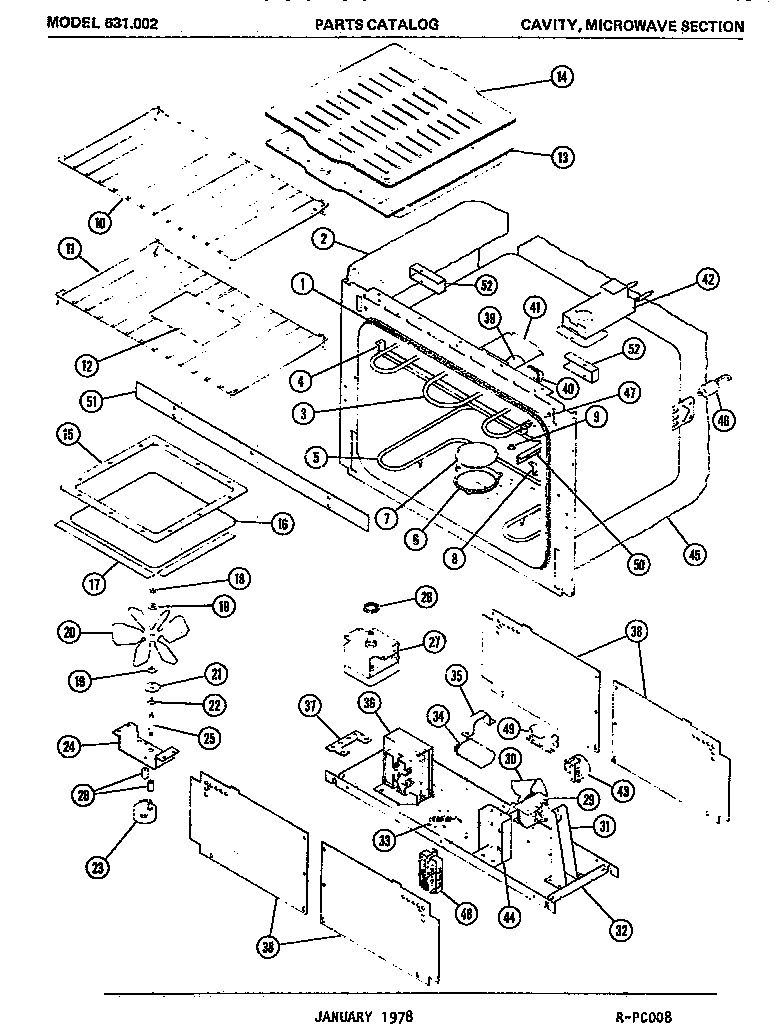

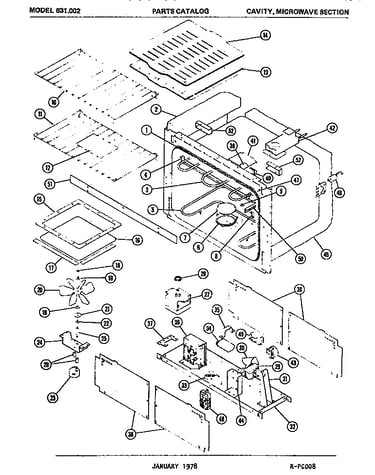

Microwave cavity diagram

Lock nut, terminal block and cord clamp mtg.

Part #M1D528

The manufacturer no longer makes this part, and there's no substitute part

Kick Panel M72D32
#28A

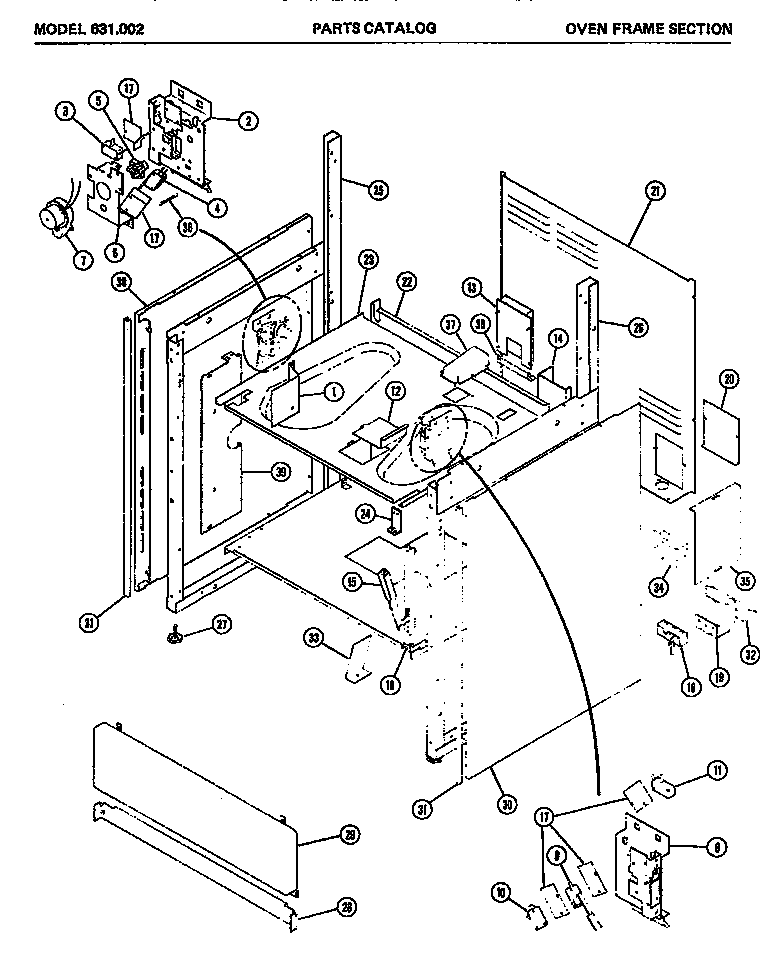

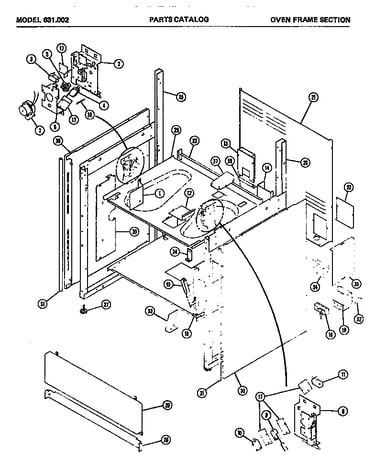

Oven frame section diagram

Kick panel

Part #M72D32

The manufacturer no longer makes this part, and there's no substitute part

Flathead Screw, Trim Mounting M1D540
#2B

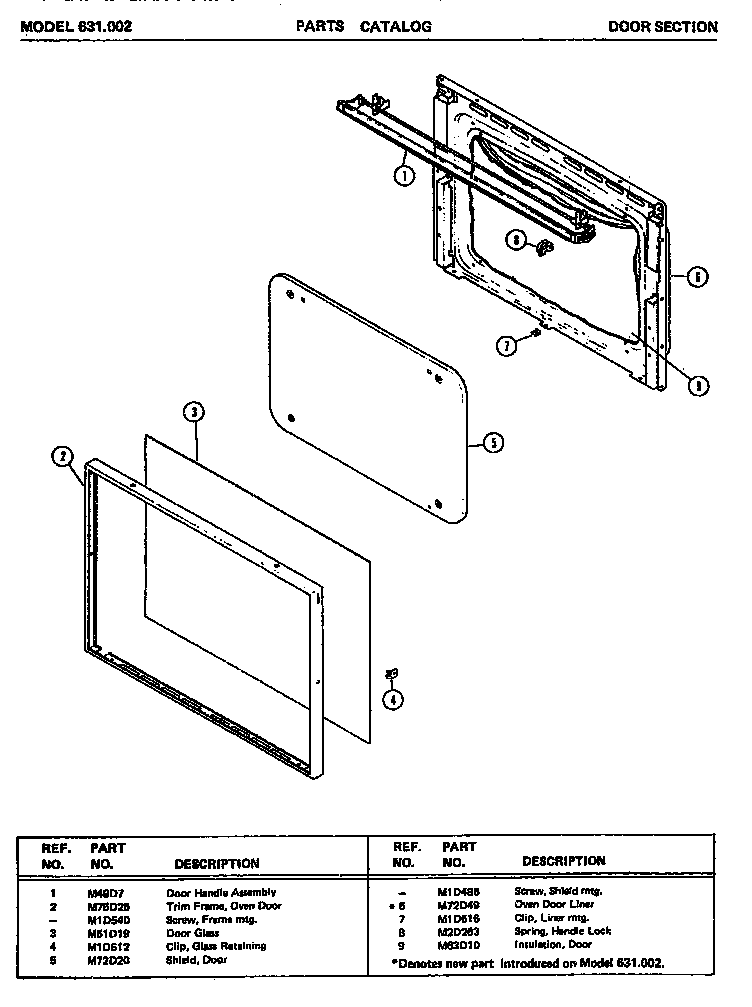

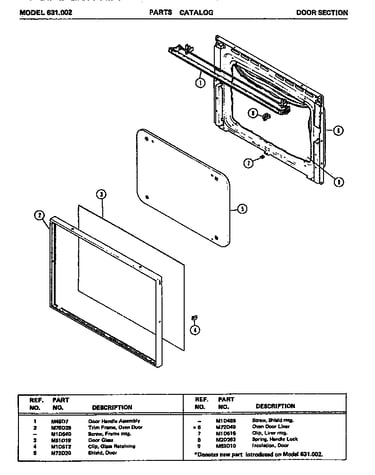

Door section diagram

Flathead screw, trim mounting

Part #M1D540

The manufacturer no longer makes this part, and there's no substitute part

Selector Switch M14D125
#30A

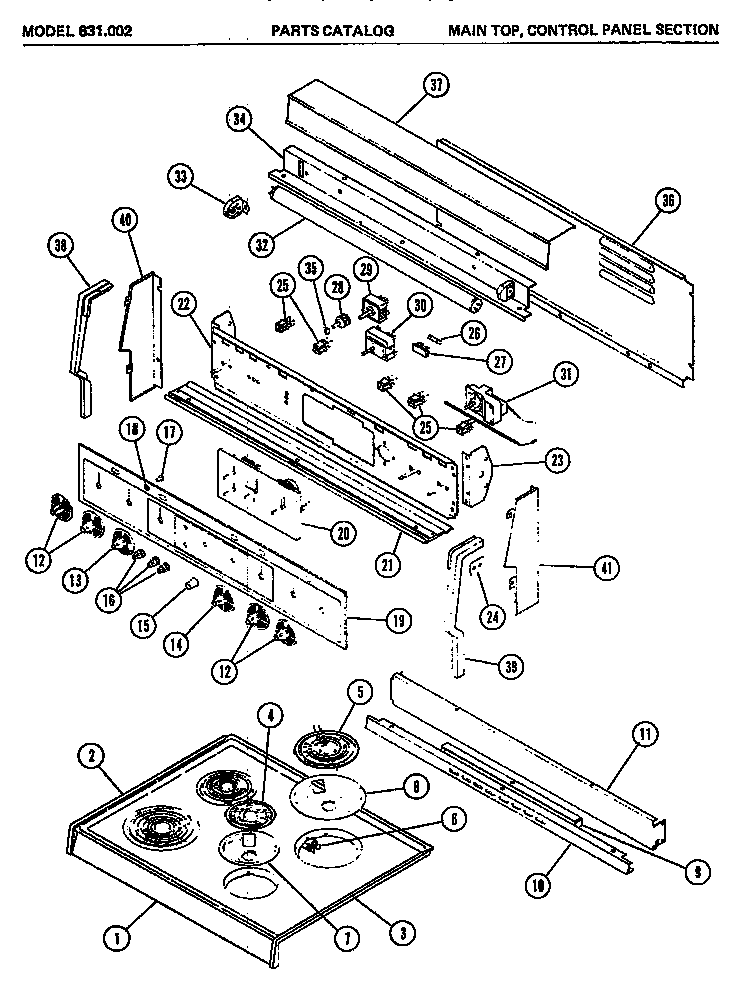

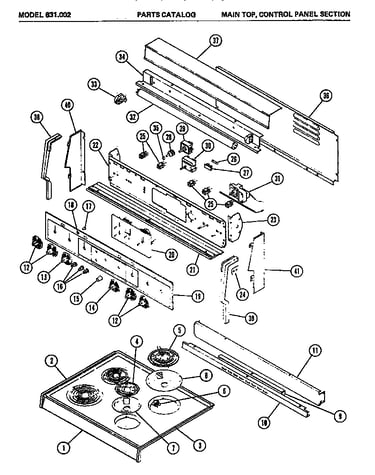

Main top diagram

Selector switch

Part #M14D125

The manufacturer no longer makes this part, and there's no substitute part

Lower Side Panel (h. Gold) M82D103
#30B

Oven frame section diagram

Lower side panel (h. gold)

Part #M82D103

The manufacturer no longer makes this part, and there's no substitute part

Vertical Exhaust Duct M65D88
#13

Oven frame section diagram

Vertical exhaust duct

Part #M65D88

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Shaft Support M20D97
#24A

Microwave cavity diagram

Bracket, shaft support

Part #M20D97

The manufacturer no longer makes this part, and there's no substitute part

Ballast, Surface Light M8D79
#49A

Microwave cavity diagram

Ballast, surface light

Part #M8D79

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Screw M1D532
Adjustment screw

Part #M1D532

The manufacturer no longer makes this part, and there's no substitute part

Side Cover, Right (almond) M53D30
#41E

Main top diagram

Side cover, right (almond)

Part #M53D30

The manufacturer no longer makes this part, and there's no substitute part
