Model # SWTZ21WN Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWTZ21WN commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

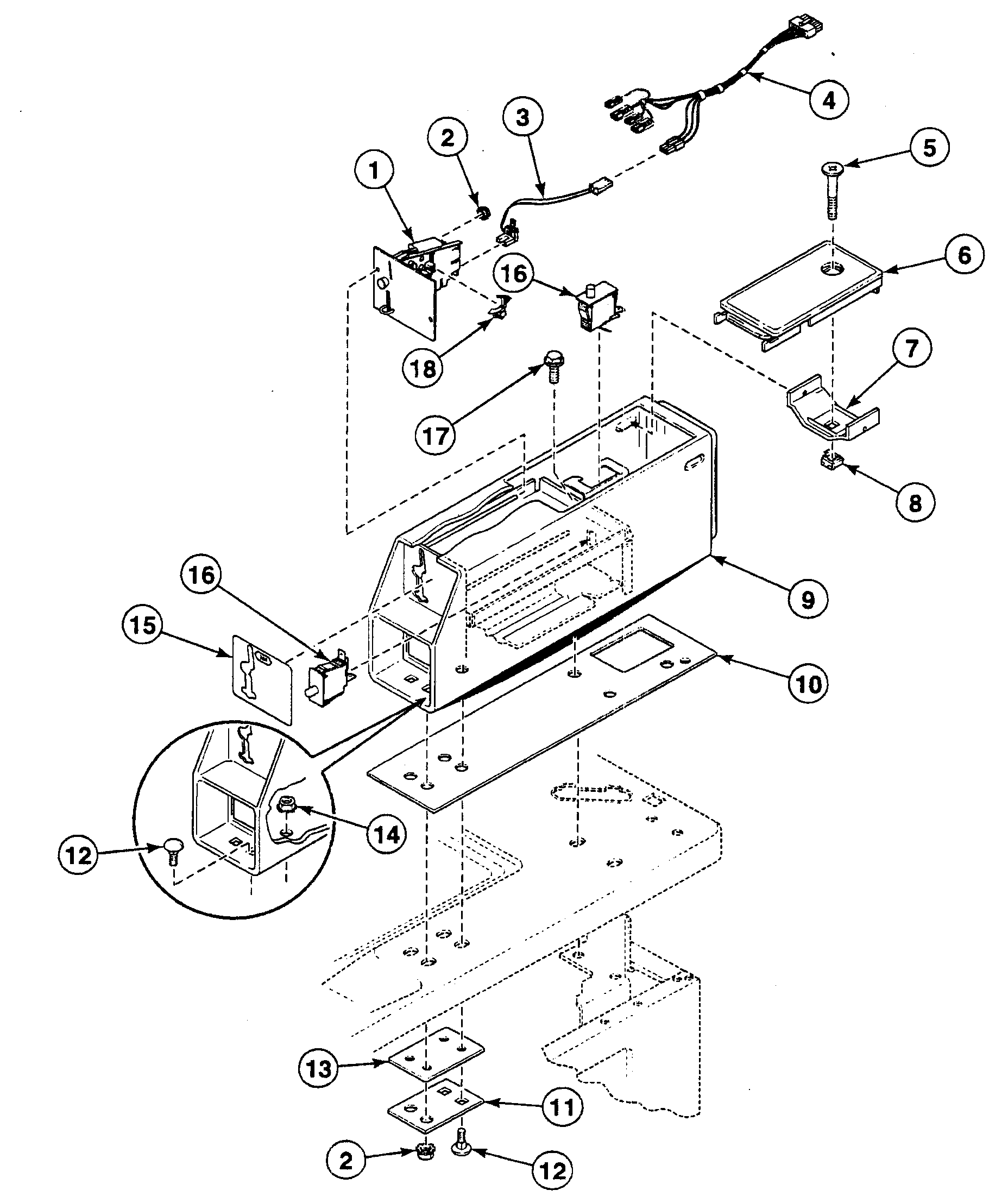

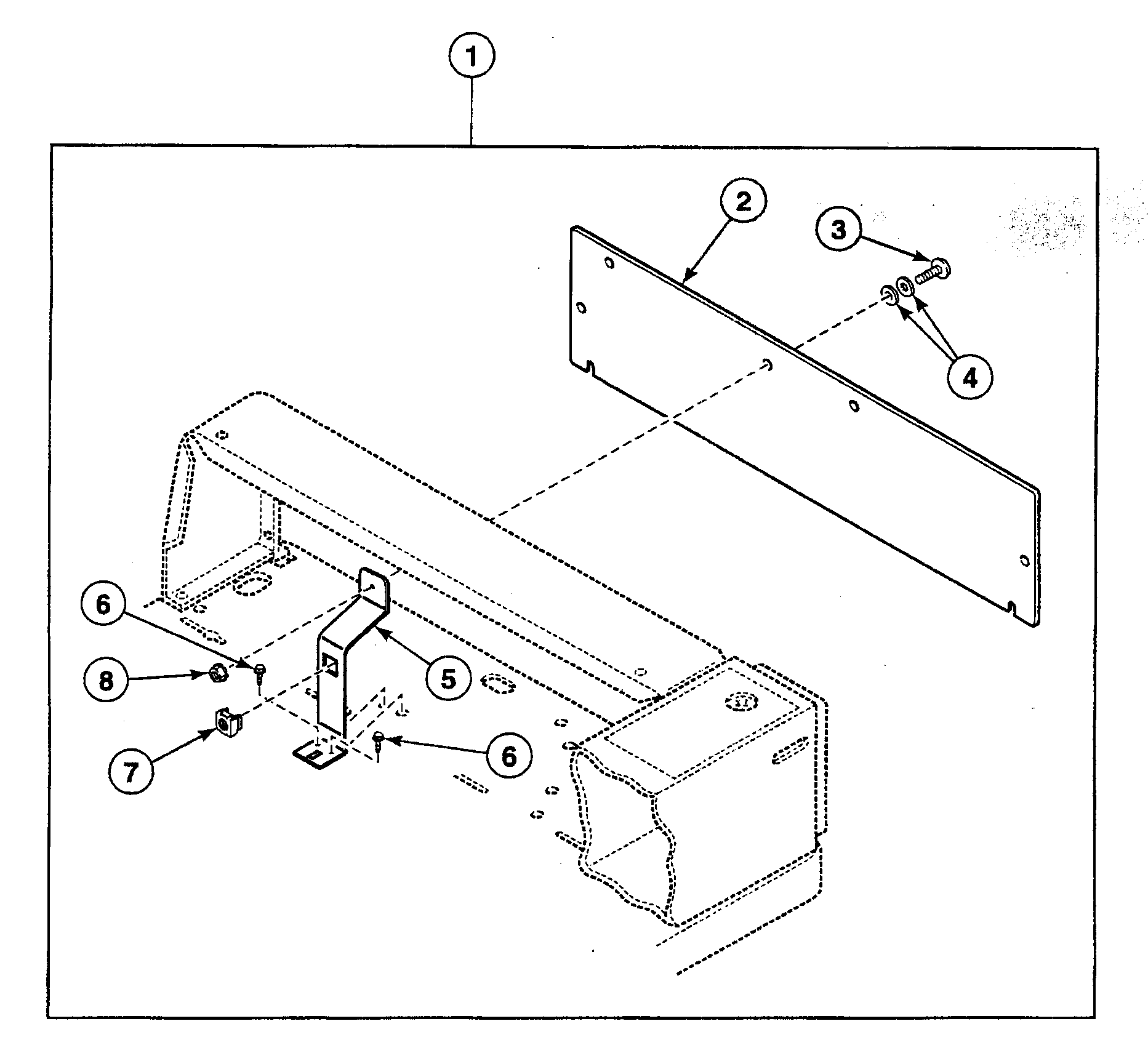

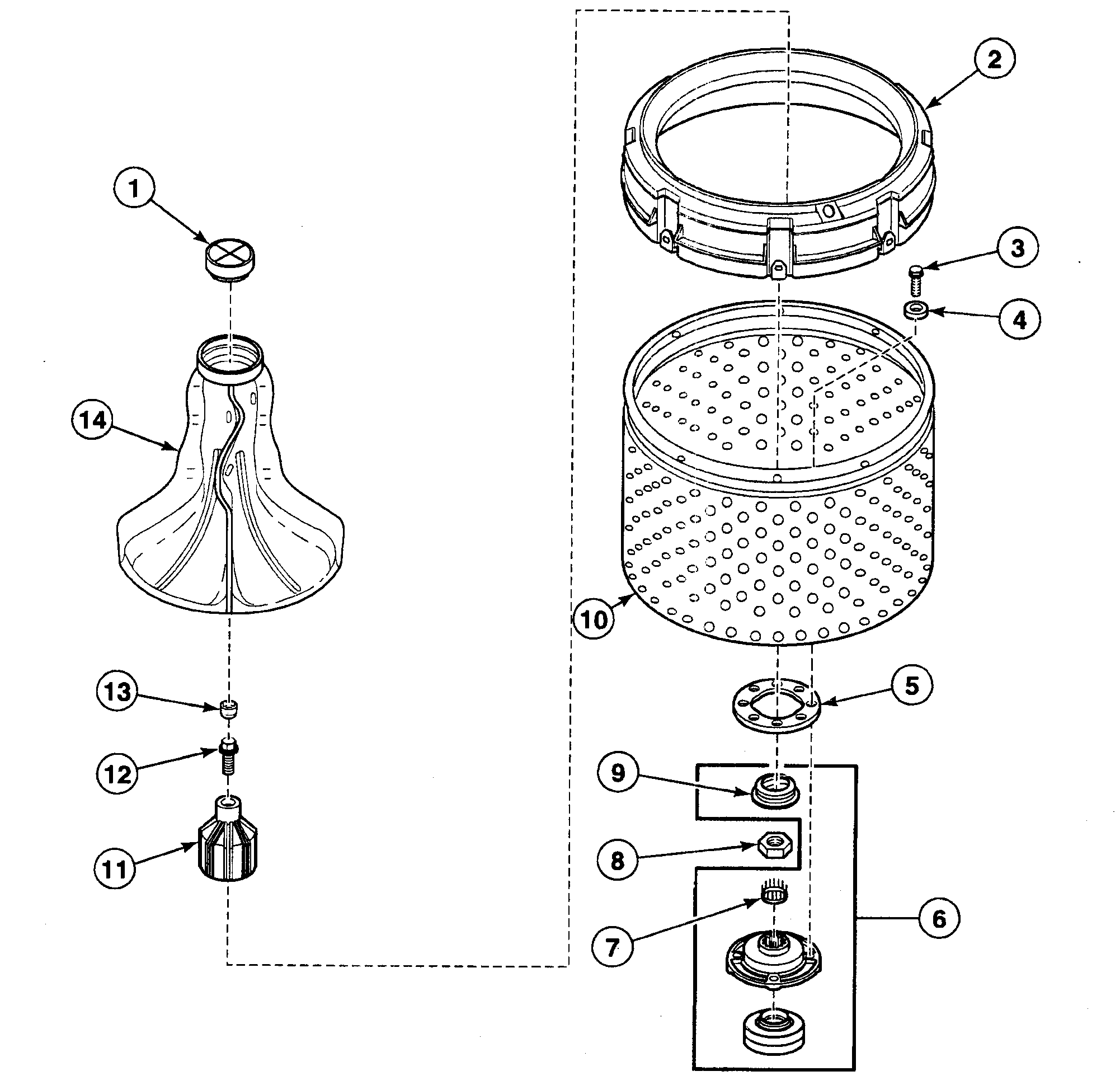

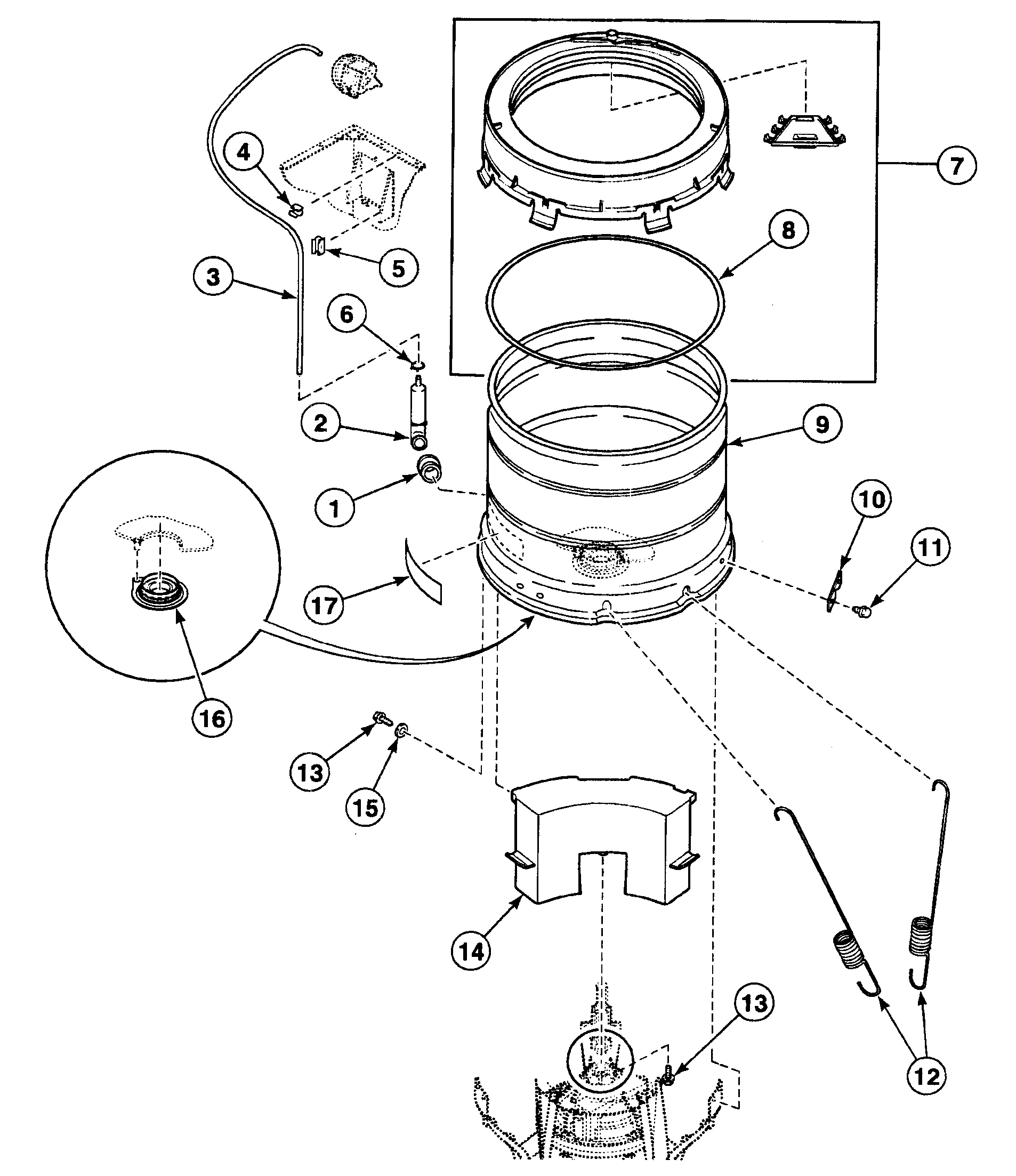

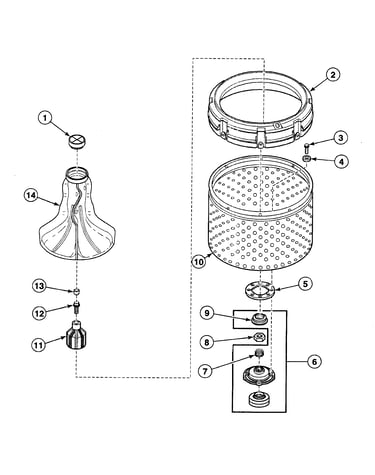

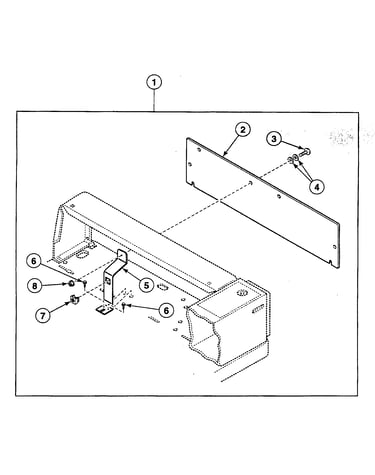

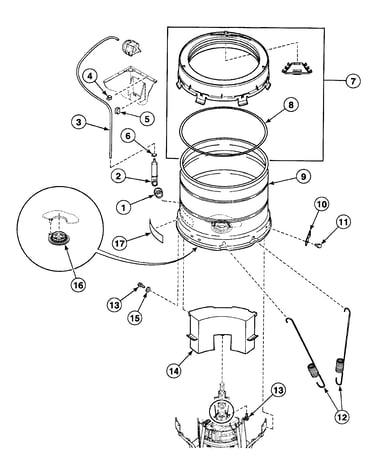

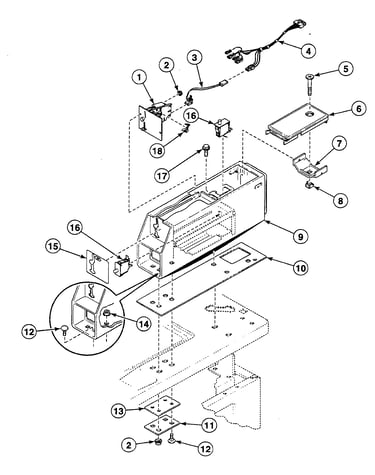

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |

Gasket 34338
#5

Lid assy diagram

Gasket

Part #34338

The manufacturer no longer makes this part, and there's no substitute part

Washer 200608
#2

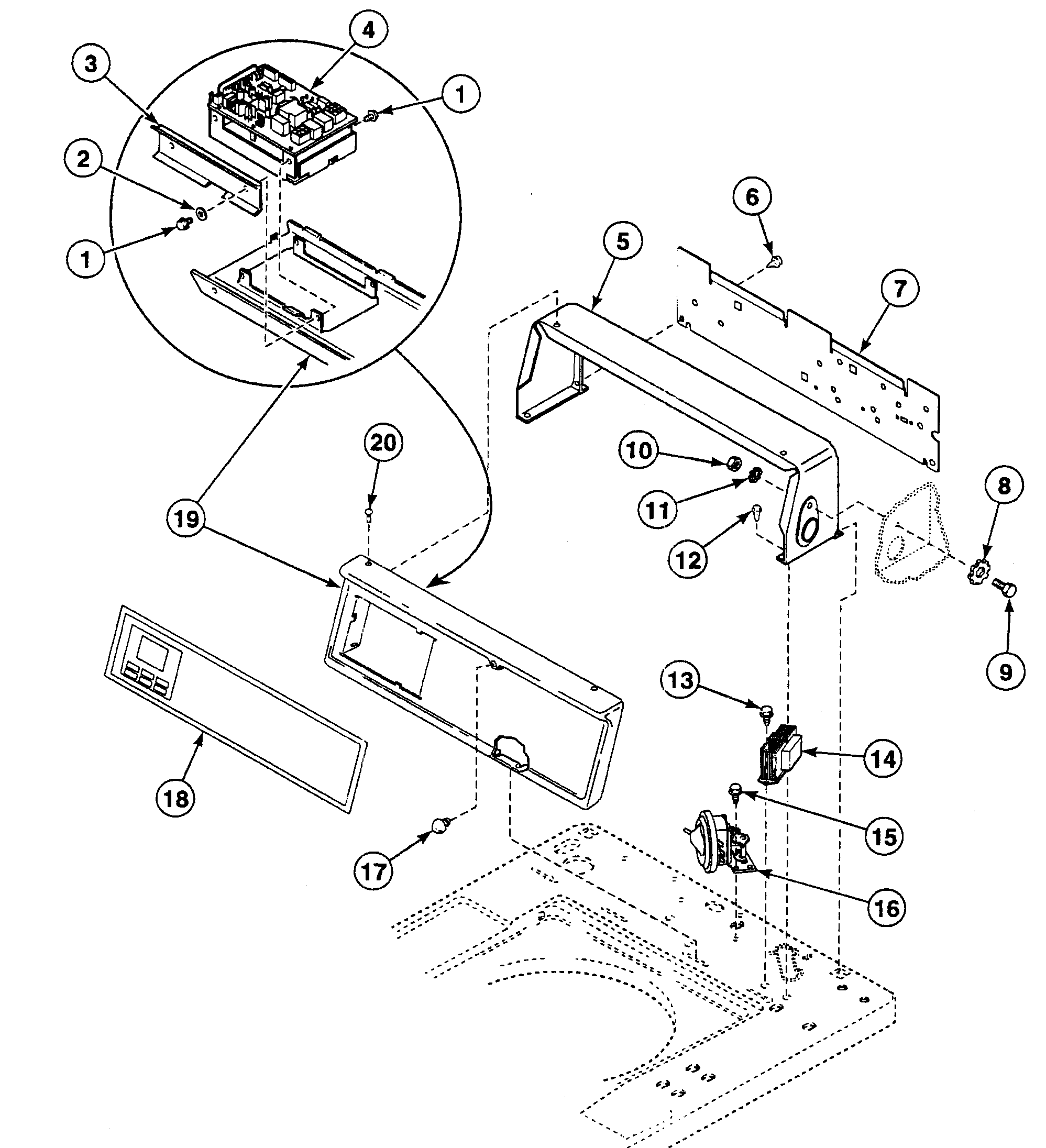

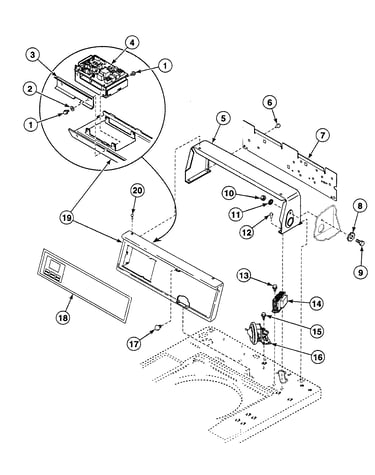

Control panel diagram

Washer

Part #200608

The manufacturer no longer makes this part, and there's no substitute part

Strain Release 38384
#3

Cabinet top diagram

Strain release

Part #38384

The manufacturer no longer makes this part, and there's no substitute part

Drain Hose 36990
#10

Drain hoses diagram

Drain hose

Part #36990

The manufacturer no longer makes this part, and there's no substitute part

Screw 35369
Screw

Part #35369

The manufacturer no longer makes this part, and there's no substitute part

Screw 201773
#6

Transmission diagram

Screw

Part #201773

The manufacturer no longer makes this part, and there's no substitute part

Terminal 00117
#4

Terminals diagram

Terminal

Part #00117

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Belt 38174
#19

Motor assy diagram

Washer drive belt

Part #38174

The manufacturer no longer makes this part, and there's no substitute part

Washer Hub And Seal Kit 766P3A
Washer hub and seal kit

Part #766P3A

The manufacturer no longer makes this part, and there's no substitute part

Reducer Gear 37404P
#13

Transmission diagram

Reducer gear

Part #37404P

The manufacturer no longer makes this part, and there's no substitute part
