What are the parts of an electric oven?
In a Maytag MES5770AAW electric range, the main electric oven parts include the bake and broil heating elements, oven temperature sensor, oven racks, oven light, door and hinges, and the oven venting and insulation that help control heat and airflow. For diagrams and names, use the owner's manual.
- Bake element: provides most of the heat for baking and roasting.
- Broil element: provides high, top-down heat for broiling and browning.
- Oven temperature sensor: tells the control how hot the oven is so it can regulate temperature.
- Oven racks: support cookware and set cooking height.
- Oven light and lens: lets you check food without opening the door.

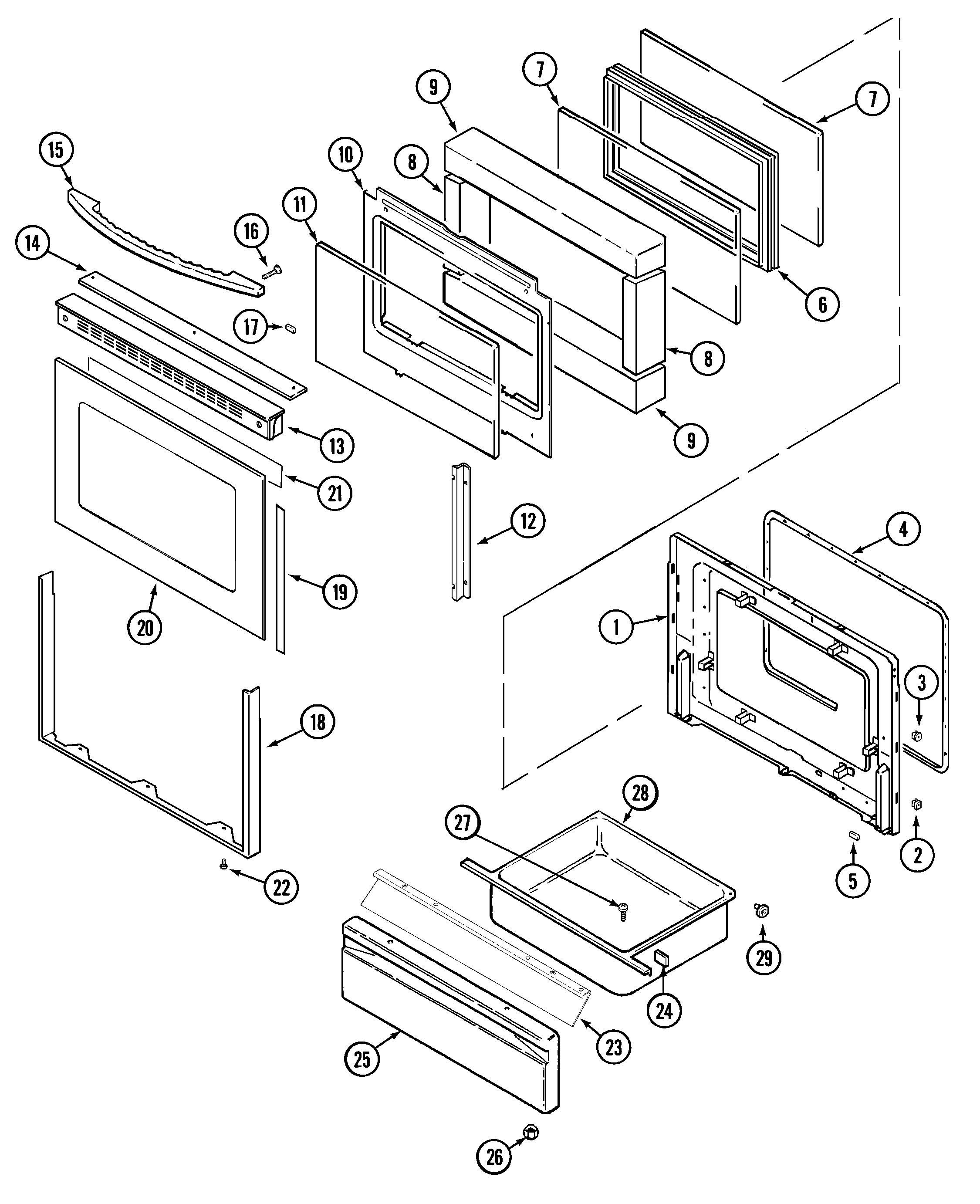

- Oven door system: inner glass, hinges, and gasket help seal heat in.
- Oven vent duct: releases heat and moisture; it should not be blocked.
These are common, serviceable parts we see customers replace on the MES5770AAW:
- Bake element WP74010750 (heating for bake)
- Oven sensor 12001656 (temperature regulation)
- Oven rack WPW10282492 (rack bent, rusted, or missing)
- Oven bulb 8009 (light not working)
- Oven hinge WP74011141 (door not closing evenly)
| Symptom | Most likely area | Common part to check |
|---|---|---|
| Oven will not heat in bake | Bake heating circuit | Bake element, wiring |
| Oven temperature is inaccurate | Temperature sensing | Oven sensor |
| Door won’t close or drops | Door hardware | Hinges, gasket |
| Light doesn’t work | Lighting | Bulb, switch |
Knowing the main oven components helps you troubleshoot faster and order the right Maytag range parts. It also supports safe use, like keeping the oven vent clear and avoiding contact with hot heating elements.
Last updated: February 2026
Where can I get Maytag replacement parts?
You can get replacement parts for your Maytag MES5770AAW electric range directly from the parts list for this model, using the diagrams to match the exact part you need. For part identification and safe access instructions, use the MES5770AAW owner's manual.
- Start with the symptom (for example: oven not heating, burner not working, light out).

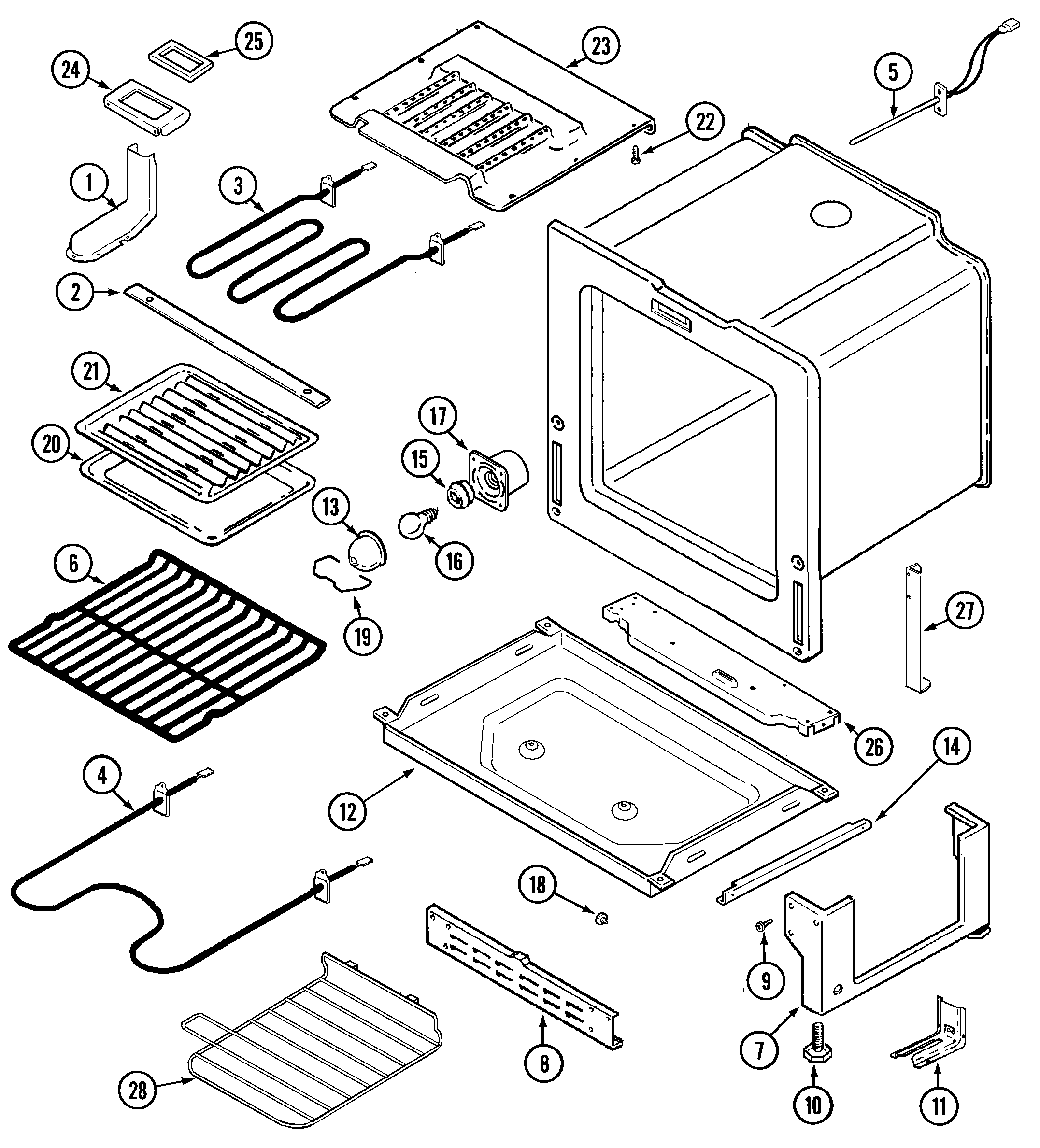

- Use the model-specific parts diagrams to locate the exact component.
- Match by part description and your range’s configuration (bake vs broil, single vs dual element).
- Confirm the part ID before ordering.
- Keep your model and serial number handy for accurate matching.
These are frequently replaced items for the MES5770AAW when you have heating or lighting issues:
| Problem you notice | Part to check first | Example part on this model page |
|---|---|---|
| Oven temperature seems inaccurate | Oven temperature sensor | Oven sensor 12001656 |
| Oven will not bake or bakes unevenly | Bake element | Bake element WP74010750 |
| Oven light is out | Oven bulb | Oven bulb 8009 |
Ordering by model number matters because electric ranges often use multiple versions of surface elements, control switches, and oven components. Using the MES5770AAW diagrams and manual helps you avoid returns and gets your range heating correctly again.
Last updated: February 2026
Why is my Maytag electric range not heating?
If your Maytag MES5770AAW electric range is not heating, the most common causes are a failed bake element, a bad oven temperature sensor, or a power supply problem (the range can light up but still not heat if it is missing one leg of 240V). Use the troubleshooting steps in the owner's manual to narrow it down safely.
- Confirm the oven is set to Bake (not Delay Start or Sabbath mode, if equipped).
- Try Broil; if broil heats but bake does not, the bake circuit is the likely issue.
- Check your home breaker: most electric ranges use a double-pole breaker; reset it fully.
- Look for obvious damage: a bake element that is blistered, cracked, or has burned spots.
- If the control shows an error code (such as F30/F31), treat it as a sensor or wiring clue.
Two model-relevant parts on this page are frequent fixes:
- Bake element WP74010750 (if bake will not heat or preheat never completes)
- Oven sensor 12001656 (if temperatures are wildly off, preheat stalls, or you see sensor-related errors)
| What you notice | Most likely area | What to do next |
|---|---|---|
| Oven will not heat on Bake; Broil works | Bake heating circuit | Inspect/replace bake element; check wiring at element terminals |
| Neither Bake nor Broil heats; cooktop may still work | Power supply or control/relay | Verify 240V supply at outlet/breaker; then check control/relay circuits |
| Oven heats but is inaccurate or throws sensor-type errors | Temperature sensing | Test/replace oven sensor; inspect sensor harness |
When an electric oven is missing full 240V power or has a failing heating component, it can run the display and lights but never reach temperature. Fixing the correct part restores safe, consistent baking and prevents overheating of wiring connections.
- Turn off the breaker before removing panels or touching wiring.
- Heating elements and nearby metal surfaces stay hot after use; allow cooling time.
- The manual recommends having a qualified technician handle service not specifically covered for consumers.
Last updated: February 2026
