KitchenAid KG25H1XER5 mixer Parts
Here are the diagrams and repair parts for KitchenAid KG25H1XER5 mixer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KG25H1XER5 Mixer

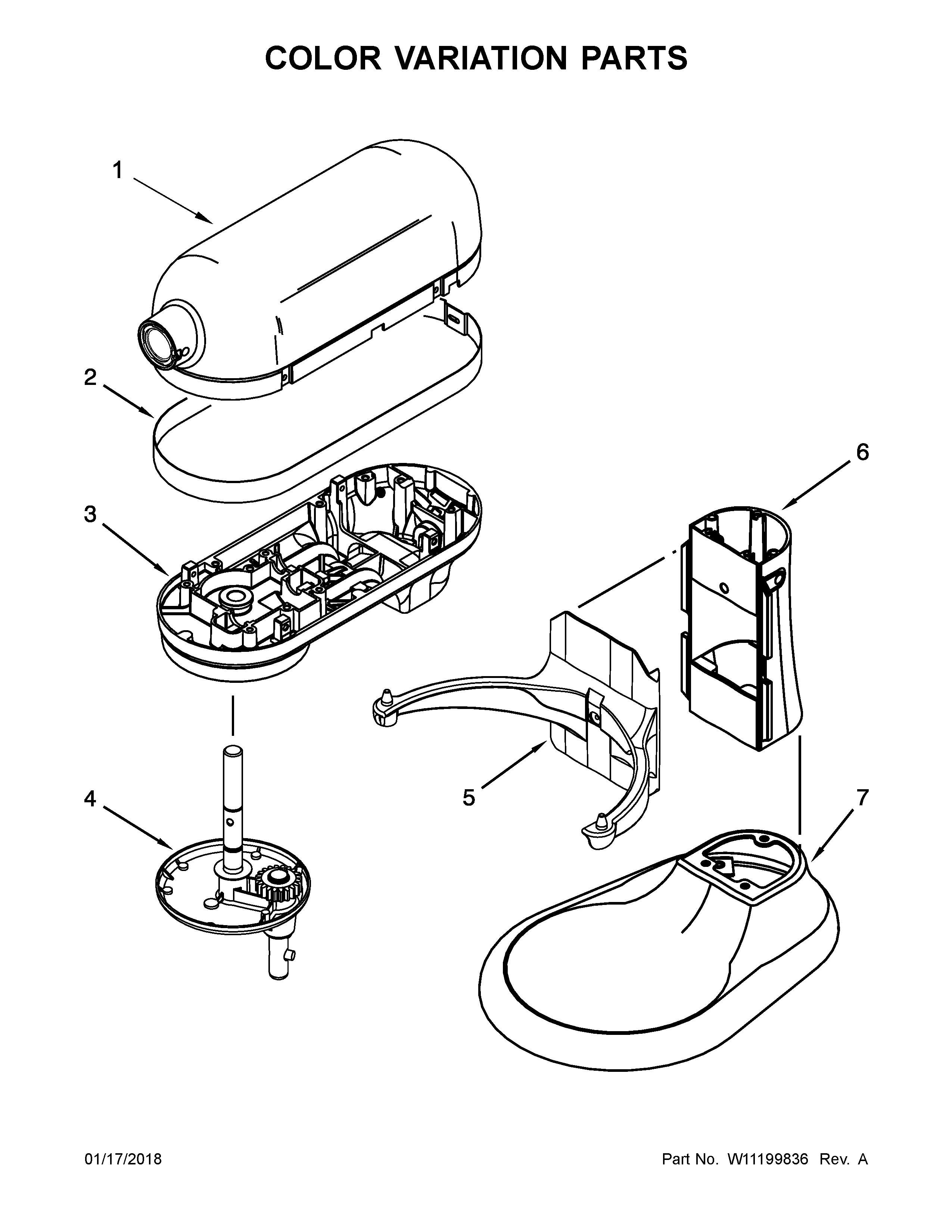

Color variation parts diagram
Base
In Stock$102.62
Qty

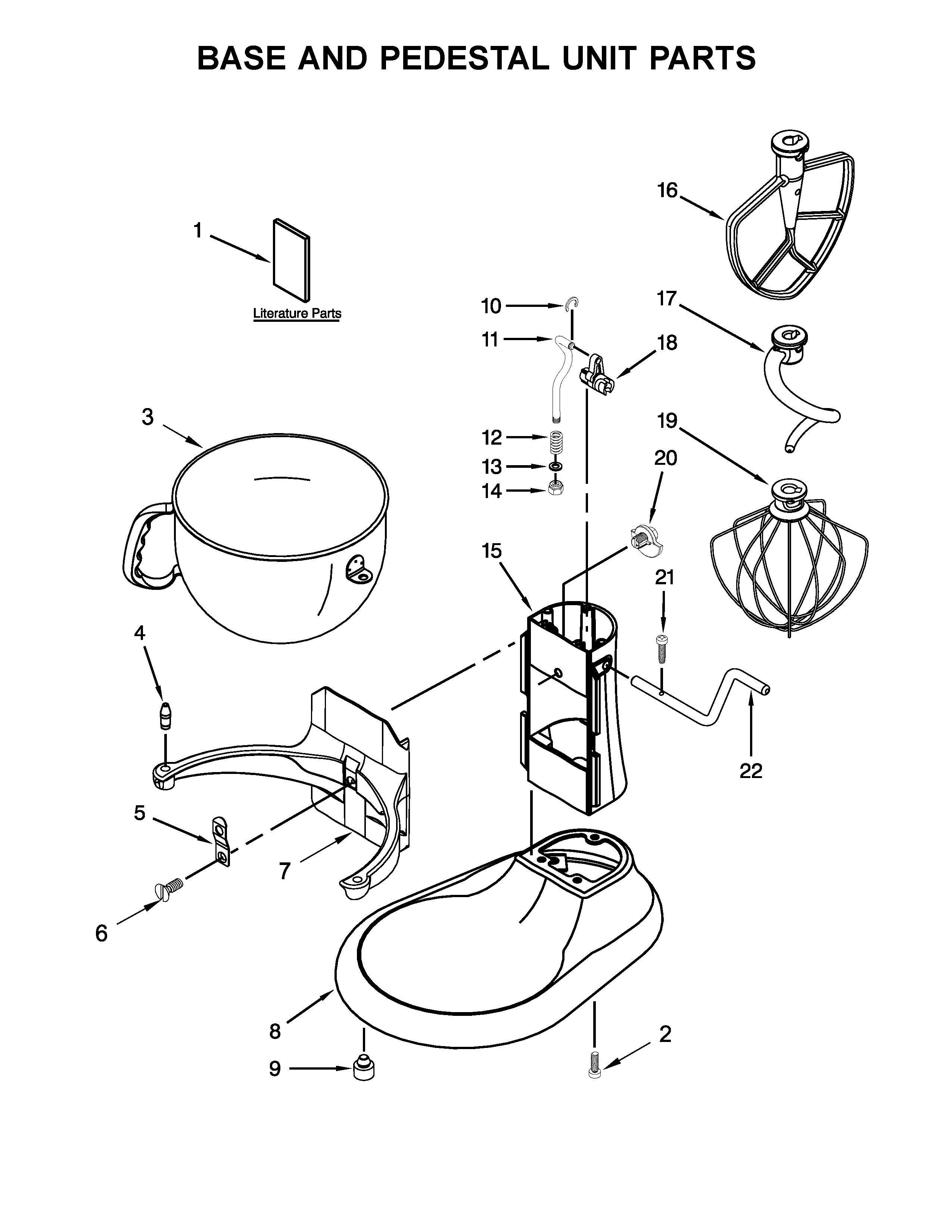

Base and pedestal unit parts diagram
Nut

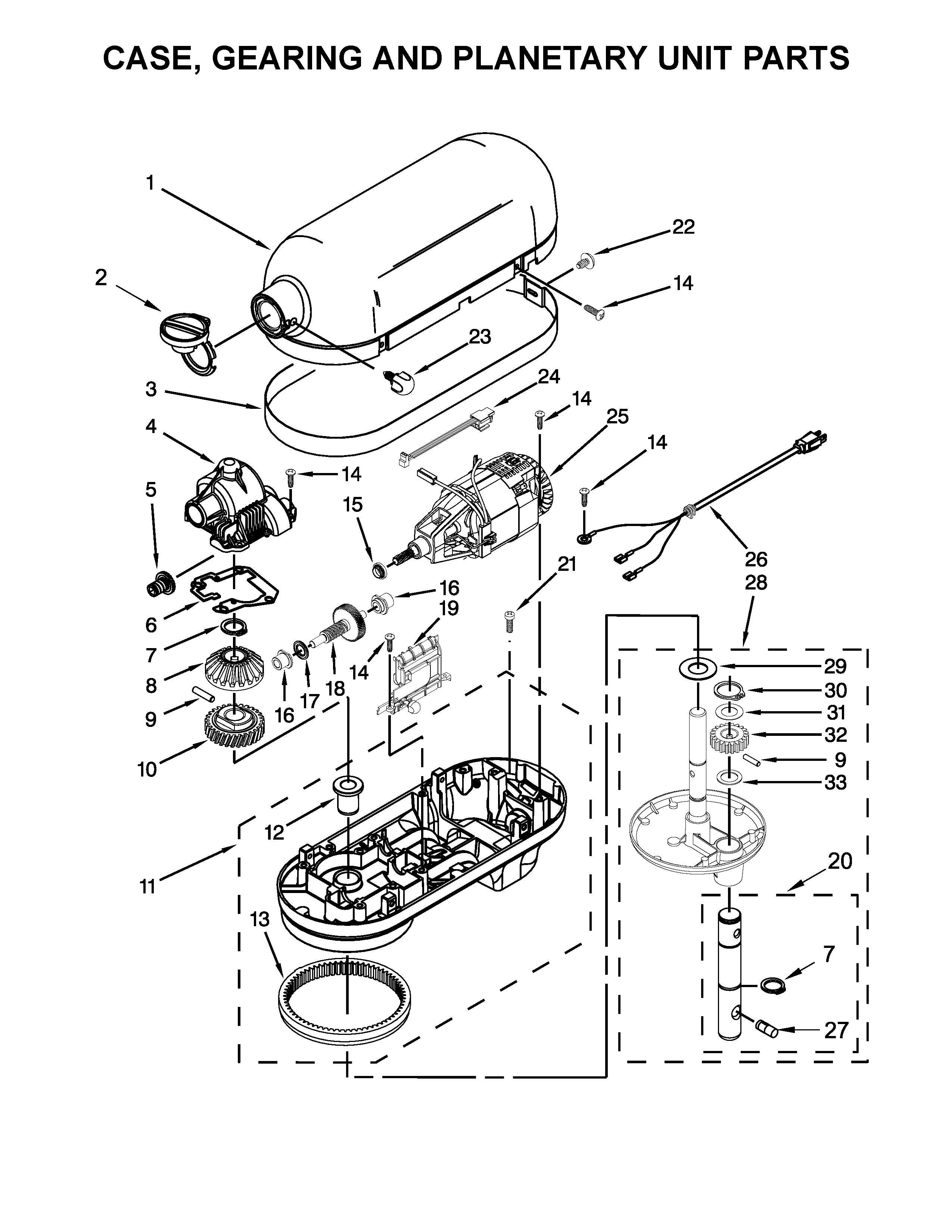

In Stock$51.13QtyCase, gearing and planetary unit parts diagram
Retaining Ring
Part #9703680Replaced by #WP9703680
Manufacturer substitutionThis part replaces 9703680. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0614% OFF Phone Price : $7.06
QtyBase and pedestal unit parts diagram
Rubber Foot
Part #9708649Replaced by #WP9708649
Manufacturer substitutionThis part replaces 9708649. Substitute parts can look different from the original.In Stock$28.90QtyCase, gearing and planetary unit parts diagram
.516id .750o
Part #8533910Replaced by #W10854966
Manufacturer substitutionThis part replaces 8533910. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0514% OFF Phone Price : $7.05QtyCase, gearing and planetary unit parts diagram
Ring Gear
Part #W11044502Replaced by #W11181966
Manufacturer substitutionThis part replaces W11044502. Substitute parts can look different from the original.This item is not returnableIn Stock$17.0311% OFF Phone Price : $19.03QtyBase and pedestal unit parts diagram
Screw
Part #3400863Replaced by #WP3400814
Manufacturer substitutionThis part replaces 3400863. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0514% OFF Phone Price : $7.05QtyCase, gearing and planetary unit parts diagram
Bearing
Part #W10170080Replaced by #WPW10170080
Manufacturer substitutionThis part replaces W10170080. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2514% OFF Phone Price : $7.25QtyCase, gearing and planetary unit parts diagram
Stand Mixer Worm Follower Gear
Part #W10916068Replaced by #W11086780
Manufacturer substitutionThis part replaces W10916068. Substitute parts can look different from the original.In Stock$18.7010% OFF Phone Price : $20.70QtyCase, gearing and planetary unit parts diagram
Agitator Shaft
Part #9708191Replaced by #WP9708191
Manufacturer substitutionThis part replaces 9708191. Substitute parts can look different from the original.This item is not returnableIn Stock$20.0123% OFF Phone Price : $26.01Qty
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad worm gear, damaged planetary gear assembly…
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…
Main cause: worn carbon motor brushes…
Main causes: phase control board failure, wiring connection problem, faulty electronic control board…
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
Main cause: attachment clearance setting needs adjustment…
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged.…
Repair time and Difficulty
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar…
Repair time and Difficulty
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Find out what’s wrong with your appliance by following a circuit.…
Learn how to decipher symbols so you can buy the right part for your problem.…
Find out five tips and techniques to help get the most out of your stand mixer.…
