Samsung RF266AEWP/XAA-00 refrigerator

Samsung RF266AEWP/XAA-00 refrigerator Parts

Here are the diagrams and repair parts for Samsung RF266AEWP/XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RF266AEWP/XAA-00 Refrigerators

  • Samsung Refrigerator Ice Maker Assembly for Samsung RF266AEWP/XAA-00 - Part DA97-07603B

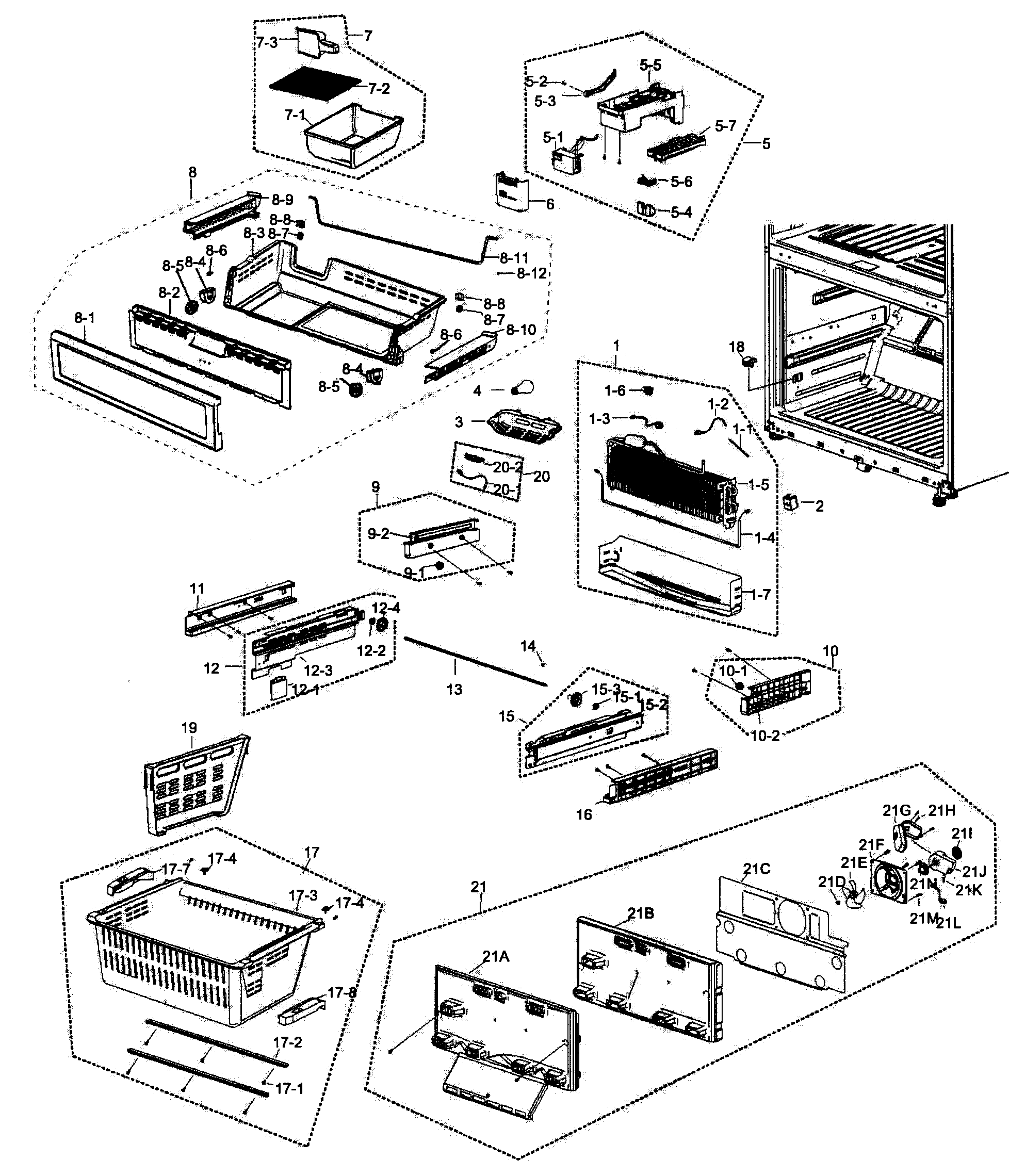

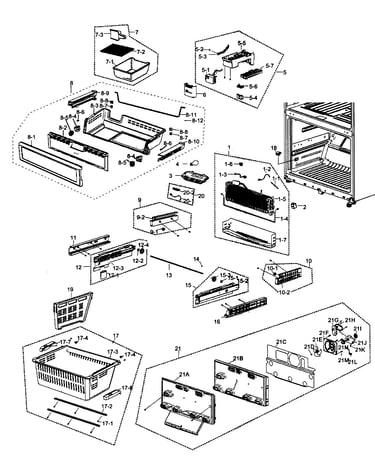

    Freezer assy diagram

    Refrigerator Ice Maker

    Part #DA97-07603A

    Replaced by #DA97-07603B

    Info Icon
    Manufacturer substitution
    This part replaces DA97-07603A. Substitute parts can look different from the original.
    In Stock
    $217.61
    5% OFF Phone Price : $229.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Samsung RF266AEWP/XAA-00 - Part DA47-00243K

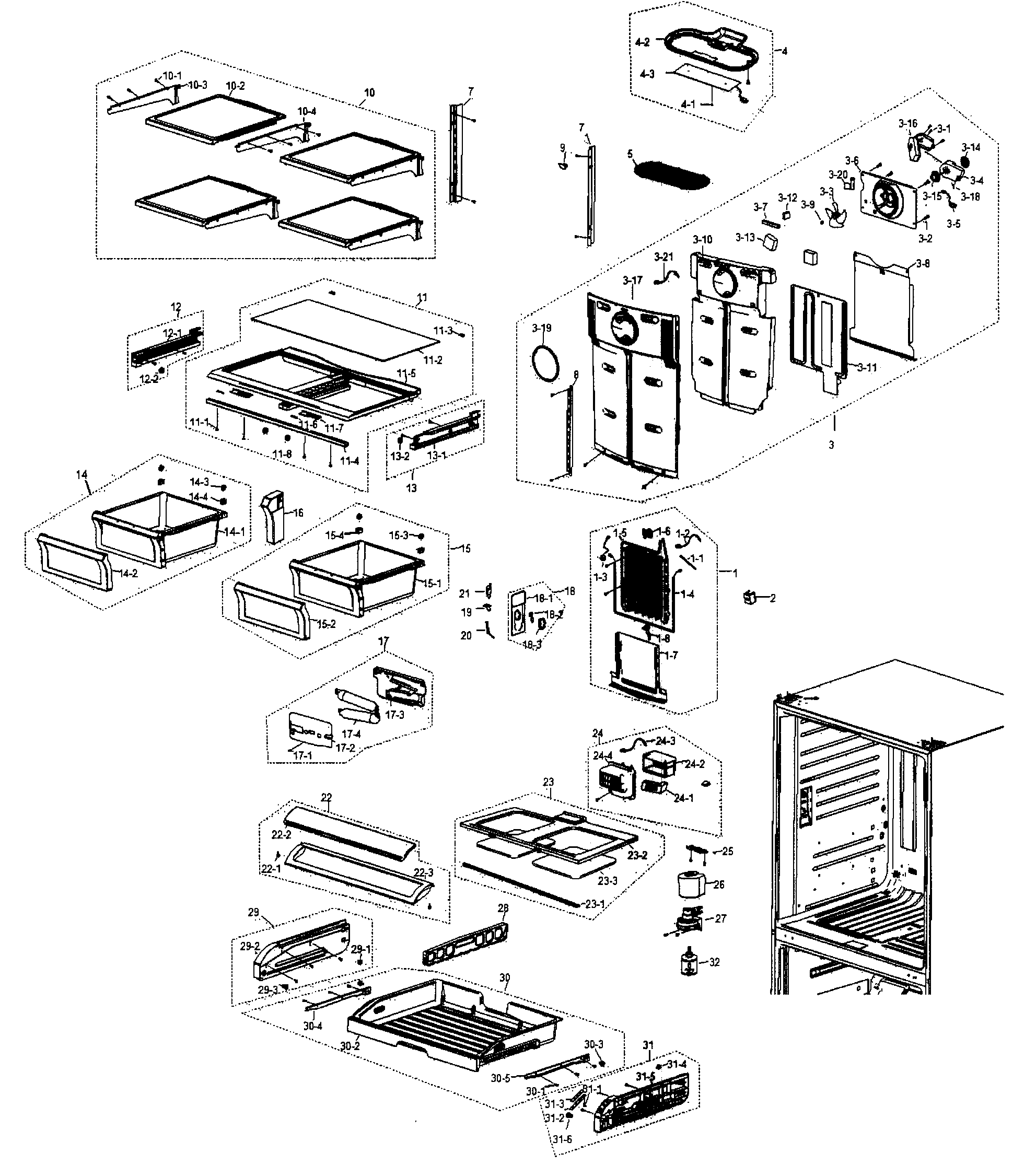

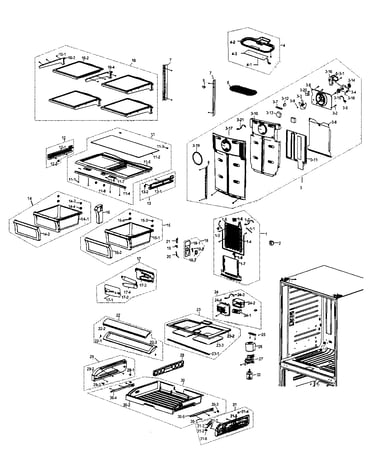

    Refrig asy diagram

    Refrigerator Protector

    Part #DA47-00243C

    Replaced by #DA47-00243K

    Info Icon
    Manufacturer substitution
    This part replaces DA47-00243C. Substitute parts can look different from the original.
    In Stock
    $56.78
    10% OFF Phone Price : $62.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Samsung RF266AEWP/XAA-00 - Part DA47-00243K

    Freezer assy diagram

    Refrigerator Protector

    Part #DA47-00243B

    Replaced by #DA47-00243K

    Info Icon
    Manufacturer substitution
    This part replaces DA47-00243B. Substitute parts can look different from the original.
    In Stock
    $56.78
    10% OFF Phone Price : $62.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Samsung RF266AEWP/XAA-00 - Part DA81-06007A

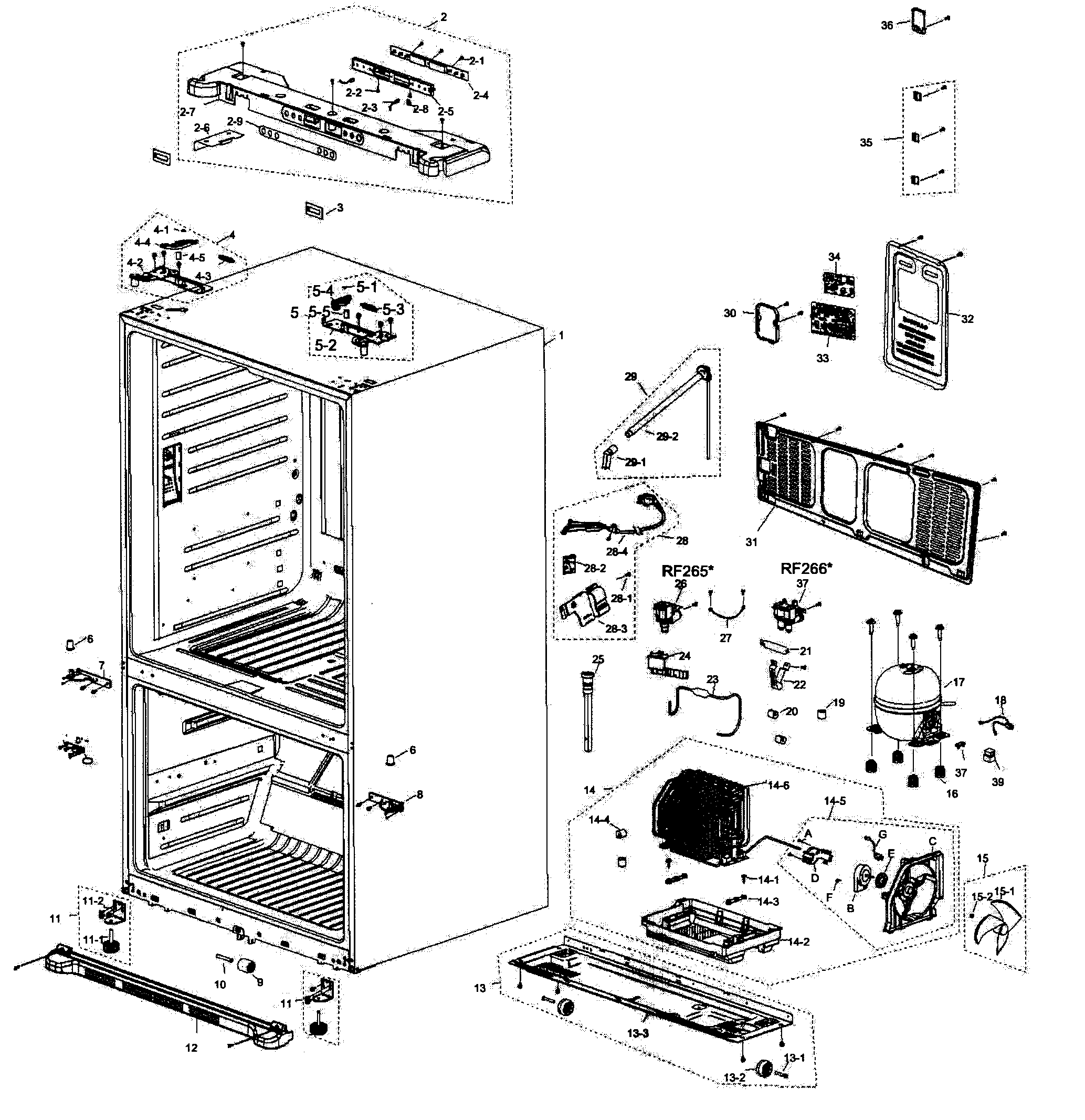

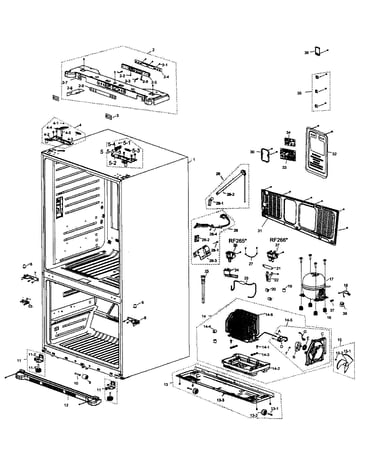

    Cabinet diagram

    Refrigerator Dryer

    Part #DA62-01514A

    Replaced by #DA81-06007A

    Info Icon
    Manufacturer substitution
    This part replaces DA62-01514A. Substitute parts can look different from the original.
    In Stock
    $80.33
    18% OFF Was : $98.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Sensor for Samsung RF266AEWP/XAA-00 - Part DA32-00006S

    Refrig asy diagram

    Refrigerator Defrost Sensor

    In Stock
    $37.76
    14% OFF Phone Price : $43.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Drain Tube for Samsung RF266AEWP/XAA-00 - Part DA97-04049D

    Cabinet diagram

    Refrigerator Cap Assembly

    Part #DA97-06970A

    Replaced by #DA97-04049D

    Info Icon
    Manufacturer substitution
    This part replaces DA97-06970A. Substitute parts can look different from the original.
    In Stock
    $33.83
    15% OFF Phone Price : $39.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Drain Tube for Samsung RF266AEWP/XAA-00 - Part DA97-04049D

    Freezer assy diagram

    Refrigerator Drain Cap

    Part #DA67-02128A

    Replaced by #DA97-04049D

    Info Icon
    Manufacturer substitution
    This part replaces DA67-02128A. Substitute parts can look different from the original.
    In Stock
    $33.83
    15% OFF Phone Price : $39.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Pro Refrigerator Temperature Sensor for Samsung RF266AEWP/XAA-00 - Part DA32-10105X

    Refrig asy diagram

    Kenmore Pro Refrigerator Temperature Sensor

    In Stock
    $30.57
    16% OFF Phone Price : $36.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Samsung RF266AEWP/XAA-00 - Part MKV190CL2J/SM1

    Cabinet diagram

    Refrigerator Compressor

    Part #BK190CL2C/SM1

    Replaced by #MKV190CL2J/SM1

    Info Icon
    Manufacturer substitution
    This part replaces BK190CL2C/SM1. Substitute parts can look different from the original.
    In Stock
    $470.04
    $12.00 OFF Phone Price : $482.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Samsung Refrigerator Door Gasket for Samsung RF266AEWP/XAA-00 - Part DA63-06542A

    Refrigerator Gasket

    Part #DA97-07191A

    Replaced by #DA63-06542A

    Info Icon
    Manufacturer substitution
    This part replaces DA97-07191A. Substitute parts can look different from the original.
    In Stock
    $146.65
    8% OFF Phone Price : $158.65Info Icon
    Minus Item
    Qty
    Plus Item

Samsung Refrigerator RF266AEWP/XAA-00 FAQs

On the Samsung RF266AEWP refrigerator, a “26E” display typically shows up when the ice maker area is not operating normally due to ice buildup, airflow restriction, or a water-fill problem. The most reliable first step is a full ice maker compartment defrost, then a reset and basic checks from the RF266AEWP owner's manual.

Step-by-step fix (start here)
  • Power the refrigerator off at the breaker or unplug it.
  • Empty the ice bin and remove any clumped ice.
  • Leave the freezer door open and let the ice maker area thaw completely.
  • Dry the ice room, bin, and surrounding surfaces.
  • Restore power, then allow time for the ice maker to cycle and refill.
Checks that prevent the code from coming back
  • Confirm freezer temperature is set correctly and is actually reaching temperature.
  • Make sure the ice bin is fully seated and the auger area is not jammed.
  • Inspect door gaskets for gaps that let humid air in and create frost.
  • Verify the household water supply valve is fully open.
  • Check the water line behind the refrigerator for kinks or pinches.
When a part is the likely fix

If the error returns after a complete thaw and the water supply is good, focus on the ice maker fill and ice maker operation.

What you notice What it points to Example part to check
Fill area keeps icing up Fill tube heating or insulation issue Refrigerator ice maker fill tube heater DA47-00192E
Ice maker will not cycle or harvest Ice maker mechanism issue Refrigerator ice maker DA59-00294A
No water to ice maker and dispenser is weak Water supply or valve issue Water inlet valve (match by model)
Why it matters

Ice buildup around the ice maker can block airflow and interfere with filling and harvesting. Clearing the ice and correcting the moisture or water-fill cause restores normal ice production and helps prevent leaks and repeat error displays.

Helpful DIY guidance

Last updated: February 2026

On the Samsung RF266AEWP refrigerator, RD (refrigerator defrost) targets the fresh food (refrigerator) evaporator defrost cycle, while FD (force defrost) runs a broader defrost that can address heavier frost issues across the cooling system. Use RD for fridge-only frost symptoms; use FD when icing is more widespread.

What each mode is used for
  • RD (refrigerator defrost): Helps clear frost buildup that mainly affects refrigerator-side airflow and cooling.
  • FD (force defrost): Helps clear heavier icing that can impact overall performance (often used when symptoms suggest more than one area is affected).
  • Both are service-mode functions, not normal day-to-day settings.
  • After any forced defrost, allow time for temperatures to stabilize before judging results.
Common symptoms that point to RD vs FD
  • Choose RD when you see:
    • Refrigerator section warming but freezer is mostly normal
    • Frost behind the refrigerator rear panel
    • Weak airflow from refrigerator vents
  • Choose FD when you see:
    • Repeated icing that returns quickly
    • Cooling issues that seem to affect multiple compartments
    • Ice maker area icing or water freezing where it should not
Quick comparison
Mode What it targets Best for What to watch after
RD Refrigerator (fresh food) defrost Fridge-only frost and airflow problems Fridge temp recovery and vent airflow
FD Broader forced defrost routine Heavy icing, multi-area symptoms Both compartments stabilizing over several hours
Why it matters

Picking the right defrost mode saves time and helps you confirm the real problem. If frost returns soon after RD or FD, the root cause is usually an airflow restriction, a defrost system issue, or a drain problem. For defrost and service-mode details specific to this model, follow the steps in the RF266AEWP owner's manual.

Last updated: February 2026

The most common problem we see on Samsung refrigerators like model RF266AEWP is a cooling issue caused by frost and ice buildup around the evaporator area, which restricts airflow and makes the fresh food section warm even when the freezer still seems cold. Ice maker and water dispensing problems are also very common.

Most common symptoms customers notice
  • Refrigerator section warms up but freezer stays near normal
  • Frost or a solid ice sheet on the back wall inside the refrigerator
  • Fan noise, rubbing, or a “whooshing” sound that comes and goes
  • Ice maker stops producing ice or makes small, hollow cubes
  • Water dispenser flow is slow or stops
What usually causes it (and what to check first)

These are the most frequent root causes we troubleshoot on bottom-mount and French door Samsung units:

Symptom Most likely area Quick check you can do Typical fix
Warm fresh food, freezer OK Defrost system or airflow Look for heavy frost behind rear panel Defrost repair, clear ice, restore airflow
Ice maker not making ice Water supply or ice maker Confirm shutoff valve is fully open Address water flow, then test ice maker
Slow/no water at dispenser Water inlet valve or filter path Check household water pressure and kinks Restore supply, replace failed valve/filter
Water under crisper/drawer Drain system Look for ice or debris in drain trough Clear drain, correct drain tube issues

For model-specific operating and temperature setting guidance, use the RF266AEWP owner's manual.

Parts that commonly relate to these problems on RF266AEWP

When symptoms point to a specific failure, these parts are often involved on this model:

Why it matters

Cooling and ice maker complaints often share the same underlying issue: restricted airflow or poor water flow. Fixing the root cause protects food temperatures, reduces frost buildup, and prevents repeat ice maker and dispenser failures.

If you’re seeing a display error, our Samsung rf26 model french door refrigerator error codes guide is a fast way to narrow the problem to a sensor, fan, or defrost circuit.

Last updated: February 2026
