Model # AWM270W2/PAWM270W2 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen AWM270W2-PAWM270W2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

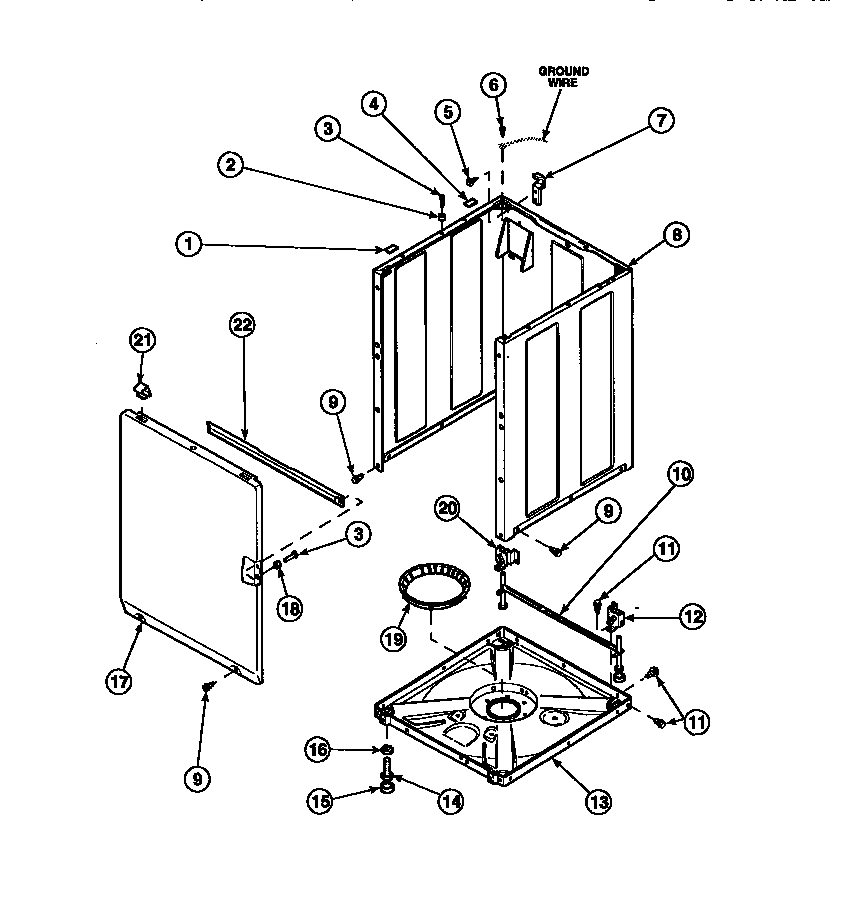

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Hose Clamp 36801
#1

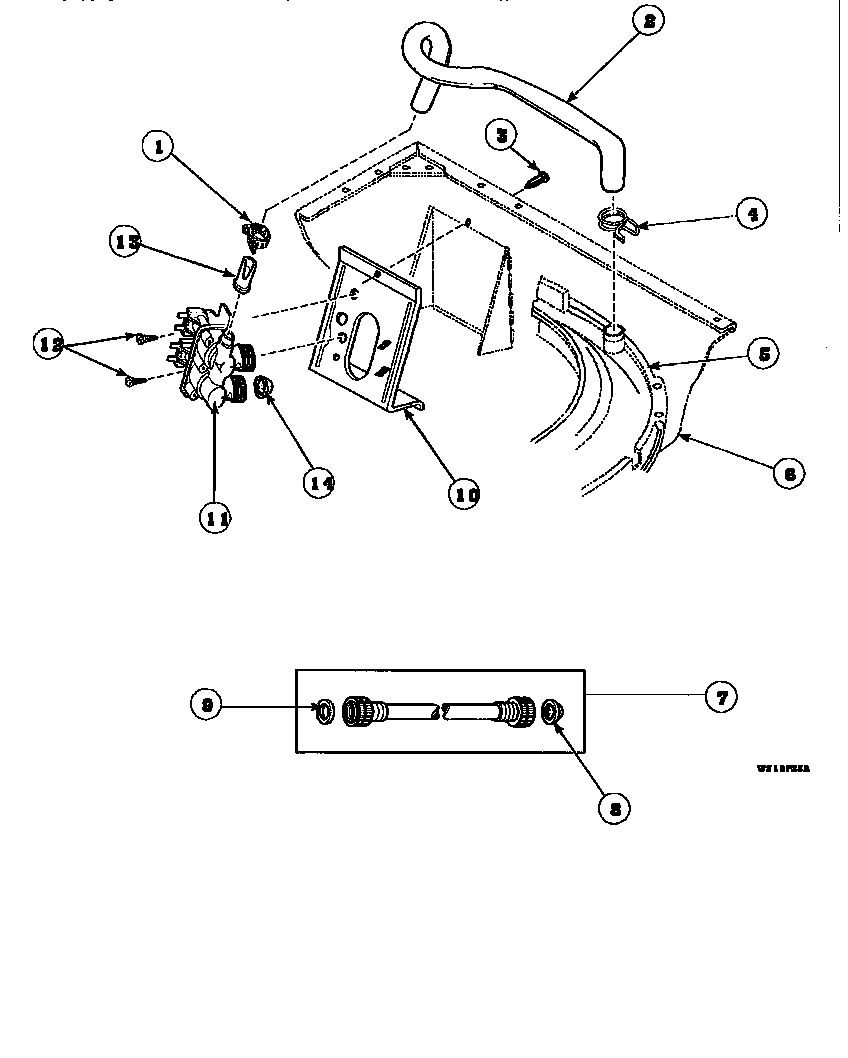

Inlet hose, fill hose, mixing valve mounting bracket (awm270w2/pawm270w2) diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
69% OFF MSRP : $14.00
In Stock
Washtub 34519P
#5

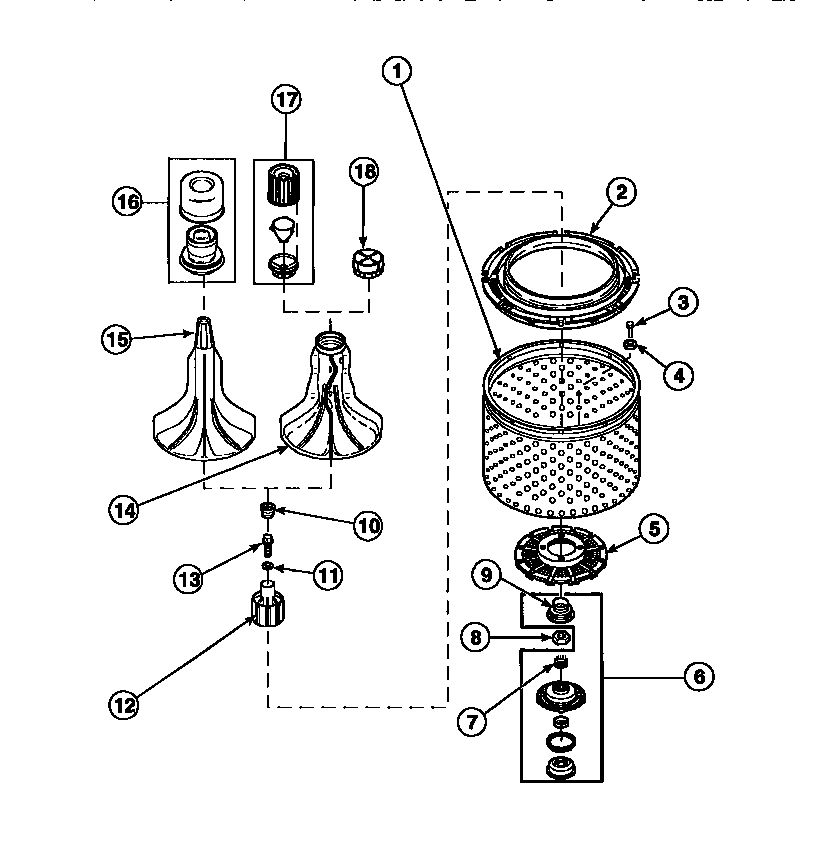

Agitator, drive bell, seal kit, washtub and hub (awm270w2/pawm270w2) diagram

Washtub

Part #34519P

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 34519P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
69% OFF MSRP : $14.00
In Stock
Speed Queen Belt 28808
#21

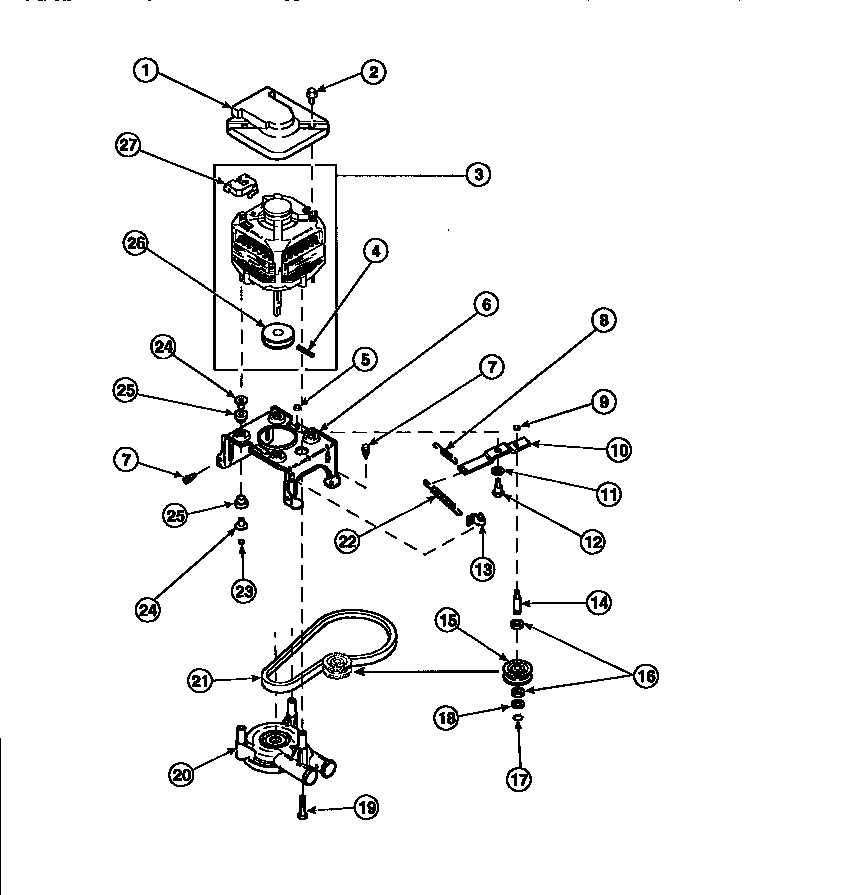

Motor, mounting bracket, belt, pump and idler assembly (awm270w2/pawm270w2) diagram

Speed queen belt

Part #28808

$27.22
In Stock
Speed Queen Retaining Ring 23748
#17

Motor, mounting bracket, belt, pump and idler assembly (awm270w2/pawm270w2) diagram

Speed queen retaining ring

Part #23748

This item is not returnable
$5.89
In Stock
Speed Queen Washer 52549
#18

Motor, mounting bracket, belt, pump and idler assembly (awm270w2/pawm270w2) diagram

Speed queen washer

Part #52549

This item is not returnable
$5.89
In Stock
Screw 31644
#11

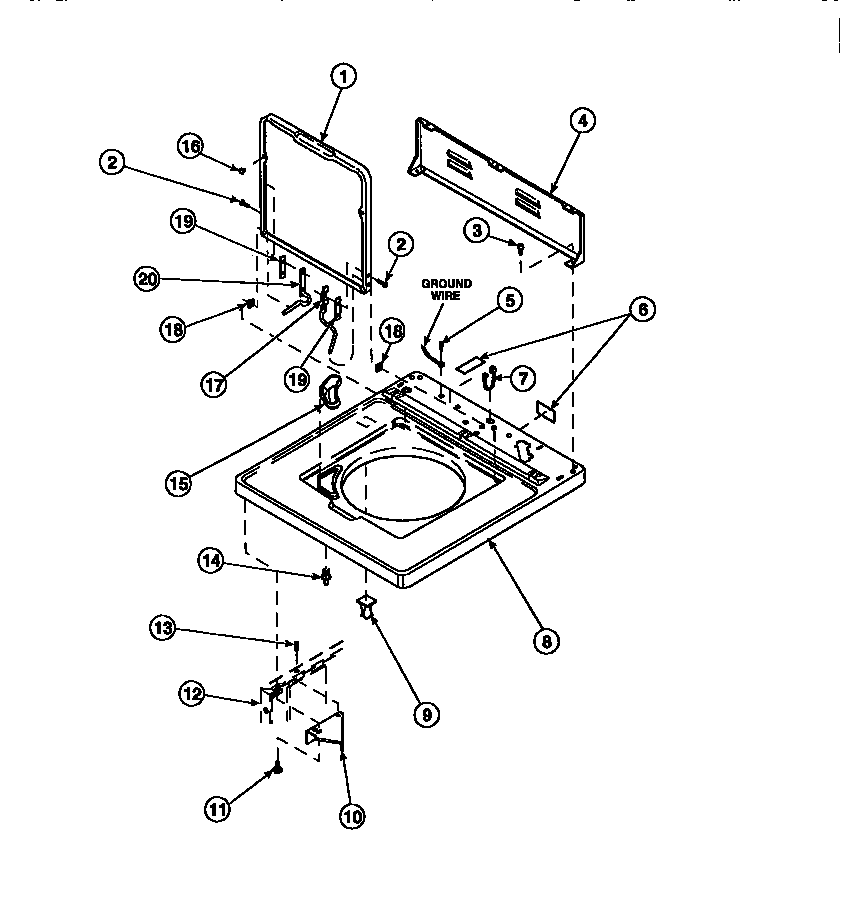

Cabinet top, loading door and control hood rear panel (awm270w2/pawm270w2) diagram

Screw

Part #31644

Replaced by #WP27001200

?
Manufacturer substitution
This part replaces 31644. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drain Hose 37245
#7

Drain hose and siphon break (awm270w2/pawm270w2) diagram

Drain hose

Part #37245

Replaced by #WP40053901

?
Manufacturer substitution
This part replaces 37245. Substitute parts can look different from the original.
$38.59 |
11% OFF Phone Price : $43.59
In Stock
Trans Assy 34526P
#5

Transmission assembly and balance ring (awm270w2/pawm270w2) diagram

Trans assy

Part #34526P

$352.05
In Stock
Speed Queen Spring 33435
#4

Bearing housing, brake pulley and pivot dome (awm270w2/pawm270w2) diagram

Speed queen spring

Part #33435

$10.86
In Stock
Speed Queen Idler Lever 31054
#10A

Motor, mounting bracket, belt, pump and idler assembly (awm270w2/pawm270w2) diagram

Speed queen idler lever

Part #31054

$16.43
In Stock
