Homelite
Gas Chainsaw

Model # SUPER 2-UT10653 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite SUPER-2-UT10653 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

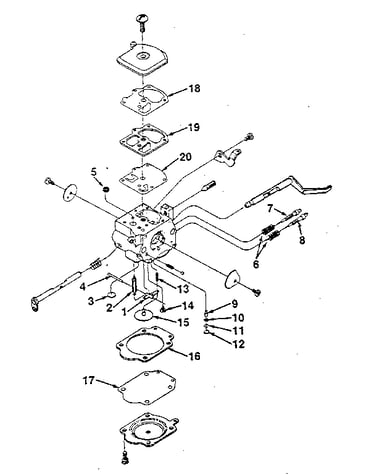

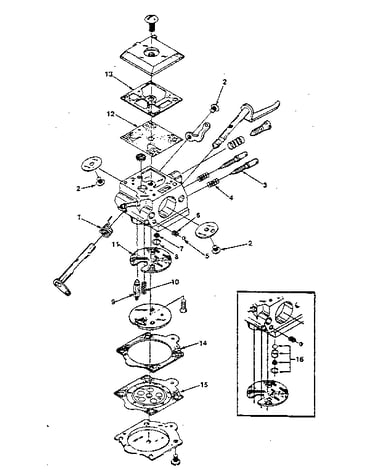

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Cap A-97228
#41

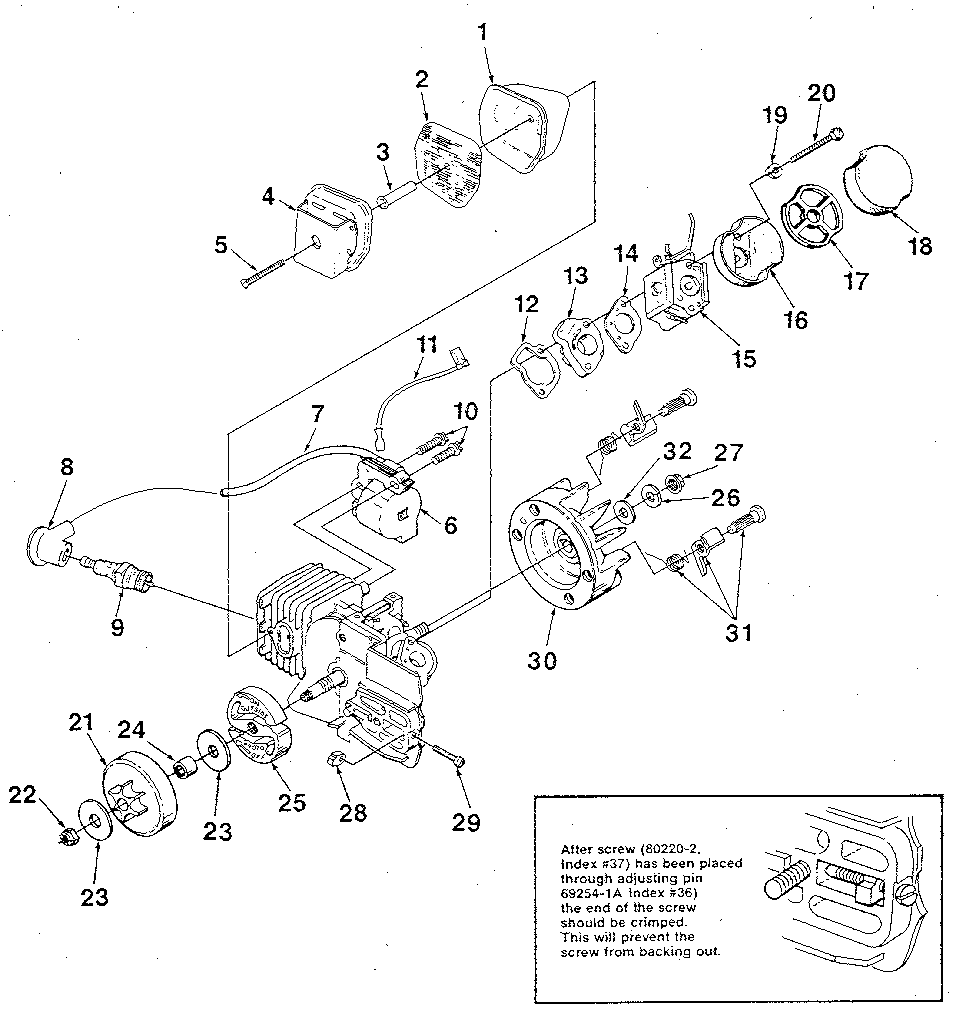

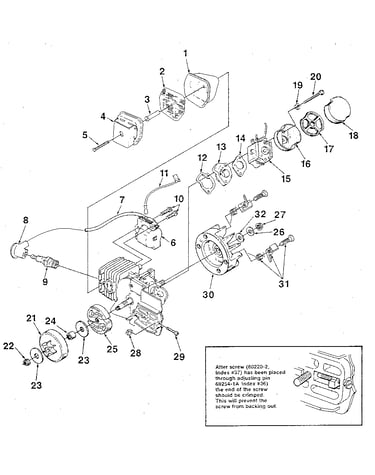

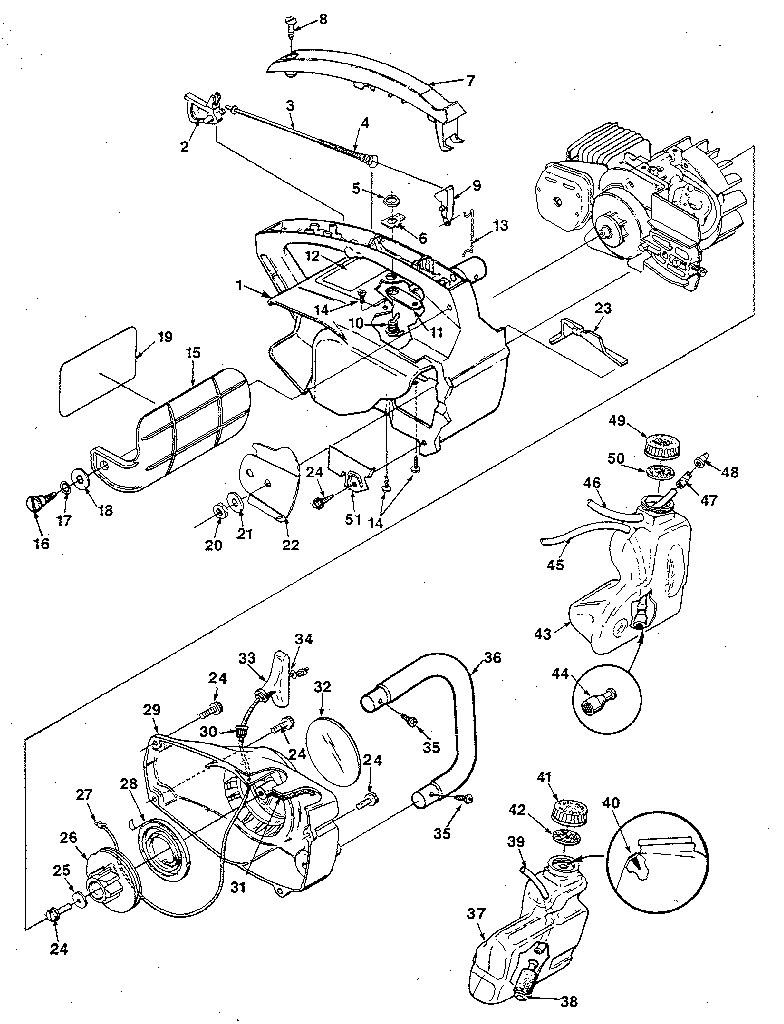

Figure 1 diagram

Cap

Part #A-97228

The manufacturer no longer makes this part, and there's no substitute part

Cover 69224-1C
#3

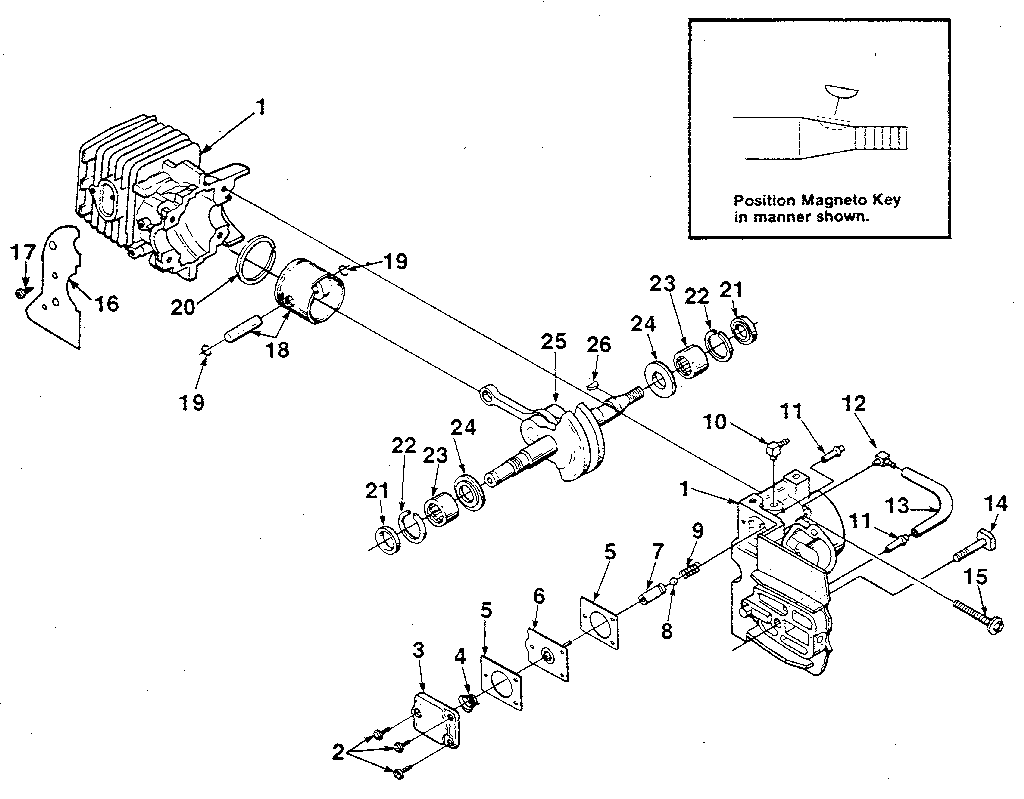

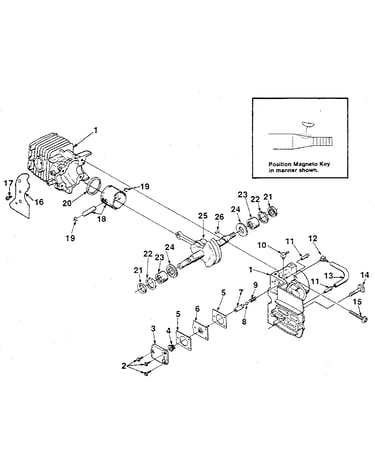

Figure 3 diagram

Cover

Part #69224-1C

The manufacturer no longer makes this part, and there's no substitute part

Guide Bar PT16371-G4

#NI

All parts diagram

Guide bar

Part #PT16371-G4

The manufacturer no longer makes this part, and there's no substitute part

Handle Bar 94508
#36

Figure 1 diagram

Handle bar

Part #94508

The manufacturer no longer makes this part, and there's no substitute part

Ring 65261
Ring

Part #65261

The manufacturer no longer makes this part, and there's no substitute part

Puller A-24747-A

#NI

All parts diagram

Puller

Part #A-24747-A

The manufacturer no longer makes this part, and there's no substitute part

Fitting 98109
#12

Figure 3 diagram

Fitting

Part #98109

The manufacturer no longer makes this part, and there's no substitute part

Decal 69887
#32A

Figure 1 diagram

Decal

Part #69887

The manufacturer no longer makes this part, and there's no substitute part

Bearing 12530
#23

Figure 3 diagram

Bearing

Part #12530

The manufacturer no longer makes this part, and there's no substitute part

Washer 96102
#18

Figure 1 diagram

Washer

Part #96102

The manufacturer no longer makes this part, and there's no substitute part
