Model # YKGST307HW6 Official KitchenAid gas slide-in range

Here are the diagrams and repair parts for Official KitchenAid YKGST307HW6 gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

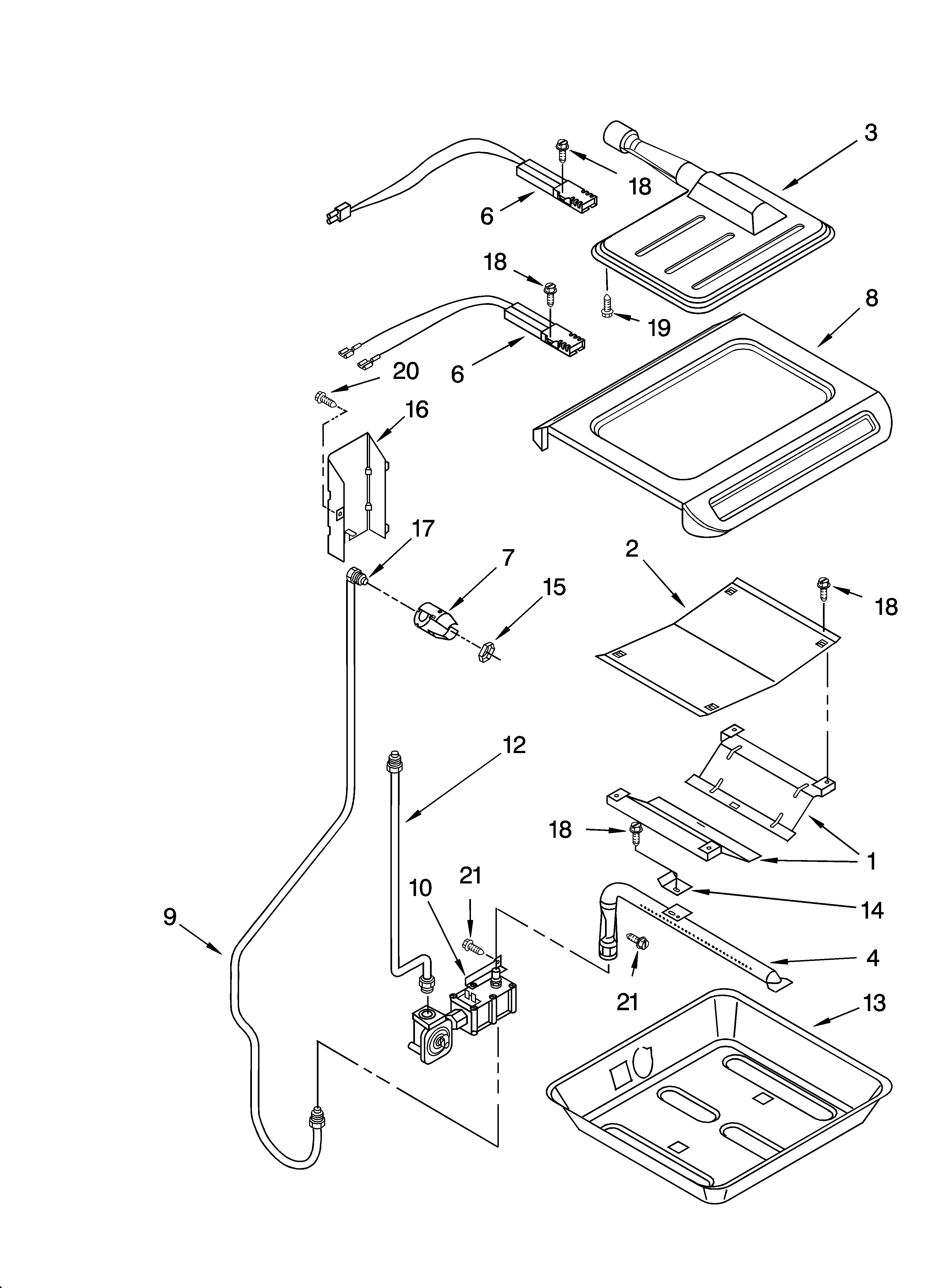

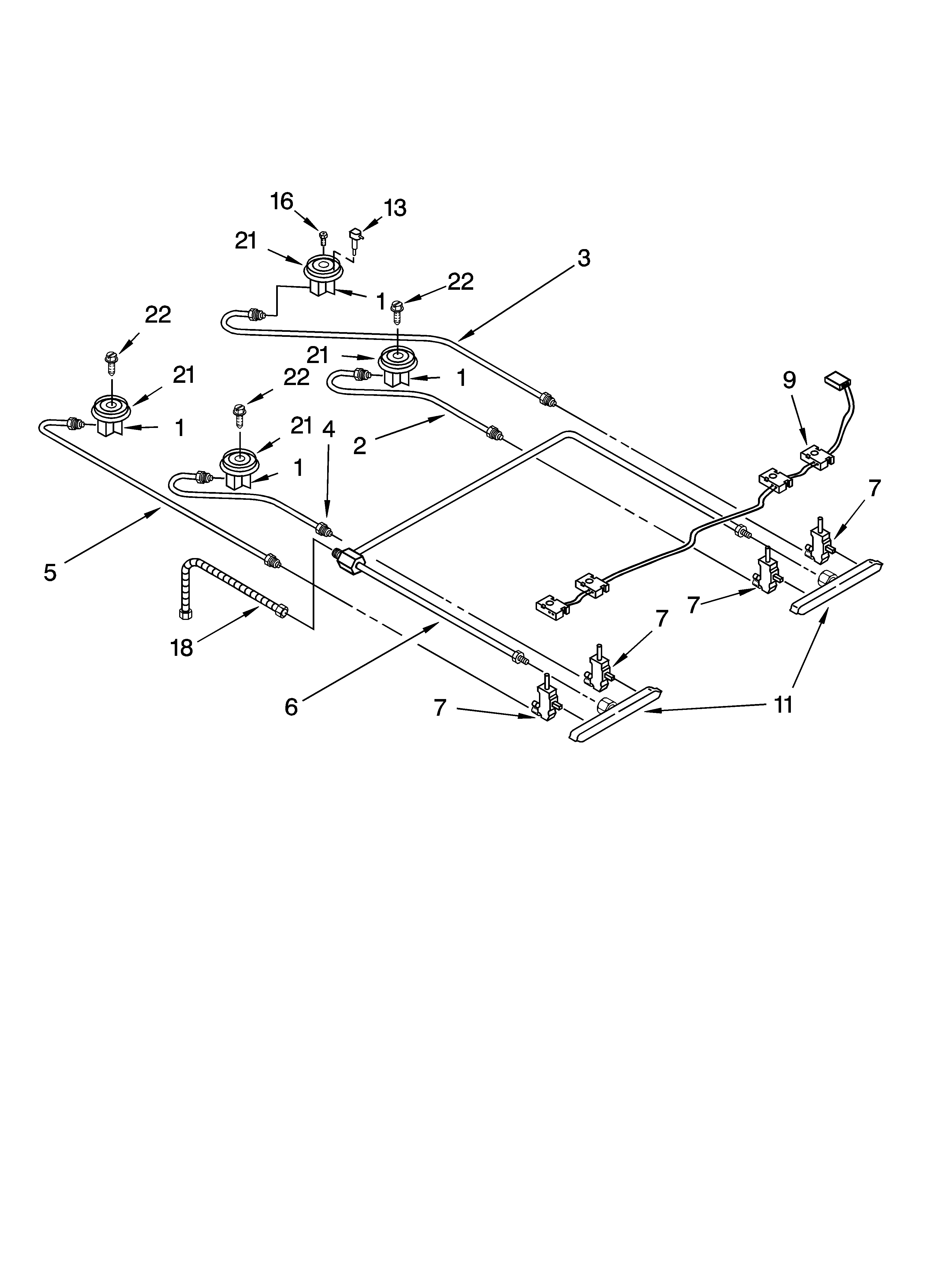

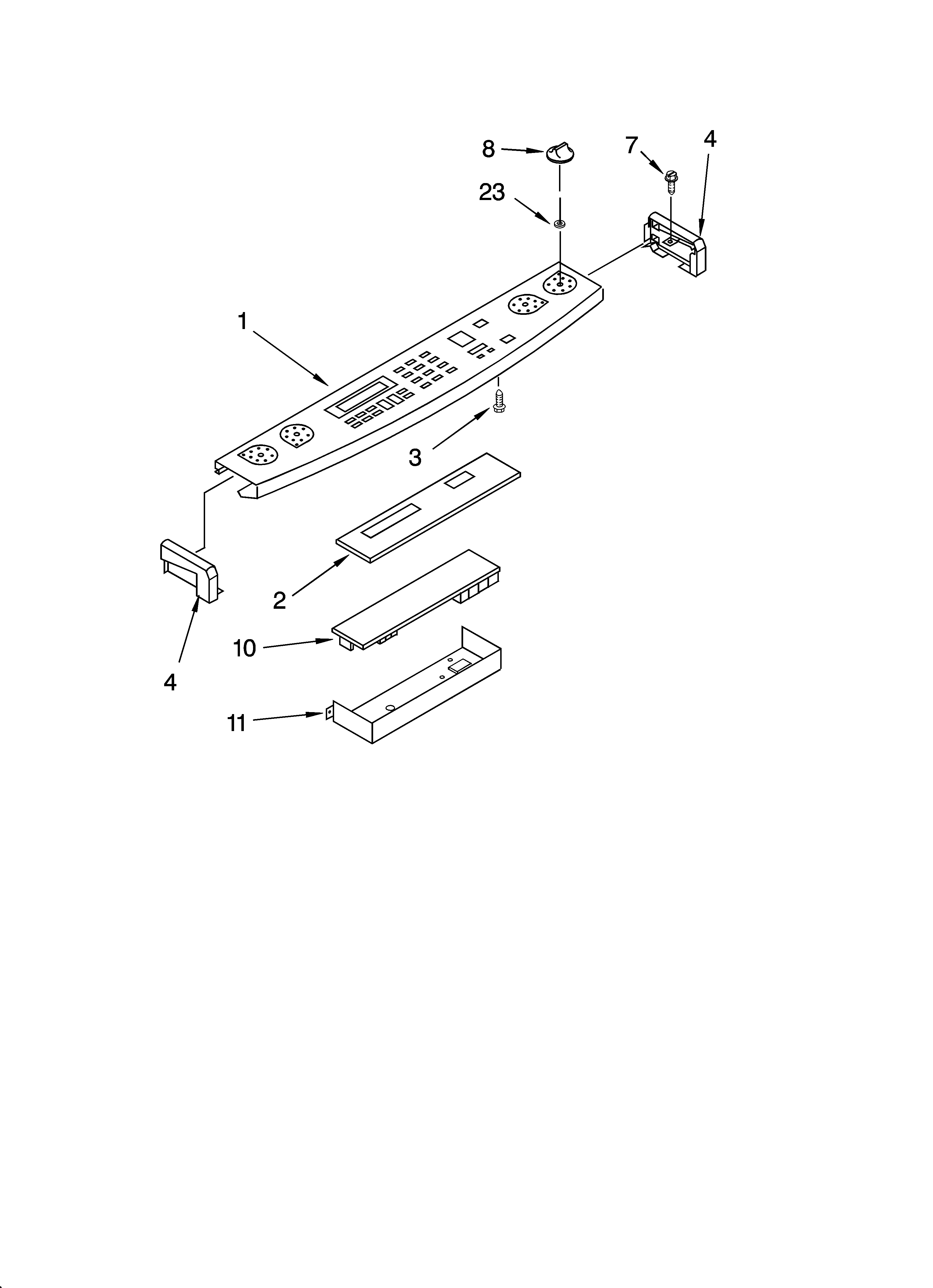

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)
#15

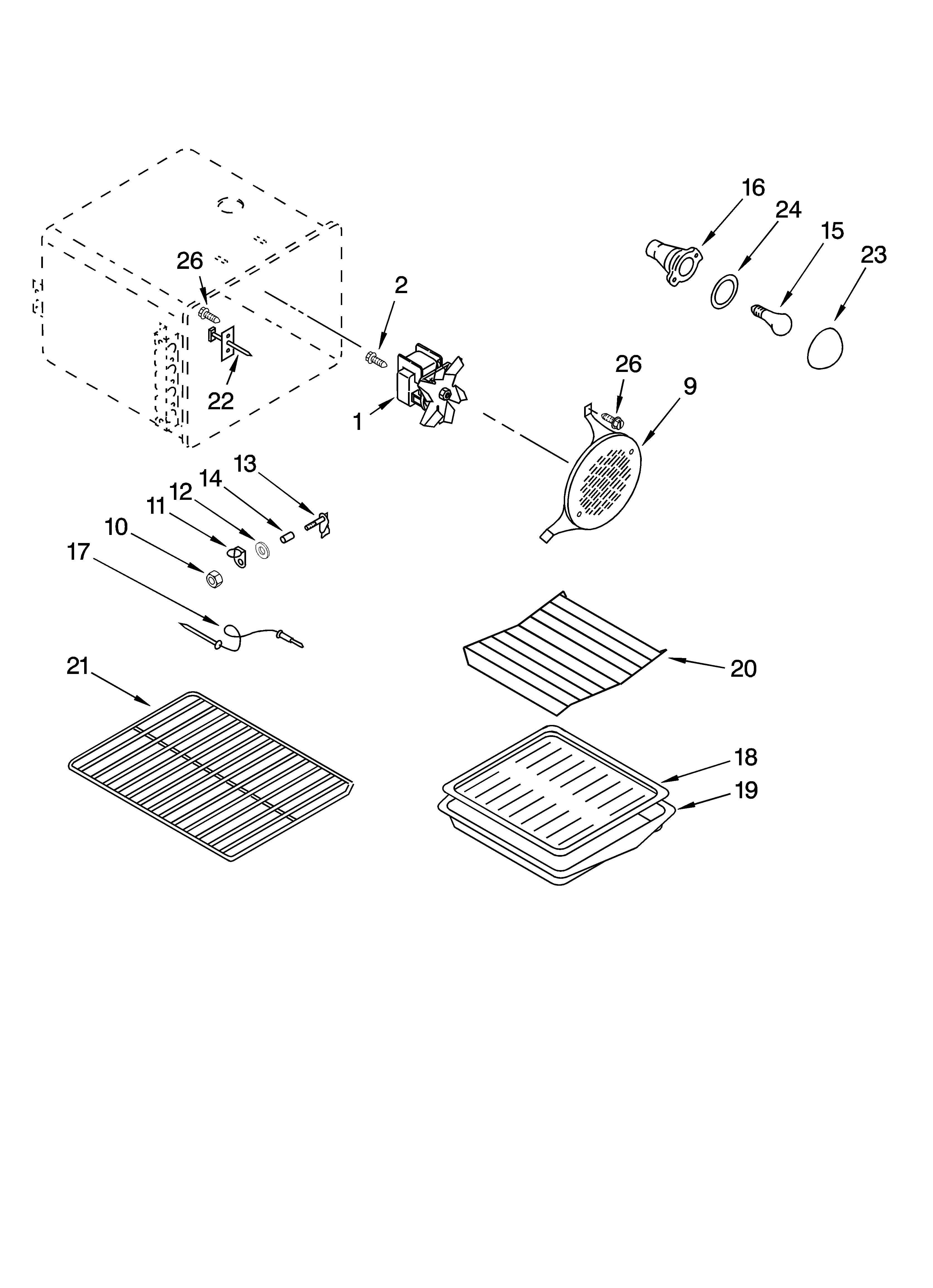

Oven parts diagram

Oven light bulb

Part #8935

Replaced by #40A15

?
Manufacturer substitution
This part replaces 8935. Substitute parts can look different from the original.
BEST SELLER
$15.85
9% OFF Phone Price : $17.39
In Stock
Range Screw, #7-18 x 3/4-in (replaces 3368921)
#11

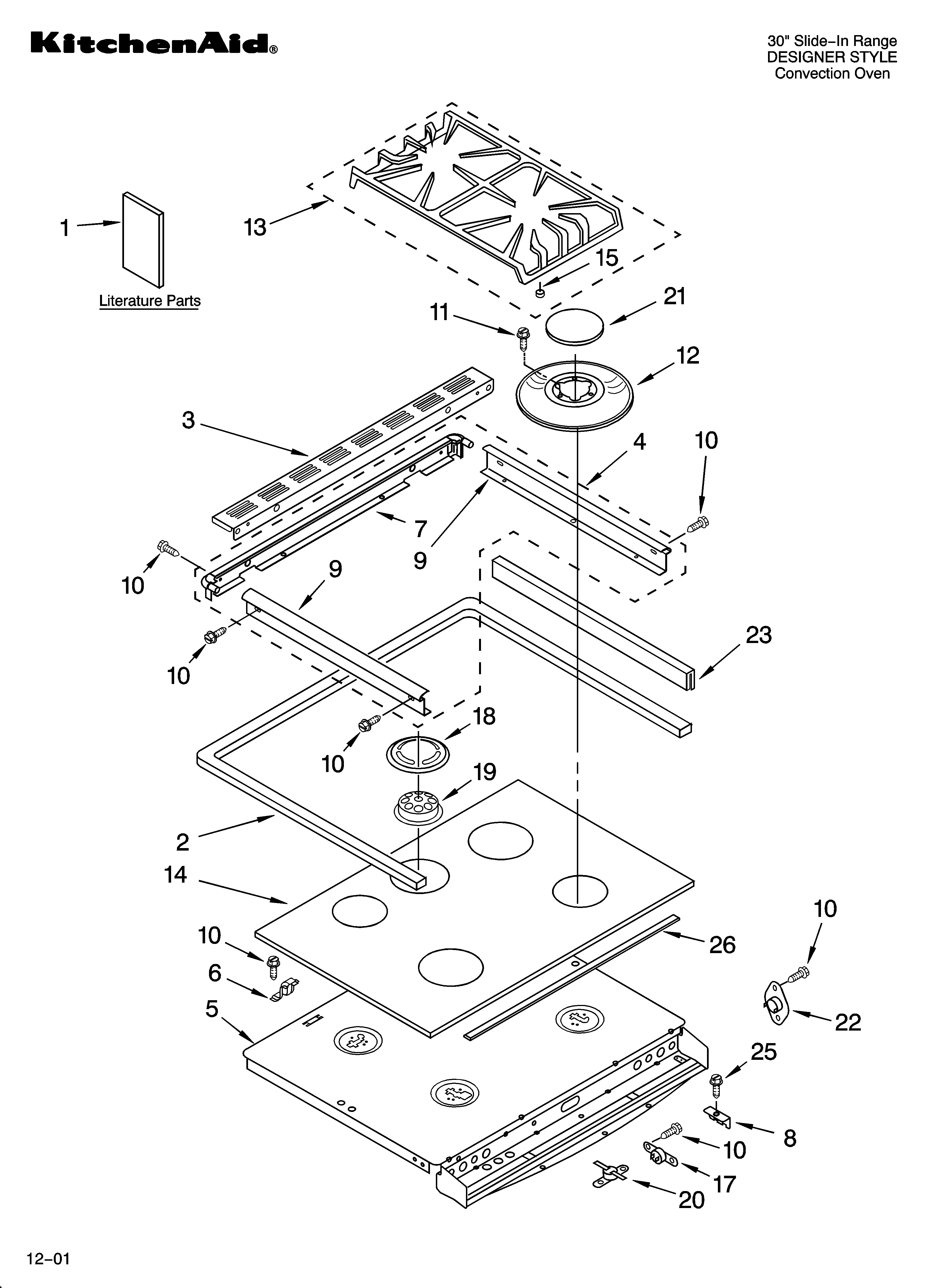

Cooktop parts diagram

Screw

Part #3400701

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3400701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.80
77% OFF MSRP : $12.00
In Stock
Cooktop Burner Pad Grate Set (replaces 3186678, 814383)
#15

Cooktop parts diagram

Pad-grate

Part #9752638

Replaced by #814323

?
Manufacturer substitution
This part replaces 9752638. Substitute parts can look different from the original.
BEST SELLER
$8.99
10% OFF Phone Price : $9.99
In Stock
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)
#NI

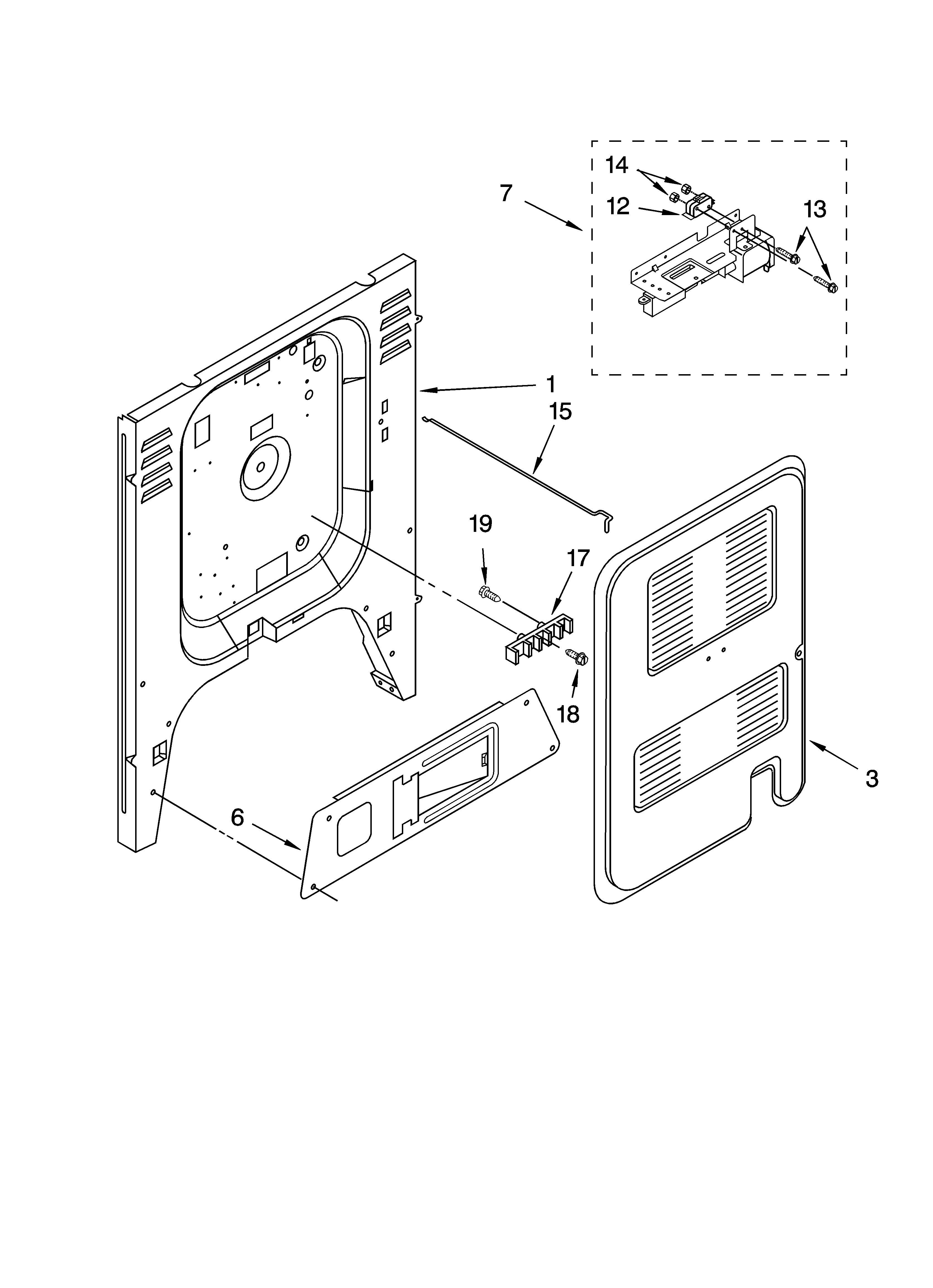

Rear chassis parts, miscellaneous parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Range Drip Pan (replaces 8008, WB31M2, WB32K10035, WB32X0106, WB32X5063, WB32X5073)
#NI

Rear chassis parts, miscellaneous parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$17.00
6% OFF Phone Price : $18.00
In Stock
Laundry Appliance Push Nut
#27A

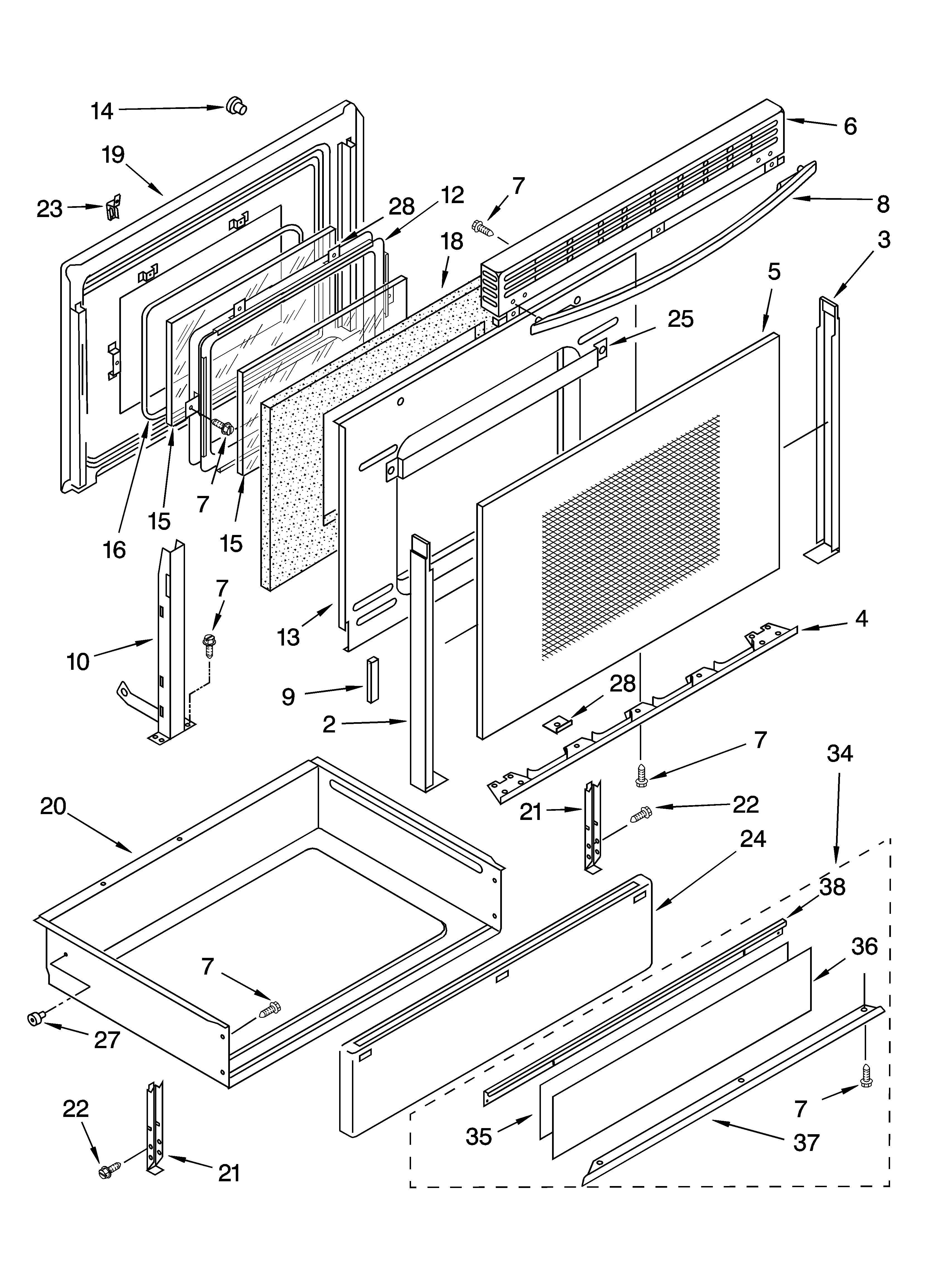

Door and drawer parts diagram

Clip

Part #90296

Replaced by #WP90296

?
Manufacturer substitution
This part replaces 90296. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Range Leveling Leg
#18

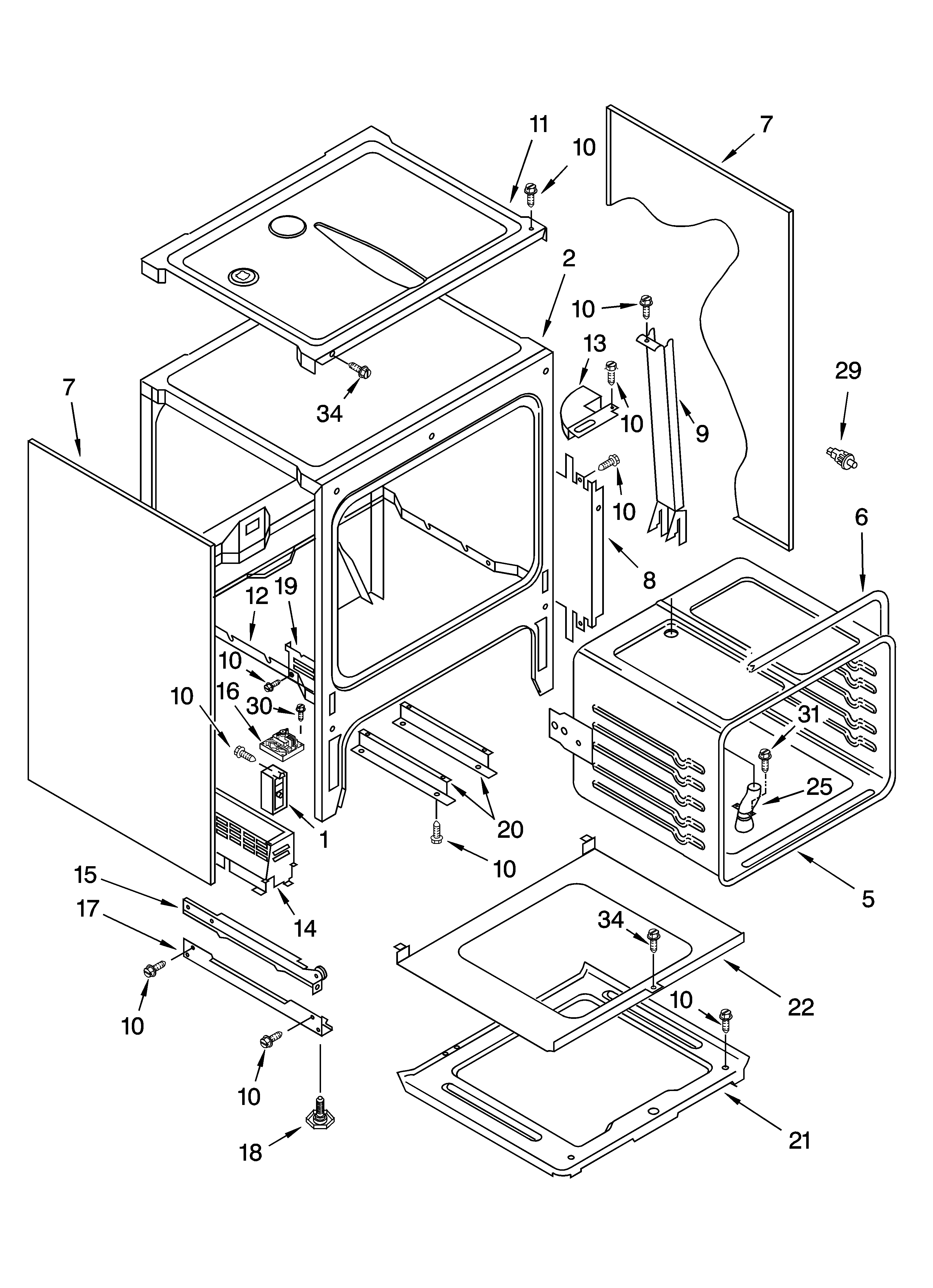

Oven chassis parts diagram

Level foot

Part #312701

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 312701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.84
15% OFF Phone Price : $6.84
In Stock
Range Oven Light Lens Gasket
#24

Oven parts diagram

Gaskt-lite

Part #3184533

Replaced by #WP3184533

?
Manufacturer substitution
This part replaces 3184533. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Appliance Touch-Up Paint, 0.6-oz (Biscuit) (replaces 22002900, 4392899R, R9900463, W10831386)
#NI

Rear chassis parts, miscellaneous parts diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38
12% OFF Phone Price : $17.38
In Stock
Range Broil Pan
#18

Oven parts diagram

Broiler pan

Part #420104GM

Replaced by #4396923

?
Manufacturer substitution
This part replaces 420104GM. Substitute parts can look different from the original.
$25.33
35% OFF MSRP : $39.00
In Stock
