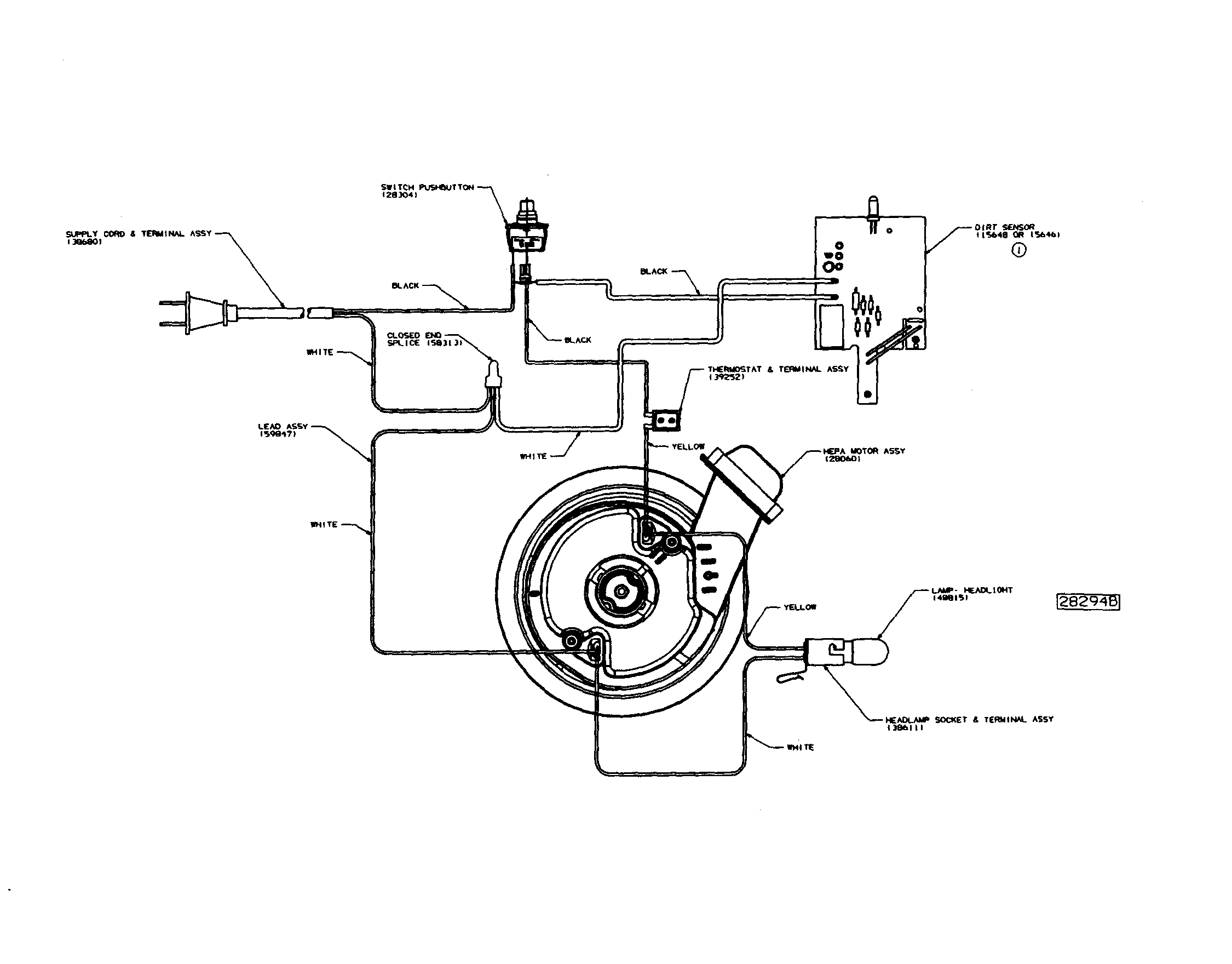

Model #4476BT Eureka upright vacuum

Here are the diagrams and repair parts for Eureka 4476BT upright vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 66 parts

Vacuum Secondary Filter

#29

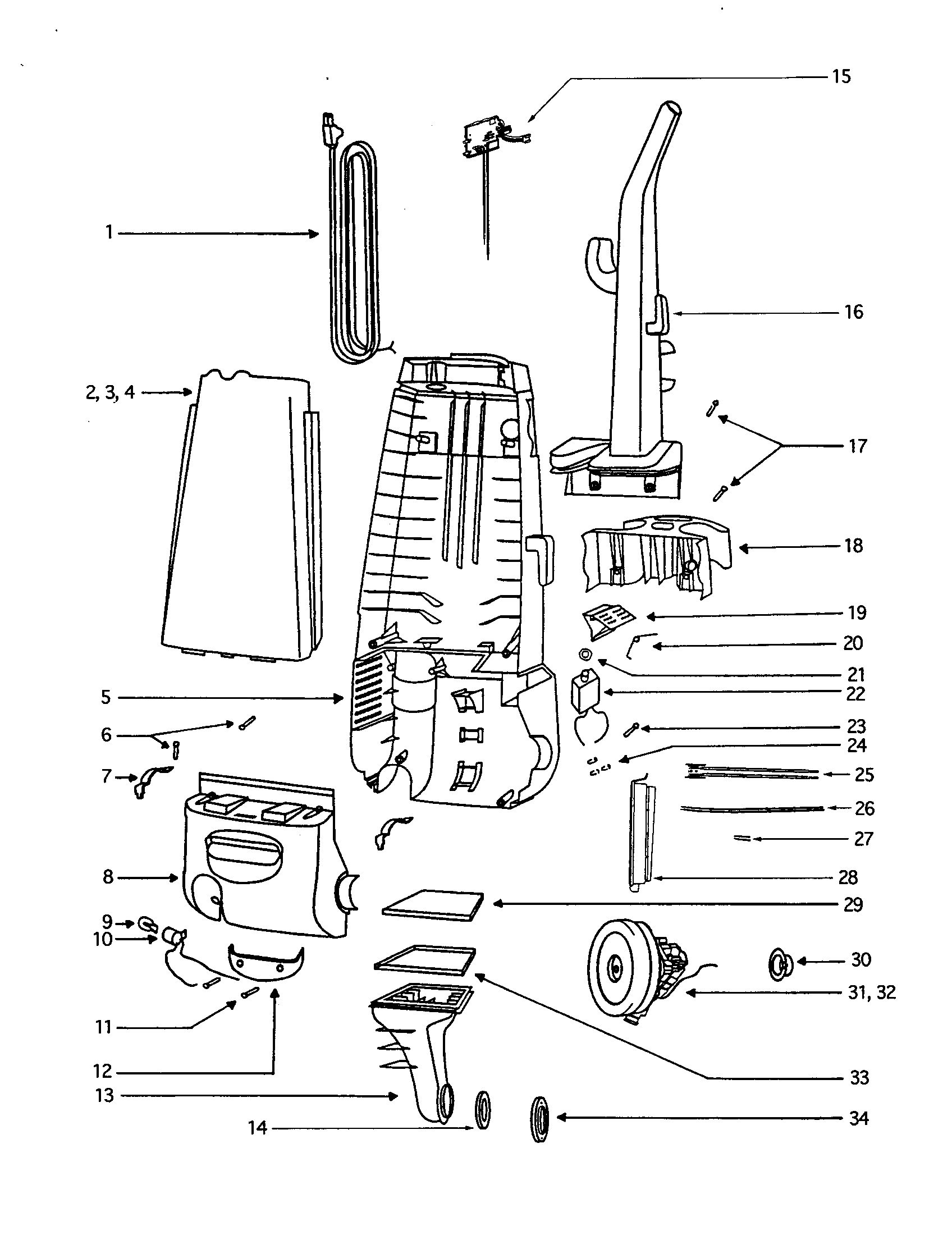

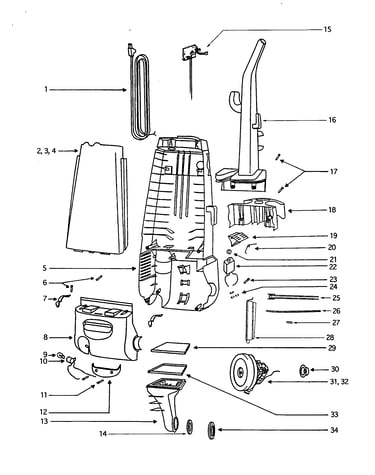

Bag cover Diagram

Vacuum secondary filter

Part #39334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb

#9

Bag cover Diagram

Vacuum light bulb

Part #48815

The manufacturer no longer makes this part, and there's no substitute part

Thermostat

#25

Bag cover Diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring

#7

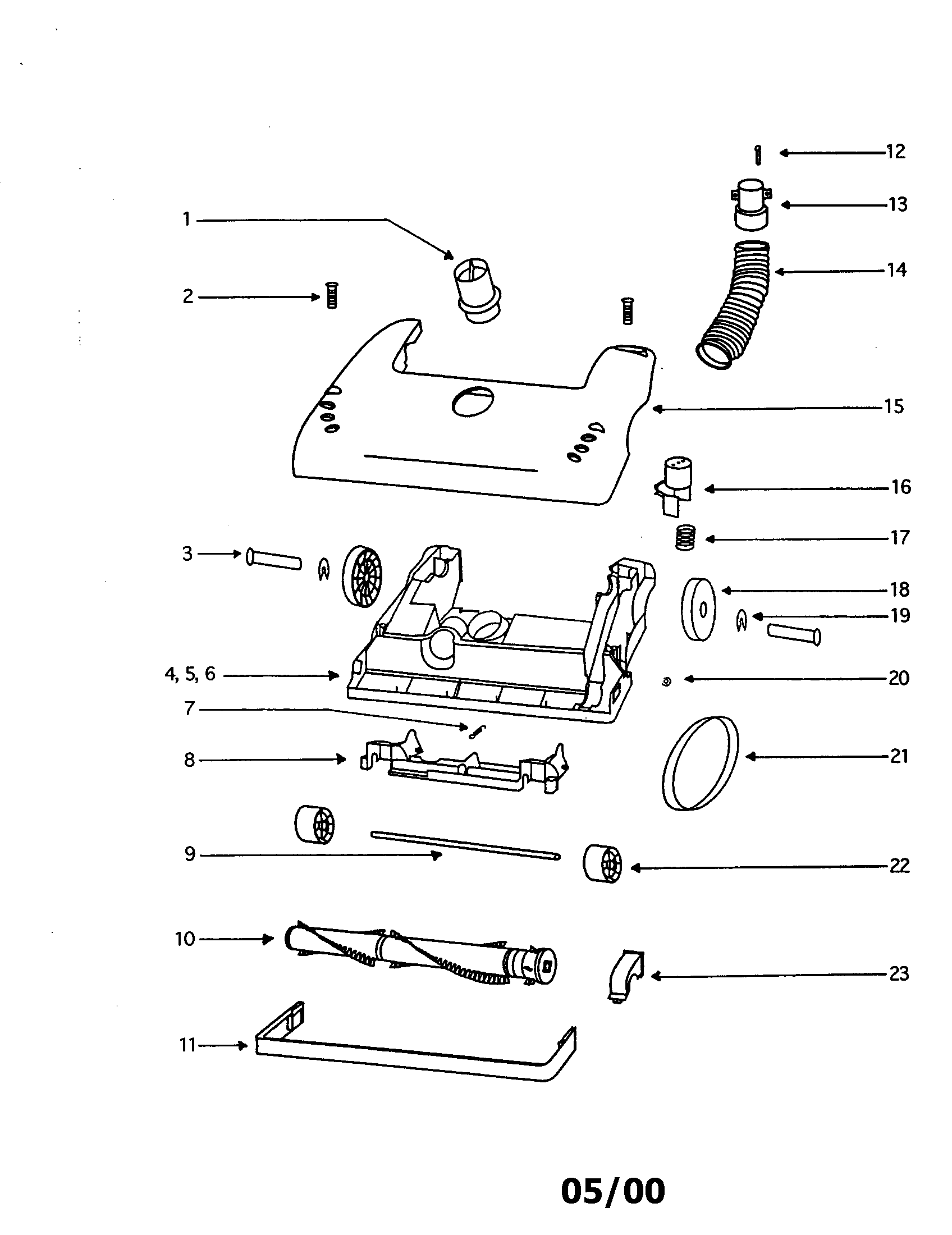

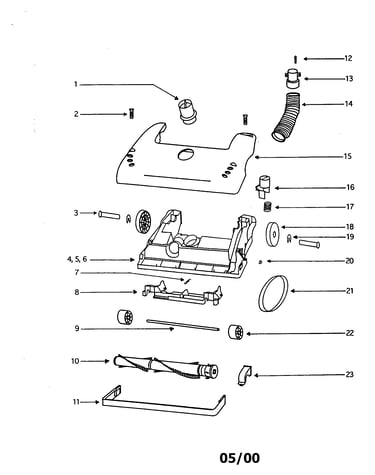

Base Diagram

Vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/Off Switch

#22

Bag cover Diagram

Vacuum on/off switch

Part #28304A

The manufacturer no longer makes this part, and there's no substitute part

Adapter

#27

Bag cover Diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut

#20

Base Diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Wand

#3

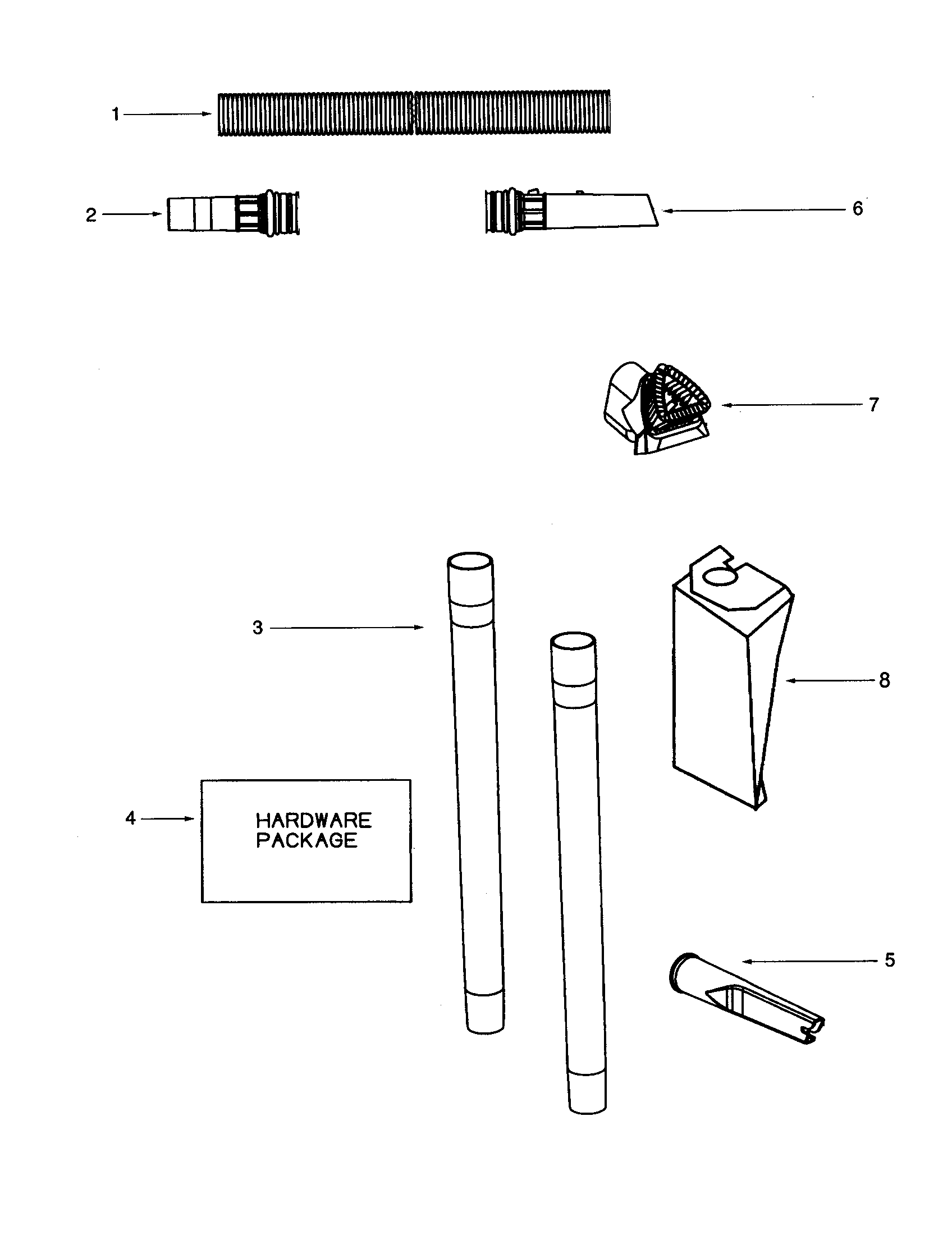

Attachments Diagram

Wand

Part #58728B

The manufacturer no longer makes this part, and there's no substitute part

Gasket

#14

Bag cover Diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose

#13

Base Diagram

Cuff hose

Part #28288B-119N

The manufacturer no longer makes this part, and there's no substitute part
