Kenmore 6396970 convection oven Parts
Here are the diagrams and repair parts for Kenmore 6396970 convection oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

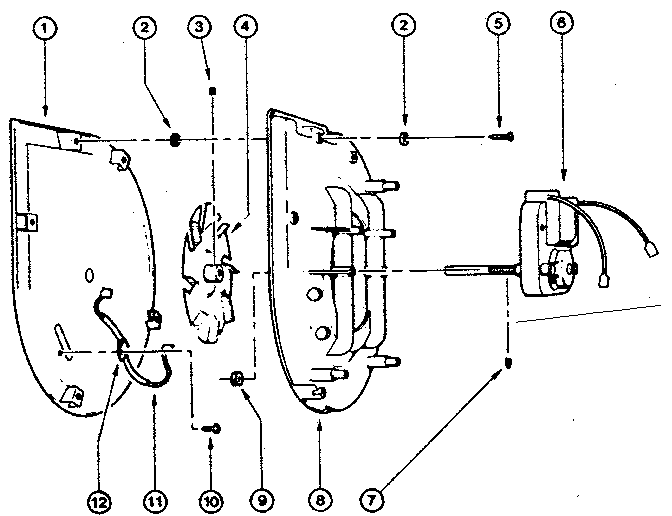

Browse Parts for 6396970 Wall Ovens
Screw
Part #9-0613
The manufacturer no longer makes this part, and there's no substitute part

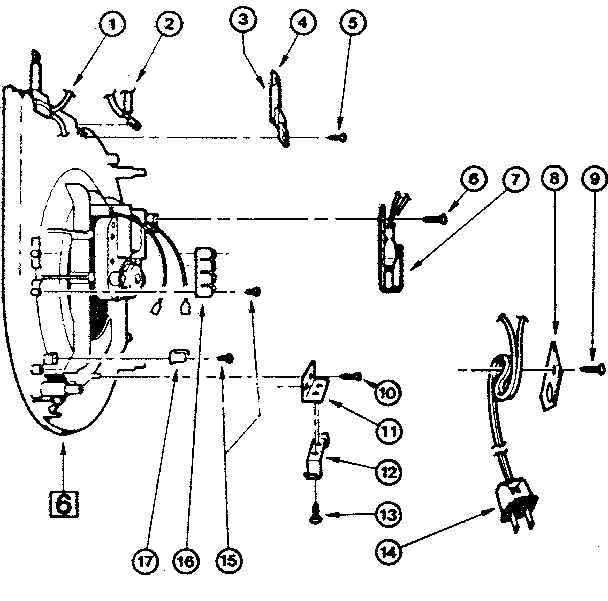

Buzzer assembly diagram
Lens
Part #2-0466
The manufacturer no longer makes this part, and there's no substitute part

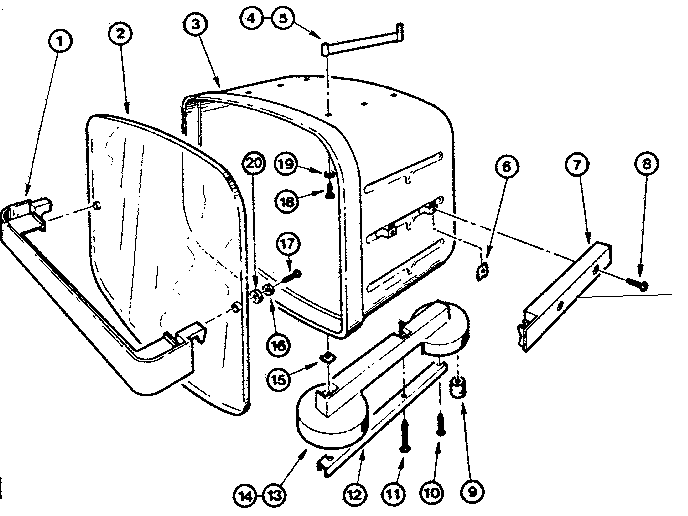

Door and leg assembly diagram
R.h. Leg
Part #2-0983
The manufacturer no longer makes this part, and there's no substitute part

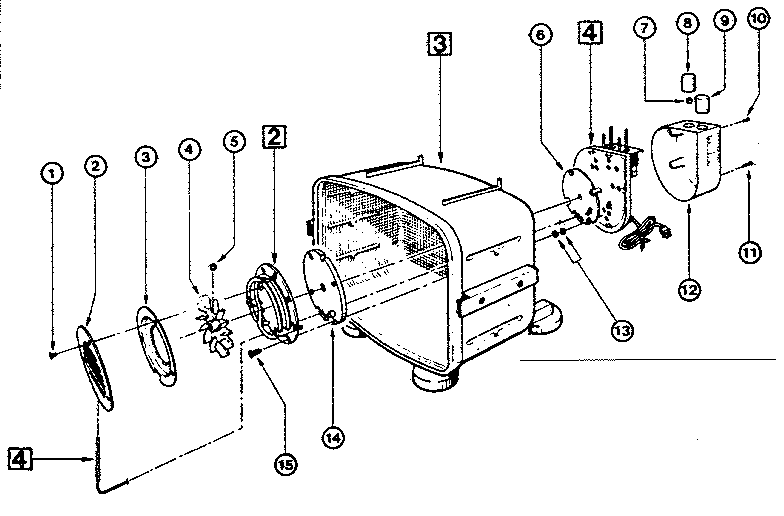

Orifice sub-assembly diagram
Screw
Part #9-0494
The manufacturer no longer makes this part, and there's no substitute part
Door and leg assembly diagram
Screw
Part #9-0485
The manufacturer no longer makes this part, and there's no substitute part

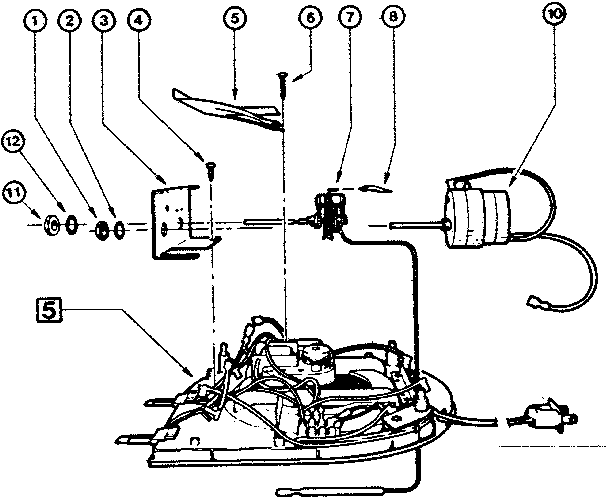

Timer sub-assembly diagram
Bracket
Part #1-0440
The manufacturer no longer makes this part, and there's no substitute part

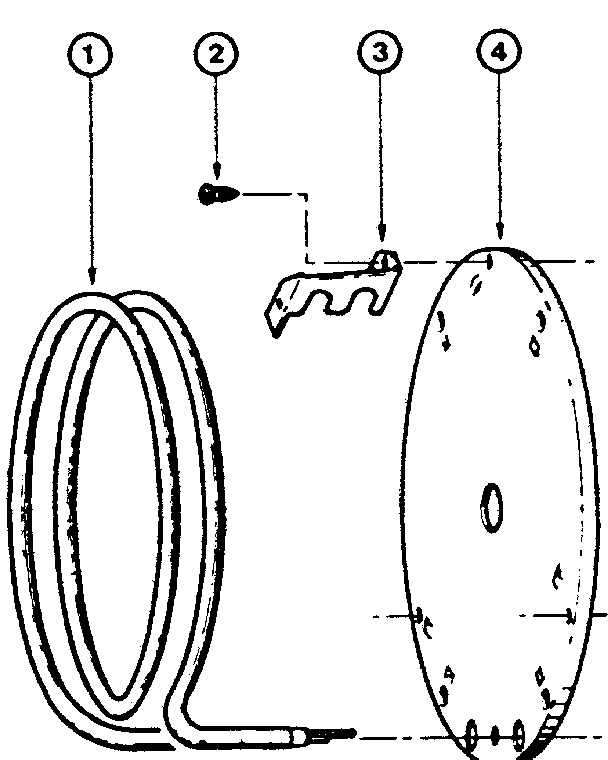

Heater diagram
Heater
Part #1-0470
The manufacturer no longer makes this part, and there's no substitute part
Orifice sub-assembly diagram
Guard
Part #2-0571
The manufacturer no longer makes this part, and there's no substitute part
Orifice sub-assembly diagram
Insulation
Part #1-0457
The manufacturer no longer makes this part, and there's no substitute part
Orifice sub-assembly diagram
Orifice
Part #2-0578
The manufacturer no longer makes this part, and there's no substitute part
