Craftsman
Electric Chainsaw

Model # 31534171 Official Craftsman electric chainsaw

Here are the diagrams and repair parts for Official Craftsman 31534171 electric chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

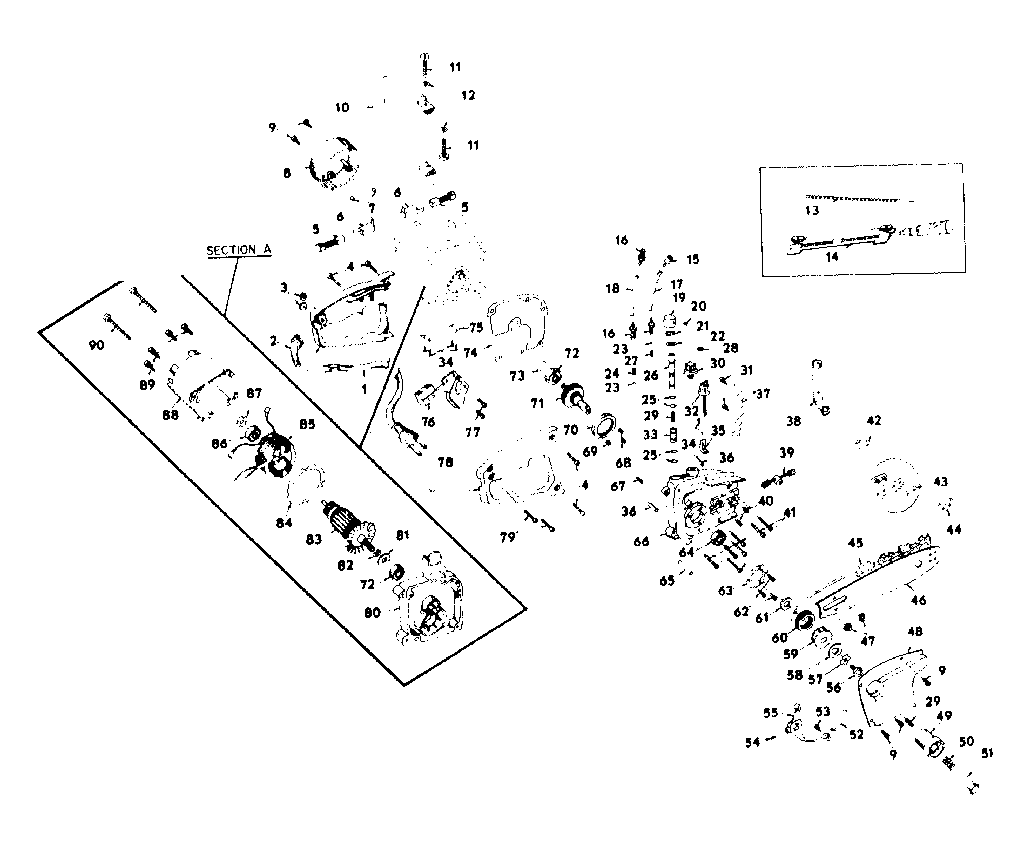

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Repair Kit 22126
#43

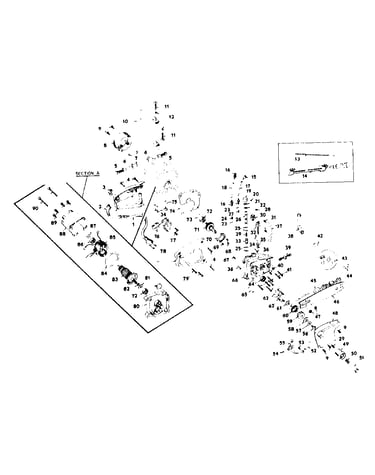

Replacement parts diagram

Repair kit

Part #22126

The manufacturer no longer makes this part, and there's no substitute part

Chain 2-610500-01
#45

Replacement parts diagram

Chain

Part #2-610500-01

The manufacturer no longer makes this part, and there's no substitute part

File W/guide 36518
#14

Replacement parts diagram

File w/guide

Part #36518

The manufacturer no longer makes this part, and there's no substitute part

Aux Handle 4-607598-03
#10

Replacement parts diagram

Aux handle

Part #4-607598-03

The manufacturer no longer makes this part, and there's no substitute part

Cord 2-607642-03
#1

Replacement parts diagram

Cord

Part #2-607642-03

The manufacturer no longer makes this part, and there's no substitute part

Act Shaft 2-607584-03
#51

Replacement parts diagram

Act shaft

Part #2-607584-03

The manufacturer no longer makes this part, and there's no substitute part

Spring 1-621463-03
#87

Replacement parts diagram

Spring

Part #1-621463-03

The manufacturer no longer makes this part, and there's no substitute part

Valve 1-703774-04
#23

Replacement parts diagram

Valve

Part #1-703774-04

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-607548-01
#83

Replacement parts diagram

Armature

Part #2-607548-01

The manufacturer no longer makes this part, and there's no substitute part

Hex Lock Nut, 1/4-in, 20-pack STD541408
#3

Replacement parts diagram

Hex lock nut, 1/4-in, 20-pack

Part #STD541408

The manufacturer no longer makes this part, and there's no substitute part
