Frigidaire FFSS2615TE3 side-by-side refrigerator Parts

The Frigidaire FFSS2615TE3 is a 36-inch class side-by-side refrigerator with about 25.5 cu. ft. of total capacity. For a correct fit, plan for installation clearances of 3/8 inch at the sides and top and 1 inch behind the cabinet (see the installation guide).

To confirm the FFSS2615TE3 will fit your space, we recommend measuring these three areas:

• Opening width: wall-to-wall at the front and back of the cutout
• Opening height: floor to the lowest overhead cabinet or trim
• Depth: back wall to the front edge of counters (and allow for door swing)

Also measure your tightest pathway (doorways, hallways, turns). If the refrigerator is larger than an entrance, the installation instructions note you can remove the entrance door or remove the refrigerator doors.

These clearances help with air circulation and room for plumbing and electrical connections:

Side-by-side doors need room to open fully so you can pull out drawers and freezer baskets.

• Leave space so both doors can fully open
• Plan for easy access to countertops when unloading groceries
• Keep the unit away from direct sunlight and nearby heat sources
• Place it on a level floor that can support a fully loaded refrigerator

A refrigerator that is “36-inch class” can still be a tight fit once you add required clearances, water line routing for the ice and water dispenser, and door swing space. Measuring first prevents delivery-day surprises and helps the refrigerator cool efficiently.

Last updated: February 2026

To defrost the freezer on your Frigidaire FFSS2615TE3 side-by-side refrigerator, we recommend doing a manual defrost: move food to a cooler, turn the temperature controls to “O” (off), unplug the refrigerator, and let the ice melt naturally. Use the steps in the owner's manual for safe handling and re-start.

• Set both Freezer and Refrigerator controls to “O”.
• Unplug the power cord from the wall outlet.
• Move perishable food to a cooler; remove items from door shelves.
• Leave the freezer door open to speed melting.
• Place towels or a shallow pan to catch meltwater.
• Wipe up water as ice melts; dry the compartment before restarting.

Avoid these common mistakes because they can damage the liner, evaporator, or wiring:

• Do not chip ice with a knife, screwdriver, or sharp tool.
• Do not use a heat gun or open flame.
• Do not pour boiling water directly onto plastic surfaces.

Plug the refrigerator back in, then set controls to the normal mid-range setting and allow 24 hours for temperatures to stabilize.

A heavy frost layer blocks airflow, so the evaporator fan cannot move cold air through the freezer and fresh food sections. If frost returns quickly, the issue is usually in the defrost system or airflow components.

Common related parts for this model include the refrigerator defrost bi-metal thermostat 5303918214 and the refrigerator air damper control assembly 242303001.

Last updated: February 2026

On a Frigidaire FFSS2615TE3 side-by-side refrigerator, the SY CF code points to a communication problem between the user interface (display) and the main control board. Start with a power reset, then check for loose wiring connections between the controls.

• Unplug the refrigerator from the wall outlet for 3 to 5 minutes.
• Plug it back in and wait a few minutes to see if the code clears.
• If your model uses an On/Off button, remember it stops cooling but does not remove power; unplugging is the true power reset (see the owner's manual).

SY CF is usually triggered when the controls cannot reliably “talk” to each other. Common causes include:

• Loose or partially seated wire harness connectors
• Pinched or damaged wiring (often after moving the refrigerator)
• Moisture or corrosion at a connector
• Failed user interface (display) board
• Failed main control board

1. Unplug the refrigerator.
2. Remove the control cover(s) as shown in the owner's manual.
3. Reseat connectors: unplug and firmly reconnect each harness at the display and main control.
4. Inspect wiring for rub-through, pinches, or broken locking tabs.
5. Restore power and recheck operation.

When the display and main control cannot communicate, the refrigerator can misread temperatures, run at the wrong times, or stop responding to settings. Fixing the connection early helps protect cooling performance and food safety.

For other display messages and flashing codes, use our Frigidaire refrigerator error codes reference.

Last updated: February 2026

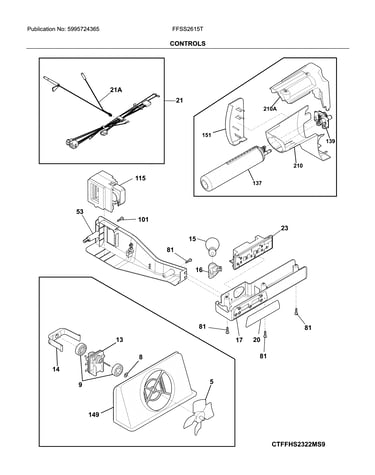

On the Frigidaire FFSS2615TE3 side-by-side refrigerator, defrost is controlled automatically by the electronic control system, so there typically is not a separate, user-accessible defrost timer to locate. The main control panel is located at the top of the refrigerator compartment; see the owner's manual for your model’s control layout.

• Confirm the refrigerator is cooling normally; a defrost cycle is normal and can last about 30 minutes.
• Look for symptoms of a defrost problem: heavy frost on the freezer back wall, warm refrigerator section, or reduced airflow.
• Make sure air vents are not blocked by food packages.
• If the temperature display is flashing, the electronic control has detected a performance issue.
• Verify doors seal tightly; air leaks can mimic defrost or cooling problems.

If you’re troubleshooting frost buildup or warm temps, these parts are commonly involved:

This model uses an electronic control system to manage cooling and defrost automatically. When airflow is restricted by ice or a failed defrost component, temperatures drift and the refrigerator can run longer than normal.

• Unplug the refrigerator before removing panels or testing parts.

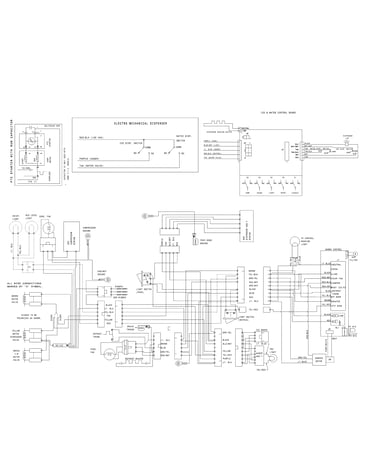

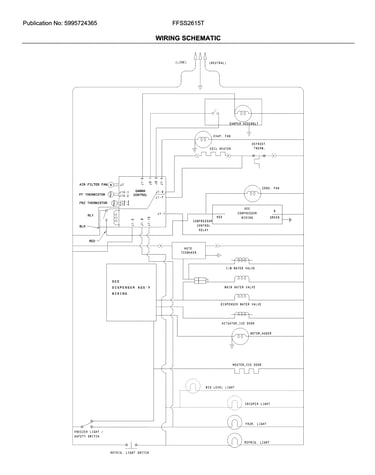

• If you need wiring diagrams, component locations, or diagnostic mode details, use the owner's manual.
