Model # 831293230 Official Proform crosswalk 325x treadmill

Here are the diagrams and repair parts for Official Proform 831293230 crosswalk 325x treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Black & Decker Treadmill Line Filter 185582
#64

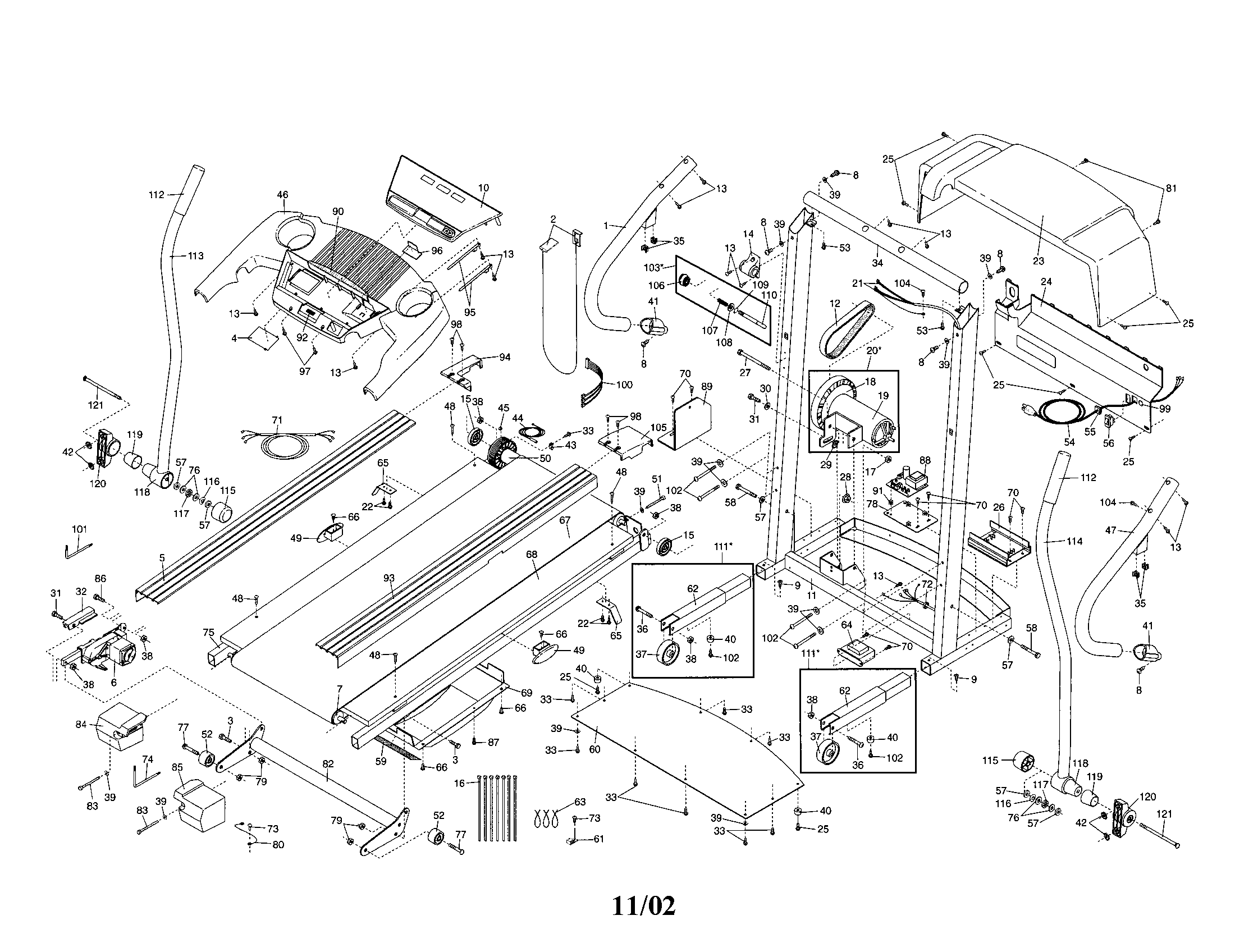

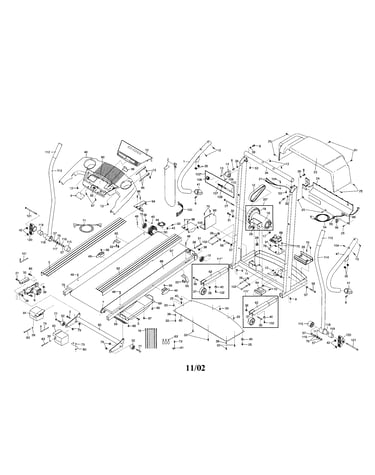

Console/walking belt/motor diagram

Black & decker treadmill line filter

Part #185582

$29.69
17% OFF Phone Price : $35.69
In Stock
Black & Decker Treadmill Washer 014063
Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Magnet,rnd,m 100498
#45

Console/walking belt/motor diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
Back Order
Weider Belt Guide 198640
#65

Console/walking belt/motor diagram

Weider belt guide

Part #198640

This item is not returnable
In Stock
Black & Decker Treadmill Transport Wheel 165009
#37

Console/walking belt/motor diagram

Black & decker treadmill transport wheel

Part #165009

This item is not returnable
In Stock
Exercise Equipment Screw 013576
#73

Console/walking belt/motor diagram

Exercise equipment screw

Part #013576

This item is not returnable
In Stock
Lifestyler Exercise Equipment Screw 013607
#87

Console/walking belt/motor diagram

Lifestyler exercise equipment screw

Part #013607

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Screw,17phpn 173368
#98

Console/walking belt/motor diagram

Screw,17phpn

Part #173368

This item is not returnable
In Stock
Foam Grip, 6-in 105500
#112

Console/walking belt/motor diagram

Foam grip, 6-in

Part #105500

This item is not returnable
In Stock
Incline Leg 167854
#82

Console/walking belt/motor diagram

Incline leg

Part #167854

In Stock
