Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 10651113710, the model number is printed on the appliance identification label (the same label that lists the serial number). Use the label to confirm the exact model before ordering parts or using troubleshooting steps in the 10651113710 owner's manual.
Common places to check first
We typically see the model and serial label in one of these spots on a Kenmore side-by-side refrigerator:
- Inside the fresh food (refrigerator) compartment on a side wall near the top front
- On the ceiling of the fresh food compartment near the light housing
- Along the door frame (hinge side) where the refrigerator door closes
- Inside the freezer compartment on a side wall (less common)
How to read the label correctly
The label usually shows both a model number and a serial number. For Kenmore units, the serial number format can vary by production run, so the safest approach is to match the full model number exactly.
| What you see on the label | What it’s used for | Why it matters |
|---|---|---|
| Model number (example: 10651113710) | Parts lookup and correct diagrams | Ensures the right door gasket, ice maker, and filter fit |
| Serial number | Production details and service identification | Helps match revisions when parts changed during a run |
Why it matters before you order parts
Kenmore model families can look nearly identical, but parts can differ by revision. Confirming 10651113710 helps you avoid ordering the wrong items, especially for fit-critical parts like:
- Water filter and housing
- Ice maker and ice container

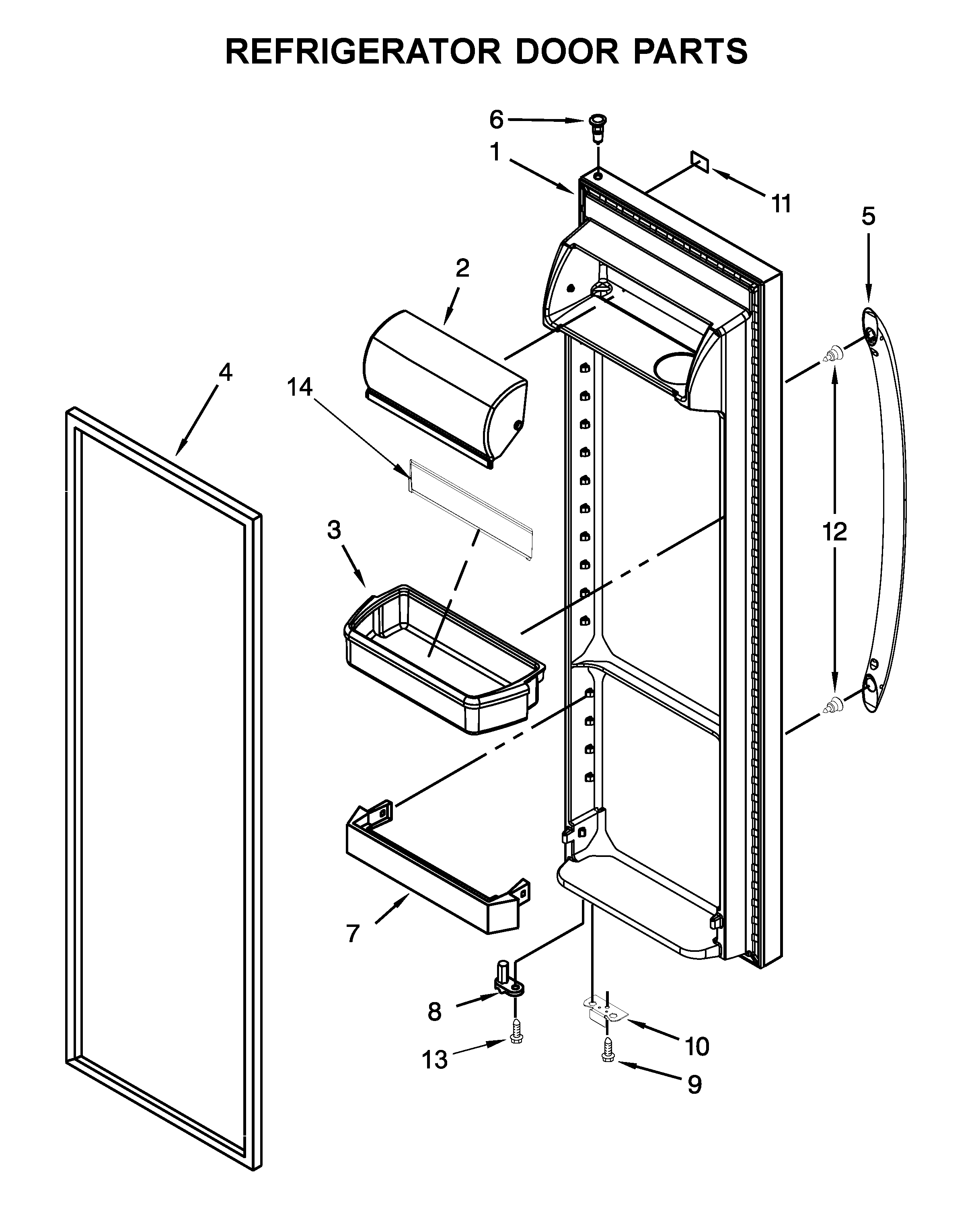

- Door gaskets and door bins
- User interface and control components
If you’re ordering a water filter for this model, the compatible filter shown for this refrigerator is the refrigerator cartridge EDR1RXD1. You can also search by model number on Sears PartsDirect if you’re comparing multiple parts lists.
Last updated: February 2026
How do I find the size of my Kenmore refrigerator?
To find the size (capacity) of your Kenmore 10651113710 side-by-side refrigerator, we calculate cubic feet by measuring the inside usable width, depth, and height of the fresh food and freezer compartments, then converting cubic inches to cubic feet. Use the 10651113710 owner's manual to confirm measurement points and clearances.
What “size” means (capacity vs. dimensions)
Most customers mean one of these:
- Capacity (cubic feet): how much the refrigerator holds
- Exterior dimensions (inches): how much space it takes in your kitchen
- Installation clearance: extra space needed for airflow and door swing
How to calculate cubic feet (capacity)
- Empty one compartment (fresh food first, then freezer).
- Measure the inside:
- Width (left to right)
- Depth (front to back, not including door bins)
- Height (bottom shelf area to ceiling of compartment)
- Multiply: width × depth × height = cubic inches.
- Convert to cubic feet: cubic inches ÷ 1,728 = cubic feet.
- Repeat for the other compartment and add them together.
Quick conversion table
| What you have | Convert to cubic feet |
|---|---|
| Inches (W × D × H) | Divide by 1,728 |
| Feet (W × D × H) | Multiply directly |
How to measure exterior size for kitchen fit
Use a tape measure on the outside of the cabinet:
- Measure height (floor to top hinge cover area)
- Measure width (side to side at the widest point)
- Measure depth (front to back, including handles if they stick out)
Installation clearances that affect “size”
Even if the refrigerator fits by dimensions, it still needs breathing room. For this Kenmore side-by-side style, typical clearances include:
- 1/2 inch on each side and at the top
- 2 inches behind the refrigerator
- Extra space behind if you have an ice maker water line
Why it matters
Capacity helps you compare models and storage needs; exterior dimensions and clearances prevent poor cooling, door-swing issues, and installation headaches.
If you are also replacing filtration parts while you measure, you can match your filter by model using the refrigerator cartridge EDR1RXD1 listing, or search by model on Sears PartsDirect.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore refrigerators like model 10651113710 are cooling issues, ice maker and water dispenser failures, water leaks, frost buildup, and unusual noises. Many are caused by airflow blockages, dirty coils, door seal gaps, or a failing fan or defrost component; the 10651113710 owner's manual troubleshooting section walks you through the first checks.
Most common symptoms and what usually causes them
- Not cooling or warm temperatures: blocked air vents, controls set incorrectly, dirty condenser coils, or a failing evaporator fan motor
- Ice maker not making ice: water supply issue, frozen fill tube, clogged filter, or ice maker assembly failure
- Water leaking: clogged defrost drain, loose water line, cracked water tube, or filter housing leak
- Excess frost or moisture: doors not sealing, frequent door openings, or a defrost system problem
- Noisy operation: evaporator fan blade hitting ice, worn fan motor, or normal longer run times on energy-efficient designs
Quick checks we recommend first (safe DIY)
- Confirm power and outlet: plug into a grounded 3-prong outlet; avoid extension cords.
- Give it time after setup: after a new install or restart, allow 24 hours to cool fully.
- Check airflow: remove items blocking interior vents (blocked vents can cause uneven temps).
- Verify control settings: adjust one step at a time; recheck temps after 24 hours.
- Inspect door sealing: look for gaps, torn gasket areas, or doors not closing squarely.
Parts that commonly solve these problems on 10651113710
If troubleshooting points to a failed component, these are common replacements for this model:
| Problem area | Common part to check/replace | What it affects |
|---|---|---|
| Water taste/flow, ice maker fill | Refrigerator cartridge EDR1RXD1 | Restriction can reduce dispenser flow and ice production |
| Warm fridge/freezer, noise | Refrigerator evaporator fan motor WP2315549 | Moves cold air through the compartments |
| Frost buildup, poor cooling | Refrigerator heater WP2323198 | Defrost heat to clear ice from the evaporator |
| No ice production | Refrigerator ice maker assembly WPW10300022 | Harvests and cycles ice cubes |
Why it matters
Most “not cooling” and “ice maker not working” complaints come down to airflow and water flow. Clearing vents, confirming settings, and keeping seals tight prevents temperature swings that can lead to frost, leaks, and longer compressor run times.
Ordering the right part
We recommend matching by model 10651113710 and confirming the symptom before ordering. You can order the parts listed for your refrigerator from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
What causes a side-by-side refrigerator to stop cooling?
A Kenmore 10651113710 side-by-side refrigerator usually stops cooling because it is not getting power, it is still in the first 24-hour cool-down period after installation, the temperature controls are set incorrectly, or airflow is blocked by items covering the vents. See the 10651113710 owner's manual for control settings and troubleshooting steps.
Quick checks we recommend first (fastest to rule out)
- Confirm the refrigerator is plugged into a grounded 3-prong outlet (no extension cord).
- Test the outlet with a lamp to confirm the outlet has power.
- Check the house breaker or fuse if the unit is completely dead.
- If it is a new install or was unplugged, allow a full 24 hours to cool.
- Make sure the refrigerator and freezer controls are still at the factory mid-setting.
- Look for blocked air vents in both compartments before changing temperature settings.
Most common causes and what you will notice
| What’s happening | What you’ll typically notice | What to do next |
|---|---|---|
| No power to the refrigerator | No lights, no fan/compressor sound | Check outlet, breaker/fuse, power cord connection |
| New installation or recent power loss | Runs but temps stay warm for hours | Wait 24 hours before judging cooling performance |
| Controls set too warm (or changed recently) | Unit runs, but temps drift warm | Return to mid-setting; wait 24 hours between adjustments |
| Blocked vents or overloaded shelves | Some areas warm, others cold | Clear vents; avoid packing food tightly against vent openings |
Why “coldest setting” does not fix it faster
On this model, setting the controls colder than recommended does not cool the compartments any faster. The better approach is to use the mid-setting, confirm vents are open, then wait at least 24 hours between adjustments.
Parts that can be involved when cooling problems persist
If power and settings are correct and airflow is clear, cooling issues often involve airflow or sealed-system components. Common examples for this model include:

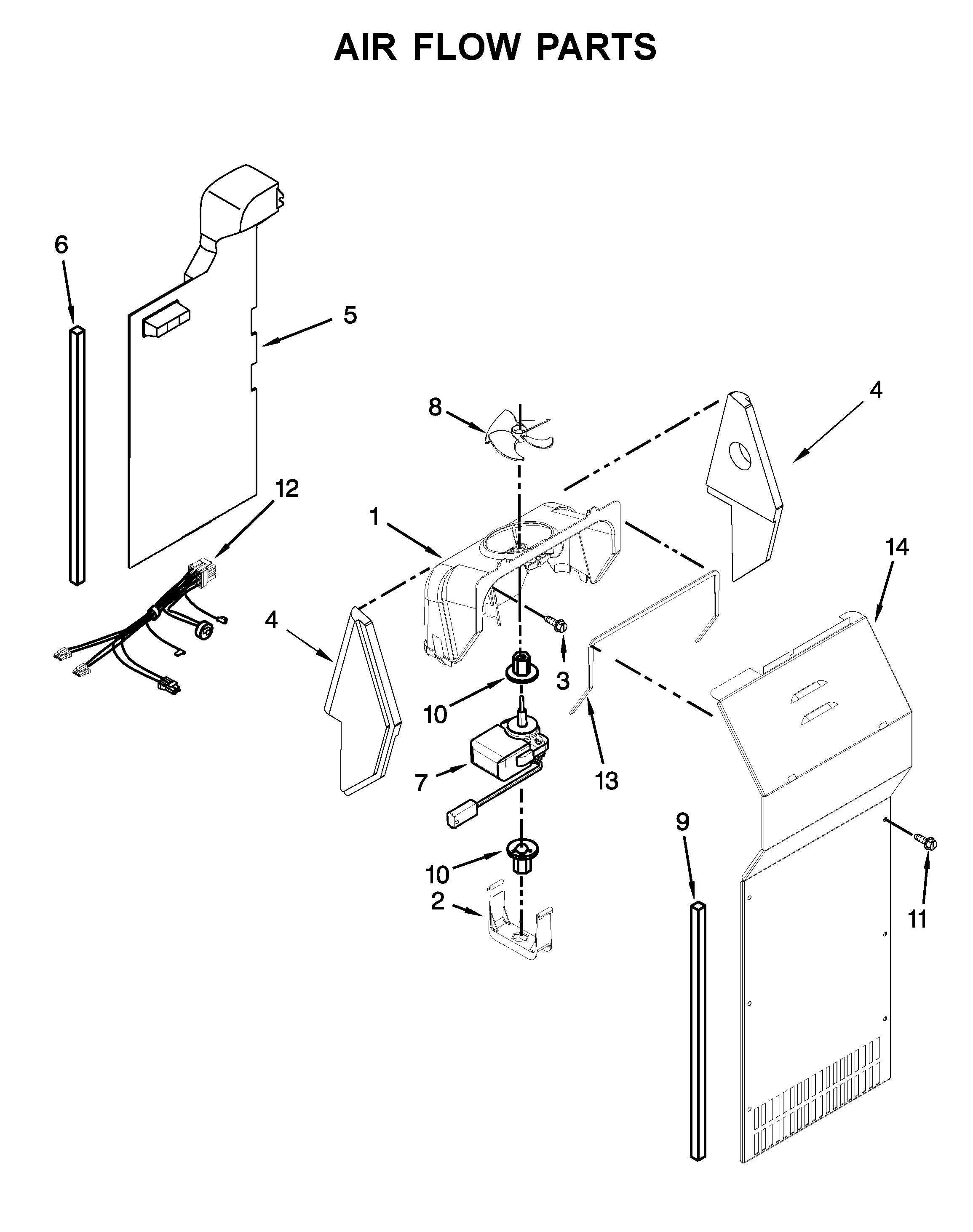

- Refrigerator evaporator fan motor WP2315549 (moves cold air through the compartments)
- Refrigerator evaporator fan blade WP2169142 (damaged blades reduce airflow)
- Refrigerator compressor W10309988 (drives the cooling cycle)
For ordering, we list model-matched parts for Kenmore 10651113710 on this page, and you can also search by model number on Sears PartsDirect.
Last updated: February 2026
What is the code Sy Ef on a Kenmore refrigerator?
The SY EF code on Kenmore refrigerator model 10651113710 indicates a problem in the evaporator (freezer) fan feedback circuit, most often a failed evaporator fan motor, a loose wiring connection, or frost/ice preventing the fan from turning. Use the checks in the 10651113710 owner's manual as you troubleshoot.
What to check first (fast, no tools)
- Power reset: Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
- Airflow: Make sure freezer vents are not blocked by food packages.
- Evaporator fan sound: Hold the freezer door switch closed; you should typically hear the fan running.
- Frost pattern: Look for heavy frost on the freezer back wall (can stop airflow and fan operation).
- Control lock: If the user interface is unresponsive, follow the lock and timing guidance in the manual.
Likely causes and what they mean
| What you notice | What it usually points to | What to do next |
|---|---|---|
| SY EF returns right after reset | Fan motor feedback issue or wiring connection | Check the fan connector and harness for a loose plug or damaged wires (power off) |
| Freezer warm and fresh food warm | No airflow from freezer to refrigerator | Diagnose the fan circuit; replace the refrigerator evaporator fan motor WP2315549 if the fan is not running |
| Fan tries to run but hits ice | Frost/ice interference | Defrost the evaporator area and correct the underlying frost cause |
| Heavy frost on freezer back panel | Defrost system problem causing airflow loss | Inspect defrost components; the refrigerator heater WP2323198 is commonly involved when symptoms match |
Why it matters
When the evaporator fan cannot move cold air, temperatures rise in both compartments and the refrigerator can’t regulate cooling correctly. That leads to warm food, poor ice production, and recurring error codes.
Parts commonly involved (when symptoms match)
- Refrigerator evaporator fan motor WP2315549 (fan not running, intermittent running, or noisy)
- Refrigerator evaporator fan blade WP2169142 (blade damaged or slipping)
- Refrigerator heater WP2323198 (frost buildup consistent with defrost failure)
You can order replacement parts for Kenmore 10651113710 from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
