Craftsman
Gas Walk-Behind Mower

Model # 917376521 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376521 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |

Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#47

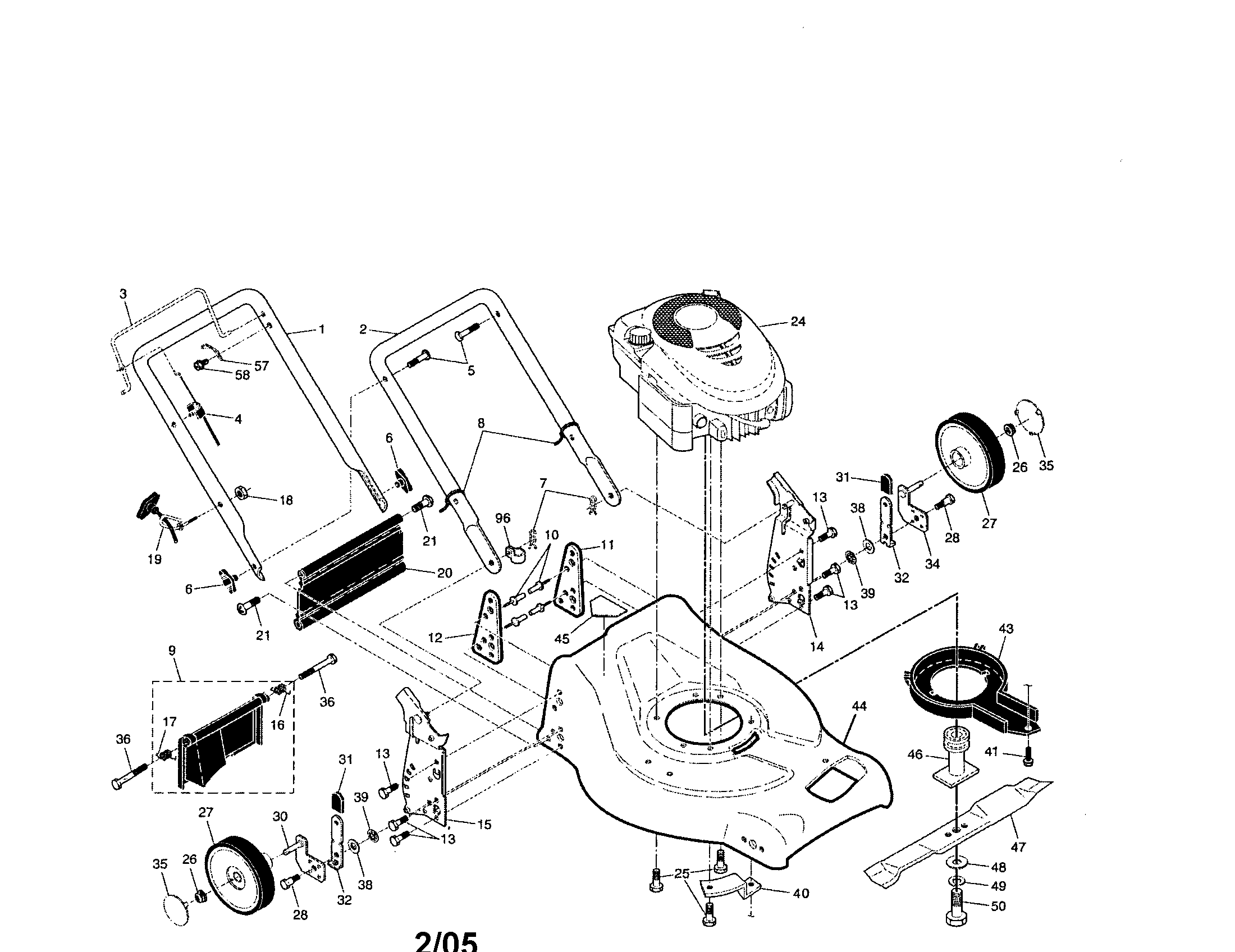

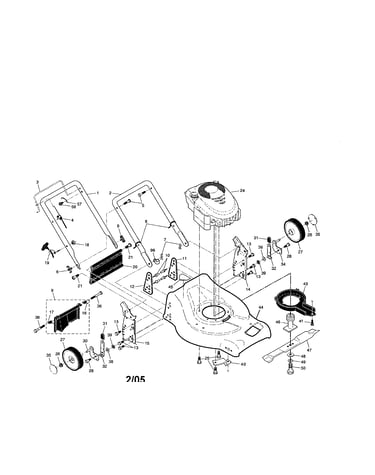

Engine/housing/ handle diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$11.41
43% OFF MSRP : $20.00
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/ handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09
24% OFF Phone Price : $4.09
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

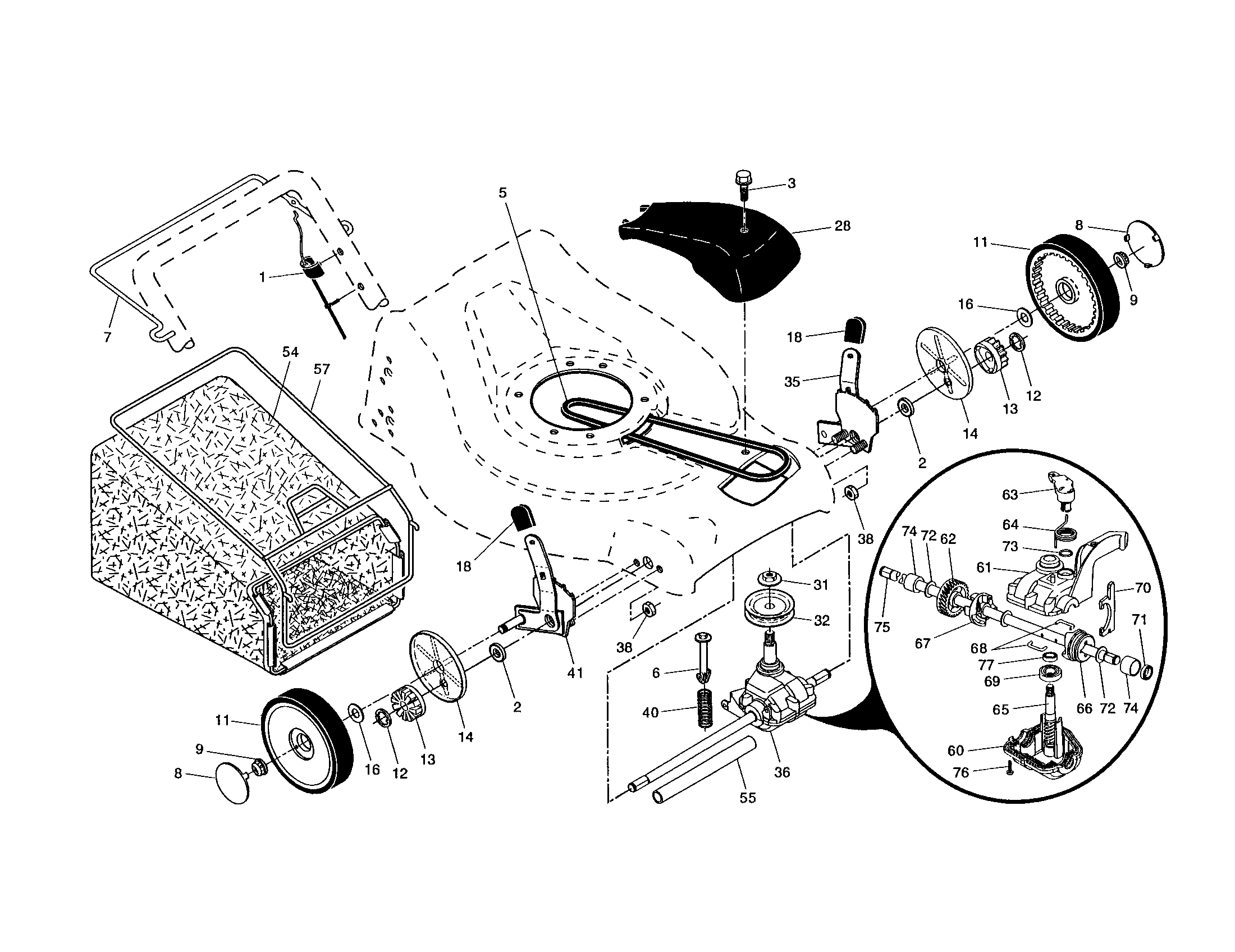

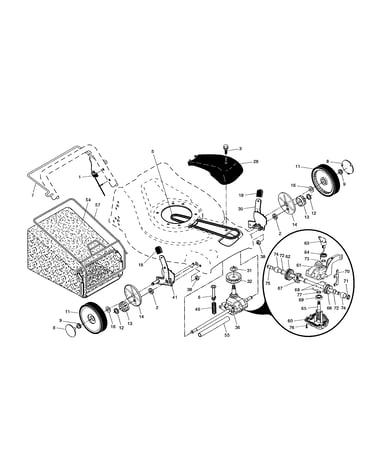

Wheels/tires/bag diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.78
17% OFF Phone Price : $5.78
Back Order
Lawn & Garden Equipment Screw 851084
#50

Engine/housing/ handle diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Handle Bolt 191574
#5

Engine/housing/ handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89
26% OFF Phone Price : $3.89
In Stock
Lawn Mower Ground Drive Belt, 3/8 X 32-1/2-in (replaces 532175436) 175436
#5

Wheels/tires/bag diagram

Lawn mower ground drive belt, 3/8 x 32-1/2-in (replaces 532175436)

Part #175436

BEST SELLER

Get free shipping with Automatic Reorder

$17.64
10% OFF Phone Price : $19.64
In Stock
Skirt 189005
#20

Engine/housing/ handle diagram

Skirt

Part #189005

Replaced by #413159

?
Manufacturer substitution
This part replaces 189005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.49
16% OFF Phone Price : $12.49
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/housing/ handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Lawn & Garden Equipment Pan Head Screw (replaces 532175262, 5321752-62) 175262
#3

Wheels/tires/bag diagram

Lawn & garden equipment pan head screw (replaces 532175262, 5321752-62)

Part #175262

This item is not returnable
$5.29
16% OFF Phone Price : $6.29
In Stock
Rope Guide 179585
#19

Engine/housing/ handle diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59
11% OFF Phone Price : $17.59
Back Order
