Homelite
Gas Line Trimmer

Model # Z825SD-UT20619-A Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite Z825SD-UT20619-A trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 101 parts  |
Spacer
#15B

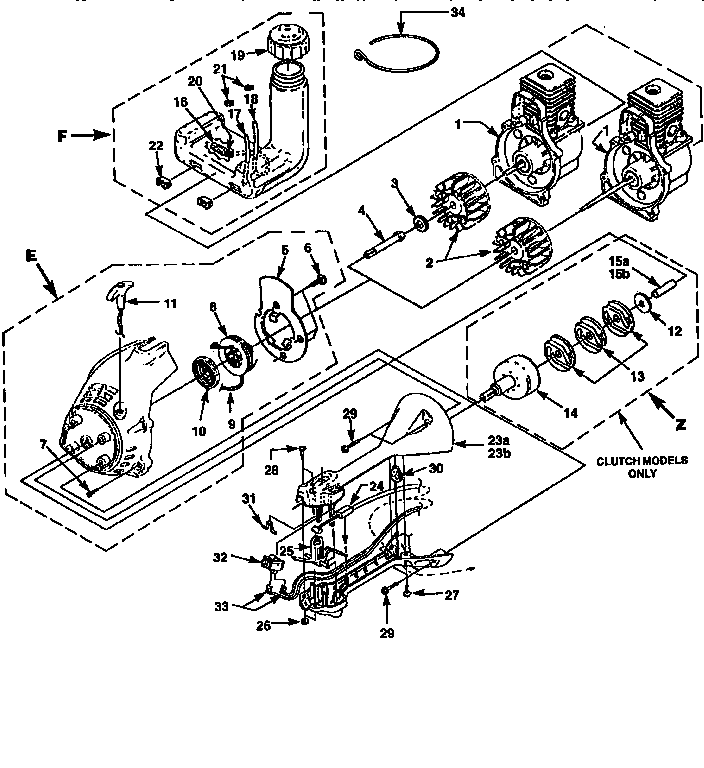

Starter assembly diagram

Spacer

Part #03566-2

The manufacturer no longer makes this part, and there's no substitute part

Hand Control
#23A

Starter assembly diagram

Hand control

Part #A-07144

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug
#32

Carburetor diagram

Spark plug

Part #96169-S

The manufacturer no longer makes this part, and there's no substitute part

Crvd Hd Gear
#8

Drive shaft and cutter head assembly diagram

Crvd hd gear

Part #A-04836-C

The manufacturer no longer makes this part, and there's no substitute part

Tapite
#28

Carburetor diagram

Tapite

Part #82539

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Fuel Tank Pad
#22

Starter assembly diagram

Lawn & garden equipment engine fuel tank pad

Part #98792

The manufacturer no longer makes this part, and there's no substitute part

Shaft Adapter
#12

Drive shaft and cutter head assembly diagram

Shaft adapter

Part #04355

The manufacturer no longer makes this part, and there's no substitute part

Ignition Kit
#C

Carburetor diagram

Ignition kit

Part #A-04446

The manufacturer no longer makes this part, and there's no substitute part

Choke Lever
#17

Carburetor diagram

Choke lever

Part #07377

The manufacturer no longer makes this part, and there's no substitute part

Screen
#10

Carburetor diagram

Screen

Part #06502

The manufacturer no longer makes this part, and there's no substitute part
