GE GSG20IBMCFBB refrigerator Parts
Here are the diagrams and repair parts for GE GSG20IBMCFBB refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for GSG20IBMCFBB Refrigerators

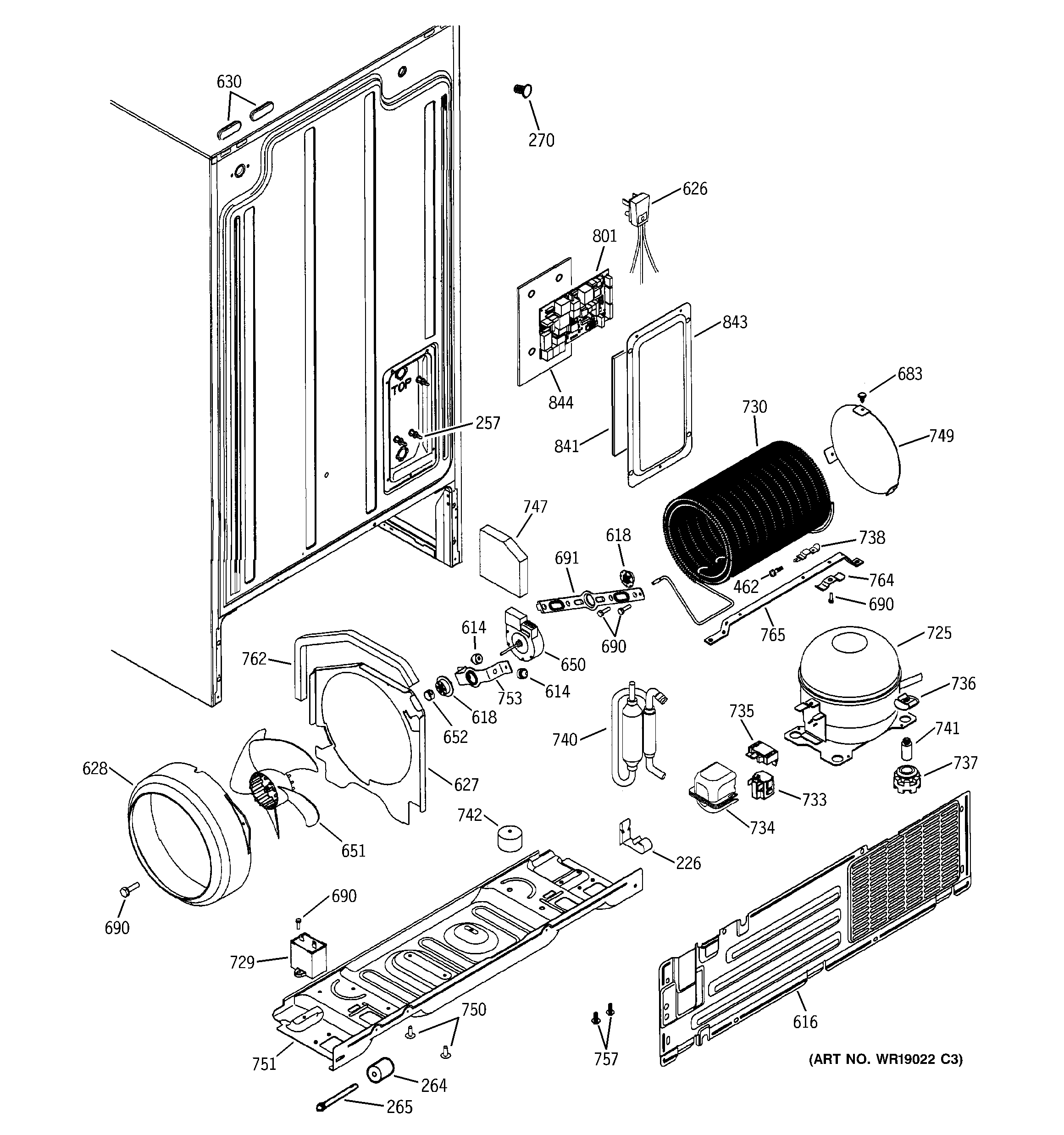

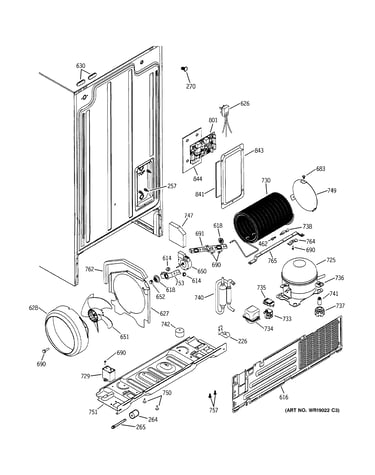

Sealed system & mother board diagram
Dryer Filter
Part #WR86X0096Replaced by #WR86X25269
Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.In Stock$46.3645% OFF Was : $83.96
Qty

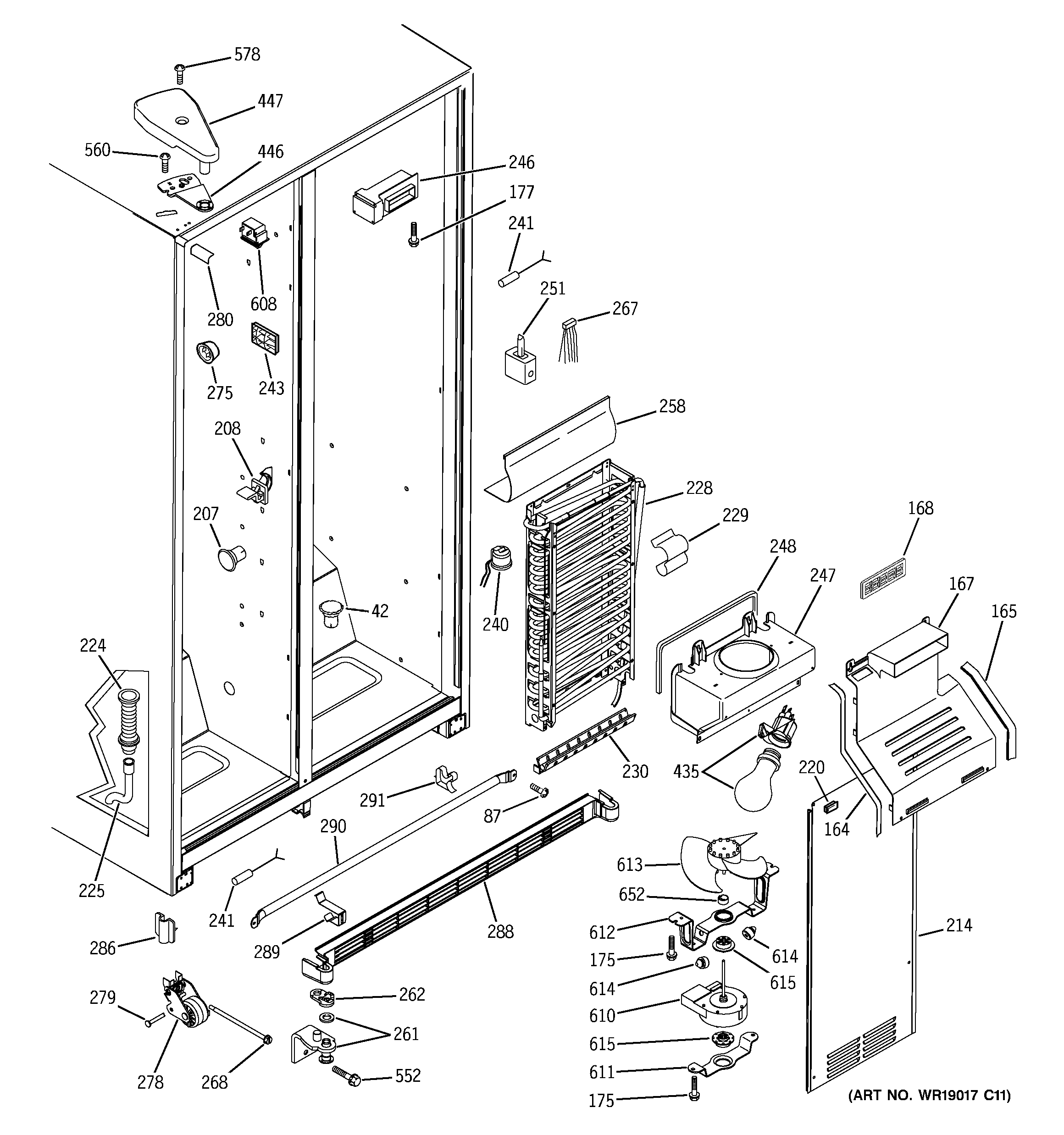

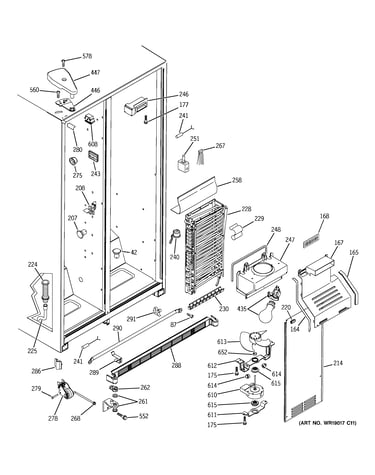

Freezer section diagram
Dc Evaporator Motor
Part #WR60X10068Replaced by #WR60X10185
Manufacturer substitutionThis part replaces WR60X10068. Substitute parts can look different from the original.In Stock$102.9110% OFF Phone Price : $114.91QtyFreezer section diagram
Refrigerator Thermostat
Part #WR50X10015Replaced by #WR50X10068
Manufacturer substitutionThis part replaces WR50X10015. Substitute parts can look different from the original.In Stock$24.4720% OFF Phone Price : $30.47QtyFreezer section diagram
Refrigerator Evaporator Blade
Part #WR60X10075Replaced by #WR60X30922
Manufacturer substitutionThis part replaces WR60X10075. Substitute parts can look different from the original.In Stock$100.4111% OFF Phone Price : $112.41QtyFreezer section diagram
Refrigerator Evaporator Fan Motor Grommet
Part #WR02X10519Replaced by #WR02X12008
Manufacturer substitutionThis part replaces WR02X10519. Substitute parts can look different from the original.In Stock$42.9812% OFF Phone Price : $48.98QtySealed system & mother board diagram
Motor Dc Con
Part #WR60X10065Replaced by #WR60X10209
Manufacturer substitutionThis part replaces WR60X10065. Substitute parts can look different from the original.In Stock$70.228% OFF Phone Price : $76.22QtyFreezer section diagram
Refrigerator Light Switch
Part #WR23X10161Replaced by #WR23X21444

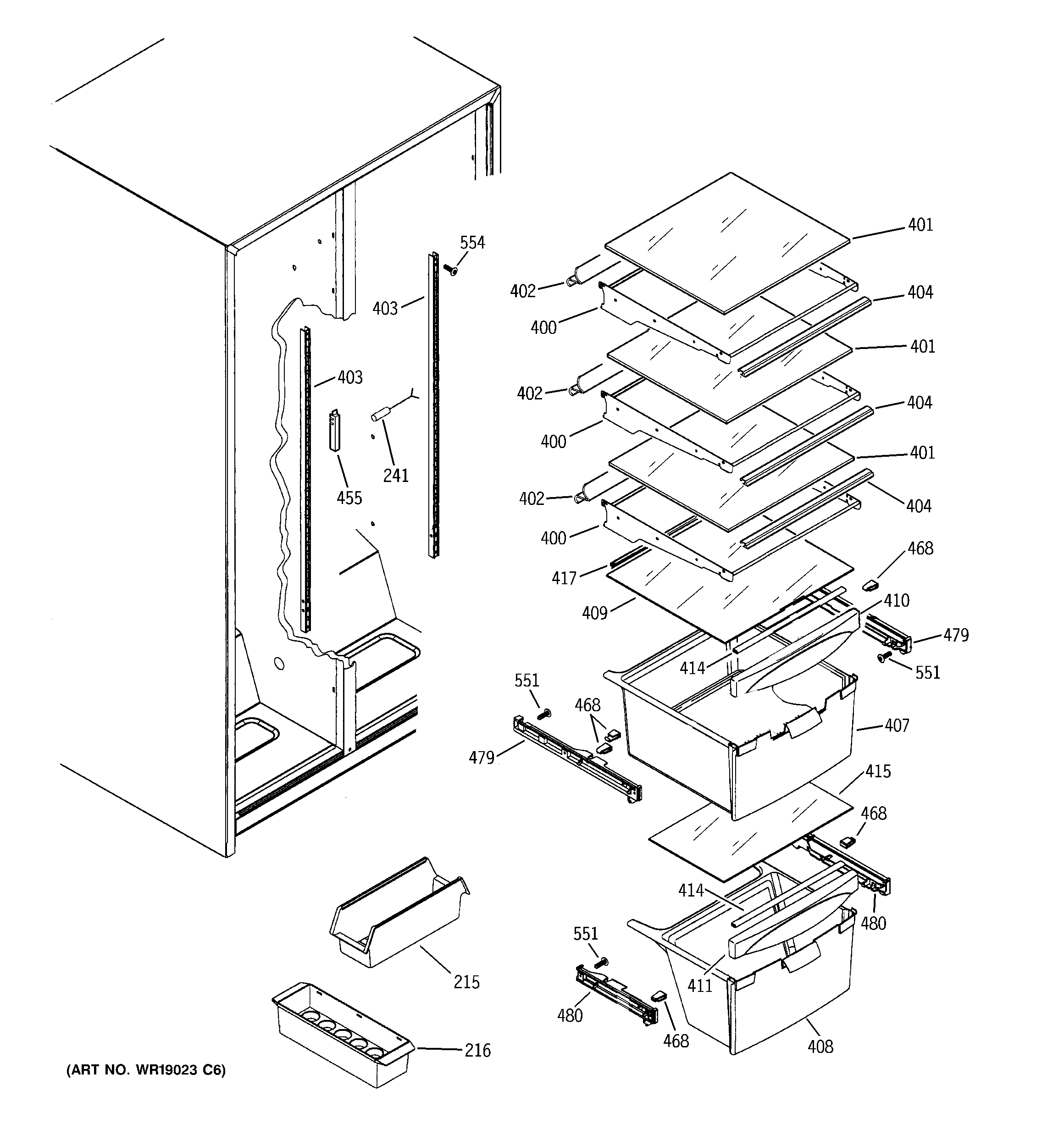

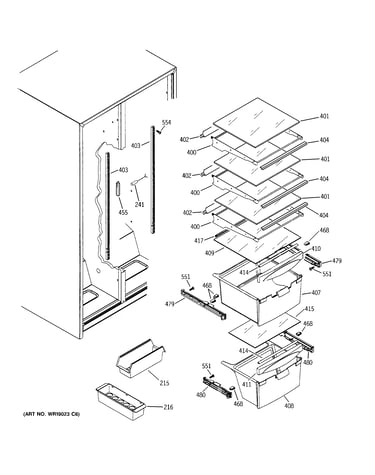

Manufacturer substitutionThis part replaces WR23X10161. Substitute parts can look different from the original.This item is not returnableIn Stock$11.7715% OFF Phone Price : $13.77QtyFresh food shelves diagram
Refrigerator Slide Assembly, Right
Part #WR72X0240Replaced by #WR72X240
Manufacturer substitutionThis part replaces WR72X0240. Substitute parts can look different from the original.In Stock$58.949% OFF Phone Price : $64.94QtyFresh food shelves diagram
Refrigerator Slide Assembly, Left
Part #WR72X0239Replaced by #WR72X239
Manufacturer substitutionThis part replaces WR72X0239. Substitute parts can look different from the original.In Stock$42.1612% OFF Phone Price : $48.16QtySealed system & mother board diagram
Ge Profile Refrigerator Condenser Coil
In Stock$466.36$12.00 OFF Phone Price : $478.36Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Refrigerator Freezer Door Hinge Bushing
Part #WR01X10201
This item is not returnable
In Stock
$8.38
11% OFF Phone Price : $9.38
Qty
Refrigerator Temperature Thermistor Cover
In Stock
$8.33
11% OFF Phone Price : $9.33
Qty
