Ryobi
Gas Line Trimmer

Model #767R Ryobi trimmer

Here are the diagrams and repair parts for Ryobi 767R trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 105 parts

    Flywheel Key

    #NI

    All parts Diagram

    Flywheel key

    Part #791-610676
    ?
    Manufacturer substitution
    This part replaces 610676. Substitute parts can look different from the original.
    This part replaces 610676
    This item is not returnable
    $2.66

    In Stock

    Lawn & Garden Equipment Engine Spark Plug

    #42

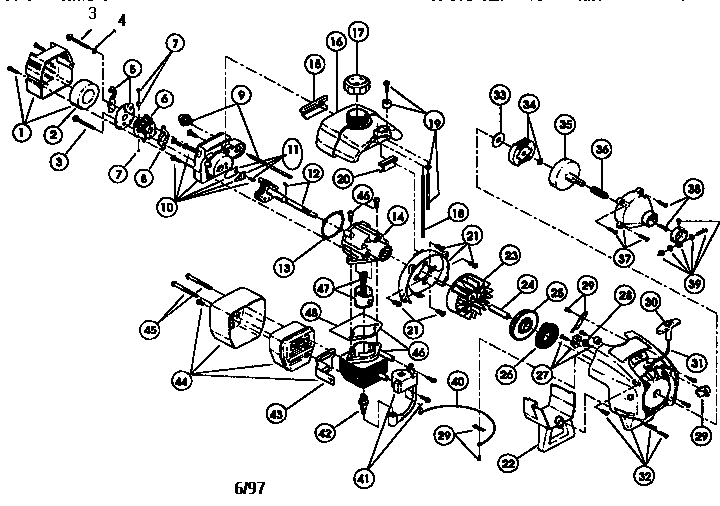

    Engine Diagram

    Lawn & garden equipment engine spark plug

    Part #DJ7Y
    ?
    Manufacturer substitution
    This part replaces 610311. Substitute parts can look different from the original.
    This part replaces 610311
    This item is not returnable
    $5.19

    In Stock

    Line Trimmer Fuel Line

    #18

    Engine Diagram

    Line trimmer fuel line

    Part #791-181086
    ?
    Manufacturer substitution
    This part replaces 181168. Substitute parts can look different from the original.
    This part replaces 181168
    This item is not returnable
    $5.19 |
    19% OFF
    MSRP: $6.40

    In Stock

    Line Trimmer Throttle Trigger Spring

    #2

    Boom and trimmer-775r Diagram

    Line trimmer throttle trigger spring

    Part #791-610314
    ?
    Manufacturer substitution
    This part replaces 610314. Substitute parts can look different from the original.
    This part replaces 610314
    This item is not returnable
    $5.74 |
    16% OFF
    MSRP: $6.80

    In Stock

    Lawn & Garden Equipment 2-Cycle Engine Oil, 6-pack

    #NI

    All parts Diagram

    Lawn & garden equipment 2-cycle engine oil, 6-pack

    Part #21603
    ?
    Manufacturer substitution
    This part replaces 147541. Substitute parts can look different from the original.
    This part replaces 147541
    $17.99

    In Stock

    Tiller Clutch Spring

    #NI

    All parts Diagram

    Tiller clutch spring

    Part #791-181599
    ?
    Manufacturer substitution
    This part replaces 181599. Substitute parts can look different from the original.
    This part replaces 181599
    This item is not returnable
    $6.35 |
    25% OFF
    MSRP: $8.50

    In Stock

    Shblk:31cc:c

    #NI

    All parts Diagram

    Shblk:31cc:c

    Part #791-00039
    ?
    Manufacturer substitution
    This part replaces 181623. Substitute parts can look different from the original.
    This part replaces 181623
    $112.30

    In Stock

    Lawn & Garden Equipment Engine Recoil Starter Pulley

    #25

    Engine Diagram

    Lawn & garden equipment engine recoil starter pulley

    Part #753-04232
    ?
    Manufacturer substitution
    This part replaces 181597. Substitute parts can look different from the original.
    This part replaces 181597
    $24.65 |
    15% OFF
    MSRP: $29.00

    In Stock

    Line Trimmer Drive Shaft Housing Clamp

    #15

    Boom and trimmer-775r Diagram

    Line trimmer drive shaft housing clamp

    Part #791-153597
    ?
    Manufacturer substitution
    This part replaces 153597. Substitute parts can look different from the original.
    This part replaces 153597
    $11.90 |
    15% OFF
    MSRP: $14.00

    In Stock

    Choke Lever Plate

    #5

    Engine Diagram

    Choke lever plate

    Part #791-180353
    ?
    Manufacturer substitution
    This part replaces 180353. Substitute parts can look different from the original.
    This part replaces 180353
    $9.60

    In Stock
