GE
Electric Wall Oven

Model # PK956BM2BB Official GE electric wall oven

Here are the diagrams and repair parts for Official GE PK956BM2BB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

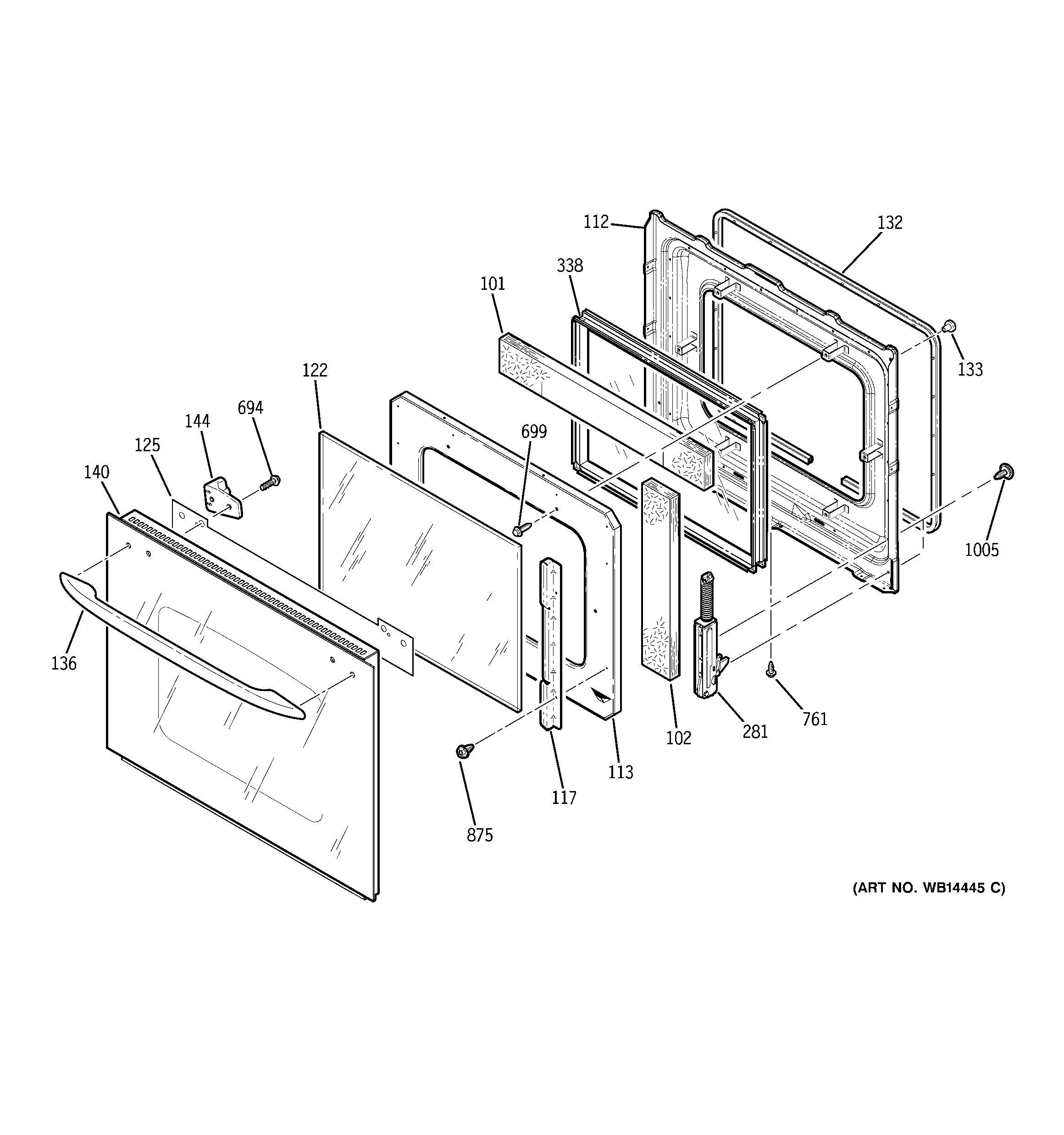

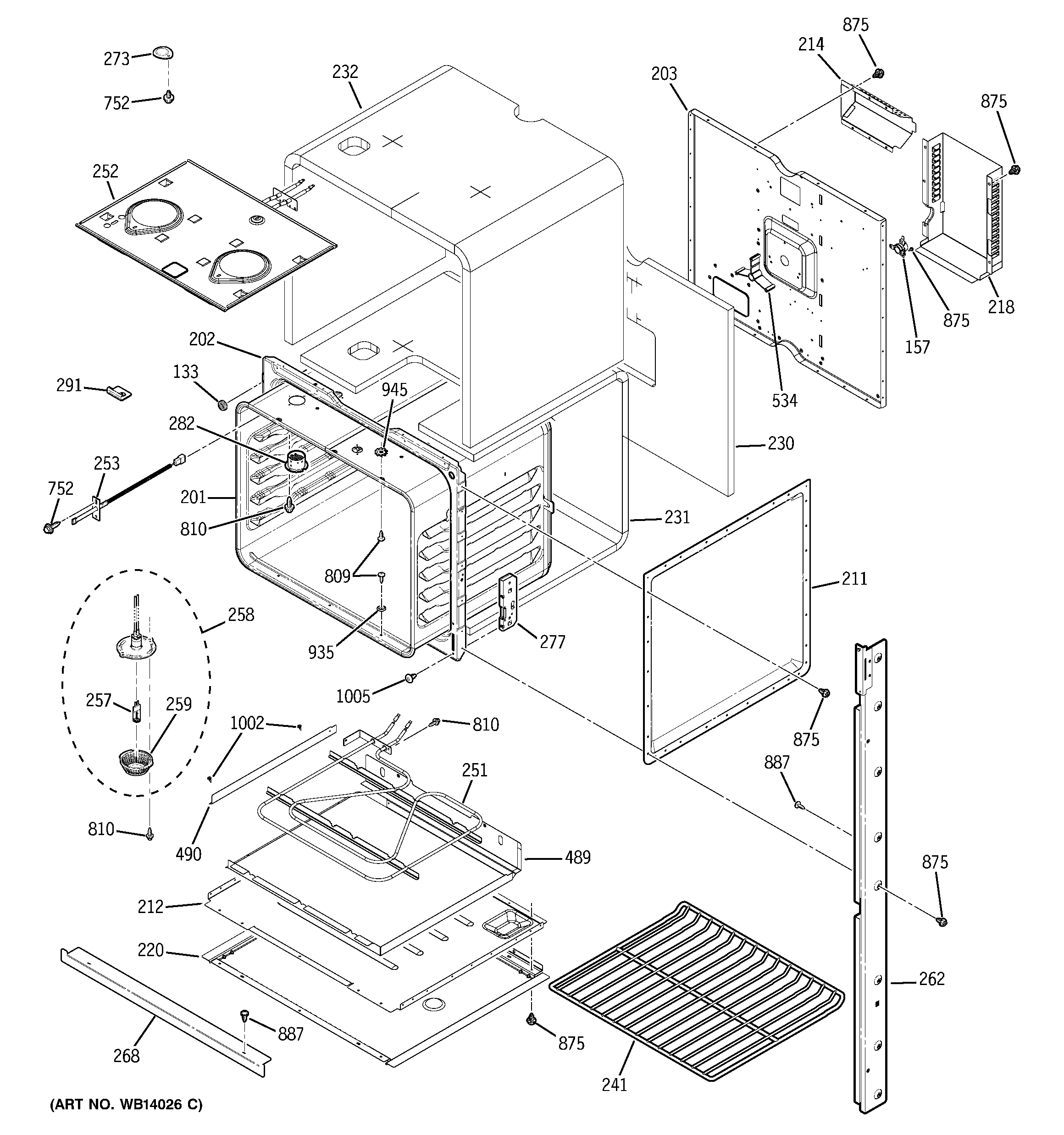

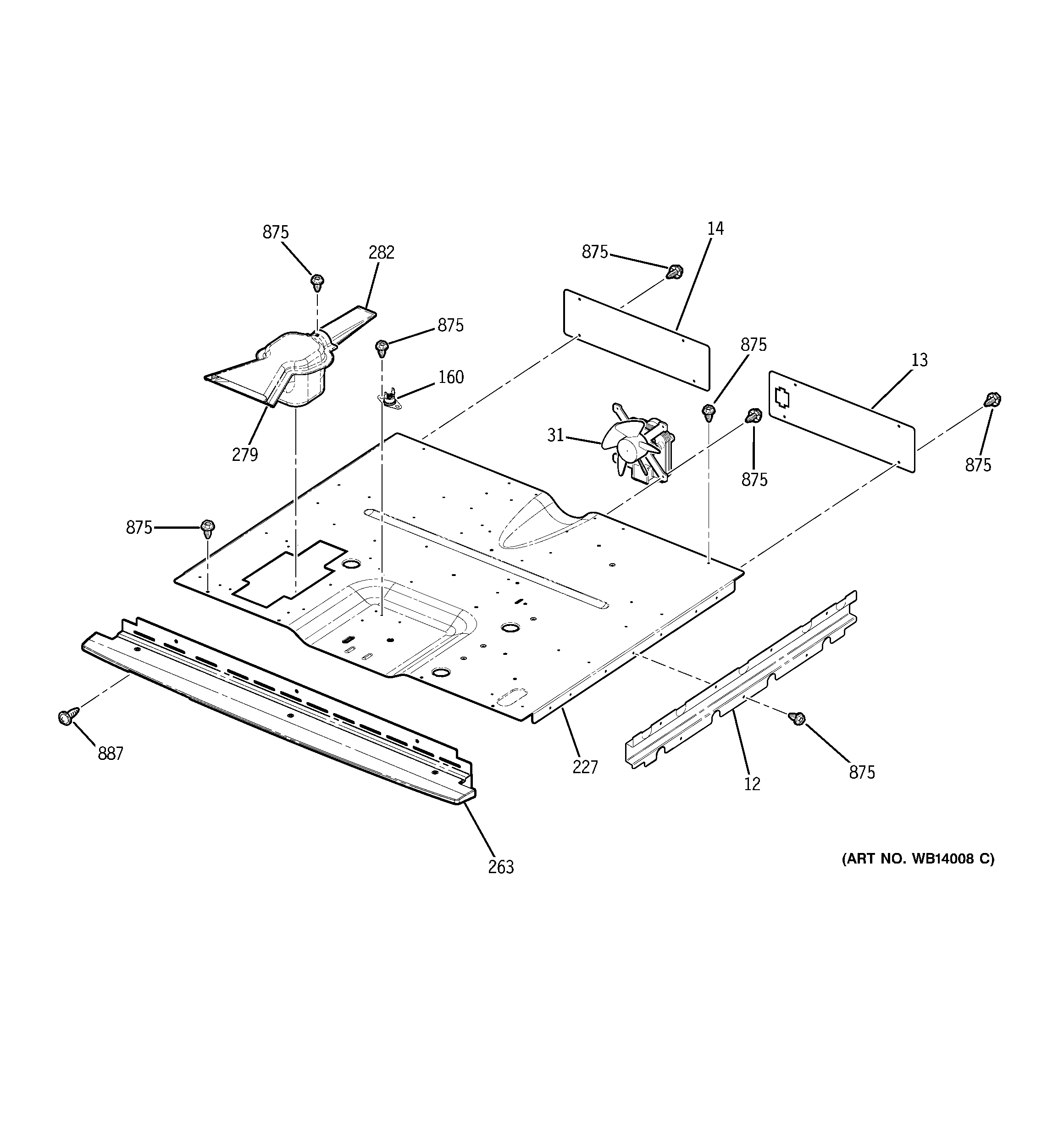

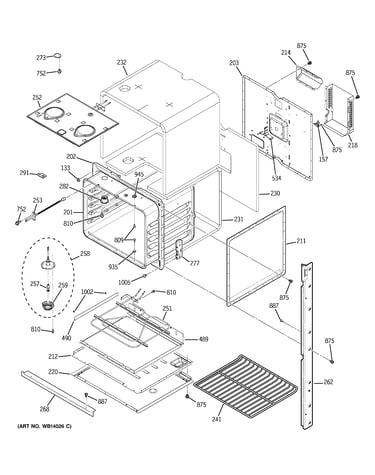

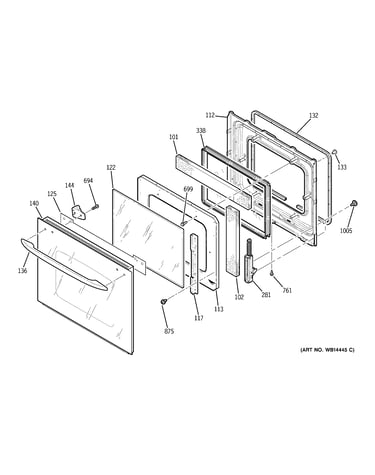

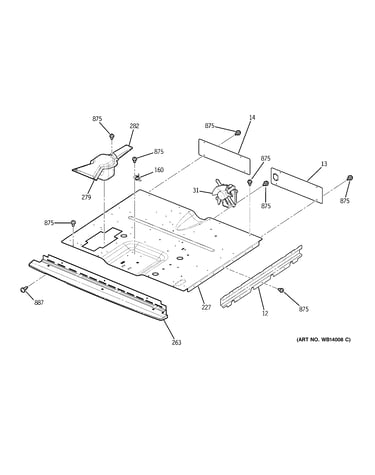

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Sensor WB21T10017
Sensor

Part #WB21T10017

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
BEST SELLER
$26.68
16% OFF Phone Price : $31.68
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

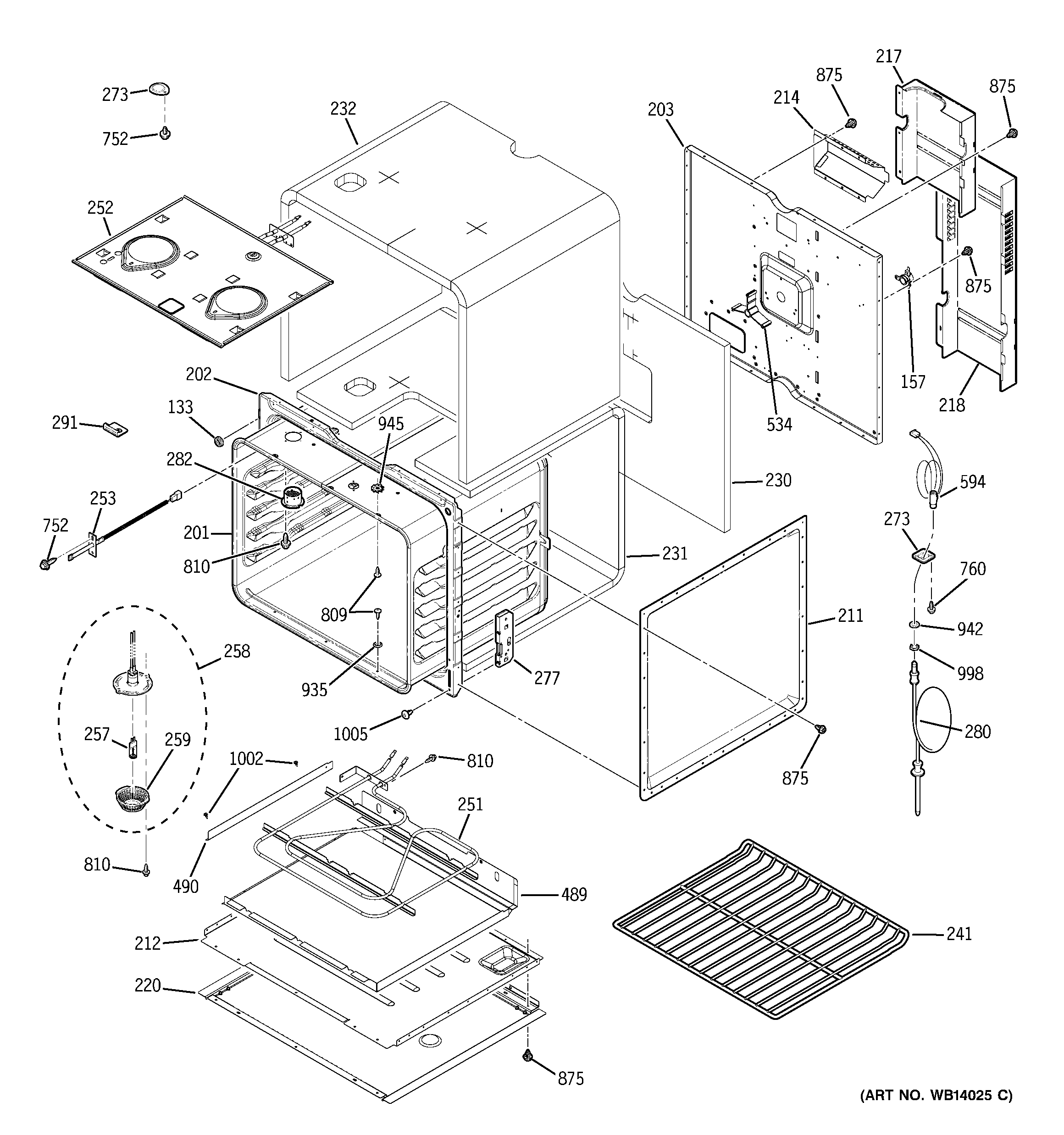

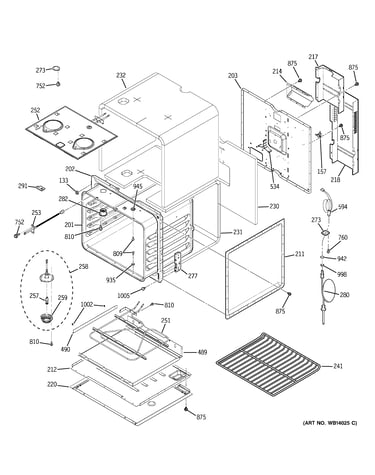

Upper oven diagram

Range oven meat probe sensor

Part #WB20T10025

Replaced by #WB20T10024

?
Manufacturer substitution
This part replaces WB20T10025. Substitute parts can look different from the original.
$52.16
9% OFF Phone Price : $57.16
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Wall Oven High-limit Thermostat WB24T10081
Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54
18% OFF Phone Price : $27.54
In Stock
Wall Oven Relay Control Board WB27T10569
#46

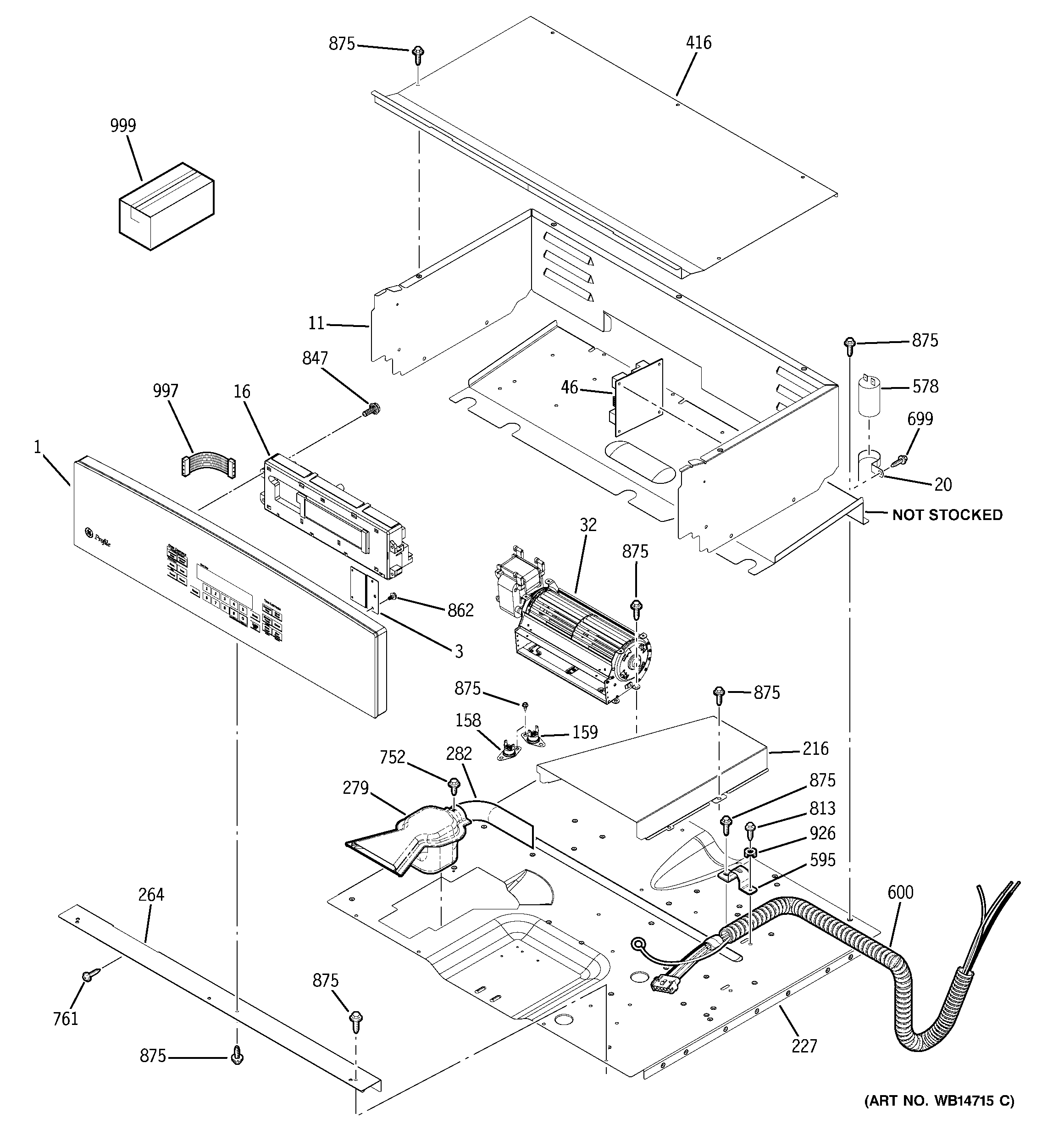

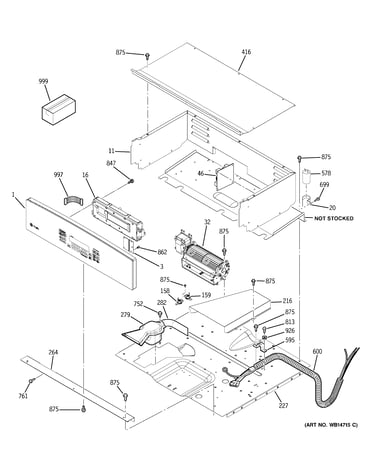

Control panel diagram

Wall oven relay control board

Part #WB27T10569

$62.62
7% OFF Phone Price : $67.62
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91
10% OFF Phone Price : $20.91
In Stock
Range Halogen Light Bulb WB08T10021
Range halogen light bulb

Part #WB08T10021

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10021. Substitute parts can look different from the original.
This item is not returnable
$47.12
10% OFF Phone Price : $52.12
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

Control panel diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51
13% OFF Phone Price : $7.51
In Stock
