Model # MVWB865GC1 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MVWB865GC1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

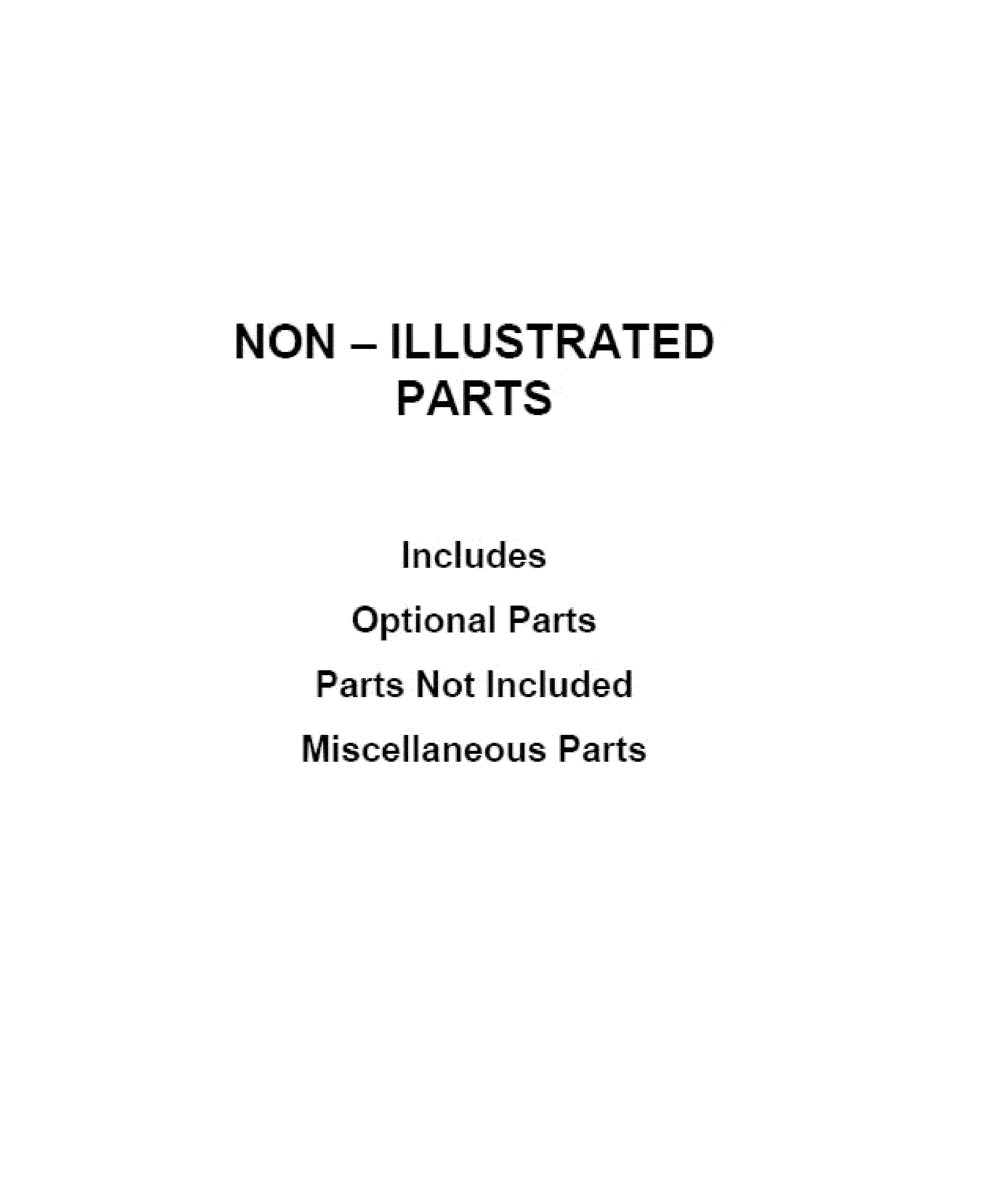

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

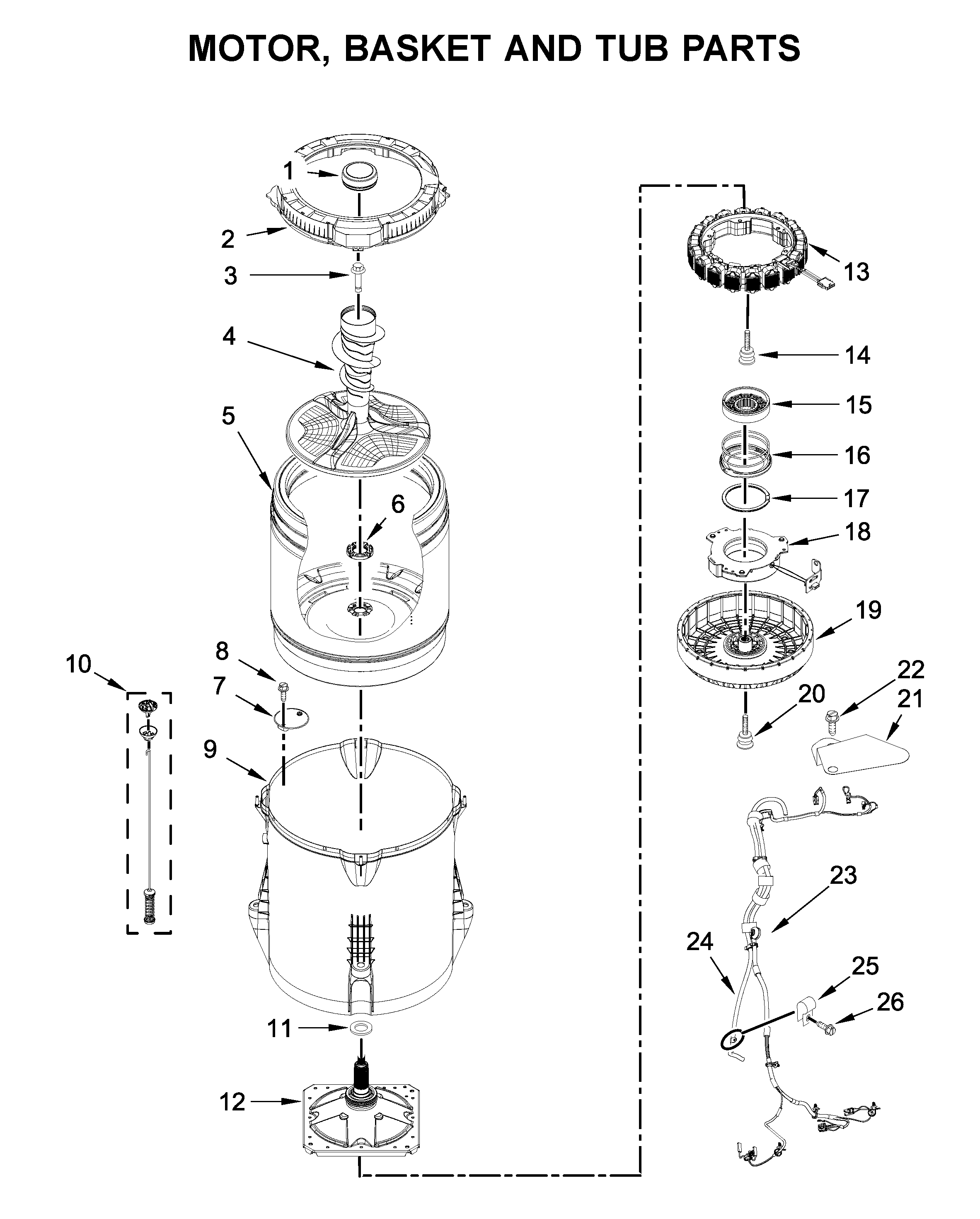

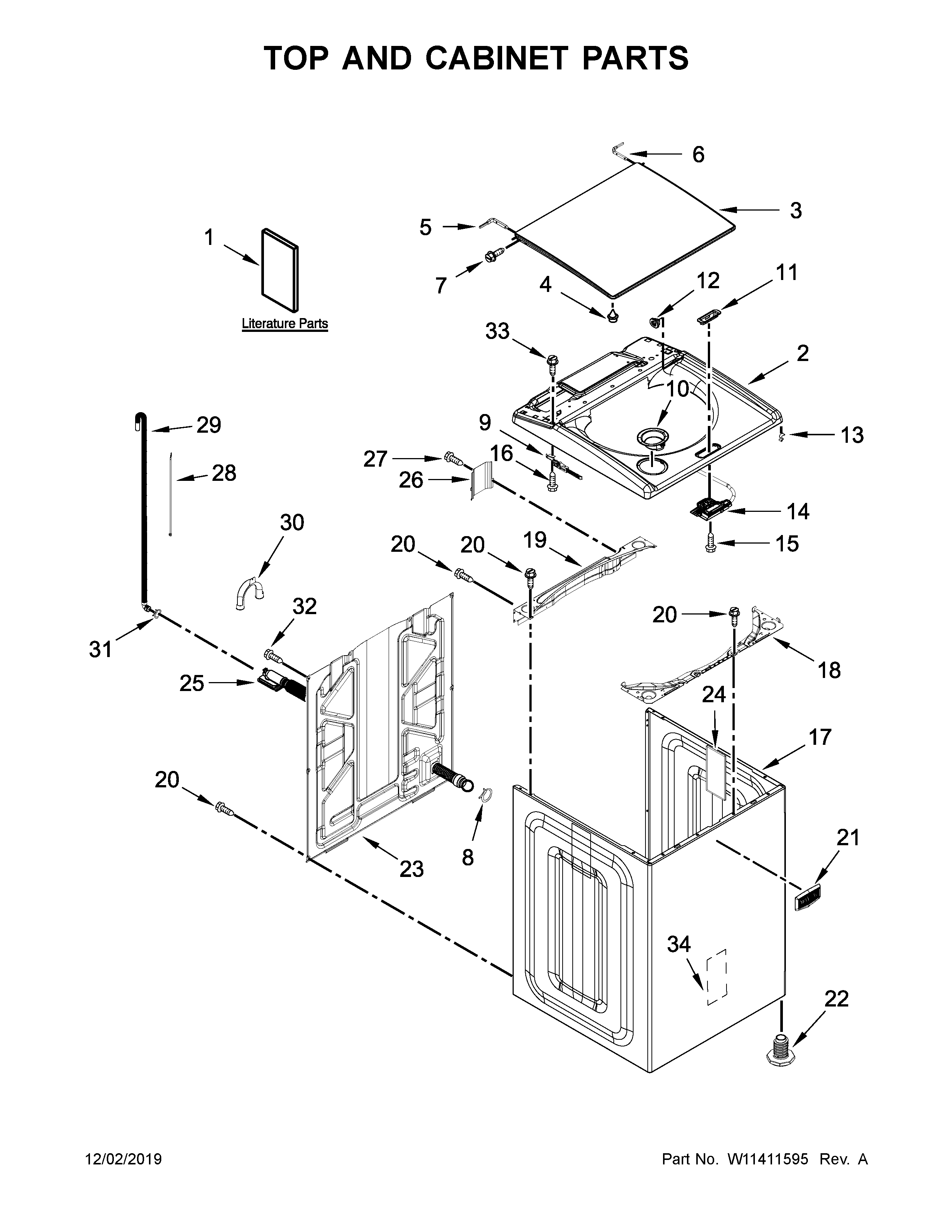

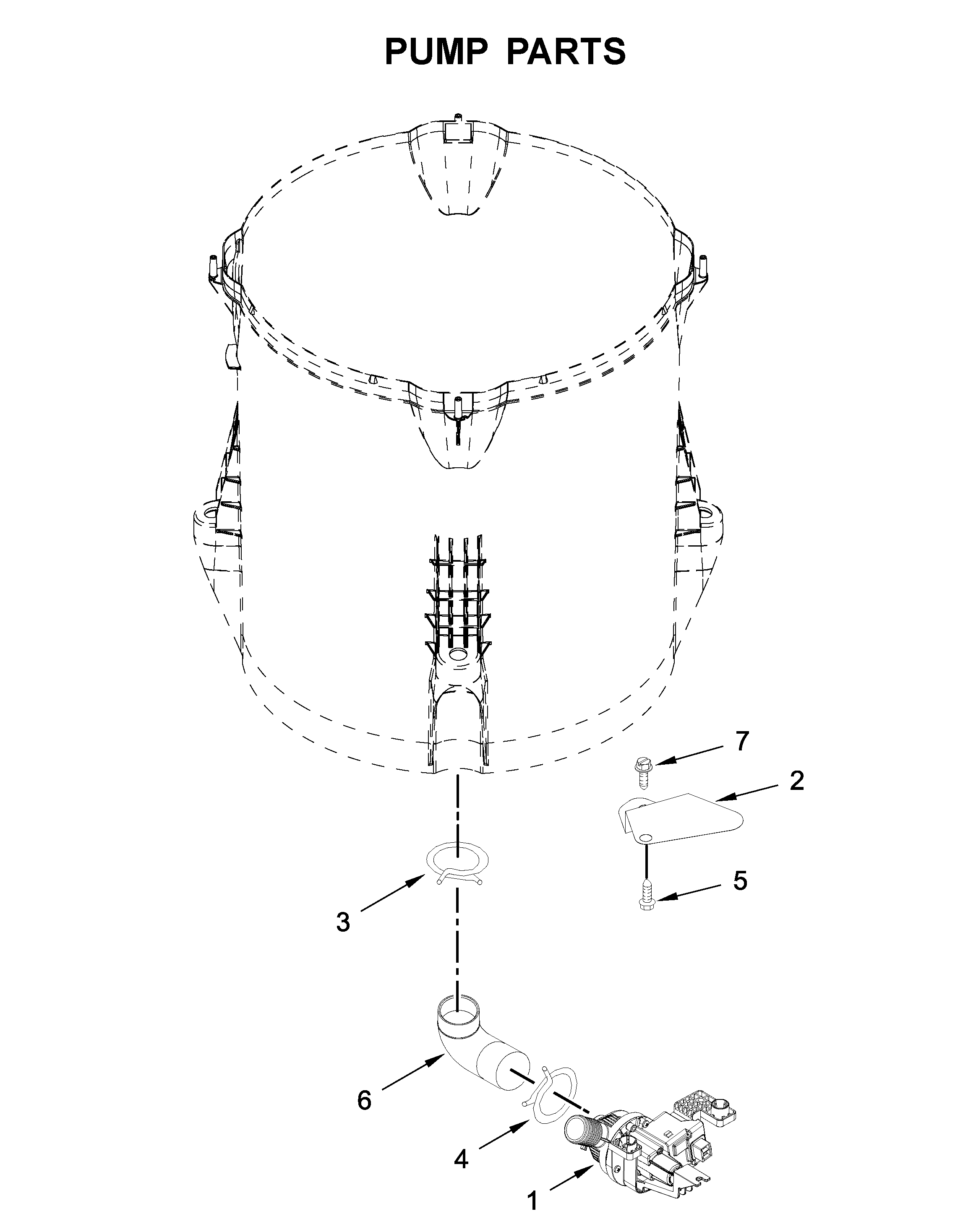

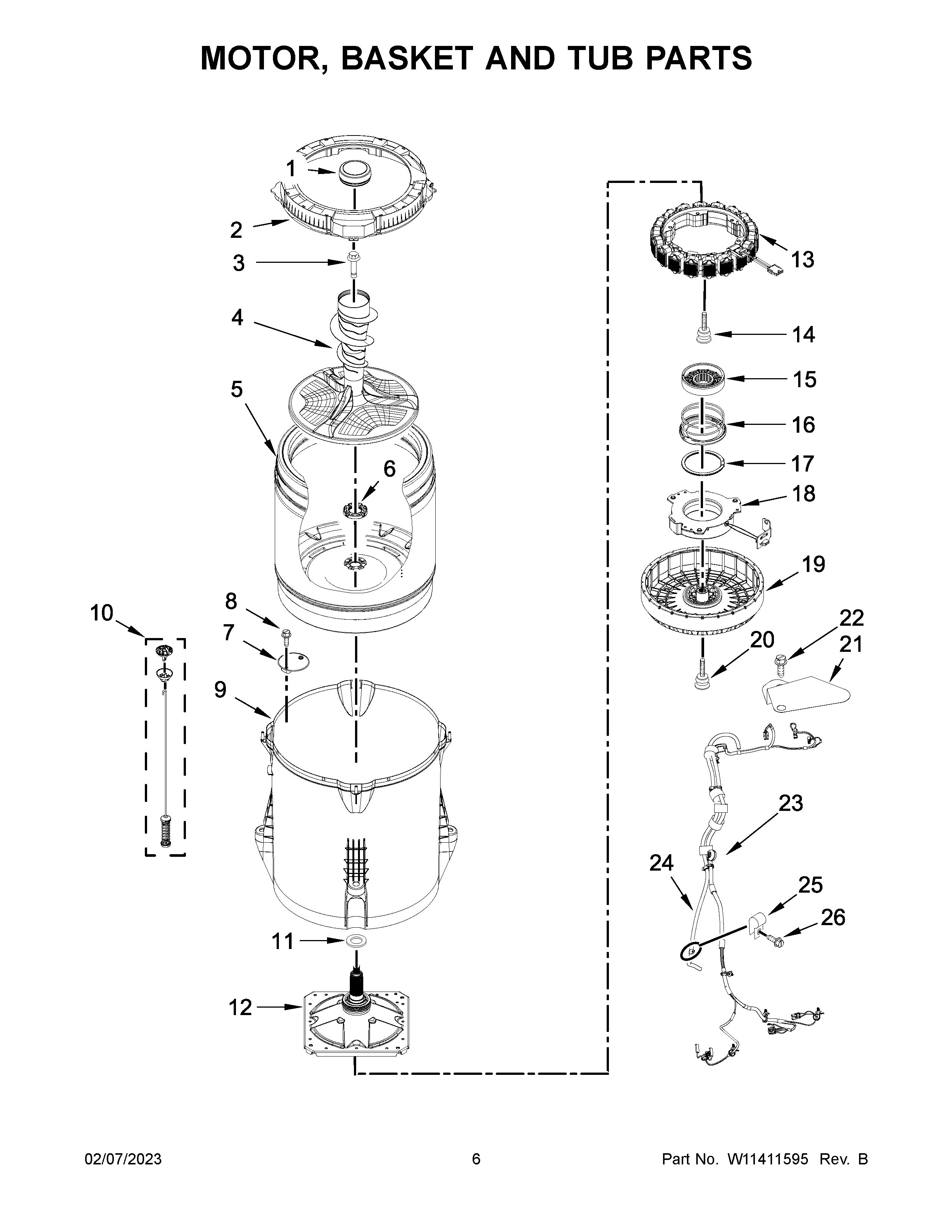

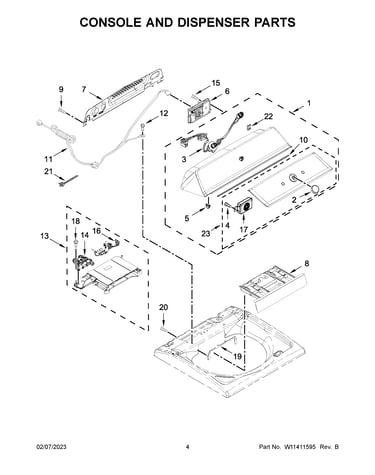

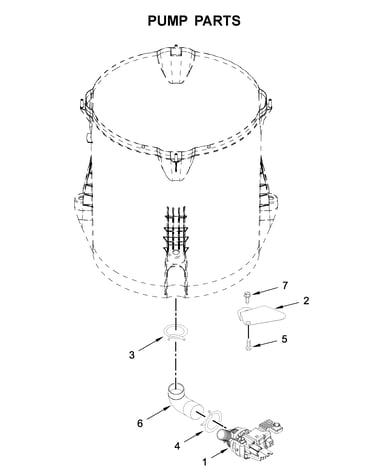

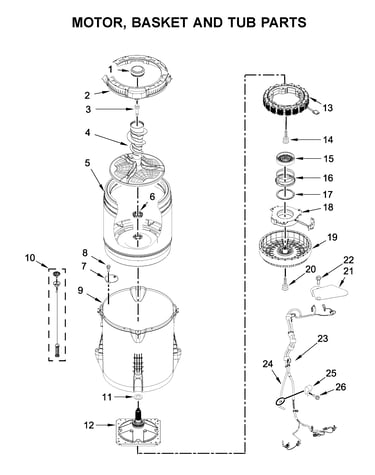

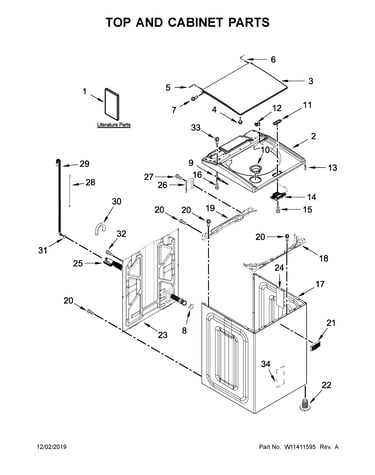

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |

Spring Support W10006494
Spring support

Part #W10006494

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
BEST SELLER
$32.59
31% OFF MSRP : $47.00
In Stock
Slider W10447975
Slider

Part #W10447975

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10447975. Substitute parts can look different from the original.
BEST SELLER
$32.59
31% OFF MSRP : $47.00
In Stock
30mm Spiral W10275082
30mm spiral

Part #W10275082

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
BEST SELLER
$32.59
31% OFF MSRP : $47.00
In Stock
Clutch Coil W10905022
Clutch coil

Part #W10905022

Replaced by #W10754448

?
Manufacturer substitution
This part replaces W10905022. Substitute parts can look different from the original.
BEST SELLER
$76.30
19% OFF MSRP : $94.00
In Stock
Drive Assembly W11134159
Drive assembly

Part #W11134159

Replaced by #W11393685

?
Manufacturer substitution
This part replaces W11134159. Substitute parts can look different from the original.
BEST SELLER
$219.21
$10.00 OFF Phone Price : $229.21
In Stock
Washer Water Inlet Valve W11096267
Washer water inlet valve

Part #W11096267

Replaced by #W11165546

?
Manufacturer substitution
This part replaces W11096267. Substitute parts can look different from the original.
BEST SELLER
$63.48
24% OFF MSRP : $83.00
In Stock
Washer Agitator Assembly W10821990
Washer agitator assembly

Part #W10821990

Replaced by #W11550891

?
Manufacturer substitution
This part replaces W10821990. Substitute parts can look different from the original.
BEST SELLER
$62.52
19% OFF MSRP : $77.00
In Stock
Washer Drain Pump W10727777
Washer drain pump

Part #W10727777

Replaced by #W10876600

?
Manufacturer substitution
This part replaces W10727777. Substitute parts can look different from the original.
BEST SELLER
$104.38
20% OFF MSRP : $130.00
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.56
47% OFF MSRP : $22.00
In Stock
Washer Washplate Screw W10625252
Washer washplate screw

Part #W10625252

Replaced by #W10752187

?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.13
78% OFF MSRP : $14.00
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
