What does E1 mean on a Kenmore Elite dryer?
On Kenmore model 11069132410, an E1-related code typically points to an exhaust temperature problem (the control is seeing temperature that is out of the normal operating range). The most common causes are a venting restriction or a failing temperature sensor (thermistor).
What to check first (fast, no parts)
- Clean the lint screen completely.
- Check the vent run behind the dryer for kinks, crushing, or a loose connection.
- Confirm the vent pipe and exterior hood flap are clear of lint and debris.
- Run a Timed Dry, heated cycle (not Air Only) and see if the code returns.
- If your display shows a vent warning (such as “Check Vent”), treat it as an airflow problem first.
Likely causes and the most common fixes
If airflow is restricted, the dryer can overheat and trigger temperature-related errors. If airflow is good, the thermistor or a related safety device is the next place we look.
| What you notice | Most likely cause | What we do next |
|---|---|---|
| Long dry times, hot cabinet, burning smell | Blocked or crushed venting | Clear/shorten vent, clean exterior hood, verify vent length/elbows per the installation guide |
| Code returns quickly even with good airflow | Thermistor drifting out of range | Test/replace the thermistor; for this model, see dryer thermistor WP8577274 |
| Dryer runs but heat cuts out, then returns | Overheating protection opening due to airflow or heat issue | Fix venting first; then inspect heating circuit and thermostats |
Why it matters
When exhaust temperature is too high or too low, the dryer cannot control heat correctly. That leads to poor drying performance, repeated shutdowns, and unnecessary wear on the heating system and drum components.
When to use the manual
If your display shows an “F# E#” style code (for example, F1 E1), the dryer is reporting a service condition. We follow the troubleshooting steps and code guidance in the 11069132410 owner’s manual to narrow it down before replacing parts.
Last updated: February 2026
How many cubic feet is a Kenmore series 500 dryer?
Kenmore “500 series” is a series label, not a single capacity; cubic feet varies by the exact model. For Kenmore electric dryer model 11069132410, capacity is typically in the 6.5 to 7.0 cu. ft. range for full-size 27-inch dryers; confirm the exact number in the 11069132410 owner's manual.
How to find the exact capacity for your dryer
Use these quick checks to get the precise cubic feet for your specific Kenmore dryer:
- Look in the Specifications section of the 11069132410 owner's manual
- Check the model/serial tag (usually inside the door opening) and match the exact model number
- If you have multiple Kenmore dryers in the home, verify you are reading the tag for 11069132410
- If the manual lists drum dimensions instead of cubic feet, use the spec page in the manual (it will state capacity when provided)
Typical capacity ranges (so you know what to expect)
Most Kenmore full-size dryers fall into a few common capacity bands:
| Dryer type | Typical capacity | What it’s best for |
|---|---|---|
| Compact / apartment-size | 3.4 to 4.4 cu. ft. | Small loads, tight spaces |
| Full-size (most 27-inch) | 6.5 to 7.4 cu. ft. | Everyday family laundry |
| Extra-large | 7.5 cu. ft. and up | Bulky items, large households |
Why it matters
Capacity affects load size, drying performance, and cycle time. Overloading a drum that is closer to 6.5 cu. ft. can reduce airflow and lead to longer dry times, even when the heater and blower are working correctly.
Related tip for better drying (often mistaken for “small capacity”)
If loads seem to take too long, we focus on airflow first:
- Clean the lint screen every load
- Make sure the vent run is not crushed or kinked
- Keep the dryer area above 45°F for proper sensor-cycle operation (per the manual)
- Verify the dryer is level so clothes tumble and contact sensor strips correctly
Last updated: February 2026
Where is the model number on a Kenmore series 500 dryer?
On a Kenmore Series 500 dryer like model 11069132410, the model number is printed on the model and serial tag. You will usually find that tag on the door opening (door jamb) on the cabinet frame; some units also place it on the back of the dryer near the top.
Quick places to check first
- Open the dryer door and look along the cabinet frame around the opening
- Check the left and right sides of the door opening (door jamb area)
- Look just inside the opening near the lint screen housing
- If you do not see it inside the door area, check the back panel near the top edge
- Wipe dust off the label; the print can be faint
What the tag looks like and what to write down
The tag typically lists both a model number and a serial number. We recommend copying both exactly as shown because parts diagrams and compatibility depend on the full model.
| You need | Why it matters | Example format |
|---|---|---|
| Model number | Matches the correct parts list for your dryer | 11069132410 |
| Serial number | Helps confirm production series and revisions | Letters and numbers |
Why it matters

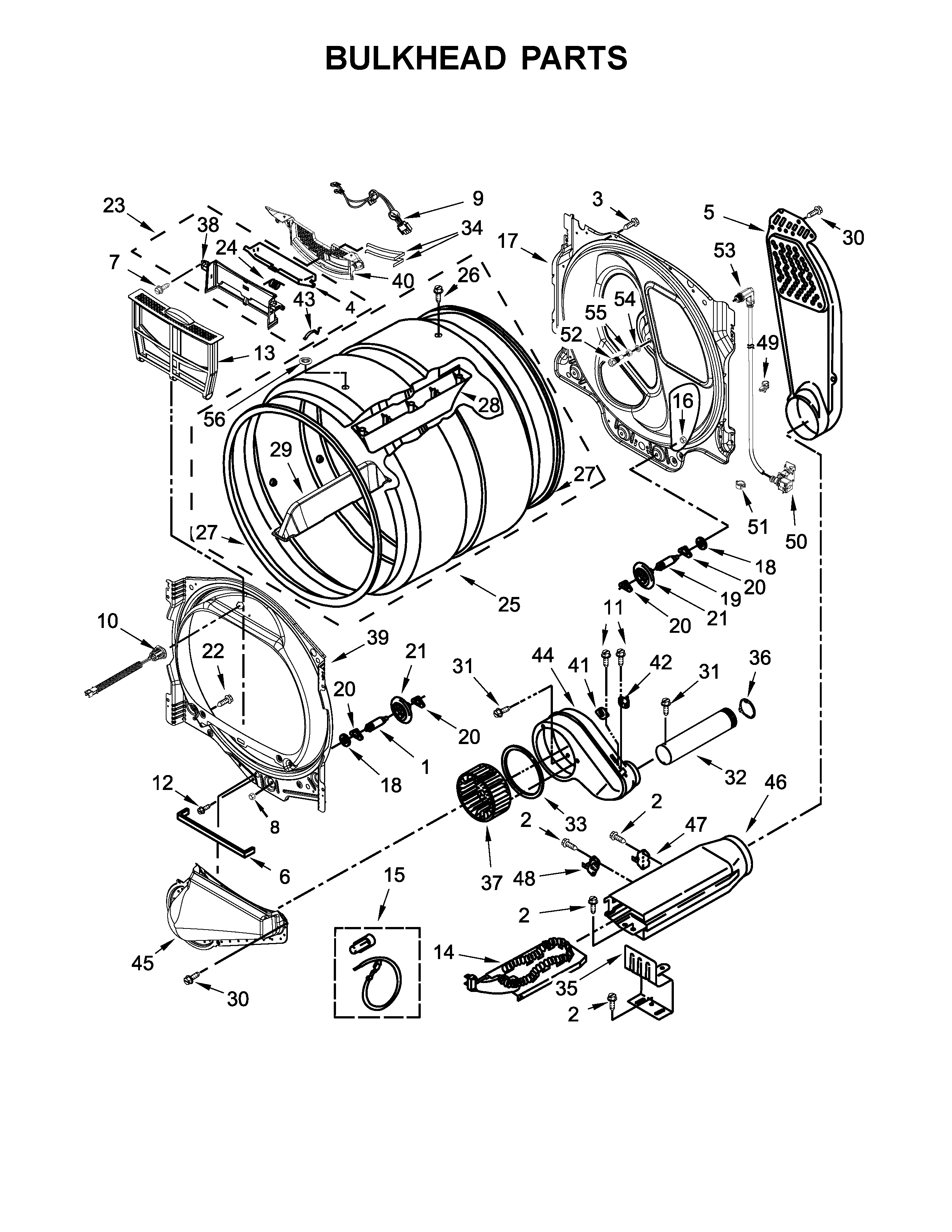

Using the exact model number helps us match the correct Kenmore electric dryer parts, including common wear items like the dryer drum support roller WPW10314173 and dryer idler pulley W10837240. It also ensures you follow the right safety and installation details in the 11069132410 installation guide.
Last updated: February 2026
