Kenmore 25329111992 upright freezer

Kenmore 25329111992 upright freezer Parts

Here are the diagrams and repair parts for Kenmore 25329111992 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 25329111992 Freestanding Freezers

  • Refrigerator Filter Dryer for Kenmore 25329111992 - Part 5303305677

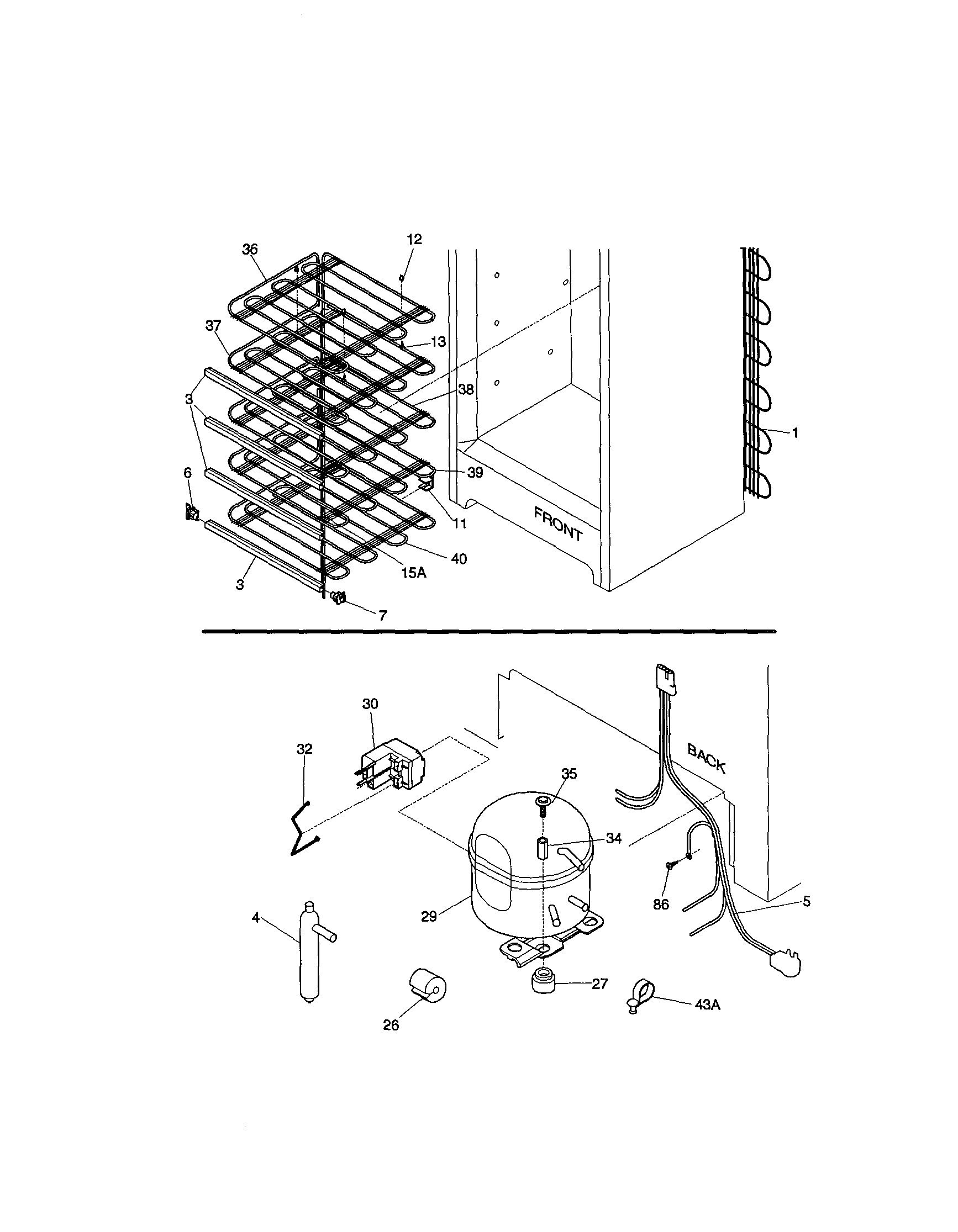

    System diagram

    Filter Drier

    Part #216634500

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    In Stock
    $25.36
    19% OFF Phone Price : $31.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Gasket - Refrigeration Seal Part By Frigidaire for Kenmore 25329111992 - Part 5304507199

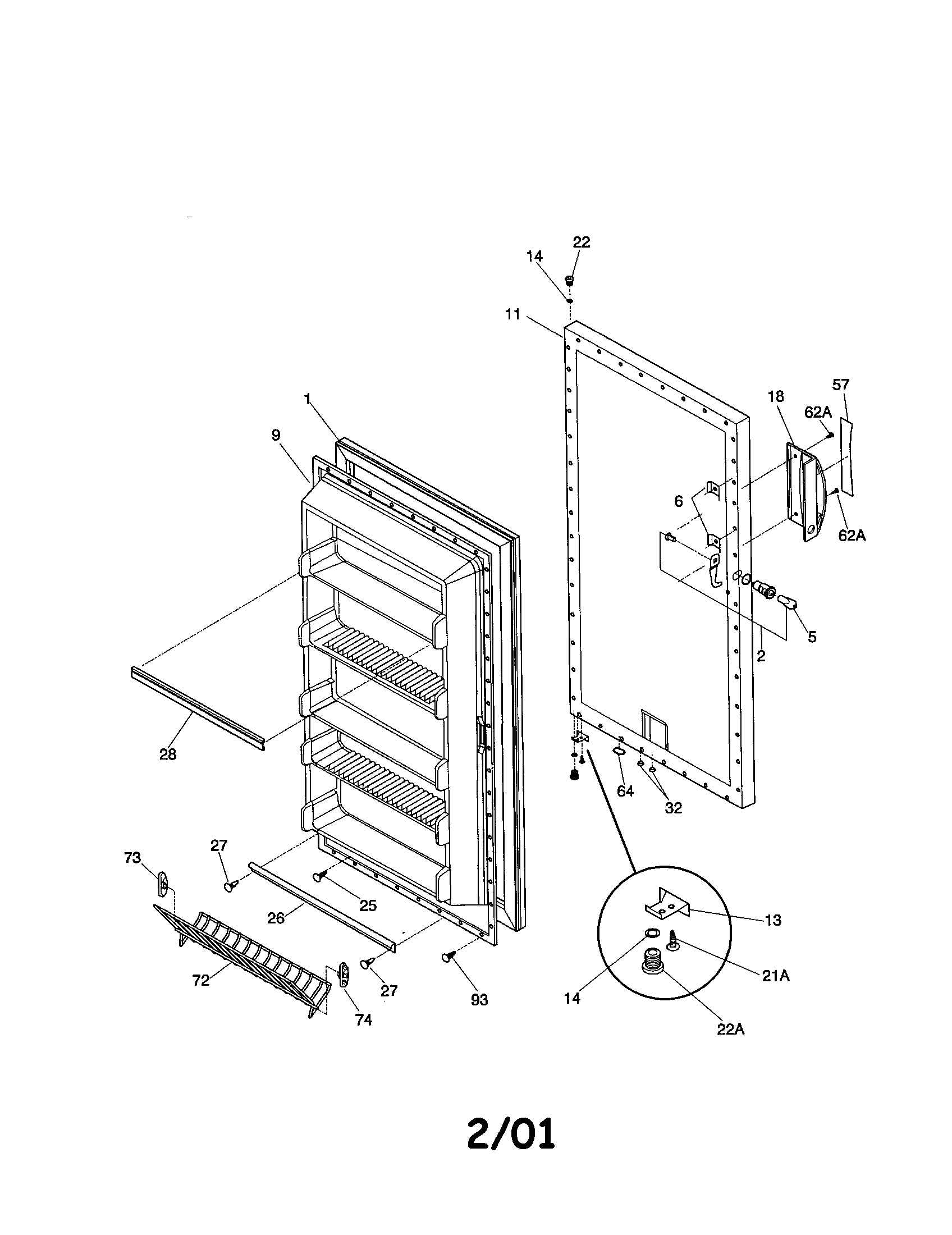

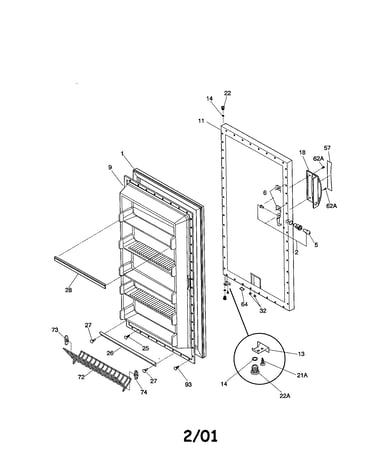

    Door diagram

    Freezer Door Gasket

    Part #216522312

    Replaced by #5304507199

    Info Icon
    Manufacturer substitution
    This part replaces 216522312. Substitute parts can look different from the original.
    In Stock
    $100.16
    11% OFF Phone Price : $112.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Gibson Freezer Door Key for Kenmore 25329111992 - Part 297147700

    Door diagram

    Freezer Door Key

    Part #216702900

    Replaced by #297147700

    Info Icon
    Manufacturer substitution
    This part replaces 216702900. Substitute parts can look different from the original.
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Refrigerator Light Bulb for Kenmore 25329111992 - Part 5304517886

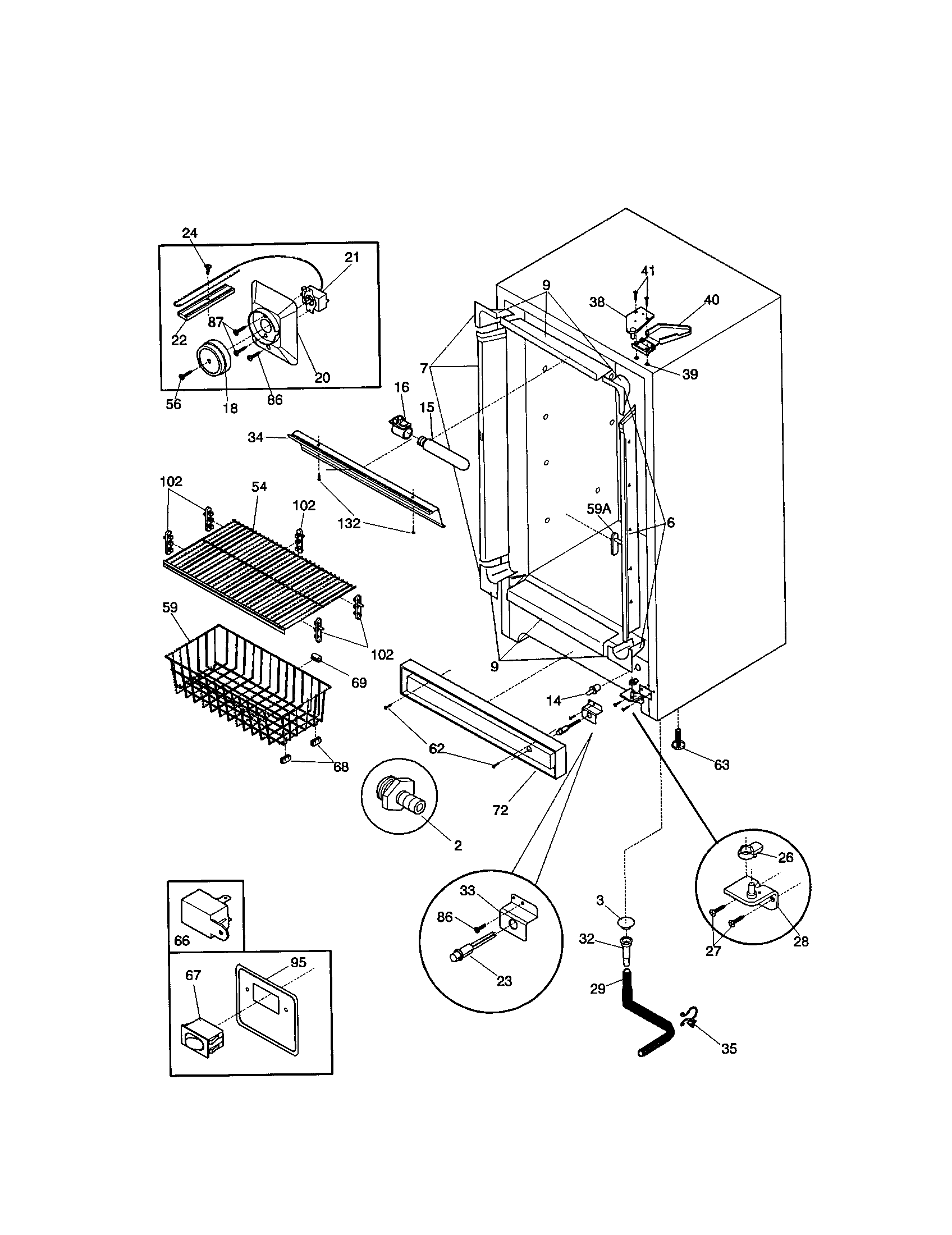

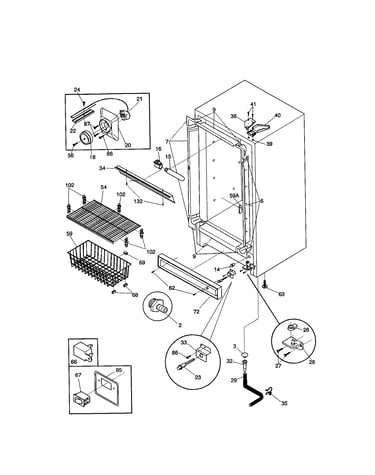

    Cabinet diagram

    Light Bulb

    Part #216608600

    Replaced by #5304517886

    Info Icon
    Manufacturer substitution
    This part replaces 216608600. Substitute parts can look different from the original.
    In Stock
    $54.71
    10% OFF Phone Price : $60.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Kit for Kenmore 25329111992 - Part 5304511983

    System diagram

    Compressor

    Part #216639800

    Replaced by #5304511983

    Info Icon
    Manufacturer substitution
    This part replaces 216639800. Substitute parts can look different from the original.
    In Stock
    $537.14
    $12.00 OFF Phone Price : $549.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Crosley Freezer Door Switch for Kenmore 25329111992 - Part 297243800

    Cabinet diagram

    Light Plunger

    Part #216472300

    Replaced by #297243800

    Info Icon
    Manufacturer substitution
    This part replaces 216472300. Substitute parts can look different from the original.
    In Stock
    $20.61
    23% OFF Phone Price : $26.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Secondary Gasket for Kenmore 25329111992 - Part 216524201

    Door diagram

    Sec, Gasket

    Part #216524200

    Replaced by #216524201

    Info Icon
    Manufacturer substitution
    This part replaces 216524200. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $38.00
    14% OFF Phone Price : $44.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Tappan Freezer Shelf Trim for Kenmore 25329111992 - Part 5304509723

    System diagram

    Shelf Trim

    Part #216444800

    Replaced by #5304509723

    Info Icon
    Manufacturer substitution
    This part replaces 216444800. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.02
    16% OFF Phone Price : $37.02Info Icon
    Minus Item
    Qty
    Plus Item
  • White-westinghouse Freezer Shelf Support for Kenmore 25329111992 - Part 297001500

    System diagram

    Support

    Part #08037928

    Replaced by #297001500

    Info Icon
    Manufacturer substitution
    This part replaces 08037928. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.29
    49% OFF Was : $20.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Crosley Heat Exchanger for Kenmore 25329111992 - Part 216401500

    System diagram

Kenmore Upright Freezer 25329111992 FAQs

Most upright freezers last 10 to 20 years, and many land around 12 to 15 years with normal household use. For a Kenmore upright freezer like model 25329111992, lifespan depends most on airflow, clean condenser coils, and a tight-sealing door gasket.

Typical lifespan ranges

Lifespan varies by how hard the freezer works (room temperature, door openings, frost buildup) and how well key components are maintained.

Upright freezer condition Typical lifespan What usually shortens it
Well maintained, good ventilation 15 to 20 years Dirty coils, warm location
Average maintenance 12 to 15 years Door seal leaks, heavy use
Poor maintenance or hot garage 8 to 12 years Constant running, icing
What you can do to reach the high end of the range

These steps reduce compressor run time and prevent temperature swings.

  • Keep the freezer in a cool, dry, well-ventilated spot (not next to a furnace or in direct sun).
  • Clean dust off the condenser area regularly; restricted airflow makes the compressor work harder.
  • Check for air leaks and replace a torn or loose freezer door gasket 5304507199.
  • Avoid overpacking; leave space for air circulation around shelves and baskets.
  • Defrost and remove heavy frost if your model is not frost-free; thick frost acts like insulation on the evaporator.
  • Keep the temperature steady (around 0°F for most upright freezers) and avoid frequent dial changes.
Why it matters

A freezer that runs longer than it should (from dirty coils or a leaking door seal) can shorten the life of the sealed system and compressor, increase energy use, and lead to soft ice cream or thawing during warm weather.

When “end of life” is more likely

If you see these patterns, it is often time to troubleshoot cooling performance and airflow.

  • Runs almost constantly
  • Frost buildup returns quickly
  • Cabinet feels unusually warm on the outside
  • Food is soft or temperatures swing

Last updated: January 2026

On a Kenmore upright freezer like model 25329111992, the model number is printed on a rating label inside the cabinet or on the cabinet frame near the door opening. Common spots include the inside side wall, the ceiling area, behind the kick plate, or the back of the unit.

Most common label locations to check
  • Inside the freezer on a side wall (upper area is common)
  • On the cabinet frame just inside the door opening
  • On the ceiling panel inside the freezer
  • Behind the lower kick plate or toe grille
  • On the back exterior panel
Quick steps to find it fast
  1. Open the door and scan the cabinet frame around the opening first.
  2. Look up at the inside ceiling panel and the upper side walls.
  3. Check behind the kick plate (unplug the freezer first if you need to remove it).
  4. If you still do not see it, check the back of the freezer near the lower area.
What the label usually shows (and what to write down)
Label item What it’s used for Example format
Model number Matching parts to your exact freezer 25329111992
Serial number Identifying production run and age Letters and numbers
Electrical info Confirming power specs for service Volts/amps
Why it matters

Kenmore model numbers can look similar across different upright freezers, but parts like a door gasket, temperature control knob, or light switch can vary by version. Using the exact model number helps us match the correct replacement part the first time.

Related parts you might match by model

Last updated: January 2026

Your Kenmore upright freezer model 25329111992 has an approximate capacity of 20.8 cubic feet. Use this cubic foot rating when comparing replacement freezers, planning food storage, and choosing organization accessories that fit your cabinet layout.

How to confirm the cubic feet on your exact unit

The most reliable place to verify capacity is the appliance identification label.

  • Look on an inside side wall near the top of the cabinet
  • Check around the door opening (liner) area
  • Check the back exterior panel near the power cord entry
  • Write down the full model and serial number before ordering parts
Where you look What you may see Why it helps
Model and serial label Model number and electrical ratings Confirms you are matching parts to 25329111992
Product rating label Capacity listed in cu. ft. Confirms the cubic feet for your specific build
Interior layout Shelf and bin positions Helps you choose the right storage parts
Why it matters

Capacity affects how you load the freezer for proper airflow. Overpacking can block circulation, create warm spots, and increase frost buildup, even when the temperature control is set correctly.

Parts that affect usable space and temperature stability

If you are losing space to frost or struggling with organization, these model-matched parts are common fixes:

Last updated: January 2026

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
