How long should a Kenmore gas stove last?
A Kenmore gas range like model 79036723603 typically lasts 15 years with normal household use. Keeping burners clean, ensuring good airflow, and fixing ignition or temperature issues early helps you get the full service life from the oven and cooktop.
Most ranges reach their expected life when heat, gas flow, and electrical ignition stay in spec.
- Cooking frequency and high-heat use (broil, self-clean cycles)
- Cleaning habits (grease buildup around burners and oven cavity)
- Proper installation and gas supply setup
- Quick repair of weak ignition, uneven flames, or temperature swings
- Using the correct replacement parts when something fails
Use these habits to reduce wear on igniters, valves, and controls.
- Wipe spills promptly, especially sugary or starchy spills that can harden
- Keep burner ports clear so flames stay even and blue
- Avoid slamming the oven door; it protects the seal and hinges
- Run self-clean only as needed; high heat stresses components
- Follow the cleaning and care steps in the 79036723603 owner’s manual
If you see these issues, addressing them early often prevents bigger failures.
| Symptom | What it often points to | Example part for this model |
|---|---|---|
| Oven won’t heat or takes too long to light | Weak/hot-surface igniter | Igniter 5303935066 |
| Oven temperature is inconsistent | Temperature sensor drifting | Frigidaire range oven temperature sensor 316217002 |
| Burner flames are uneven or won’t adjust well | Gas regulation or valve issue | Range pressure regulator, surface burner valve |
A gas range that lights reliably and holds temperature cooks more evenly, uses fuel more efficiently, and reduces strain on components like the igniter and gas valve. Following the care guidance and troubleshooting section in the manual helps you catch problems before they shorten the range’s lifespan.
Last updated: February 2026
Where can I find my Kenmore Elite oven model number?
On the Kenmore Elite gas range model 79036723603, the model and serial number are printed on the serial plate located on the oven front frame behind the oven door (and on some versions, on the drawer side frame). The exact location is shown in the 79036723603 owner's manual.
Check these common label locations in this order:
- Open the oven door and look along the front frame (the face frame around the oven opening).
- Look behind the oven door on the front frame where the serial plate is mounted.
- If you do not see it there, pull out the storage/warming drawer and check the drawer side frame.
- Write down the model number, serial number, and any lot number/letter shown.
The serial plate is more than an ID tag; it helps us match the correct Kenmore range parts and setup details.
- Confirms the exact model for ordering parts and service
- Lists burner ratings (BTU) for your range
- Identifies the fuel type and the gas pressure setting the range left the factory with
| Item | Example format | Used for |
|---|---|---|
| Model number | 79036723603 | Correct parts lookup |
| Serial number | Letters and numbers | Warranty and service history |
| Lot number/letter | Single letter/number | Production run details |
- Take a clear photo with your phone (no flash glare)
- Wipe gently with a damp cloth and mild soap, then dry
- Avoid scraping; it can remove printed characters
Using the exact model number prevents ordering the wrong igniter, oven temperature sensor, control panel, or gas valve for your Kenmore Elite range.
Last updated: February 2026
What replacement parts are most commonly needed for the 79036723603?
For the Kenmore Elite 79036723603 gas range, the most commonly replaced parts are the ones tied to ignition, oven temperature accuracy, and door sealing. Start by matching symptoms (no heat, won’t ignite, uneven baking, heat leaking) to the correct part using the diagrams in the owner's manual.
These are frequent wear items and failure points on gas ranges like the 79036723603:
- Ignition parts for burners and oven (clicking, delayed ignition, no flame)
- Oven temperature sensing parts (bakes too hot or too cool)
- Oven door sealing parts (heat loss, longer preheat, uneven baking)
- Control and user-interface parts (buttons not responding, display issues)
- Gas delivery and regulation parts (weak flame, inconsistent oven burner)
Here are examples of commonly needed replacements that are available for this model.
| Symptom | Likely part category | Example part on this page |
|---|---|---|
| Surface burner won’t spark or keeps clicking | Surface ignition | Range surface burner igniter 318306210 |
| Oven won’t light or takes too long to ignite | Oven ignition | Igniter 5303935066 |
| Oven temperature is inaccurate | Temperature sensing | Frigidaire range oven temperature sensor 316217002 |
| Heat leaks around oven door | Door seal | Crosley range oven door seal 318053120 |
| Oven burner issues (no bake flame) | Gas valve | Range oven gas valve 316404900 |
Use this quick process to avoid ordering the wrong component:
- Confirm the symptom (surface burner vs oven bake vs broil)
- Check for simple causes first (dirty burner ports, loose power cord, tripped breaker)

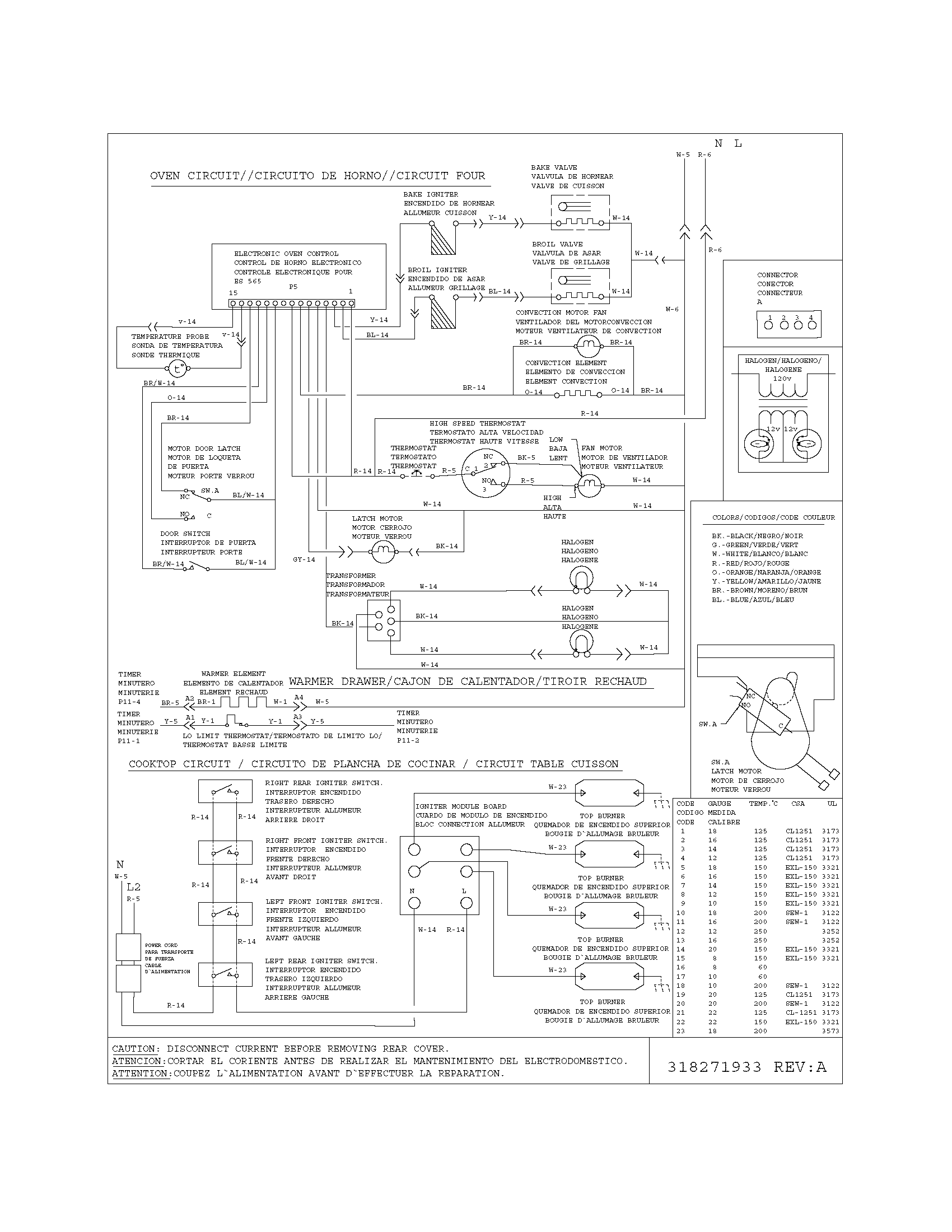

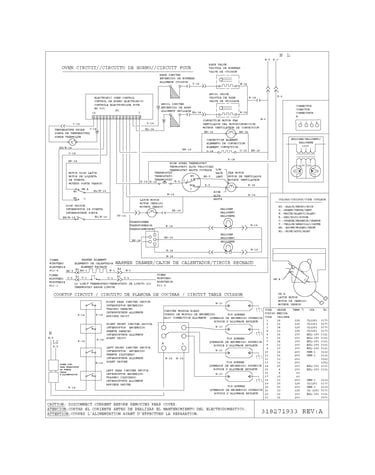

- Use the wiring diagram and component locations in the owner's manual
- Match the part by model number 79036723603 and by the diagram location
- Replace any damaged connectors or heat-brittle wiring you find during inspection
Gas range problems often look similar (for example, “no heat”), but the fix can be completely different depending on whether the failure is ignition, sensing, or gas control. Picking the correct part first saves time, prevents repeat repairs, and restores safe, consistent cooking performance.
Last updated: March 2026
