Frigidaire
Electric Range

Model #FGES3065KFB Frigidaire electric range

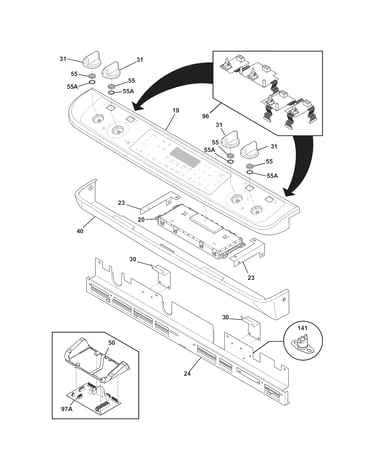

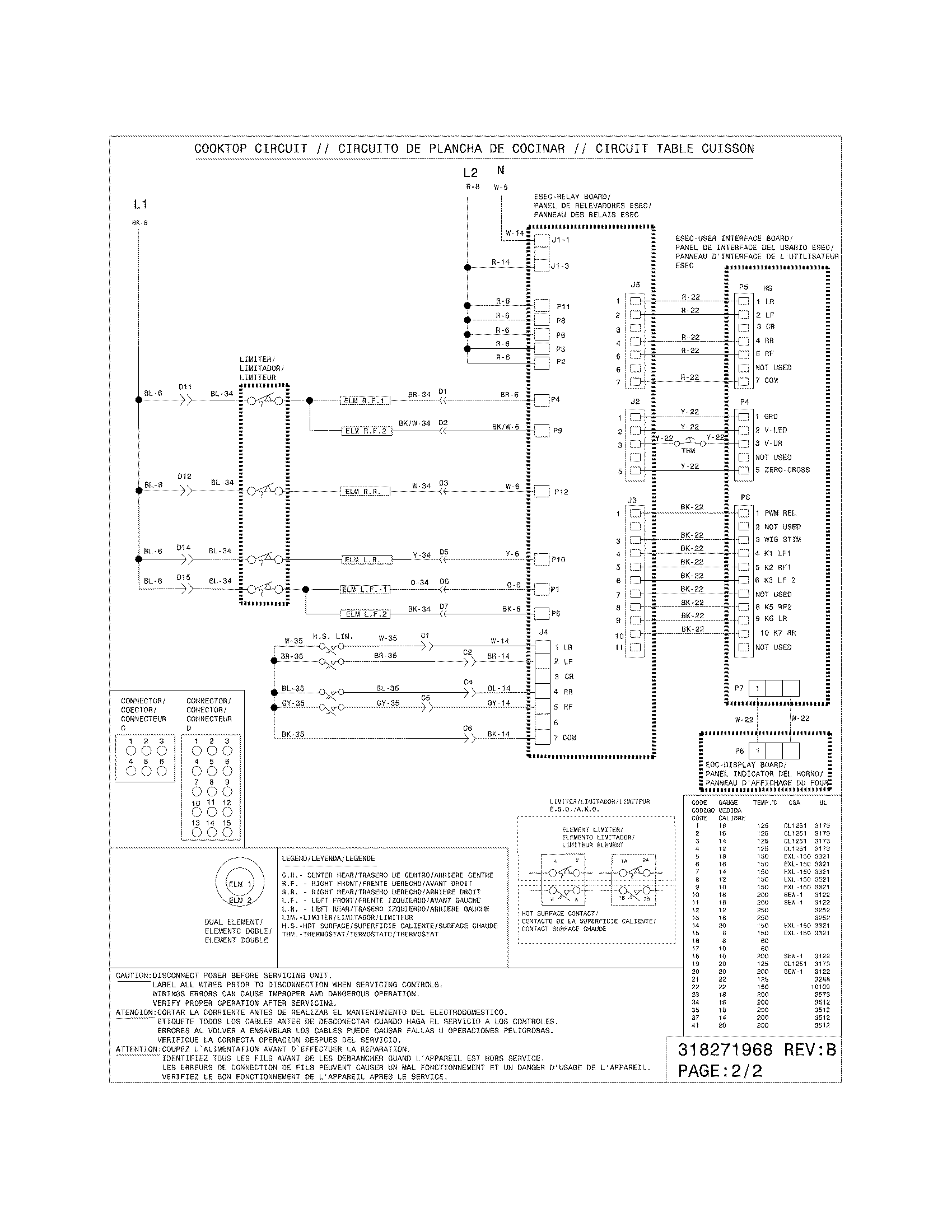

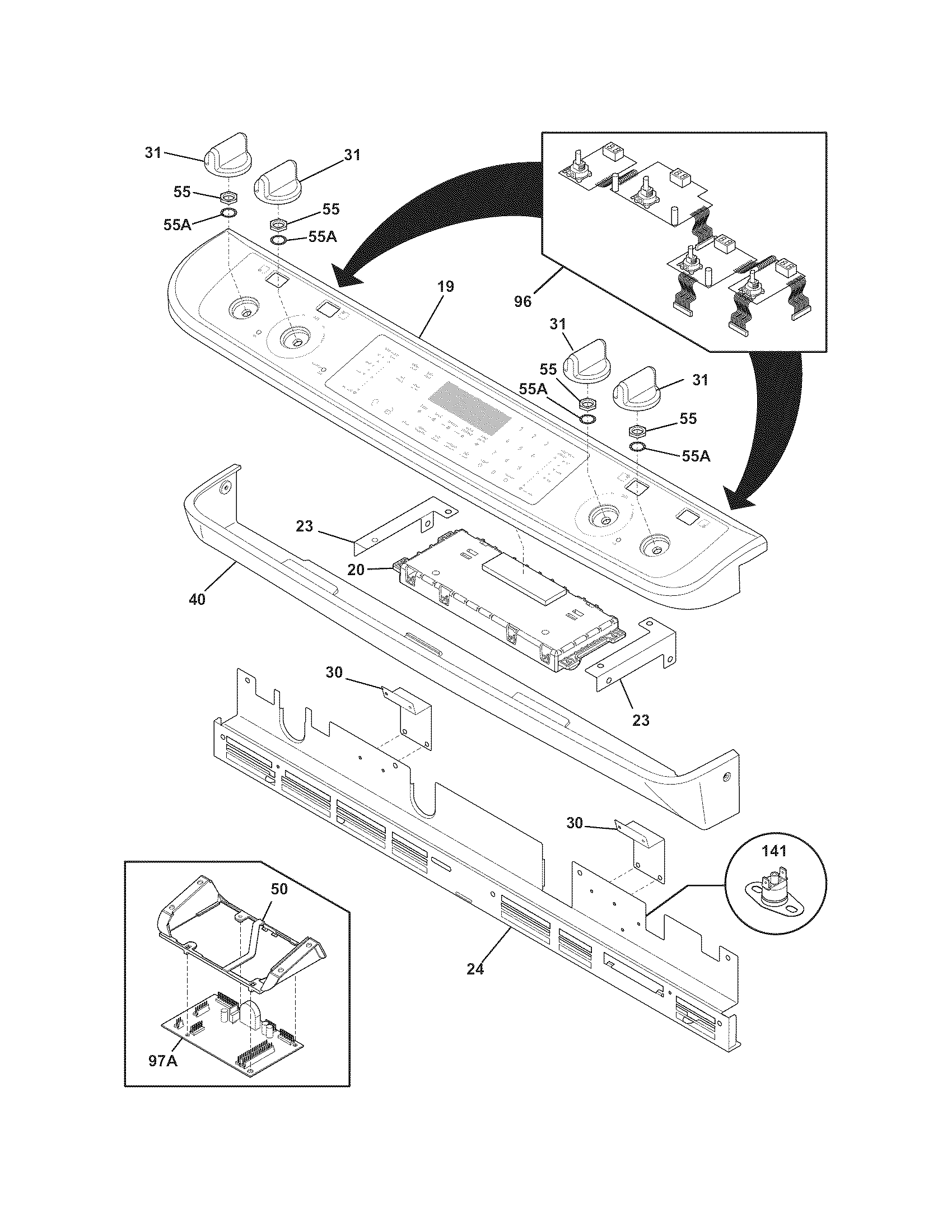

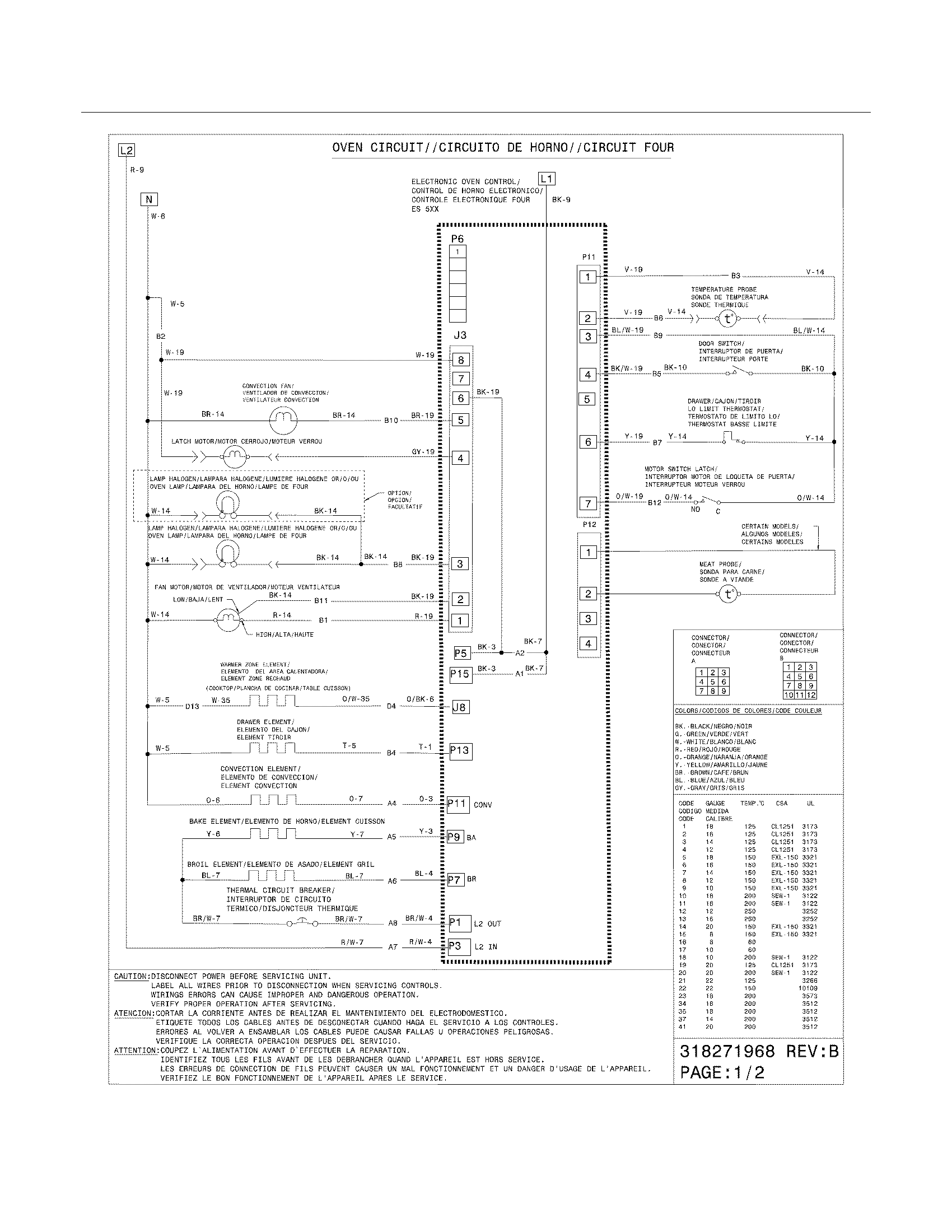

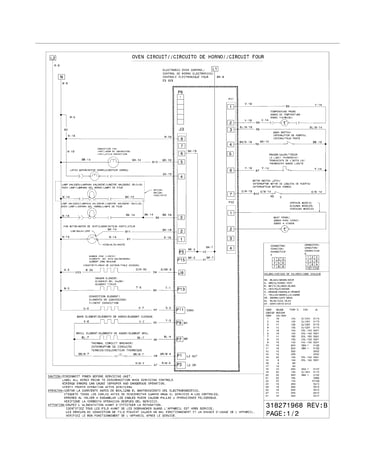

Here are the diagrams and repair parts for Frigidaire FGES3065KFB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 160 parts

    Range Oven Temperature Sensor#37

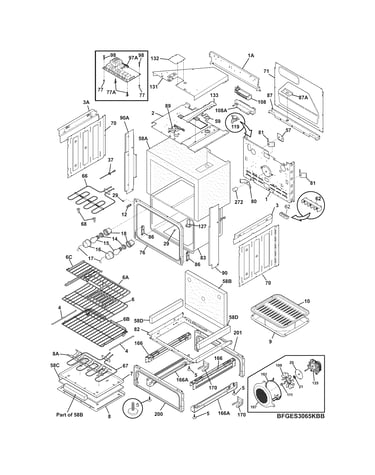

    Body Diagram

    Range oven temperature sensor

    Part #316217002
    BEST SELLER
    In Stock
    $44.19

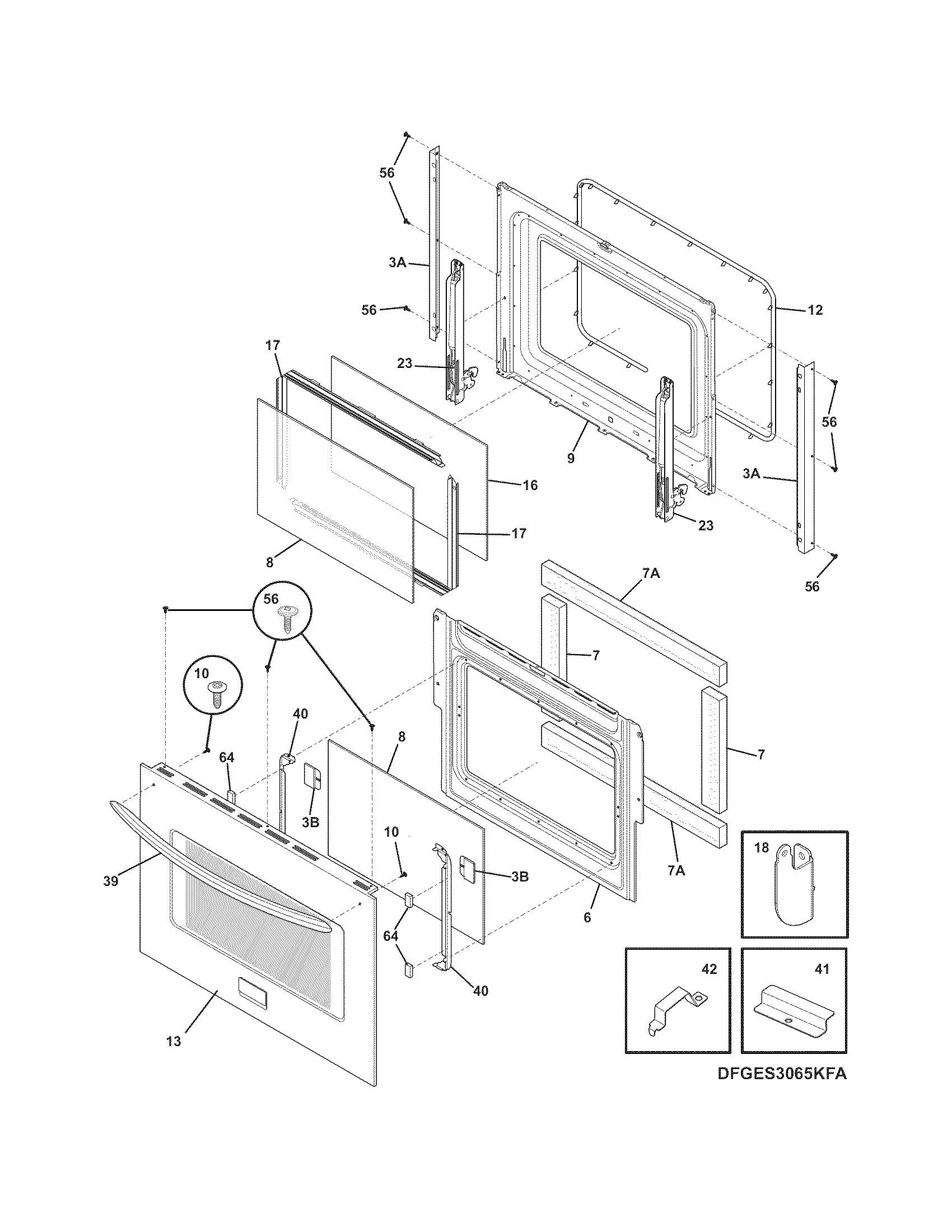

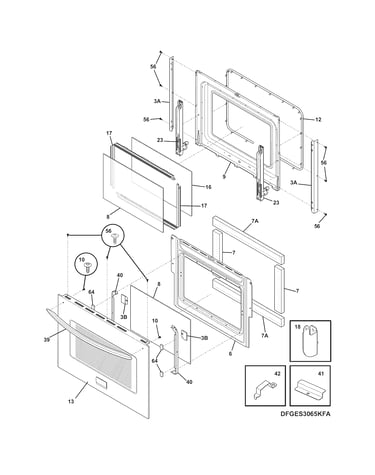

    Range Oven Door Inner Glass#8

    Door Diagram

    Range oven door inner glass

    Part #316117500
    Replaced by #316117502
    ?
    Manufacturer substitution
    This part replaces 316117500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $153.19

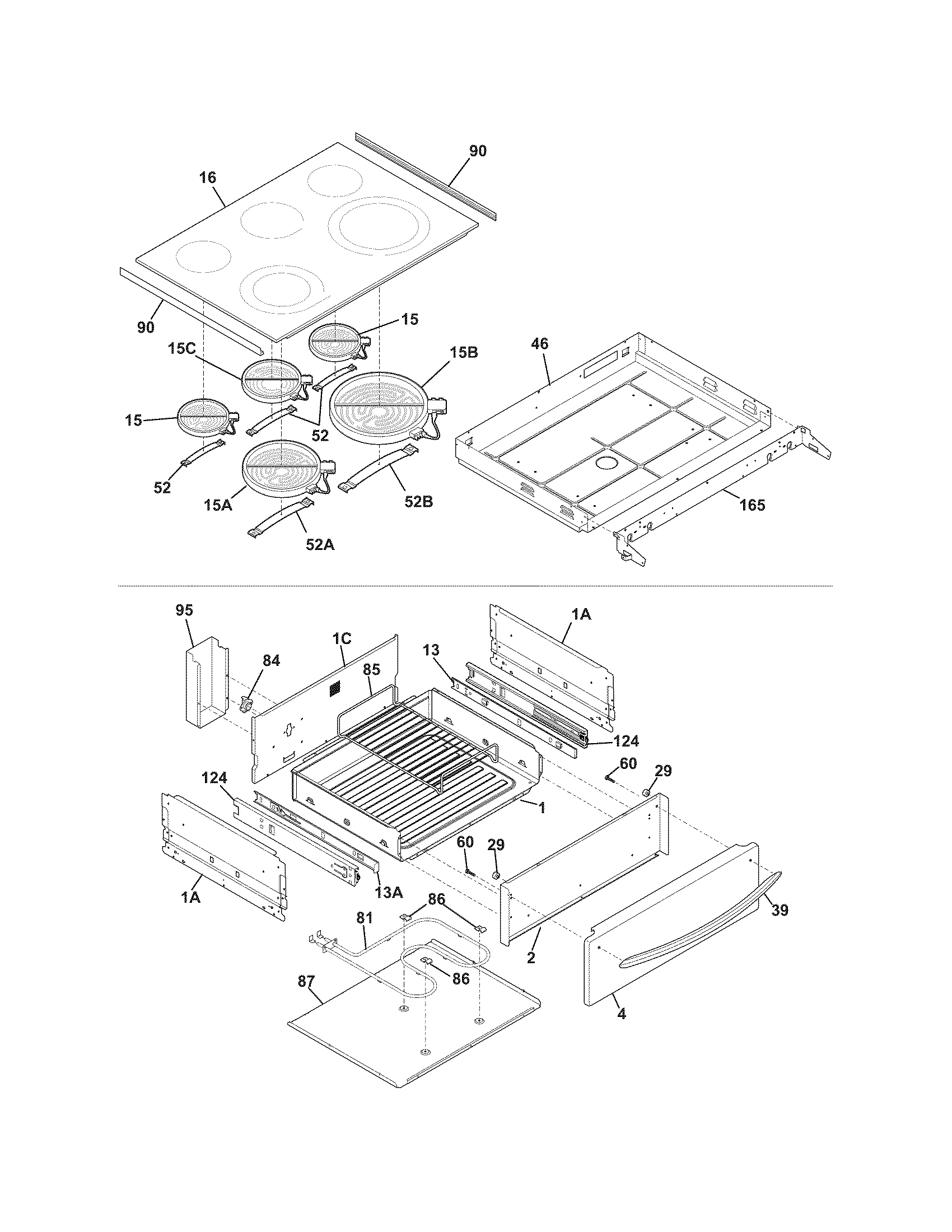

    Range Radiant Surface Element, 6-in#15

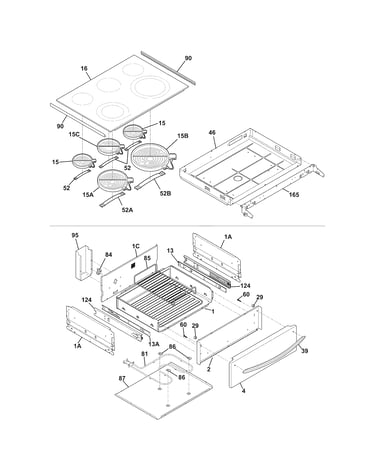

    Top/drawer Diagram

    Element

    Part #318198830
    Replaced by #318178110
    ?
    Manufacturer substitution
    This part replaces 318198830. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $113.79 |
    5% OFF
    MSRP: $120.00
    Range Dual Radiant Surface Element#15A

    Top/drawer Diagram

    Surface element

    Part #316465002
    Replaced by #316282000
    ?
    Manufacturer substitution
    This part replaces 316465002. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $152.09 |
    11% OFF
    MSRP: $170.00

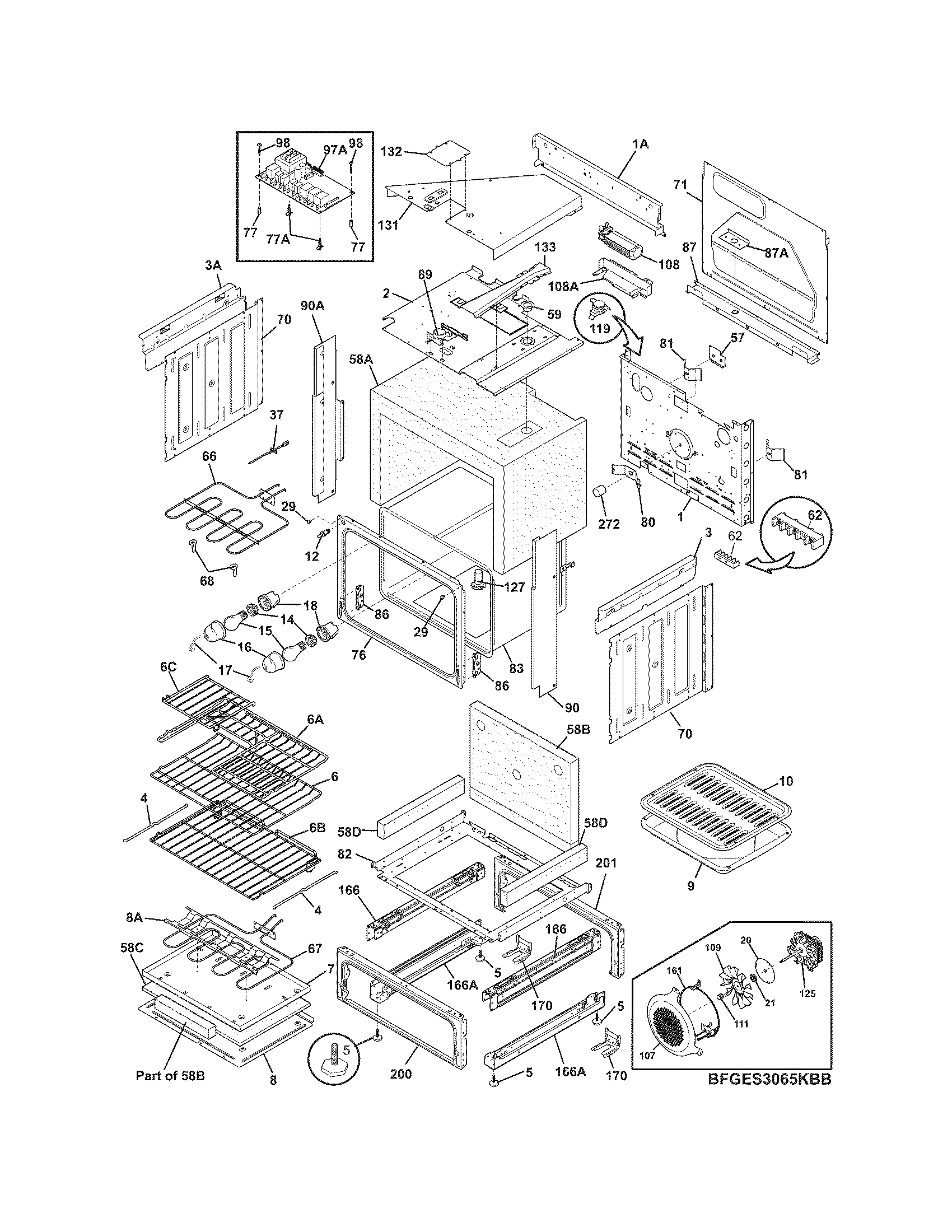

    Range Terminal Block#62

    Body Diagram

    Terminal block

    Part #5303935061
    Replaced by #5304409888
    ?
    Manufacturer substitution
    This part replaces 5303935061. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.59
    Range Oven Door Gasket#12

    Door Diagram

    Range oven door gasket

    Part #318053132
    BEST SELLER
    In Stock
    $24.99 |
    71% OFF
    MSRP: $87.00
    Range Dual Radiant Element#15B

    Top/drawer Diagram

    Surface element

    Part #318198940
    Replaced by #316282100
    ?
    Manufacturer substitution
    This part replaces 318198940. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $157.99 |
    7% OFF
    MSRP: $170.00
    Range Storage Drawer Outer Rail#124

    Top/drawer Diagram

    Range storage drawer outer rail

    Part #316105501
    BEST SELLER
    In Stock
    $69.69
    Range Bake Element#67

    Body Diagram

    Element

    Part #318254911
    Replaced by #318254916
    ?
    Manufacturer substitution
    This part replaces 318254911. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $171.48
    Range Convection Fan Blade Nut#111

    Body Diagram

    In Stock
    $18.86
