Homelite
Gas Line Trimmer

Model # Z725CE Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite Z725CE trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Screw 82600
#15

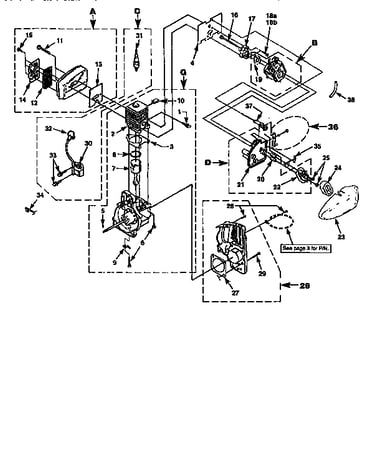

Carburetor diagram

Screw

Part #82600

The manufacturer no longer makes this part, and there's no substitute part

Washer 83009
#13

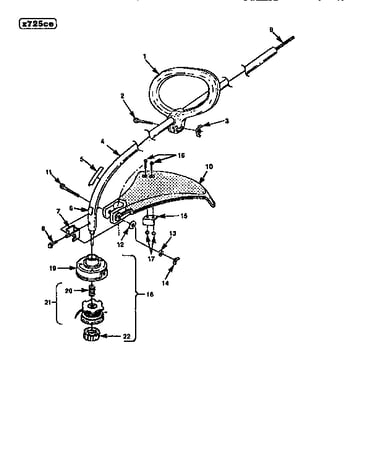

Drive shaft and cutter head assembly diagram

Washer

Part #83009

The manufacturer no longer makes this part, and there's no substitute part

Choke Clip 06469
#10

Carburetor diagram

Choke clip

Part #06469

The manufacturer no longer makes this part, and there's no substitute part

Crank A-07172
#36

Carburetor diagram

Crank

Part #A-07172

The manufacturer no longer makes this part, and there's no substitute part

Muffler Kit A-07142
#A

Carburetor diagram

Muffler kit

Part #A-07142

The manufacturer no longer makes this part, and there's no substitute part

Washer 65479-A
#13

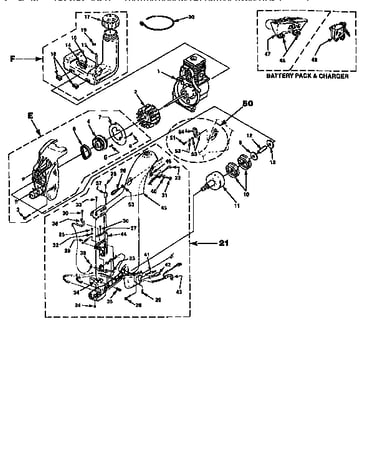

Starter assembly diagram

Washer

Part #65479-A

The manufacturer no longer makes this part, and there's no substitute part

Spring 07075
#39

Starter assembly diagram

Spring

Part #07075

The manufacturer no longer makes this part, and there's no substitute part

Ignition Module 06504-A
#30

Carburetor diagram

Ignition module

Part #06504-A

The manufacturer no longer makes this part, and there's no substitute part

Screw 82401
#25

Starter assembly diagram

Screw

Part #82401

The manufacturer no longer makes this part, and there's no substitute part

Nut 81289
#46

Starter assembly diagram

Nut

Part #81289

The manufacturer no longer makes this part, and there's no substitute part
