GE JKP40G*K3 electric range

GE JKP40G*K3 electric range Parts

Here are the diagrams and repair parts for GE JKP40G*K3 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JKP40G*K3 Wall Ovens

  • Range Broil Element for GE JKP40G*K3 - Part WB44X173

    #651

    All parts diagram

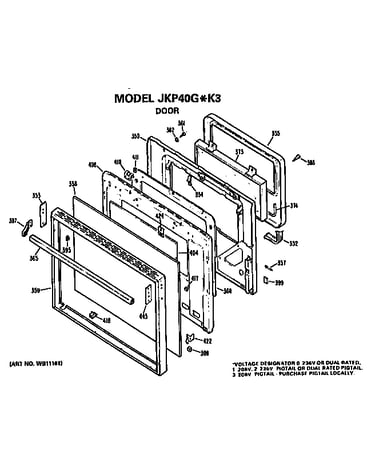

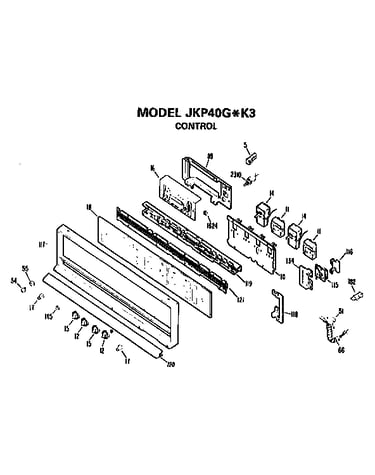

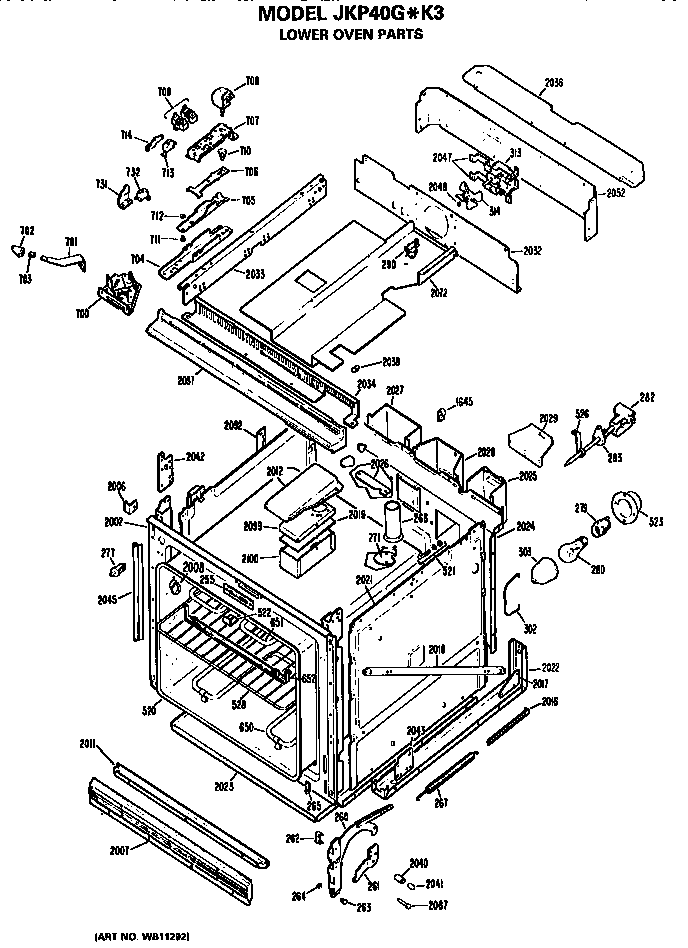

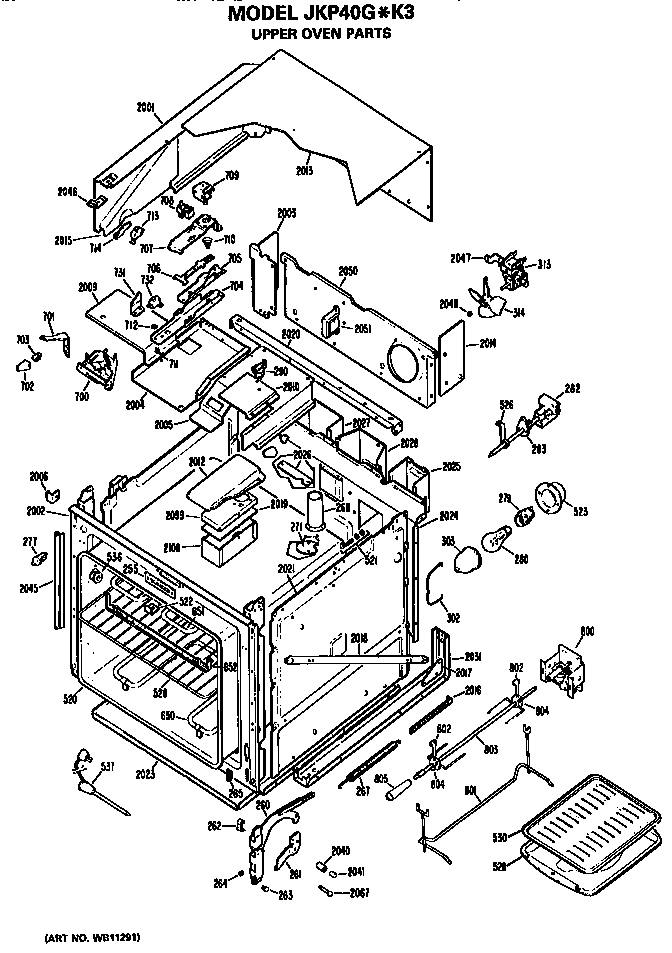

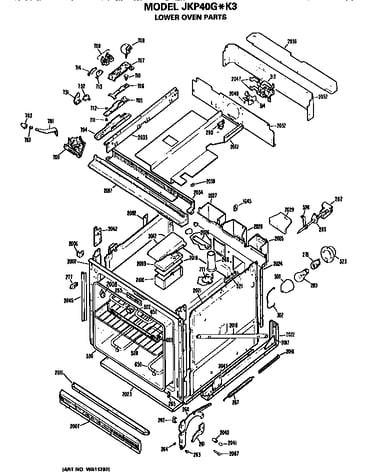

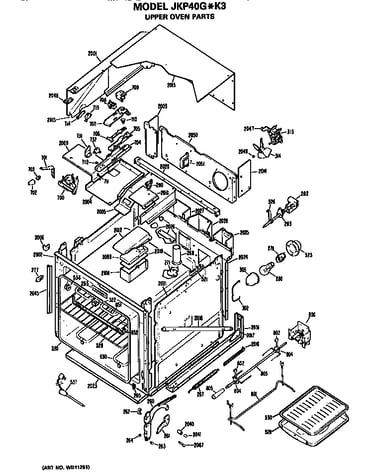

    Broil Unit

    Part #WB44X185

    Replaced by #WB44X173

    Info Icon
    Manufacturer substitution
    This part replaces WB44X185. Substitute parts can look different from the original.
    In Stock
    $36.19
    14% OFF Phone Price : $42.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Probe for GE JKP40G*K3 - Part WB20X5058

    #537

    All parts diagram

    Probe

    Part #WB20X5058

    The manufacturer no longer makes this part, and there's no substitute part

  • Refrigerator Evaporator Fan Blade for GE JKP40G*K3 - Part WR60X114

    #613

    All parts diagram

    Refrigerator Fan Blade

    Part #WR2X3198

    Replaced by #WR60X114

    Info Icon
    Manufacturer substitution
    This part replaces WR2X3198. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.44
    20% OFF Phone Price : $29.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Washer, 12-pack for GE JKP40G*K3 - Part WB1X119D

    #312

    All parts diagram

    Washer

    Part #WB1X119

    Replaced by #WB1X119D

    Info Icon
    Manufacturer substitution
    This part replaces WB1X119. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $24.60
    20% OFF Phone Price : $30.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Bail for GE JKP40G*K3 - Part WB2X7694

    #260

    All parts diagram

    Bail

    Part #WB2X7694
    This item is not returnable
    In Stock
    $8.78
    10% OFF Phone Price : $9.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for GE JKP40G*K3 - Part WB44X200

    #650

    All parts diagram

    Range Bake Element

    Part #WB44X200
    In Stock
    $33.15
    15% OFF Phone Price : $39.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for GE JKP40G*K3 - Part WB1X524

    #2067

    All parts diagram

    Screw

    Part #WB1X524
    In Stock
    $43.98
    Minus Item
    Qty
    Plus Item
  • Range Wire Harness Connector Kit for GE JKP40G*K3 - Part WB17X5060

    #782

    All parts diagram

    Range Wire Harness Connector Kit

    Part #WB17X5060
    In Stock
    $49.70
    11% OFF Phone Price : $55.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Spit Support for GE JKP40G*K3 - Part WB48X62

    #249

    All parts diagram

    Spit Support

    Part #WB48X62
    In Stock
    $125.90
    Minus Item
    Qty
    Plus Item
  • Locking P for GE JKP40G*K3 - Part WB2X7708

    #706

    All parts diagram

    Locking P

    Part #WB2X7708
    In Stock
    $58.16
    Minus Item
    Qty
    Plus Item
